Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

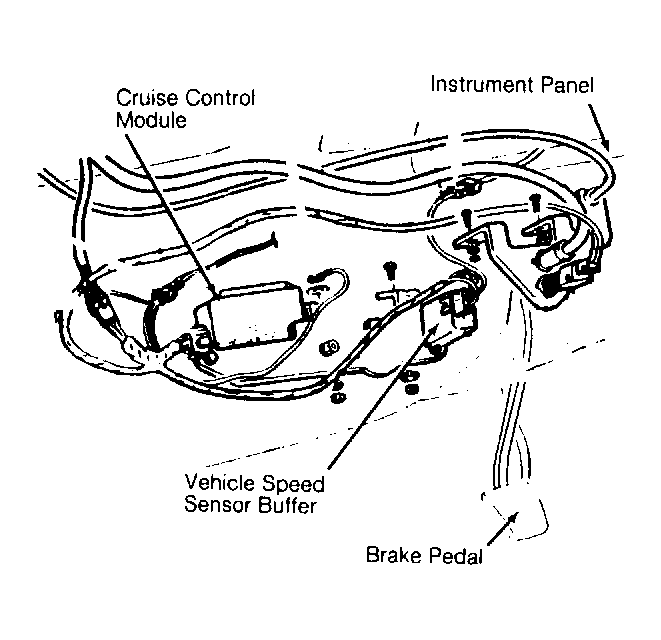

| Cruise Control Module | Behind left side of dash, to left of column. See Figure . |

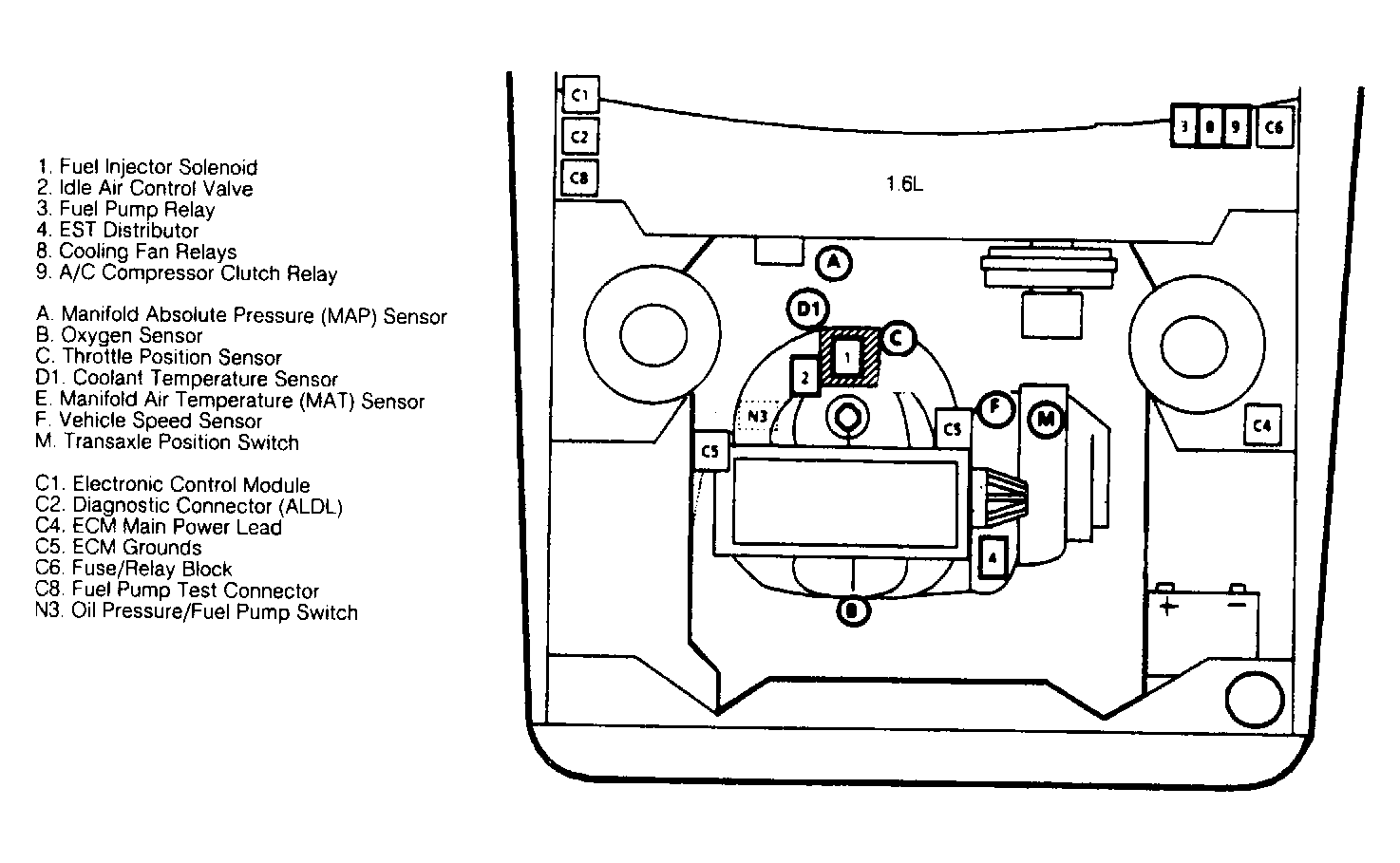

| Electronic Control Module (ECM) | Behind right kickpanel in passenger compartment. See Figure & 3. |
| Generator Inverting Buffer Module | Taped to support member near fuse/relay block (Green). |

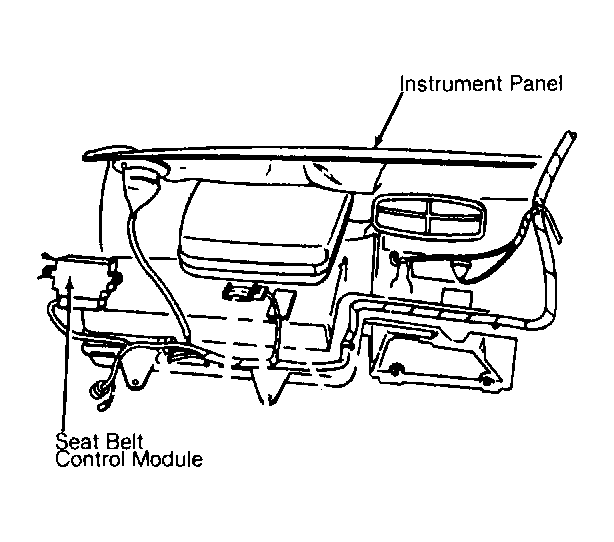

| Seat Belt Control Module | Behind right side of instrument panel. See Figure . |
