Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Controller | Under passenger's seat. | |

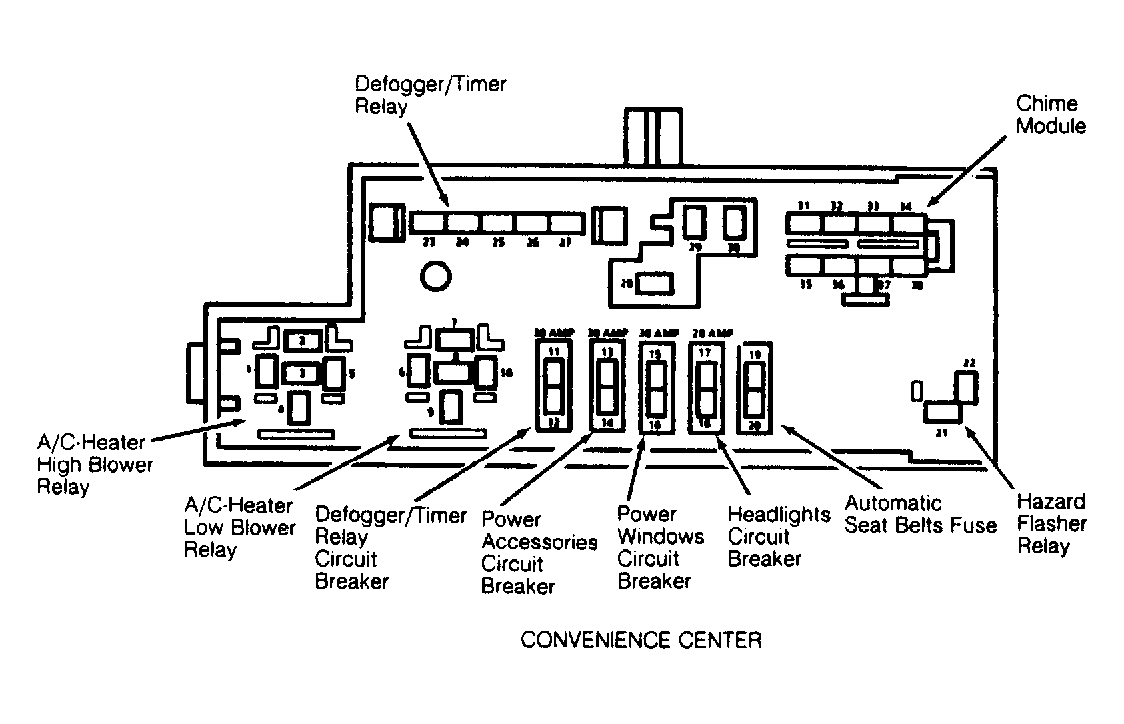

| Audio Alarm Mod. (Cutlass Sup.) | In convenience center. See Figure . | |
| Chime Module | In convenience center. See Figure . | |
| Cruise Control Module | Behind instrument cluster, left of brake pedal support. | |
| Direct Ignition System (DIS) Module | Below exhaust manifold, on right front of engine. | |
| Driver Information Center (DIC) | Behind right side of Module Instrument panel. | |
| Electronic Control Module (ECM) | ||
| 2.3L VIN "D" | In front of right strut tower. See Figure . | |
| 3.1L VIN "T" | In front of right strut tower. See Figure . | |
| 3.4L VIN "X" | In front of right strut tower. See Figure . | |
| 3.8L VIN "L" | In front of right strut tower. See Figure . | |
| Keyless Entry Module | On right rear passenger compartment, on rear shelf. | |
| Light Driver Module | Behind right side of dash, right of steering column. | |
| Lumbar Seat Control Module | Under driver's seat. | |

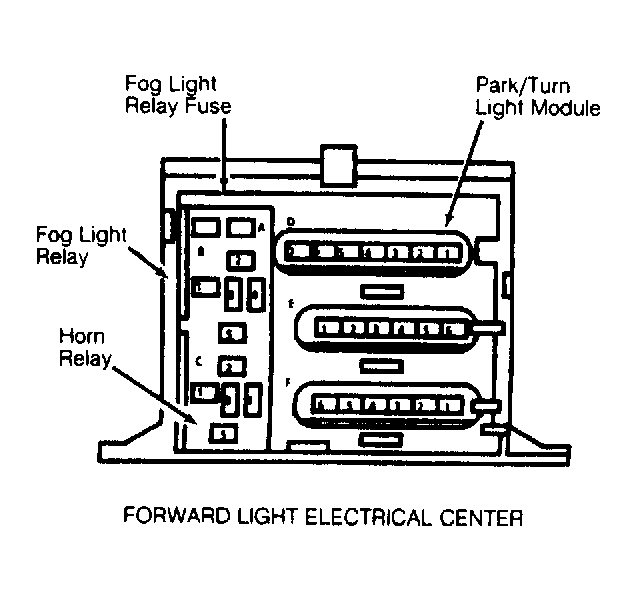

| Park/Turn Light Module | In forward light electrical center. See Figure . | |
| Passive Restraint Control Module | Behind right side of instrument panel. | |
| Radio Control Interface Module | Inside top of steering column. | |
| Sun Roof Module | In center of windshield header. | |
| Switch & Electronics Module | Center of steering column. | |
