Wiring Diagrams

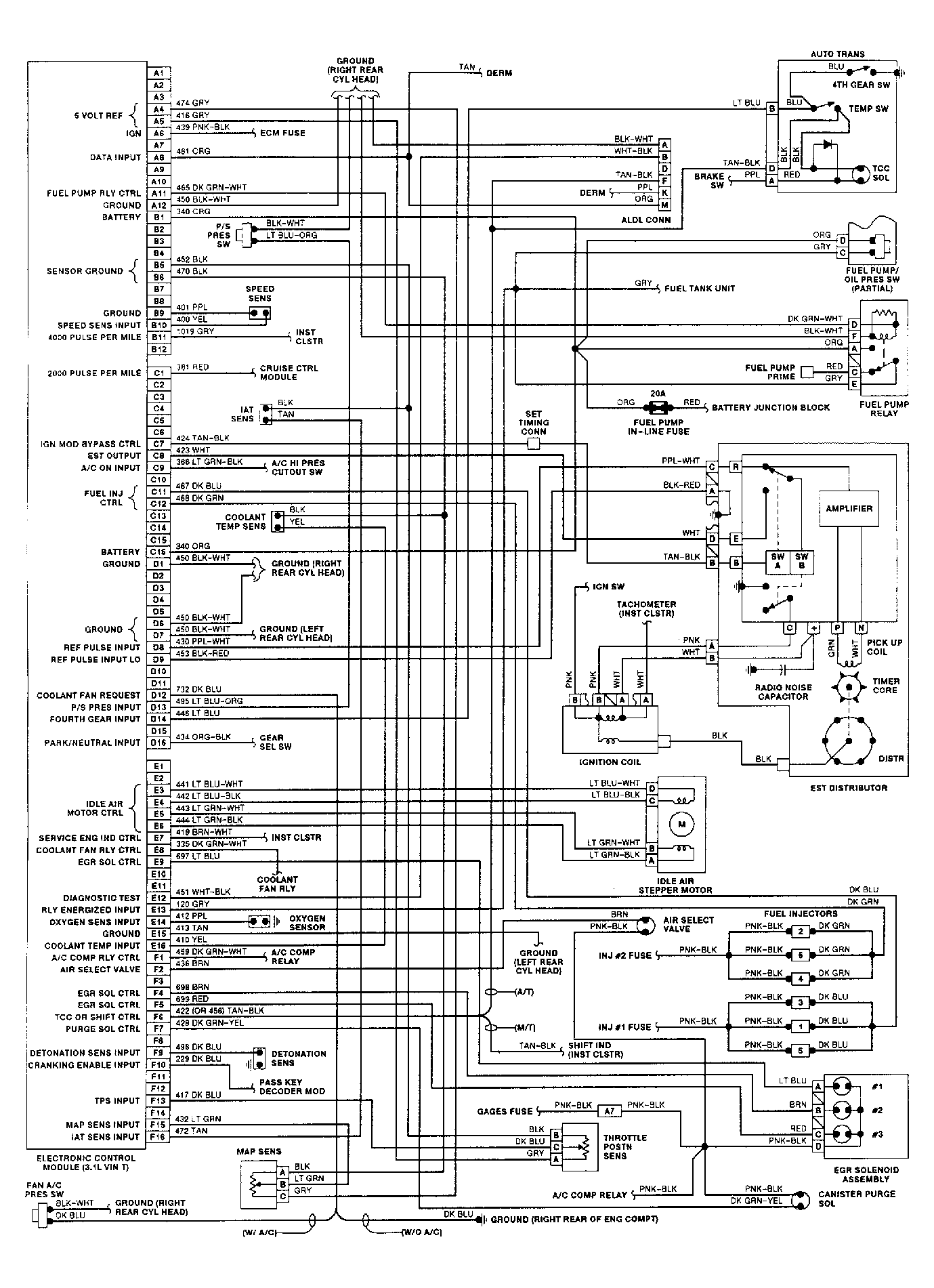

Fig 1: ECM Wiring Diagram, 3.1L VIN T

G92F05854

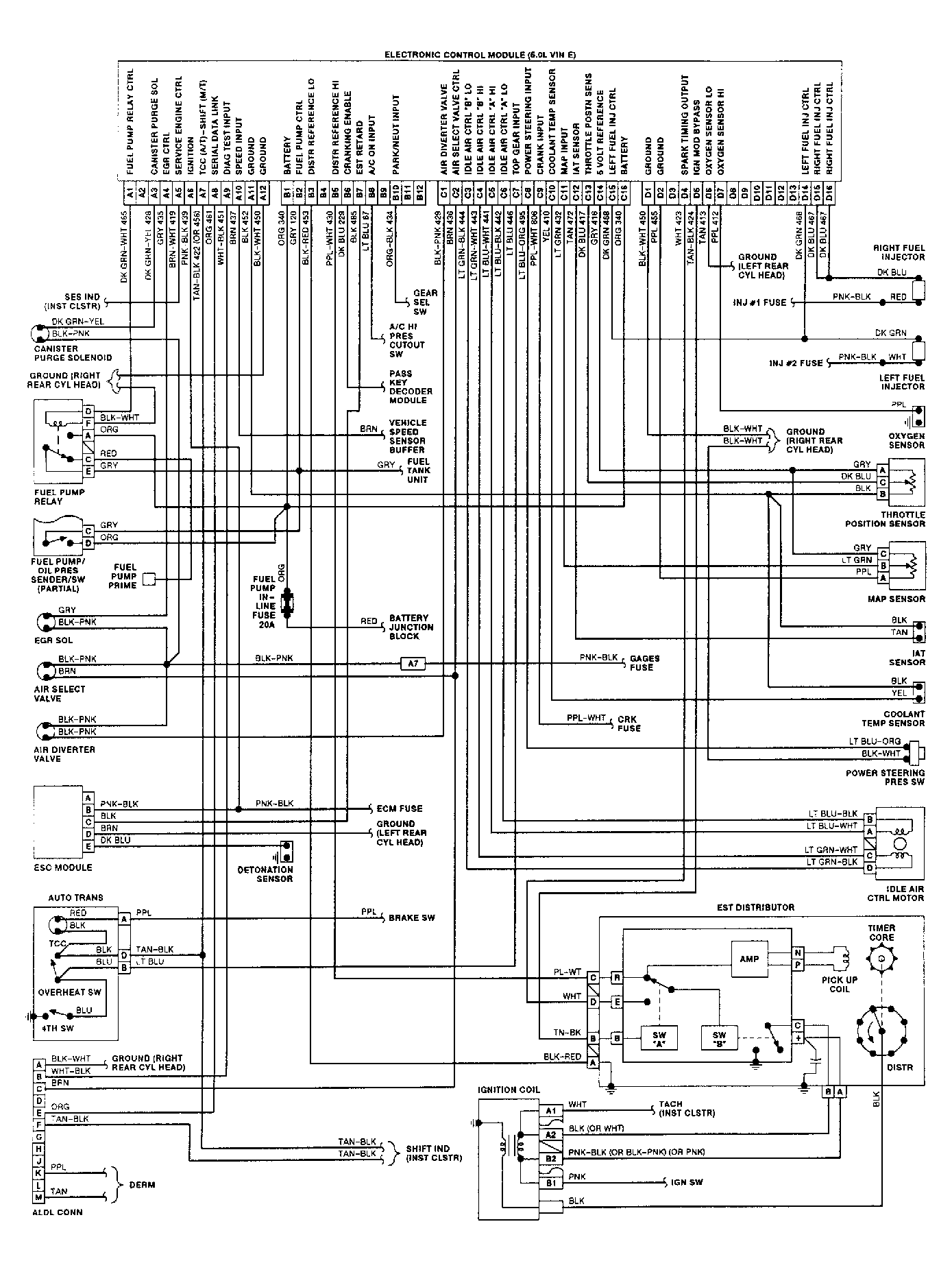

Fig 2: ECM Wiring Diagram, 5.0L VIN E

G92G05883

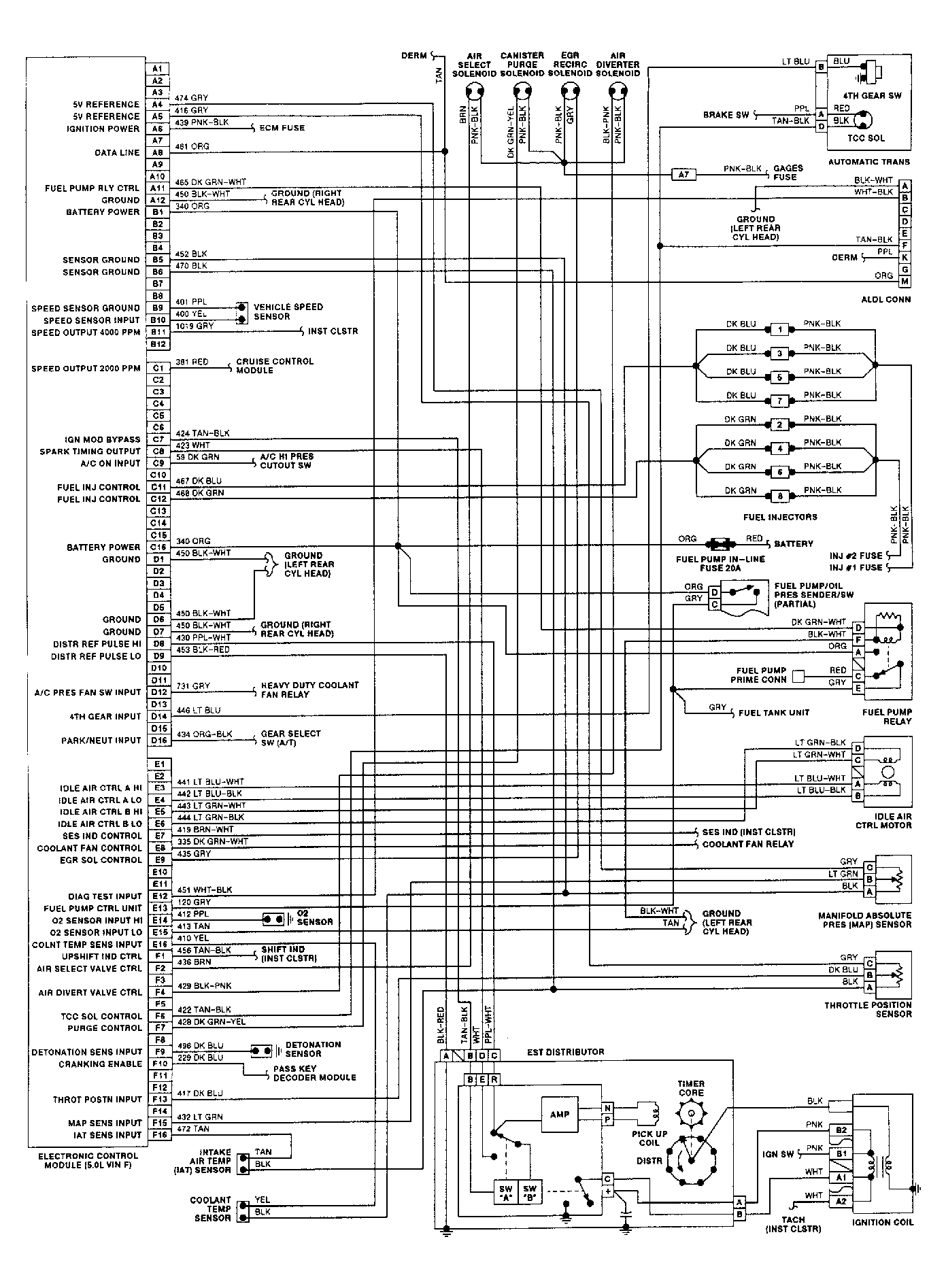

Fig 3: ECM Wiring Diagram, 5.0L VIN F

G92D05886

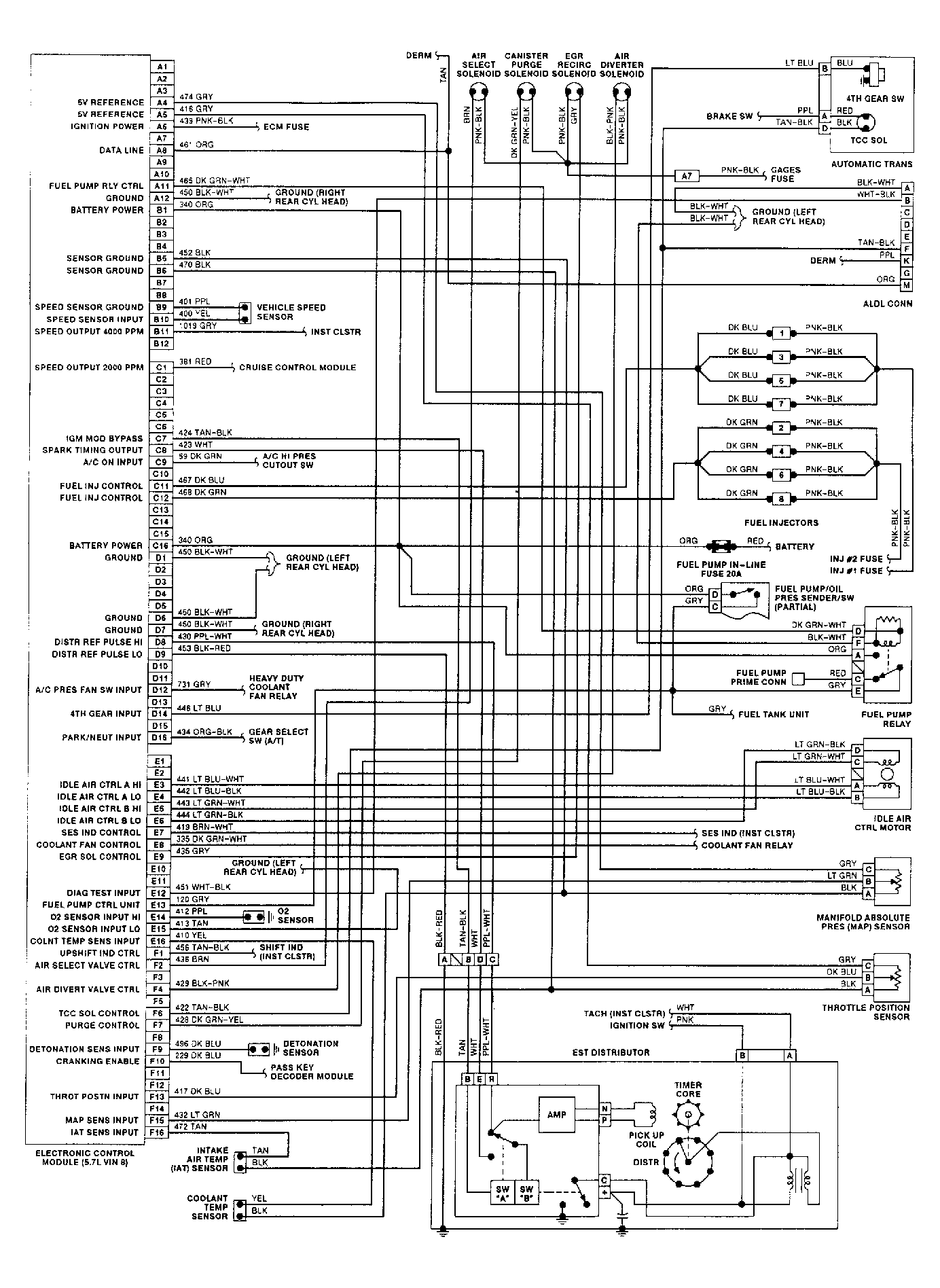

Fig 4: ECM Wiring Diagram, 5.7L VIN 8

G92F05887
