Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Column Mounting Bolts 18 (24)
Intermediate Shaft Bolt 35 (47)
Upper Coupling Bolt 35 (47)
Steering Wheel Nut 30 (41)

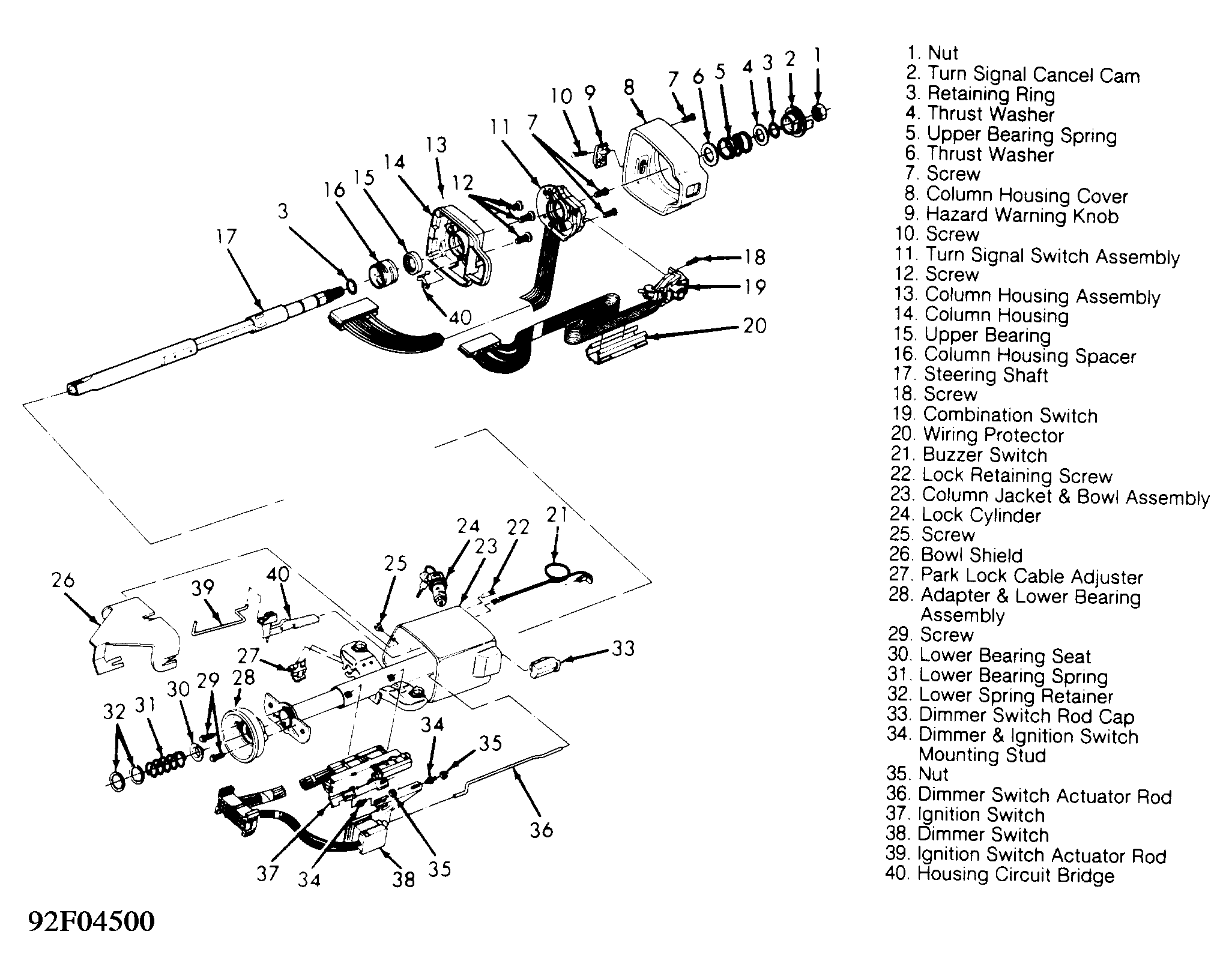

Fig 1: Exploded View of Fixed Steering Column Assembly
G92F04500Courtesy of GENERAL MOTORS CORP.

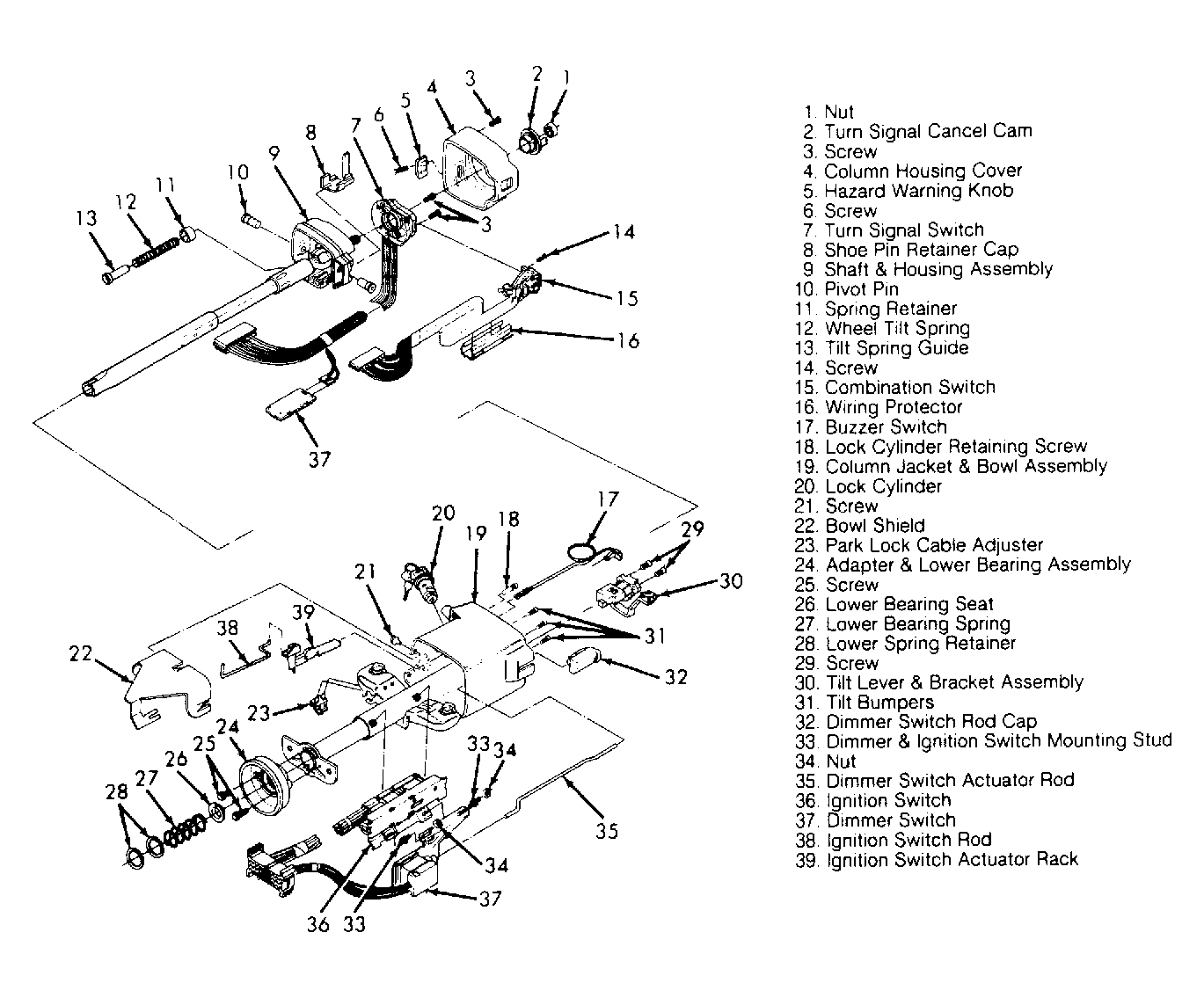

Fig 2: Exploded View of Tilt Steering Column Assembly
G92H04501Courtesy of GENERAL MOTORS CORP.
