Component Locations

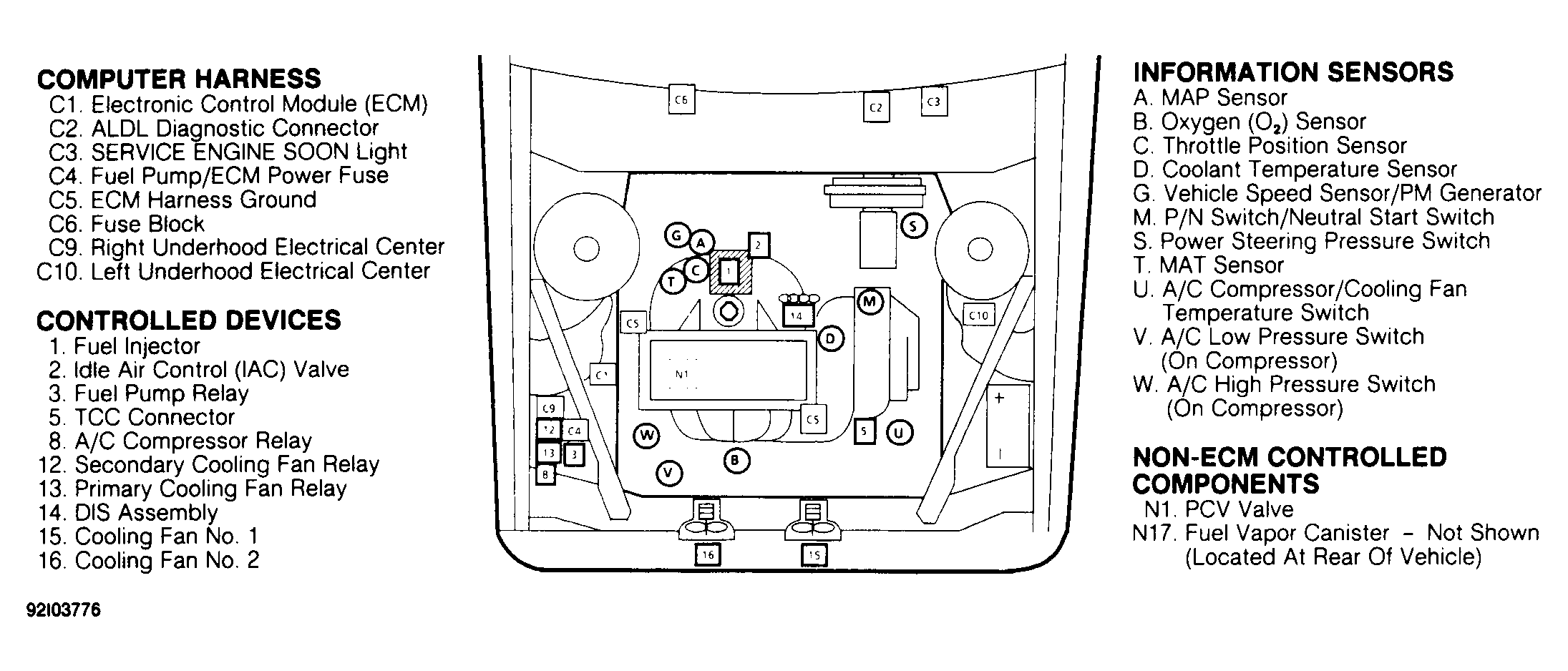

Fig 1: Component Locations (2.5L VIN R )
G92I03776Courtesy of GENERAL MOTORS CORP.

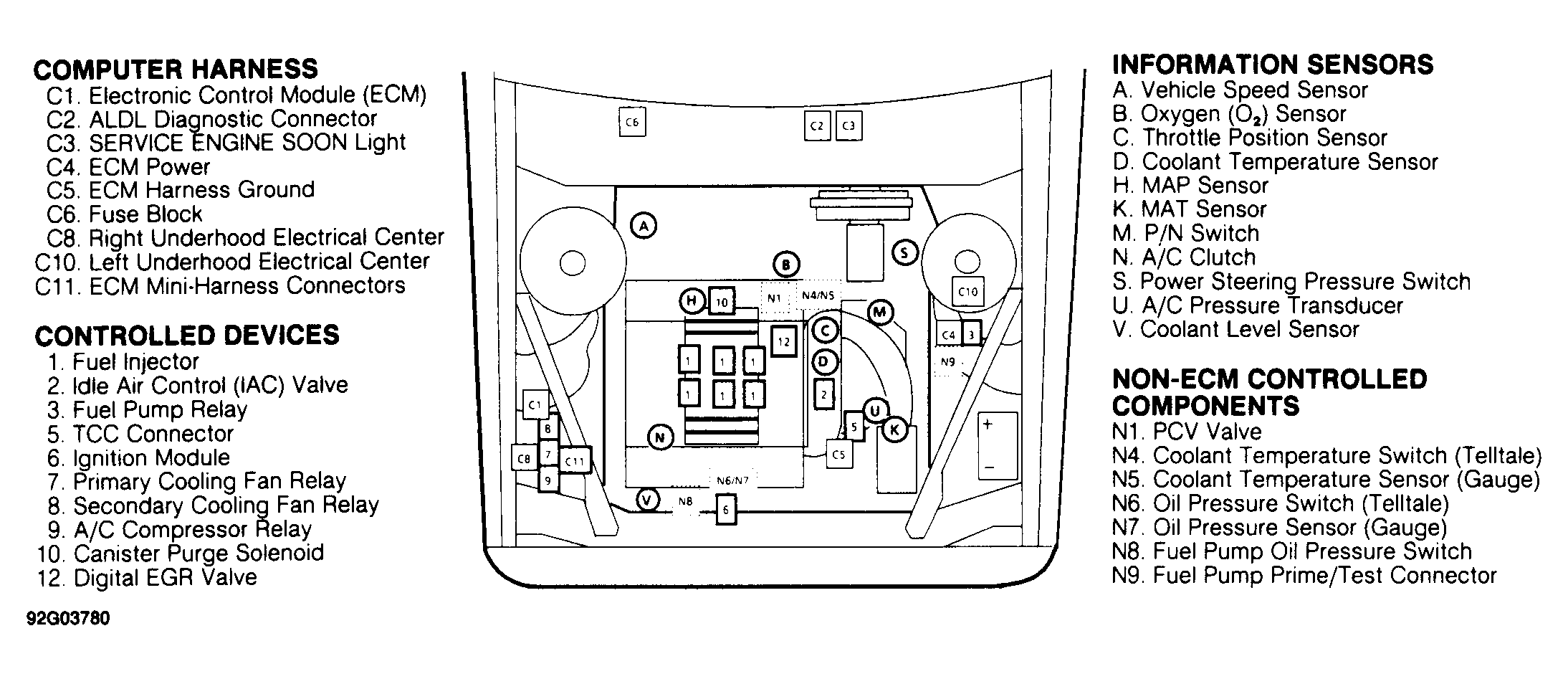

Fig 2: Component Locations (3.1L VIN T & 3.4L VIN X)
G92G03780Courtesy of GENERAL MOTORS CORP.

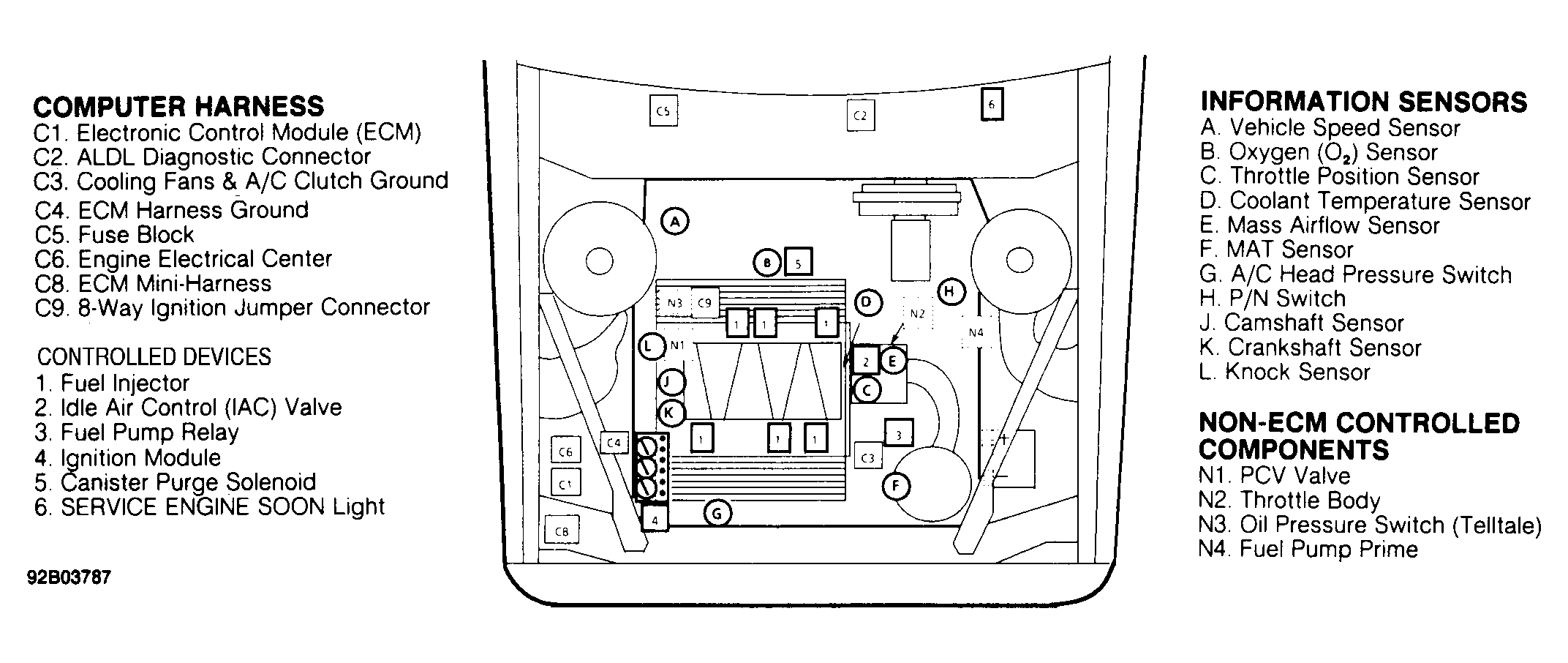

Fig 3: Component Locations (3.8L VIN L)
G92B03787Courtesy of GENERAL MOTORS CORP.
