Starting System: Description

Delco 5MT starters have an enclosed solenoid, shift lever and overrunning clutch. The starter's field coils are permanently mounted in the frame. See Fig 1.

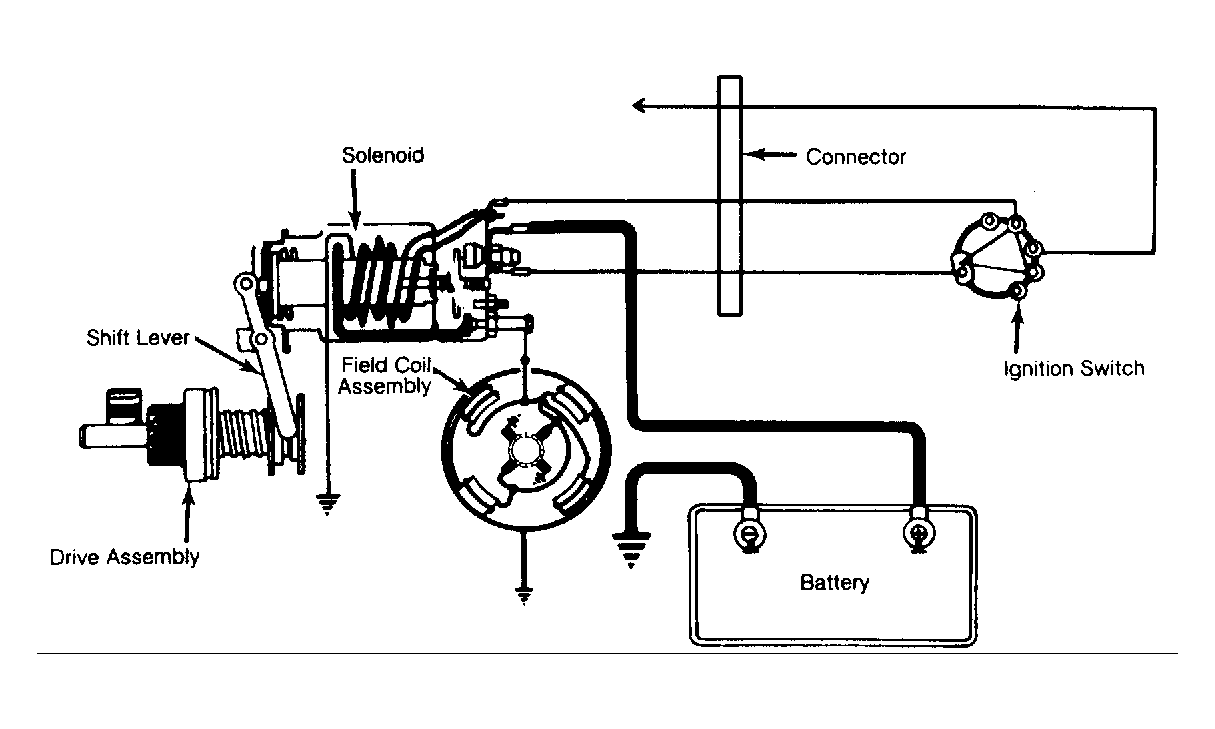

Fig 1: Cranking Circuit (Typical)

Courtesy of GENERAL MOTORS CORP.
