Component Locations

Fig 1: Component Locations (Sunbird - 2.0L VIN H)
G92H03771Courtesy of GENERAL MOTORS CORP.

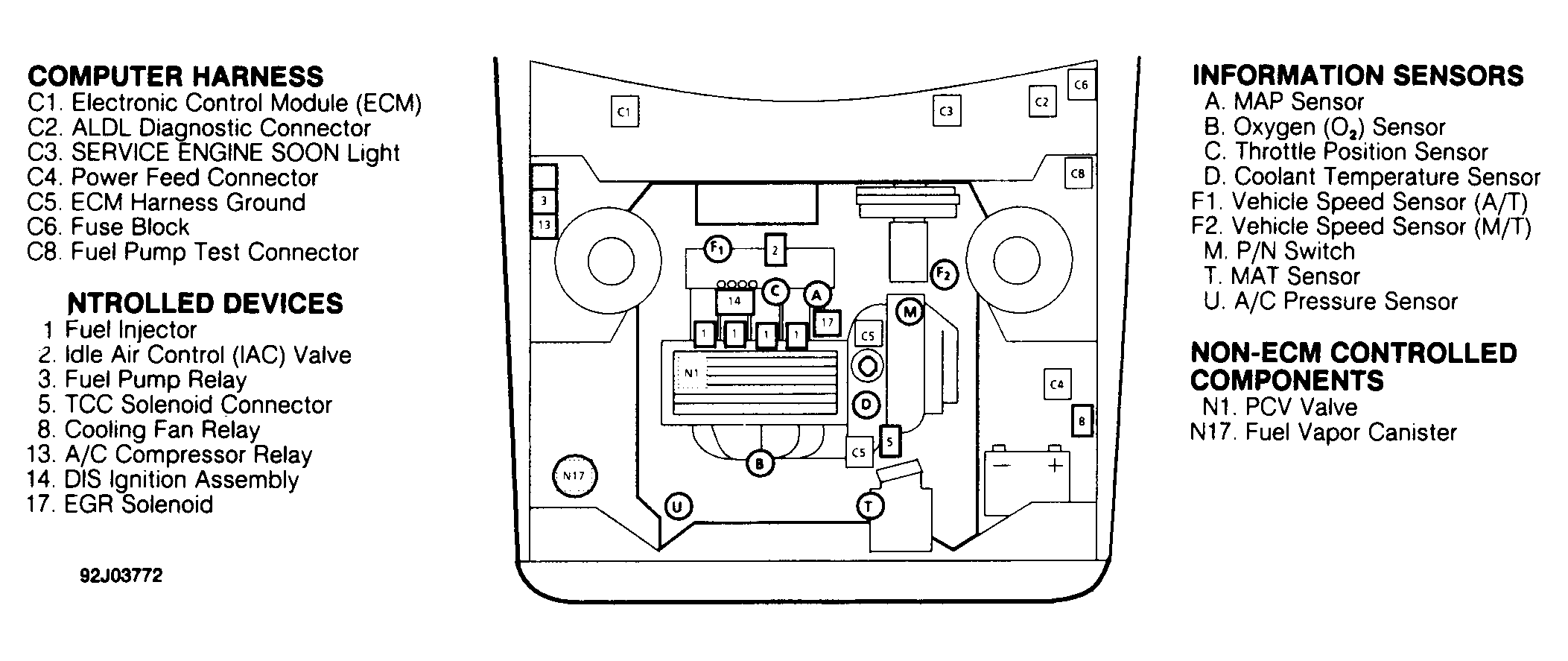

Fig 2: Component Locations (Cavalier - 2.2L VIN 4)
G92J03772Courtesy of GENERAL MOTORS CORP.

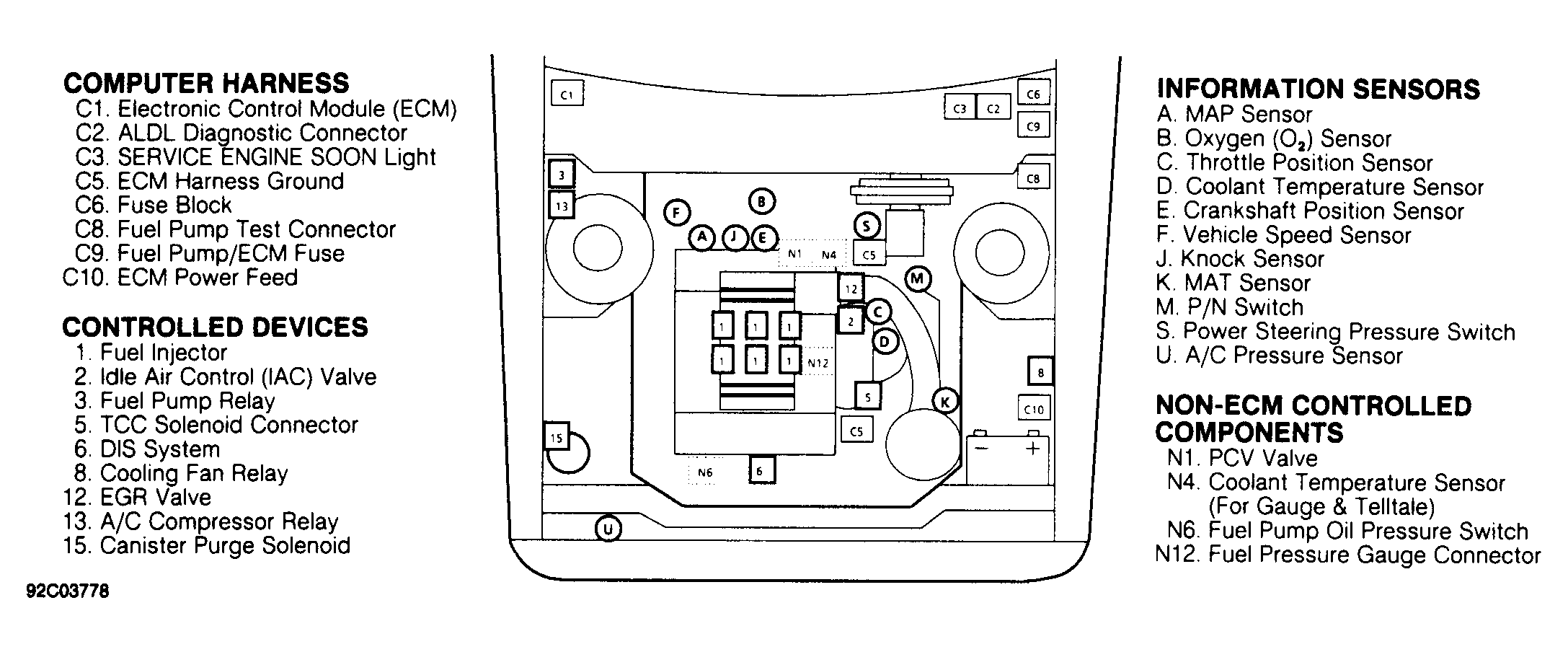

Fig 3: Component Locations (Sunbird & Cavalier - 3.1L VIN T)
G92C03778Courtesy of GENERAL MOTORS CORP.
