Wiring Diagrams

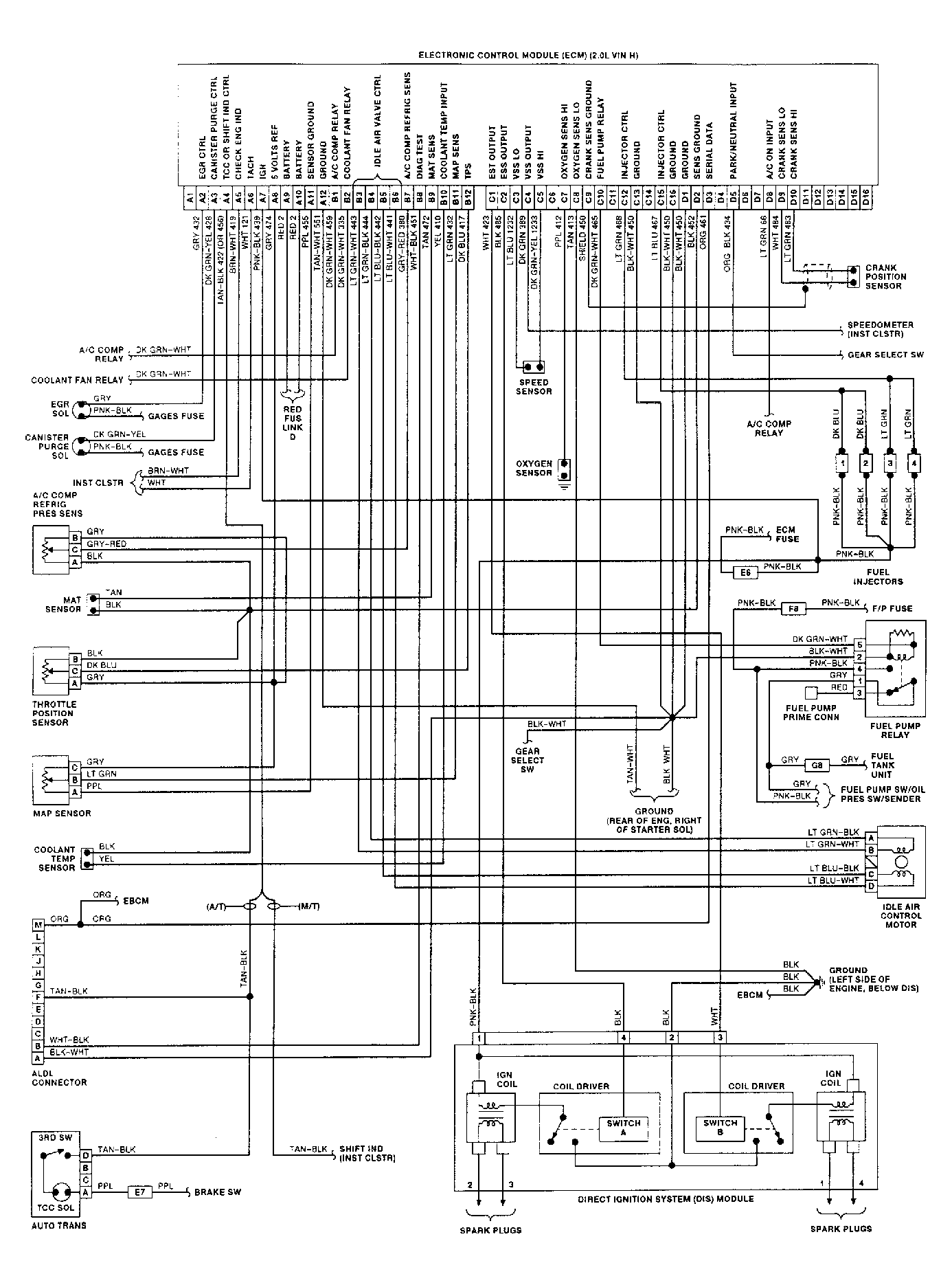

Fig 1: ECM Wiring Diagram, Sunbird (2.0L VIN H)

G92C05819

Fig 2: ECM Wiring Diagram, Cavalier (2.2L VIN 4)

G92G05821

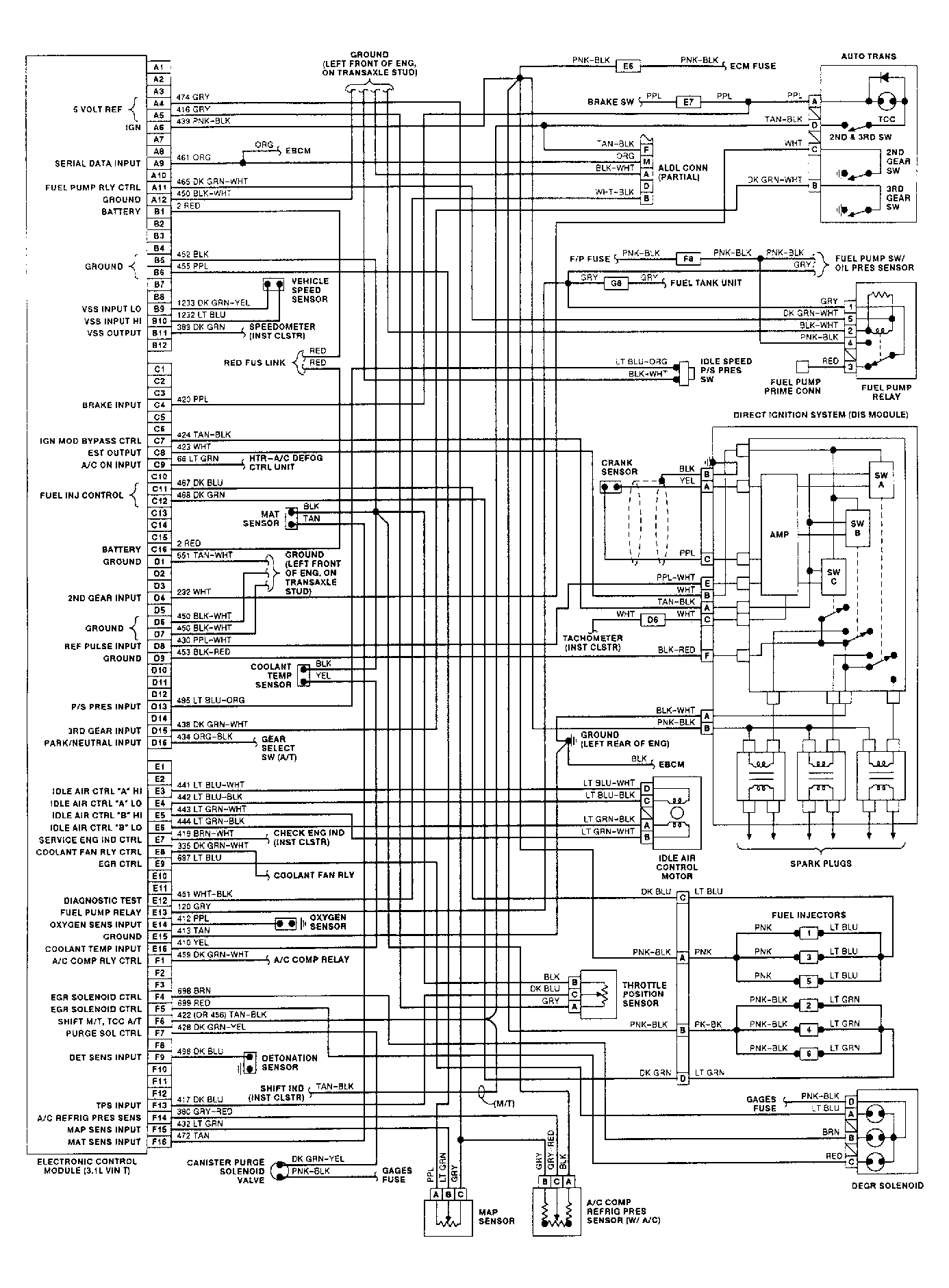

Fig 3: ECM Wiring Diagram, Sunbird & Cavalier (3.1L VIN T)

G92I05855
