Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

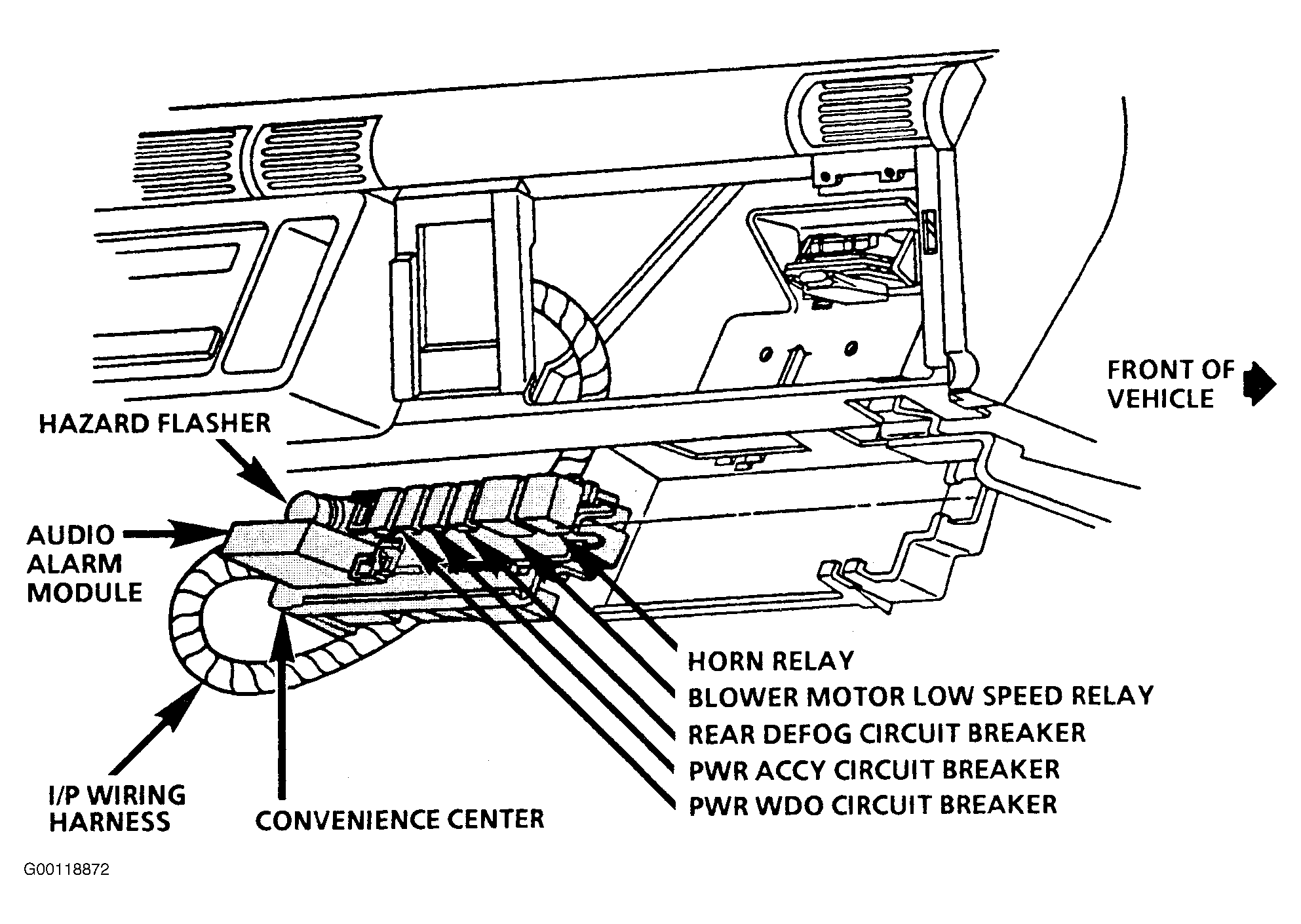

| Convenience Center | Below Right Side Of Instrument Panel. See Fig 1 |

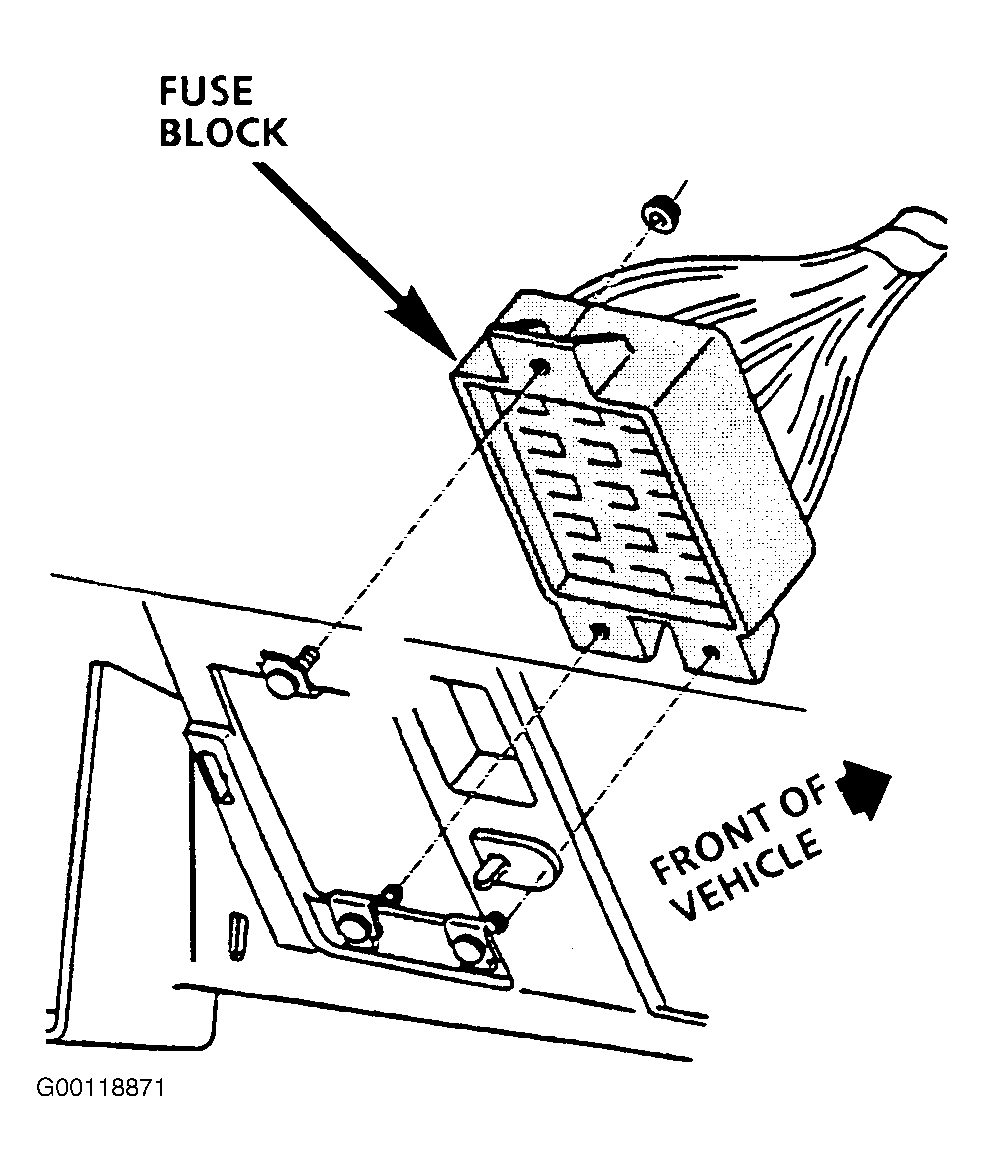

| Fuse Block | Behind Instrument Panel Compartment Door. See Fig 2 |

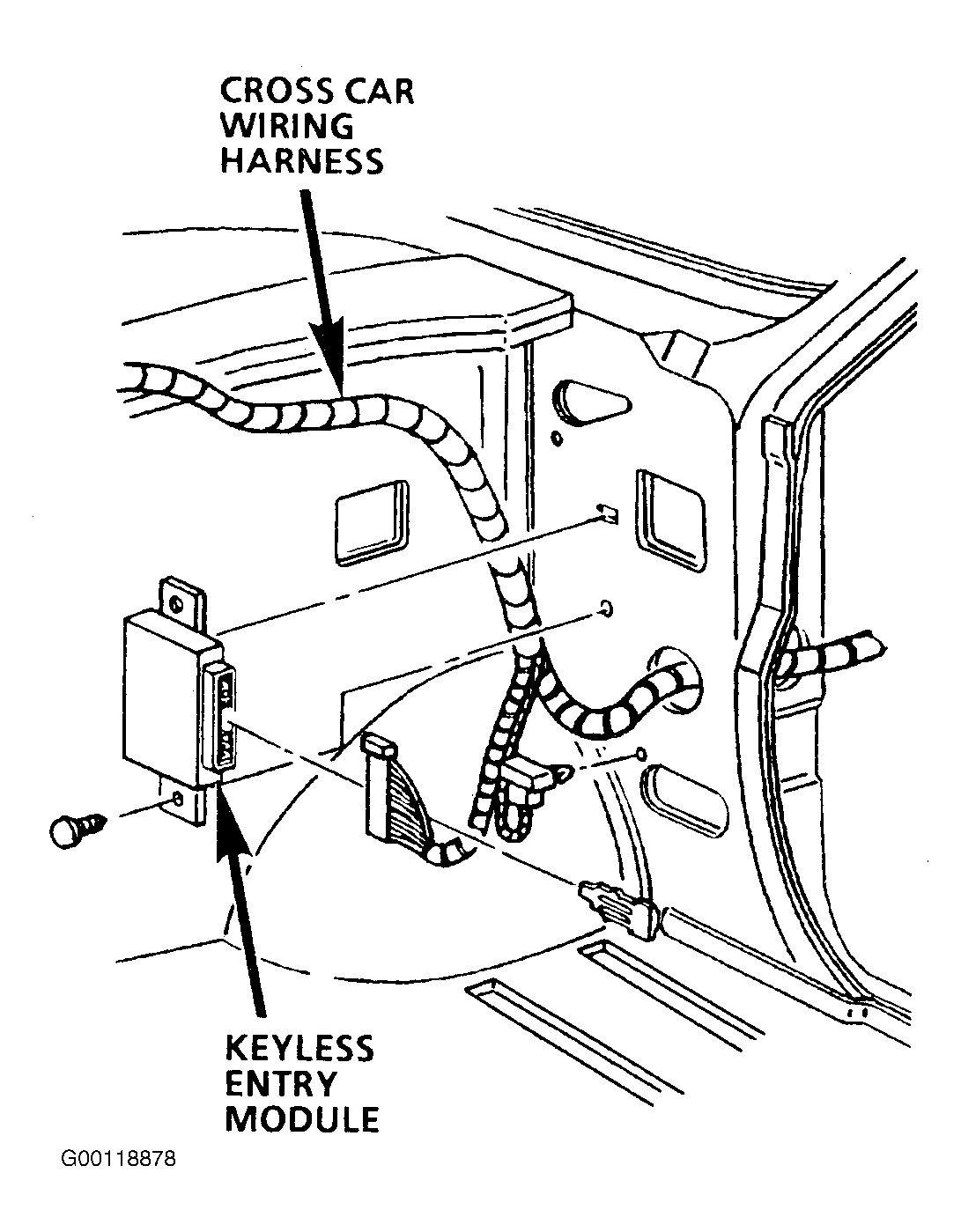

| Keyless Entry Module | Below Right Side Of Instrument Panel, Behind Convenience Center. See Fig 3 |
| Left Door Lock Motor | In Left Door |
| Left Door Lock Switch | On Left Door Armrest |
| Left Front Door Jamb Switch | Near Base Of Left A-Pillar |
| Left Key Lock Switch | Part Of Left Door Lock Cylinder |

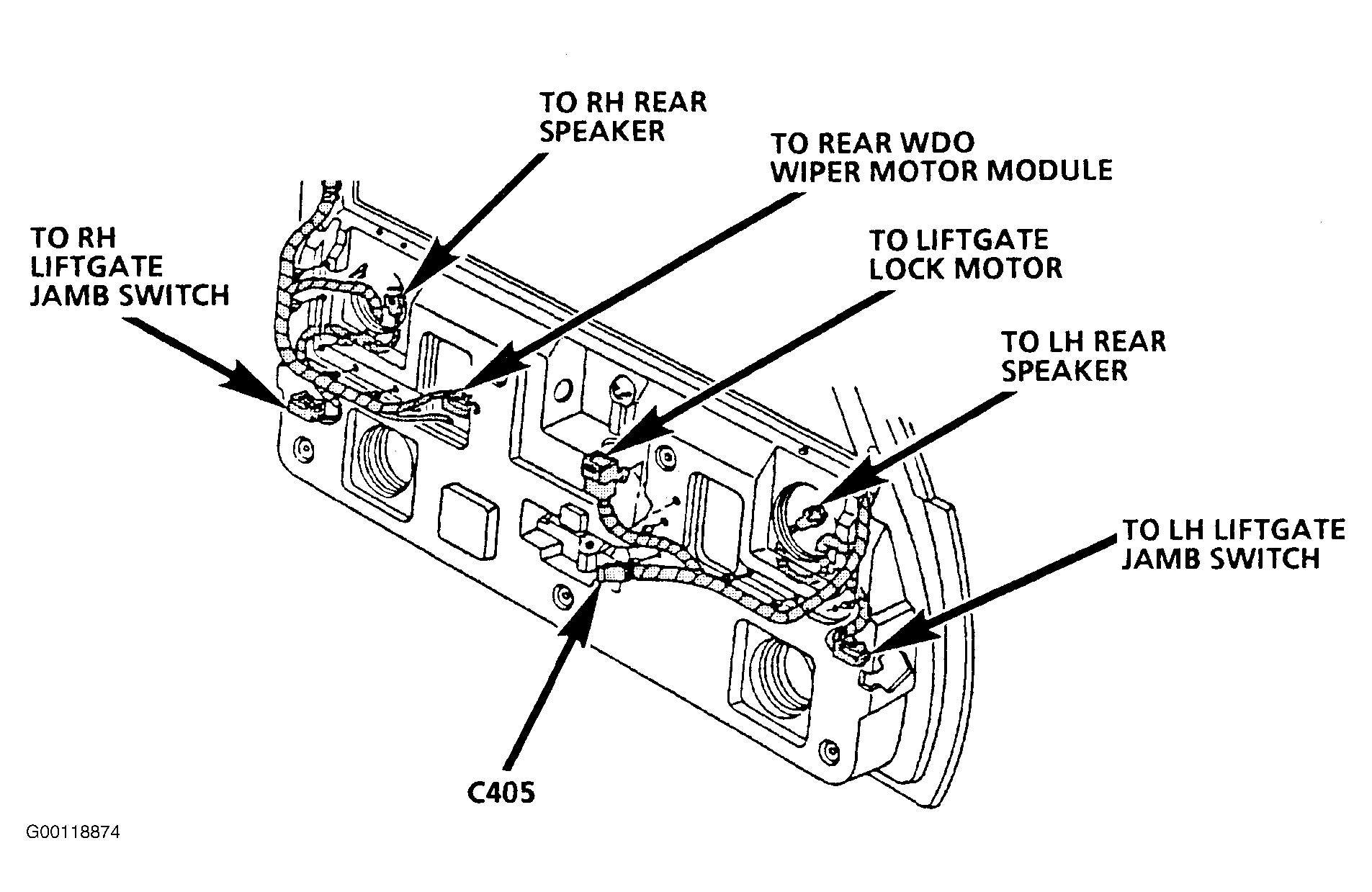

| Liftgate Lock Motor | Mounted In Liftgate. See Fig 4 |
| Power Door Lock Relay | Near Base Of Right A-Pillar. See Figure . |
| Right Door Lock Motor | In Right Door |
| Right Door Lock Switch | On Right Door Armrest |
| Right Key Lock Switch | Part Of Right Door Lock Cylinder |
| Sliding Door Contact Switch | Near Base Of Right B-Pillar |
| Sliding Door Lock Motor | Part Of Sliding Door Lock Mechanism |
| Turn/Hazard Switch | Part of Steering Column |

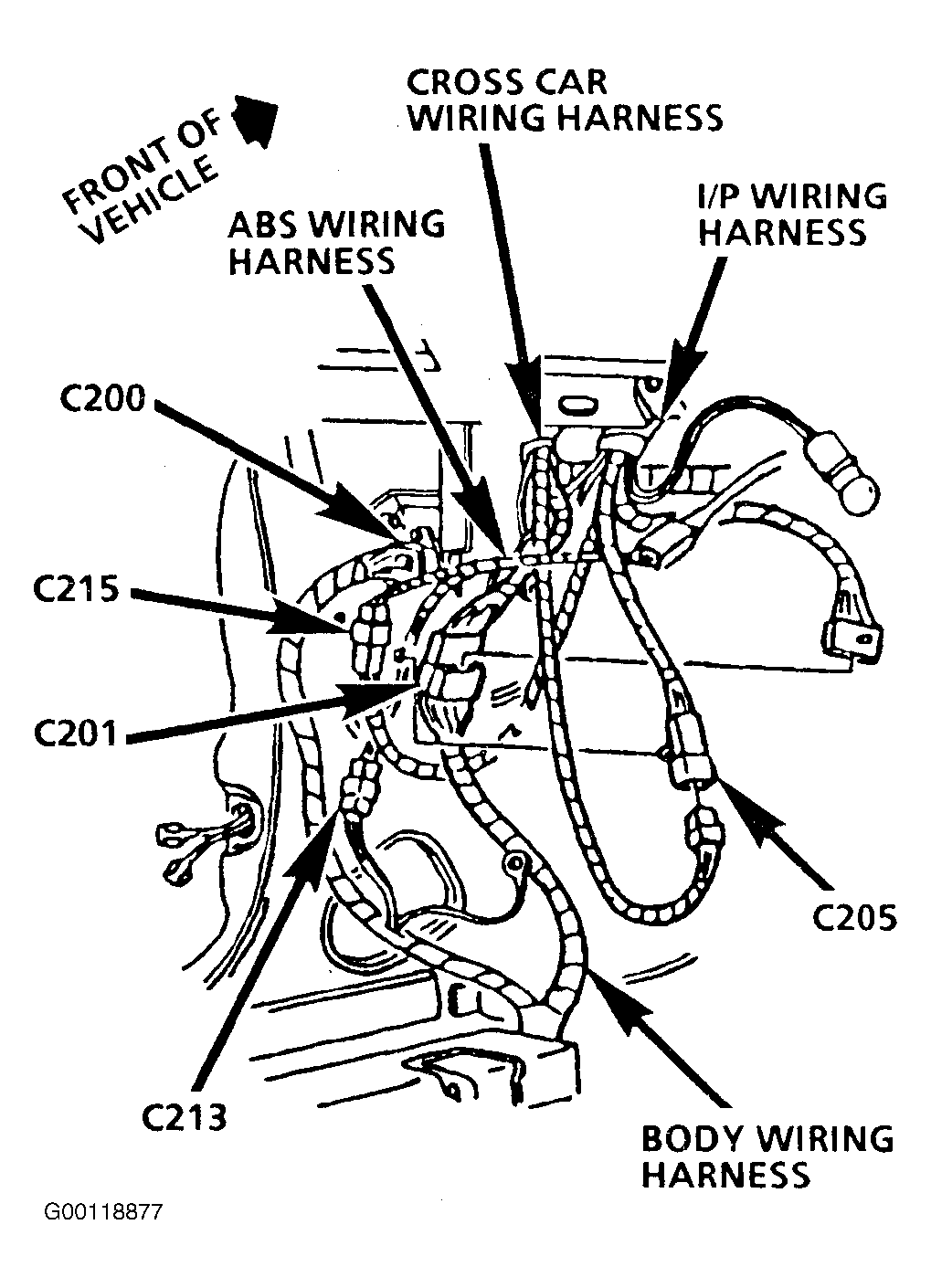

| C201 (15 Cavities) | Near Base Of Left A-Pillar, Left Of Parking Brake. See Fig 5 |
| C205 (8 Cavities) | Near Base Of Left A-Pillar, Left Of Parking Brake. See Fig 5 |

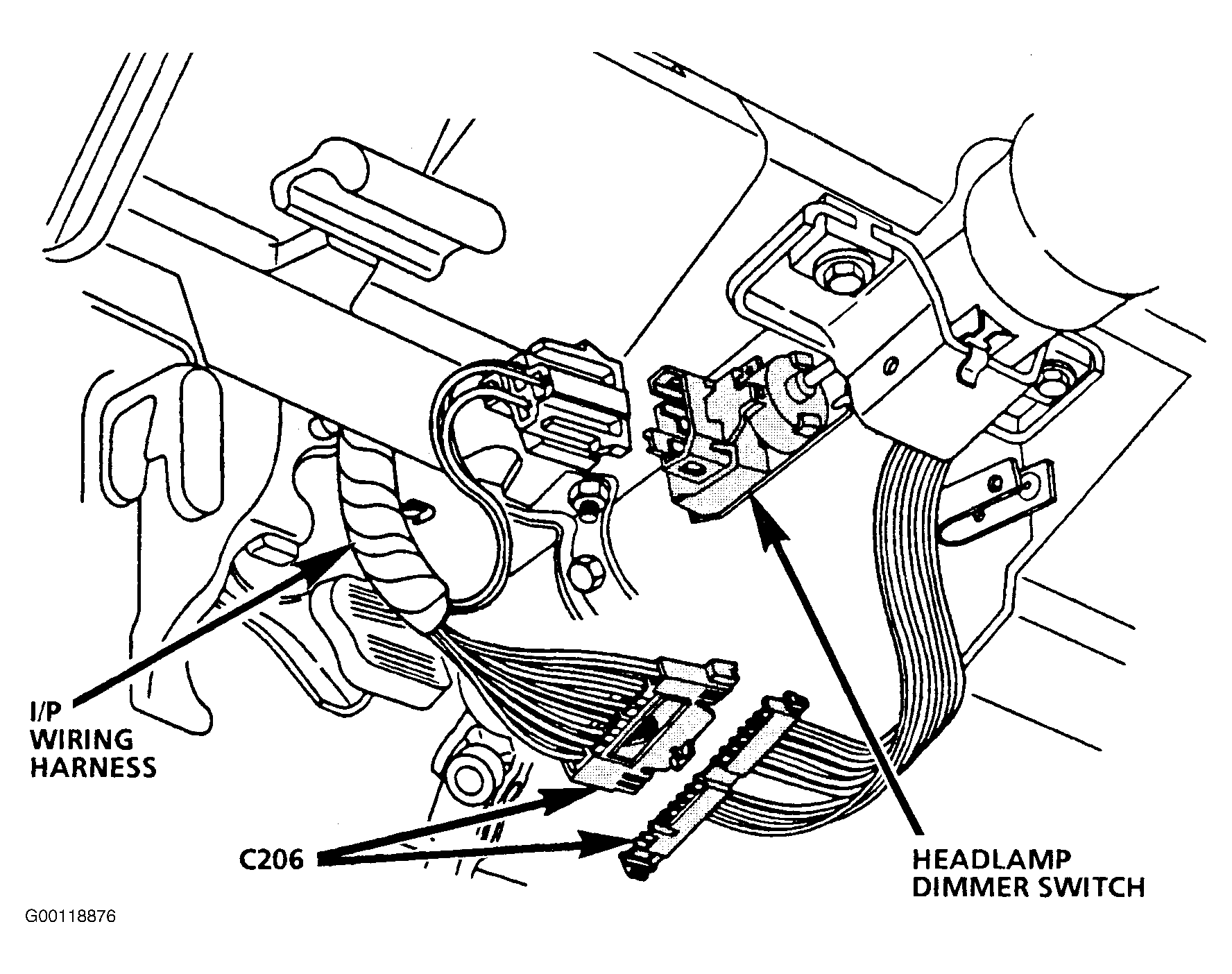

| C206 (11 Cavities) | Part Of Steering Column. See Fig 6 |
| C300 (8 Cavities) | Middle Of Left B-Pillar |

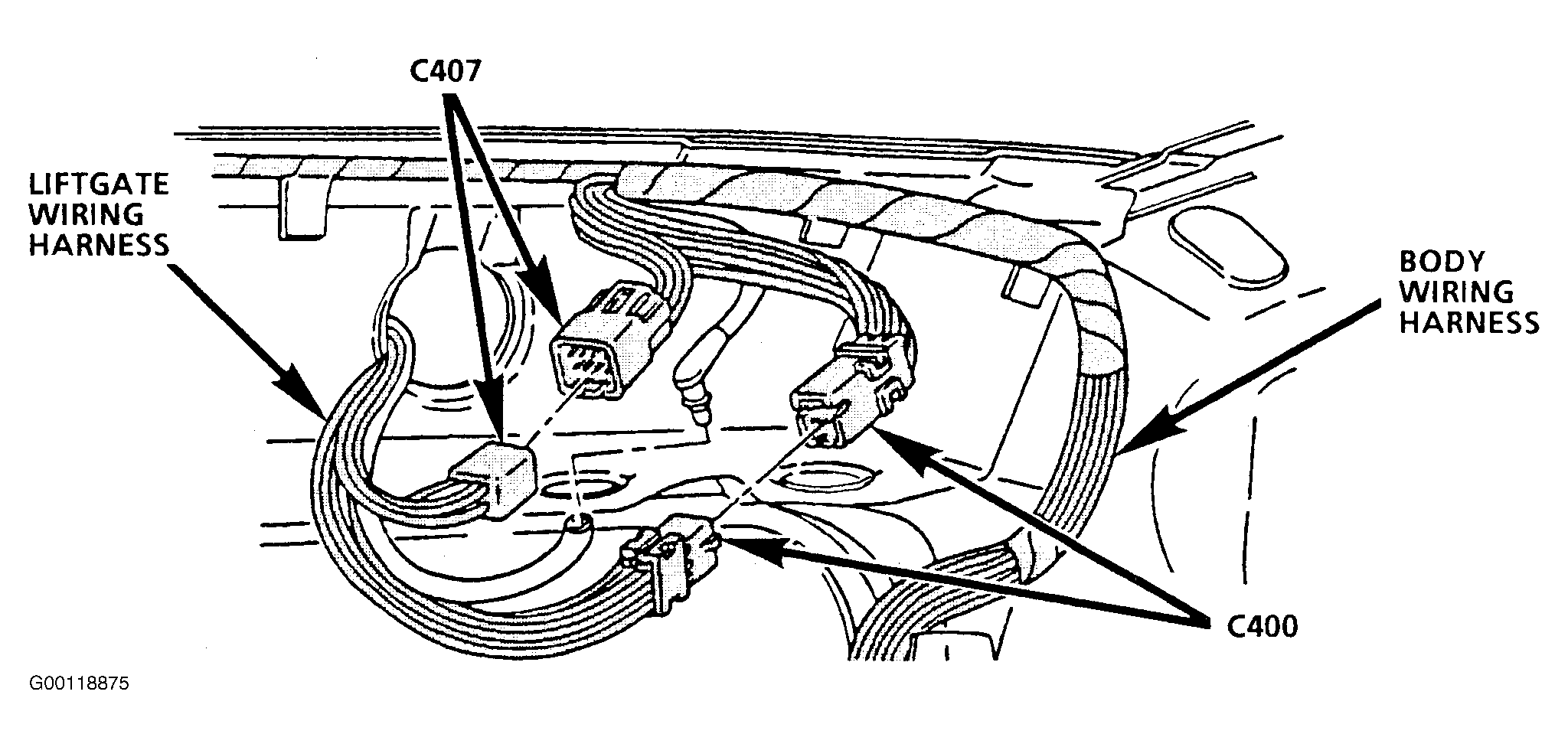

| C400 (6 Cavities) | Near Center Of Liftgate Opening, Above Headliner. See Fig 7 |
| G201 | Lower Left A-Pillar, Left Of Parking Brake |

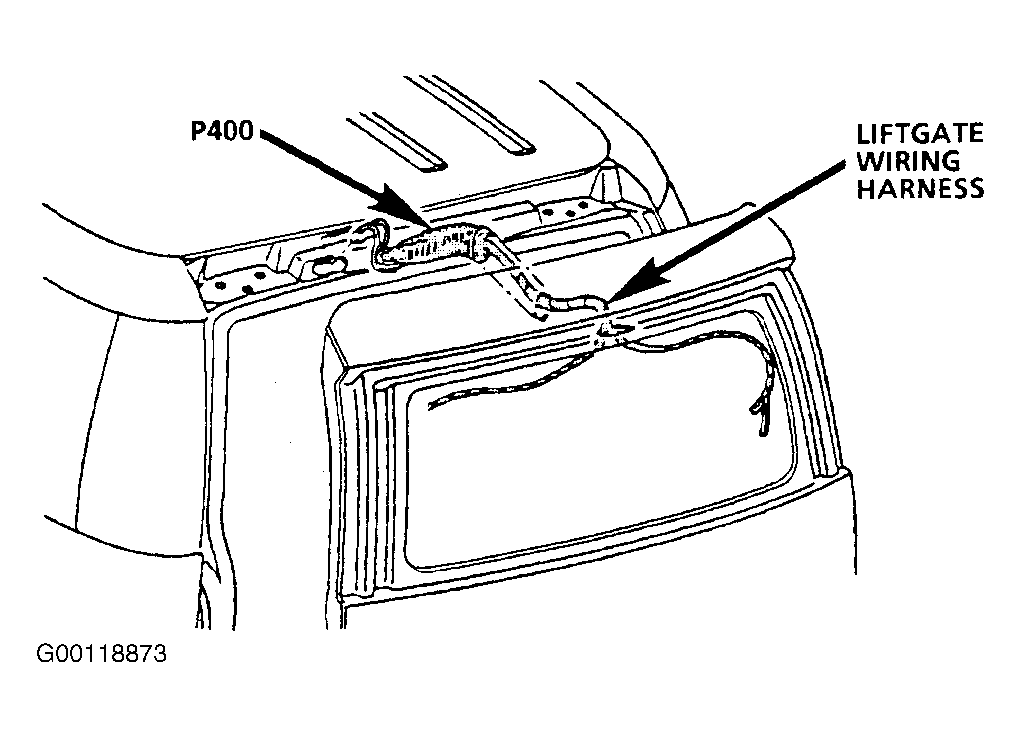

| P400 | Upper Left Corner Of Liftgate Opening. See Fig 8 |
| P500 | Between Left Door & Base Of Left A-Pillar |
| P600 | Between Right Door & Base Of Right A-Pillar |
| S209 | In Instrument Panel Wiring Harness, Approximately 52.5 cm From Right Front Speaker Connector |
| S213 | In Instrument Panel Wiring Harness, Approximately 6.5 cm From C200 Breakout |
| S214 | In Cross Car/Doors Wiring Harness, Approximately 21 cm From C201 Breakout |
| S217 | In Cross Car/Doors Wiring Harness, Approximately 8 cm From C201 Breakout |
| S224 | In Cross Car/Doors Wiring Harness, Approximately 14 cm Right Of P500 |
| S225 | In Cross Car/Doors Wiring Harness, Approximately 27.5 cm Right Of C201 Breakout |
| S226 | In Cross Car/Doors Wiring Harness, Approximately 89.5 cm Left Of PSDL Relay Connector Breakout |
| S227 | In Cross Car/Doors Wiring Harness, Approximately 109.5 cm Left Of PSDL Relay Connector Breakout |
| S232 (1992) | In Instrument Panel Wiring Harness, Approximately 23.5 cm From C200 Connector Breakout |
| S249 | In Instrument Panel Wiring Harness, Approximately 4 cm From C200 |
| S306 | In Body Wiring Harness, Approximately 6 cm From Auxiliary Blower Motor Connector Breakout |
