Connector Identification

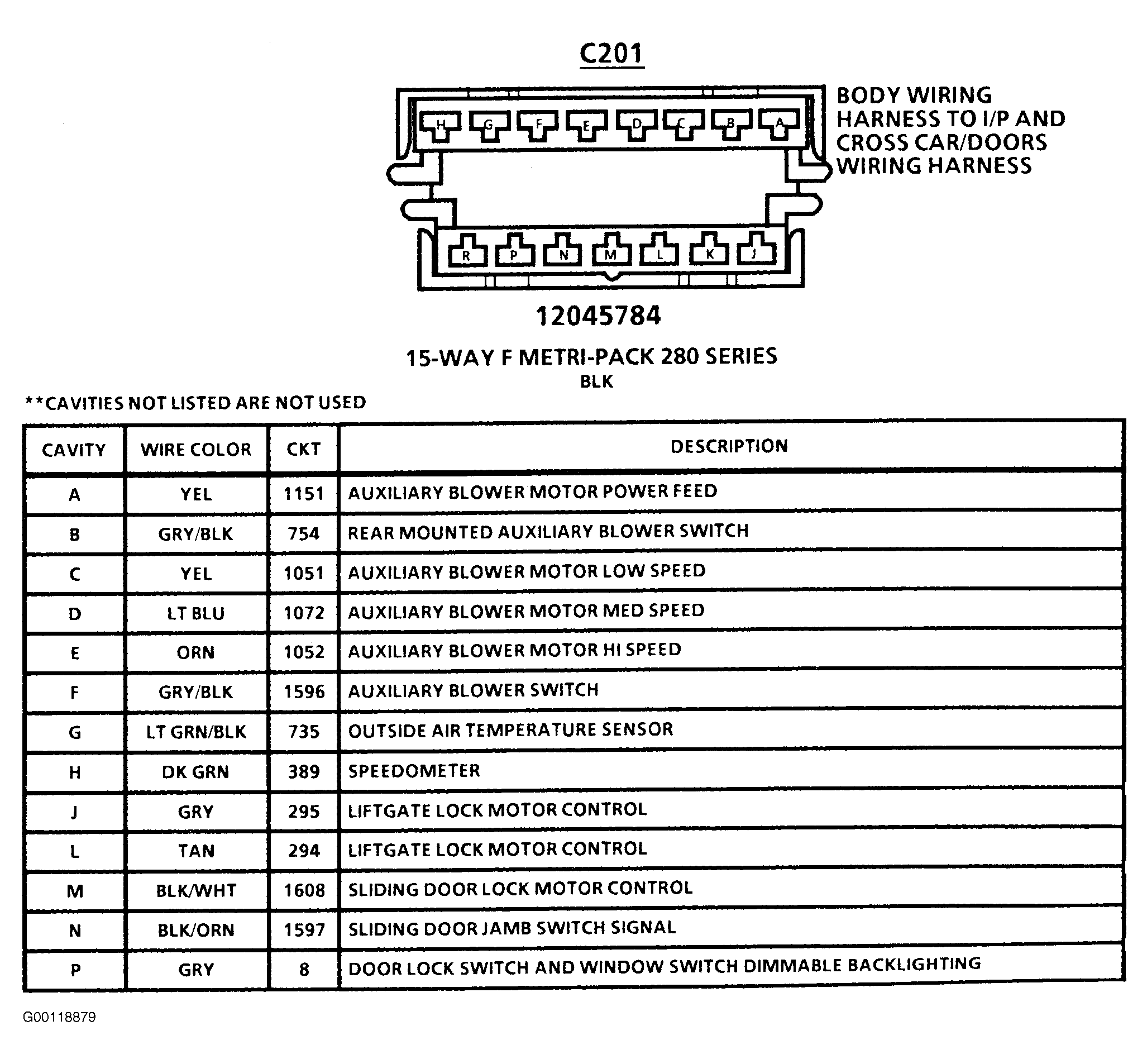

Fig 1: Identifying C201 Connector

Courtesy of GENERAL MOTORS CORP.

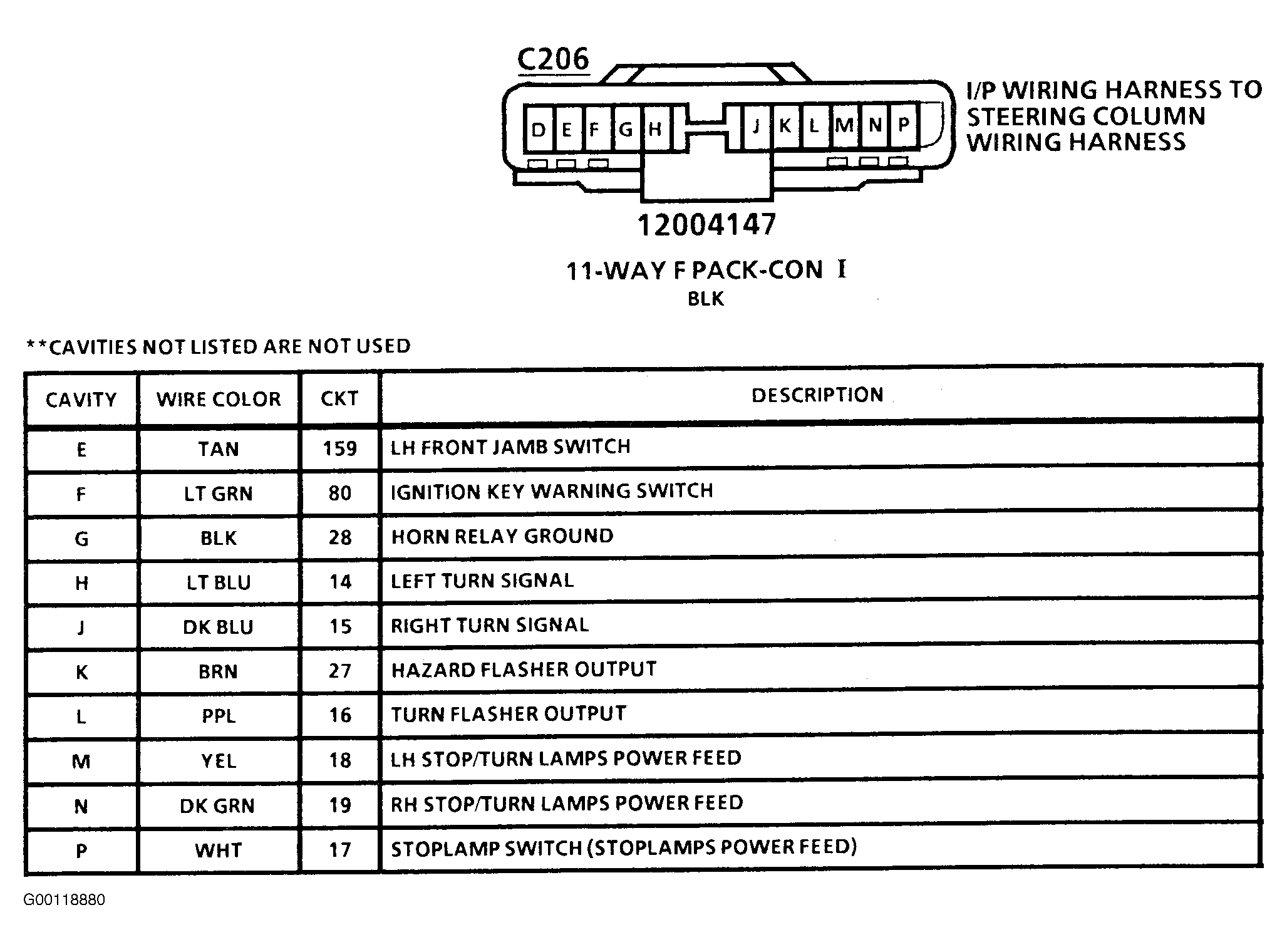

Fig 2: Identifying C206 Connector

Courtesy of GENERAL MOTORS CORP.

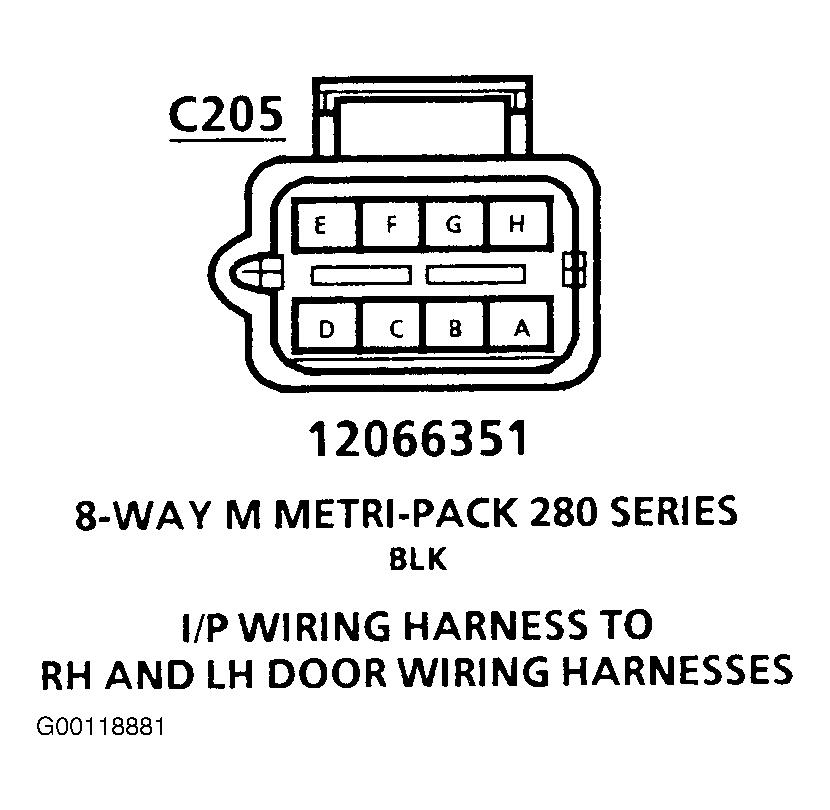

Fig 3: Identifying C205 Connector

Courtesy of GENERAL MOTORS CORP.

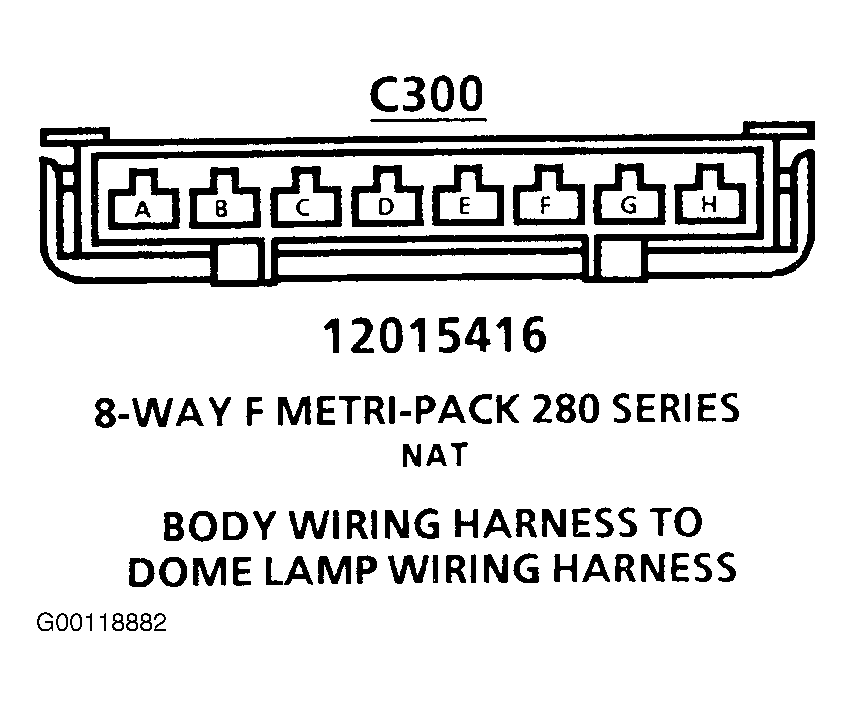

Fig 4: Identifying C300 Connector

Courtesy of GENERAL MOTORS CORP.

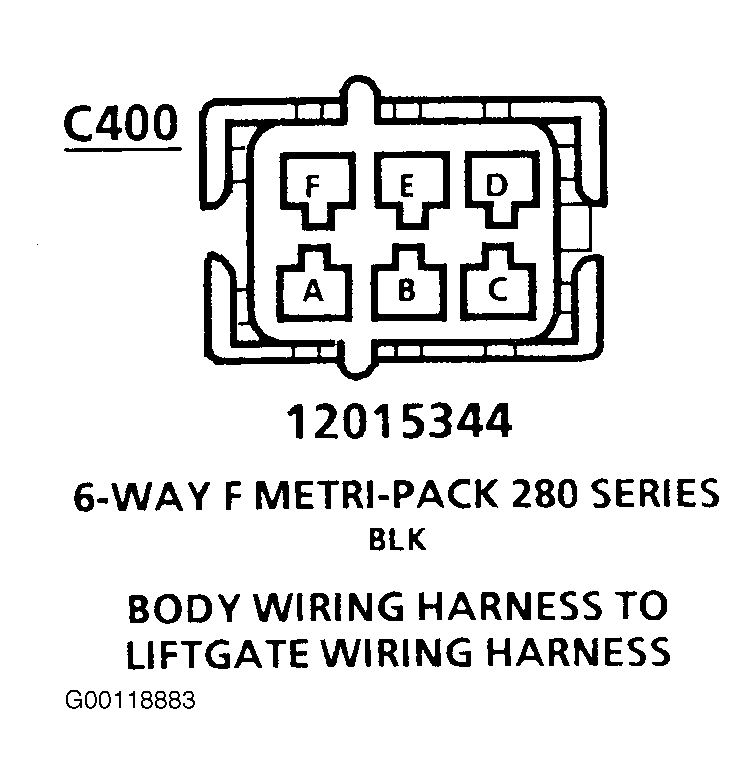

Fig 5: Identifying C400 Connector

Courtesy of GENERAL MOTORS CORP.

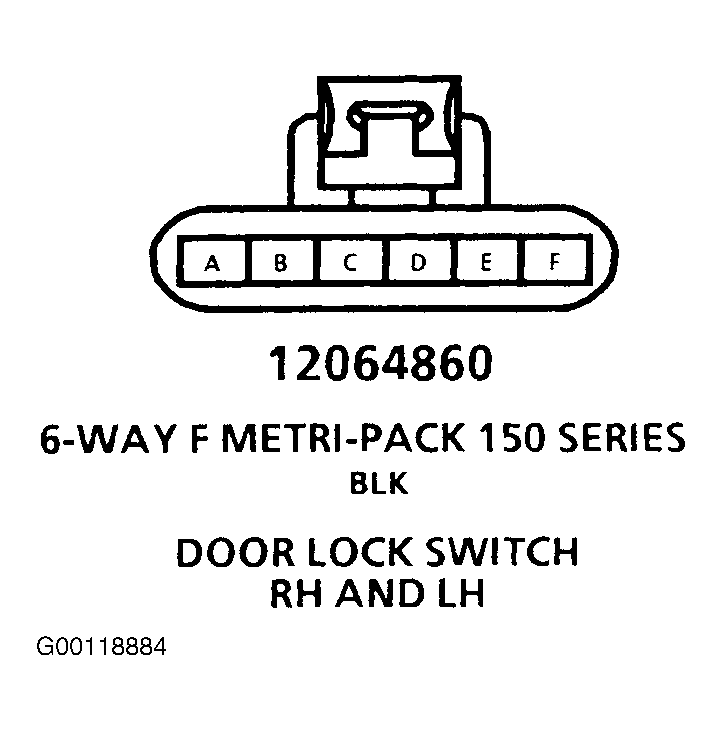

Fig 6: Identifying Door Lock Switch Connector

Courtesy of GENERAL MOTORS CORP.

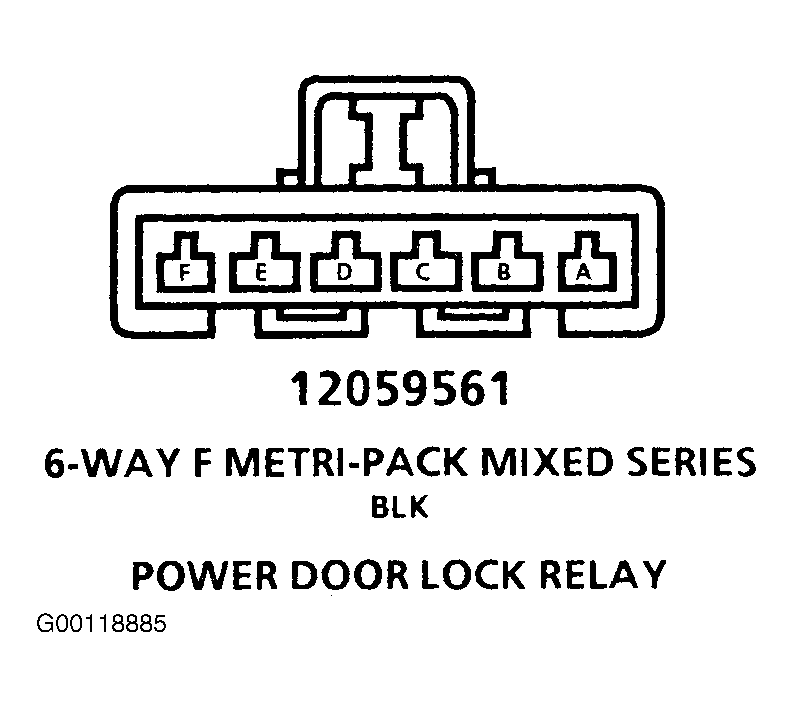

Fig 7: Identifying Power Door Lock Relay Connector

Courtesy of GENERAL MOTORS CORP.
