Service Point Locations

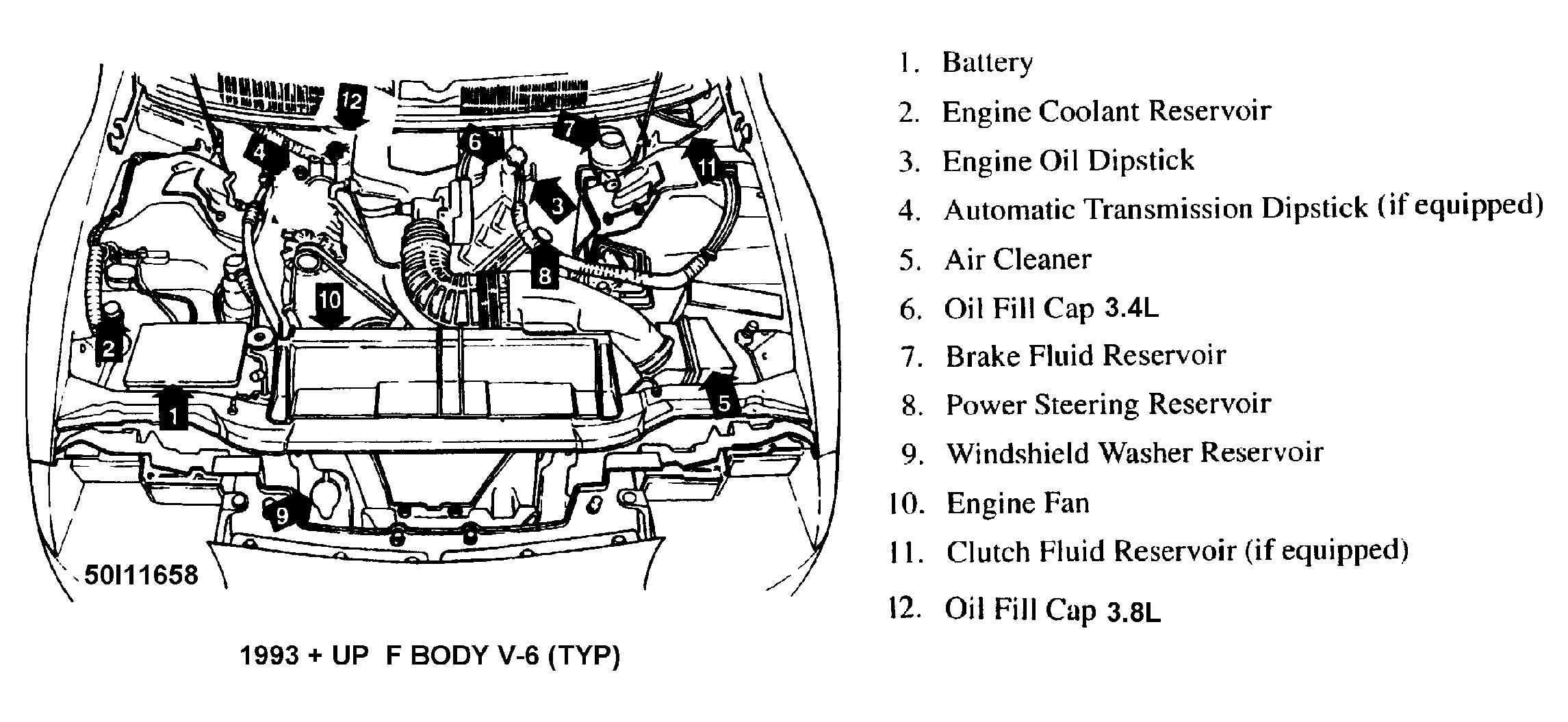

Fig 1: 1993-96 Engine Service Point Locations (V6 Typical)
G50I11658Courtesy of GENERAL MOTORS CORP.

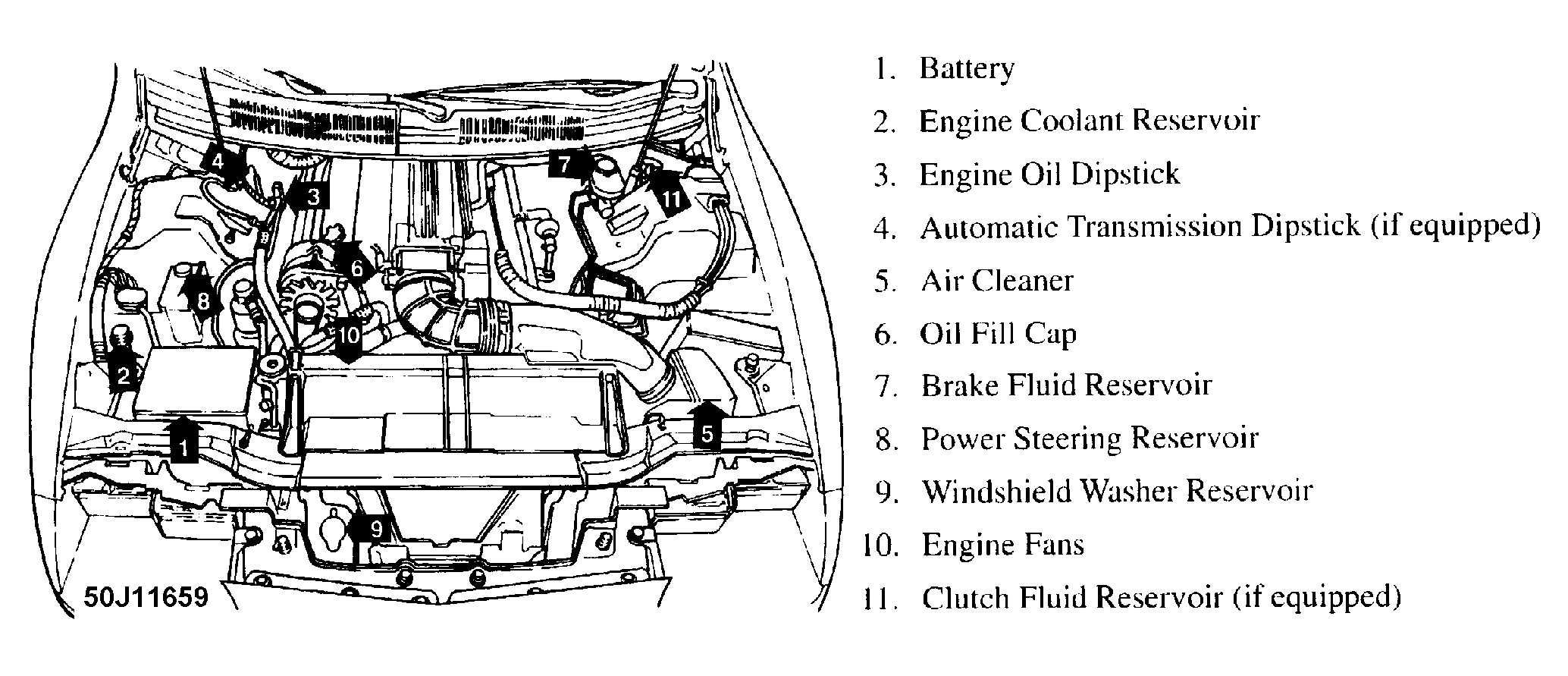

Fig 2: 1993-96 Engine Service Point Locations (V8)
G50J11659Courtesy of GENERAL MOTORS CORP.
Fig 3: 1993-96 3.4L Emission Component Locations
G93H39674Courtesy of GENERAL MOTORS CORP.

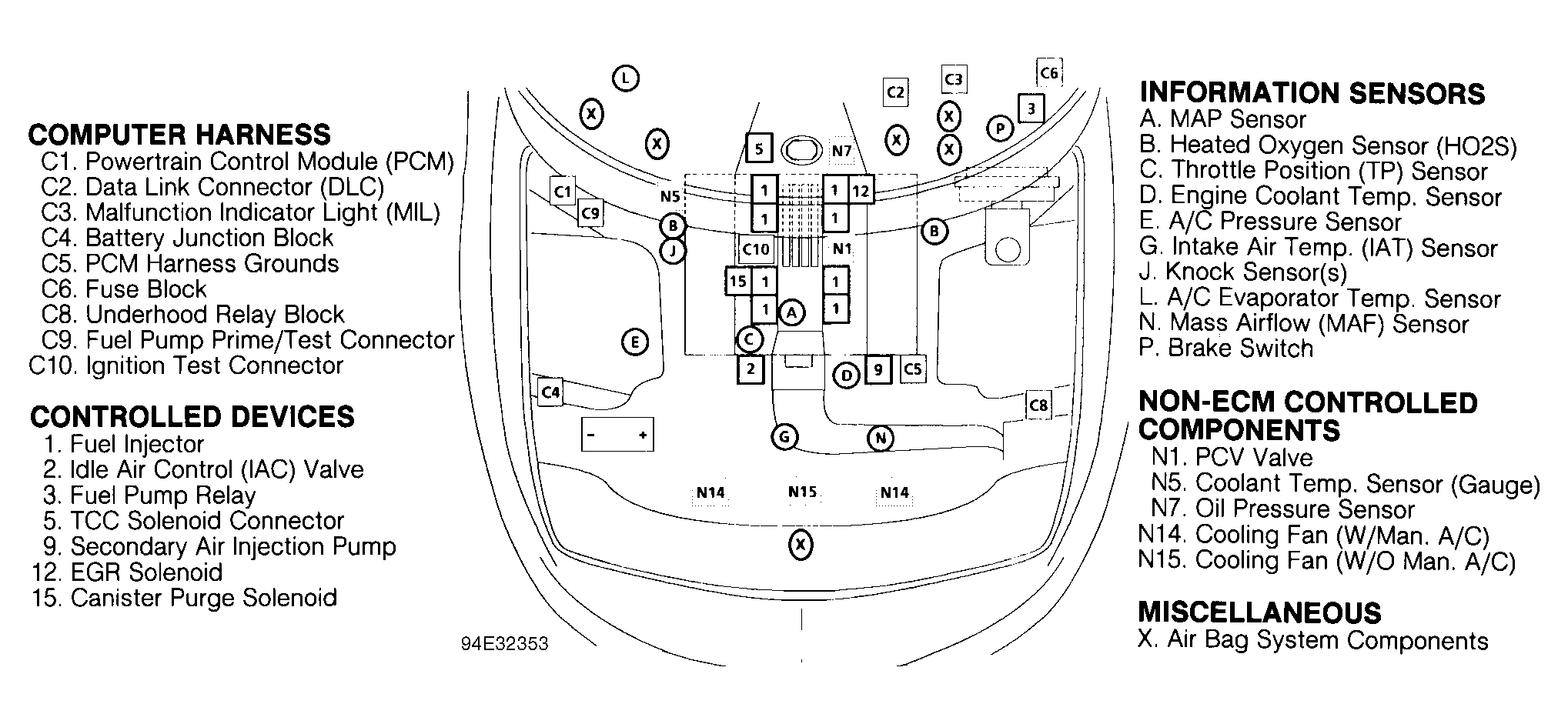

Fig 4: 1993-96 5.7L Emission Component Locations
G94E32353Courtesy of GENERAL MOTORS CORP.
