Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | In convenience center, below right side of dash. | |
| Convenience Center | Below right side of dash. | |
| Convertible Top In-Line Circuit Breaker (Cutlass Supreme) | Behind rear seatback, taped to wiring harness. | |
| ECM/Fuel Pump Fuse | In right underhood electrical center. See Figure . | |
| Fuse Block | ||

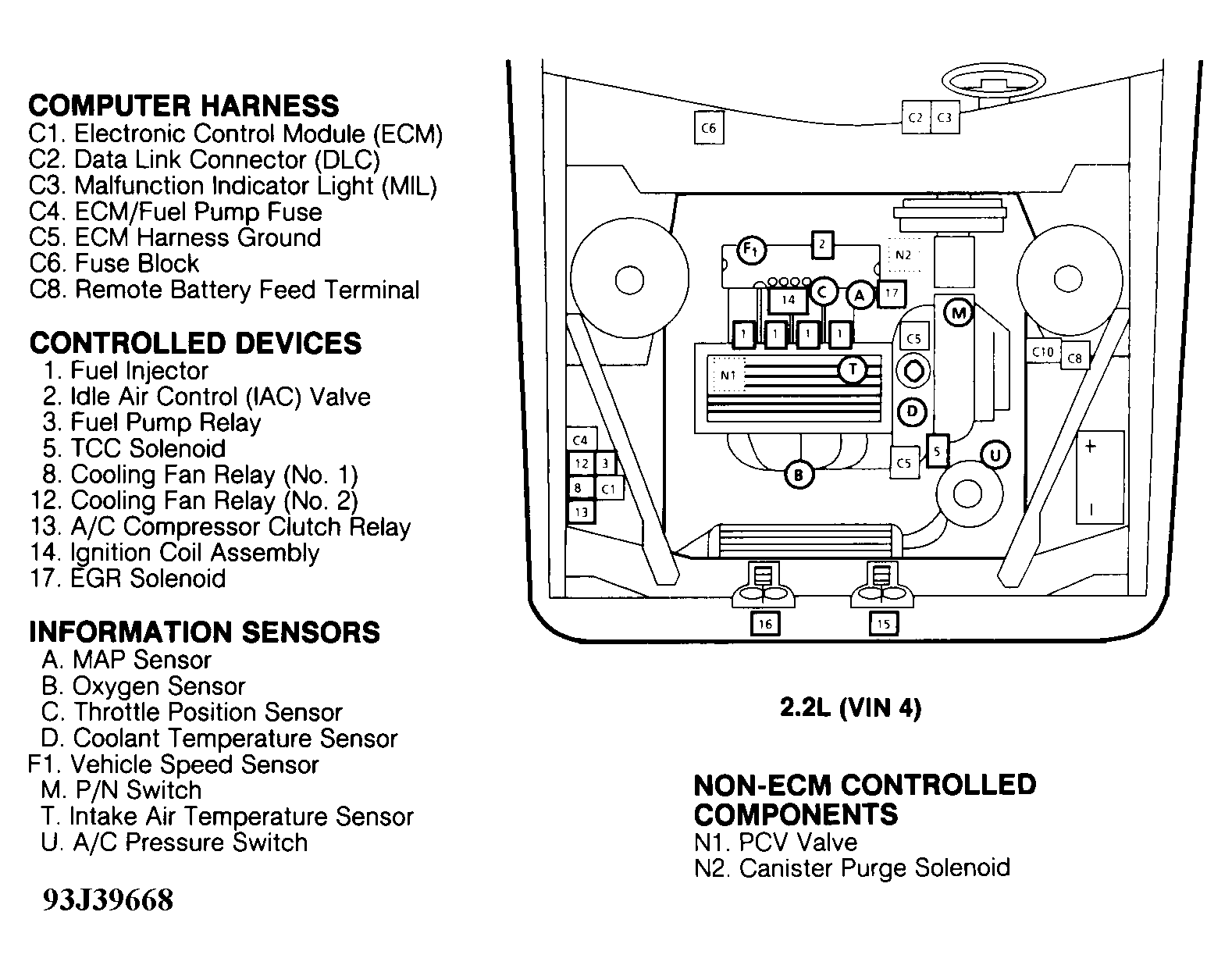

| 2.2L, VIN 4 | Behind right side of dash, in glove compartment. See Figure . | |
| 3.1L, VIN T, (Calif.) | Behind right side of dash, in glove compartment. See Figure . | |
| 3.1L, VIN T, (Except Calif.) | Behind right side of dash, in glove compartment. See Figure . | |
| 3.4L, VIN X | Behind right side of dash, in glove compartment. See Figure . | |
| 3.8L, VIN L | Behind right side of dash, in glove compartment. See Figure . | |
| Fusible Links | ||
| "A" Right Electrical Ctr. (Rust) | At starter solenoid. | |
| "B" Alternator (Rust) | At starter solenoid. | |
| "D" ECM/Fuel Pump Fuse (Gray) | On left underhood electrical center. | |
| Underhood Electrical Centers | ||
| 3.1L, VIN T, (Calif.) | On left and right side of engine compartment. See Figure . | |
| 3.1L, VIN T, (Except Calif.) | On left and right side of engine compartment. See Figure . | |
| 3.4L, VIN X | On left and right side of engine compartment. See Figure . | |
| 3.8L, VIN L | On left and right side of engine compartment. See Figure . | |
