Component Locations

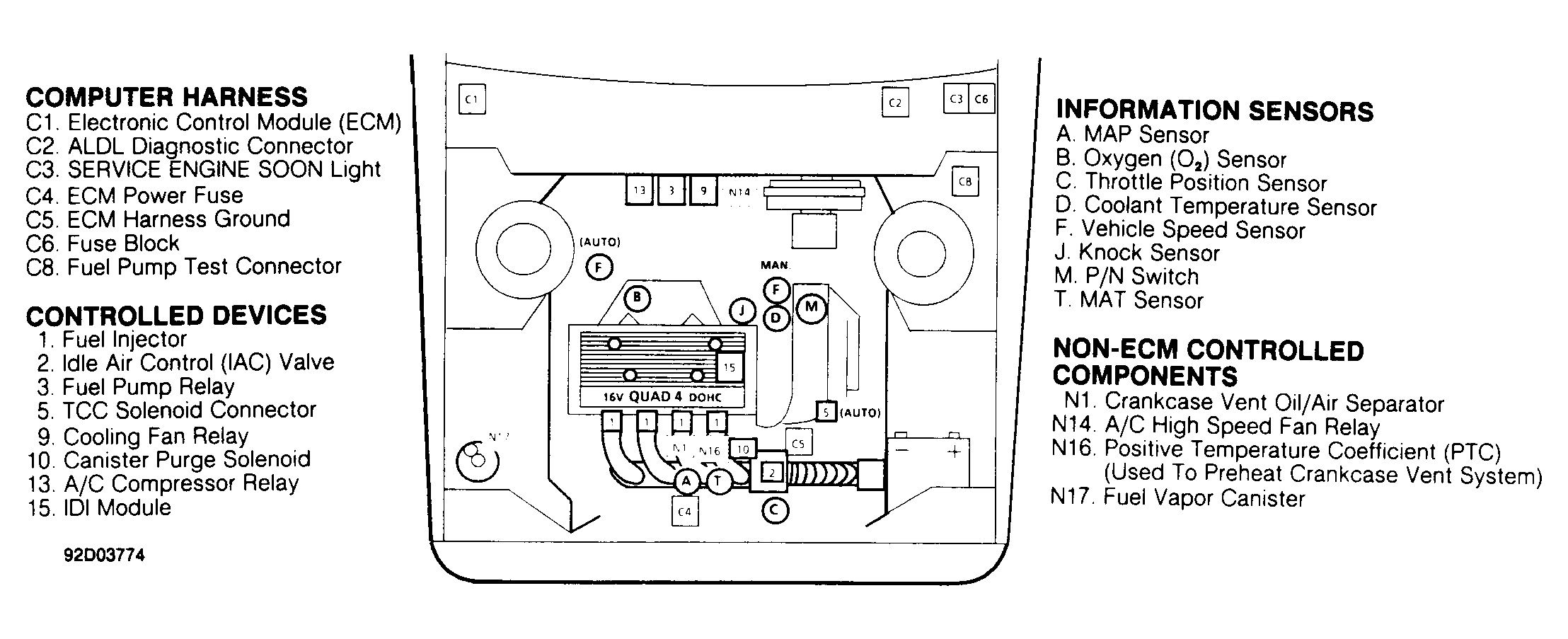

Fig 1: Component Locations (2.0L VIN H - "J" Body)

Courtesy of GENERAL MOTORS CORP.

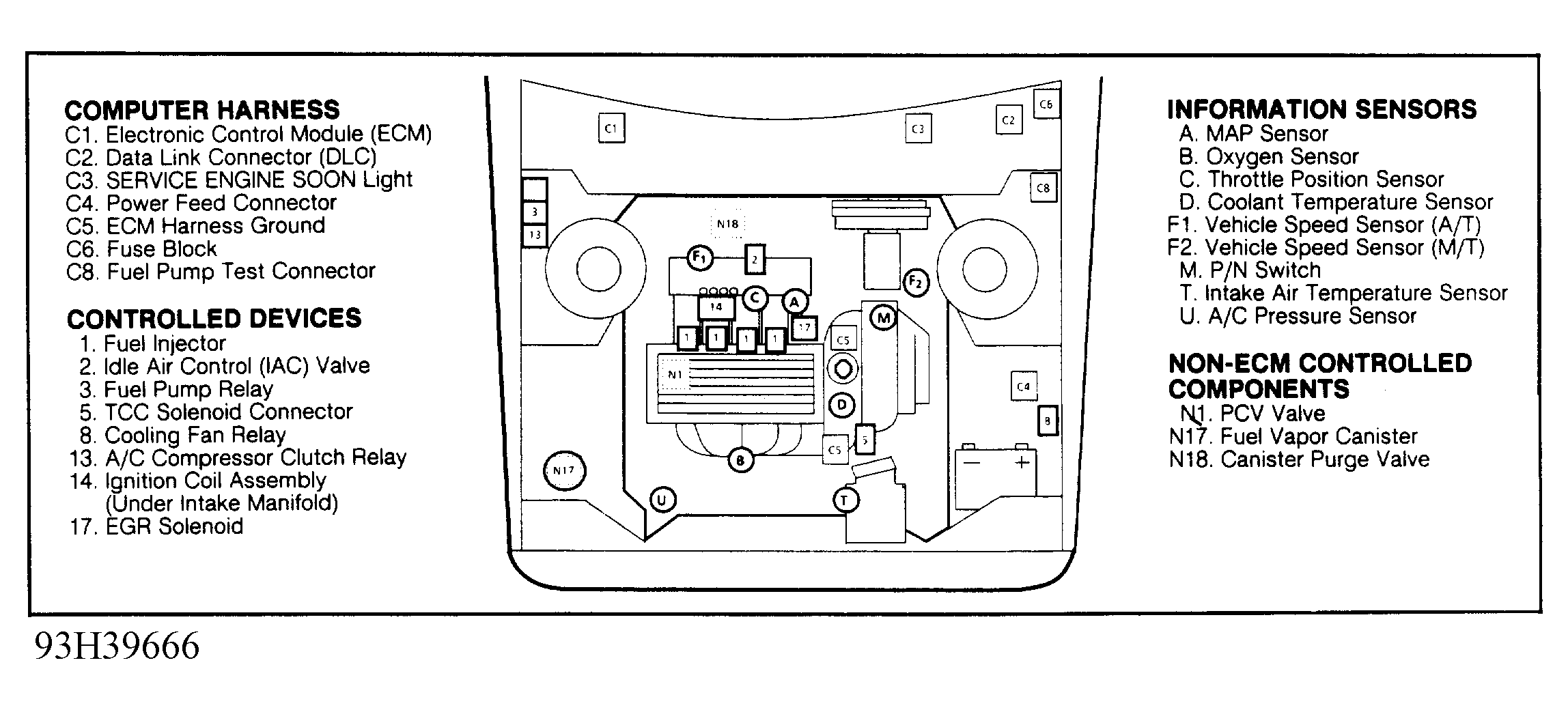

Fig 2: Component Locations (2.2L VIN 4 - "A" Body)

Courtesy of GENERAL MOTORS CORP.

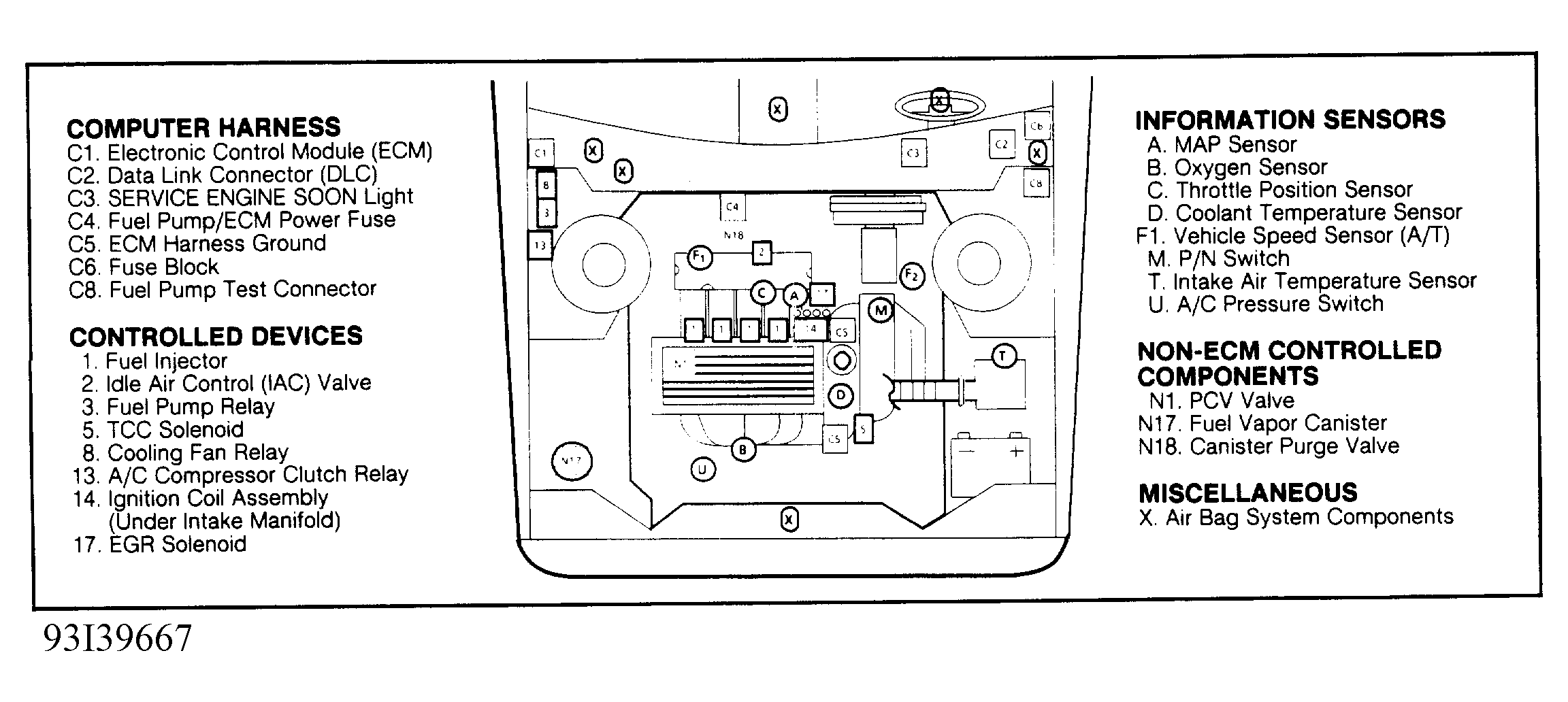

Fig 3: Component Locations (2.2L VIN 4 - "J" Body)

Courtesy of GENERAL MOTORS CORP.

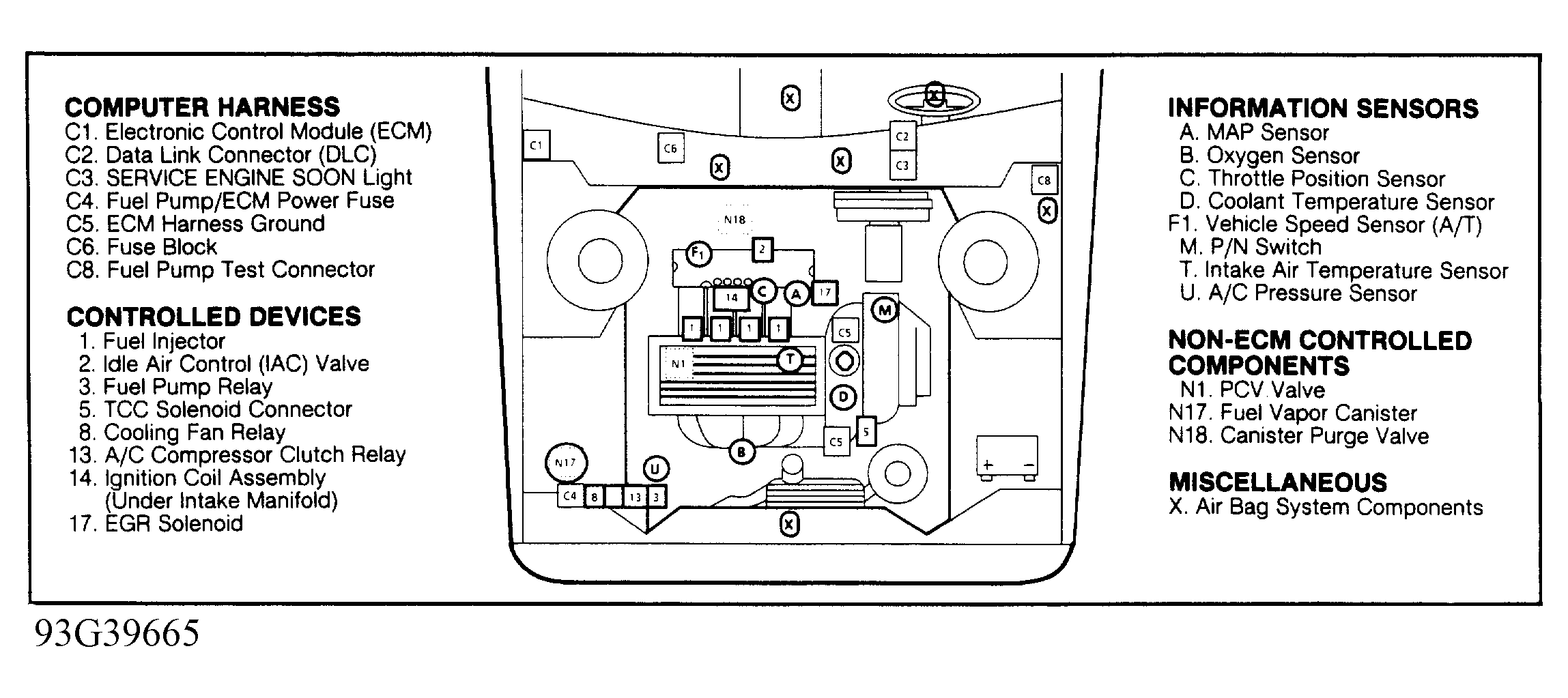

Fig 4: Component Locations (2.2L VIN 4 - "L" Body)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Component Locations (2.2L VIN 4 - "W" Body)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Component Locations (2.3L VIN A - "L" Body)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Component Locations (2.3L VIN A, D & 3 - "N" Body)

Courtesy of GENERAL MOTORS CORP.
