Component Locations

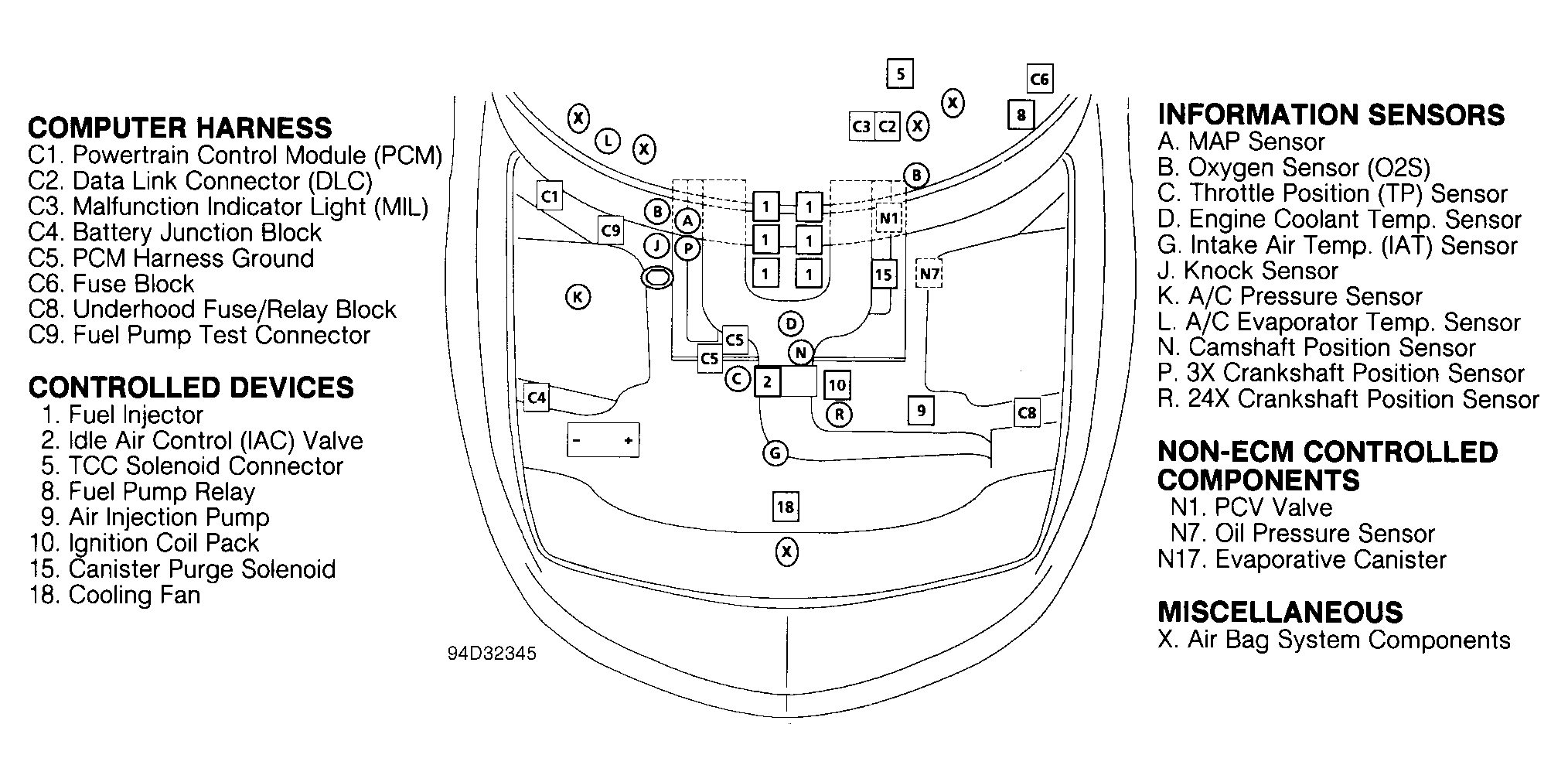

Fig 1: Component Locations (3.4L VIN S)
G94D32345Courtesy of GENERAL MOTORS CORP.
