Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Body Control Module (BCM) | Mounted to HVAC Module, above right dash insulator panel. |
| Cruise Control Module | In engine compartment, on left frame rail, forward of wheelwell. |
| Daytime Running Lamps (DRL) Module | Mounted behind radio & HVAC controls, left of I/P compartment. |
| Electronic Brake Control Module (EBCM) | Under left side of dash, near kick panel. |
| Electronic Brake/Traction Control Module (EBTCM) | Under left side of dash. |

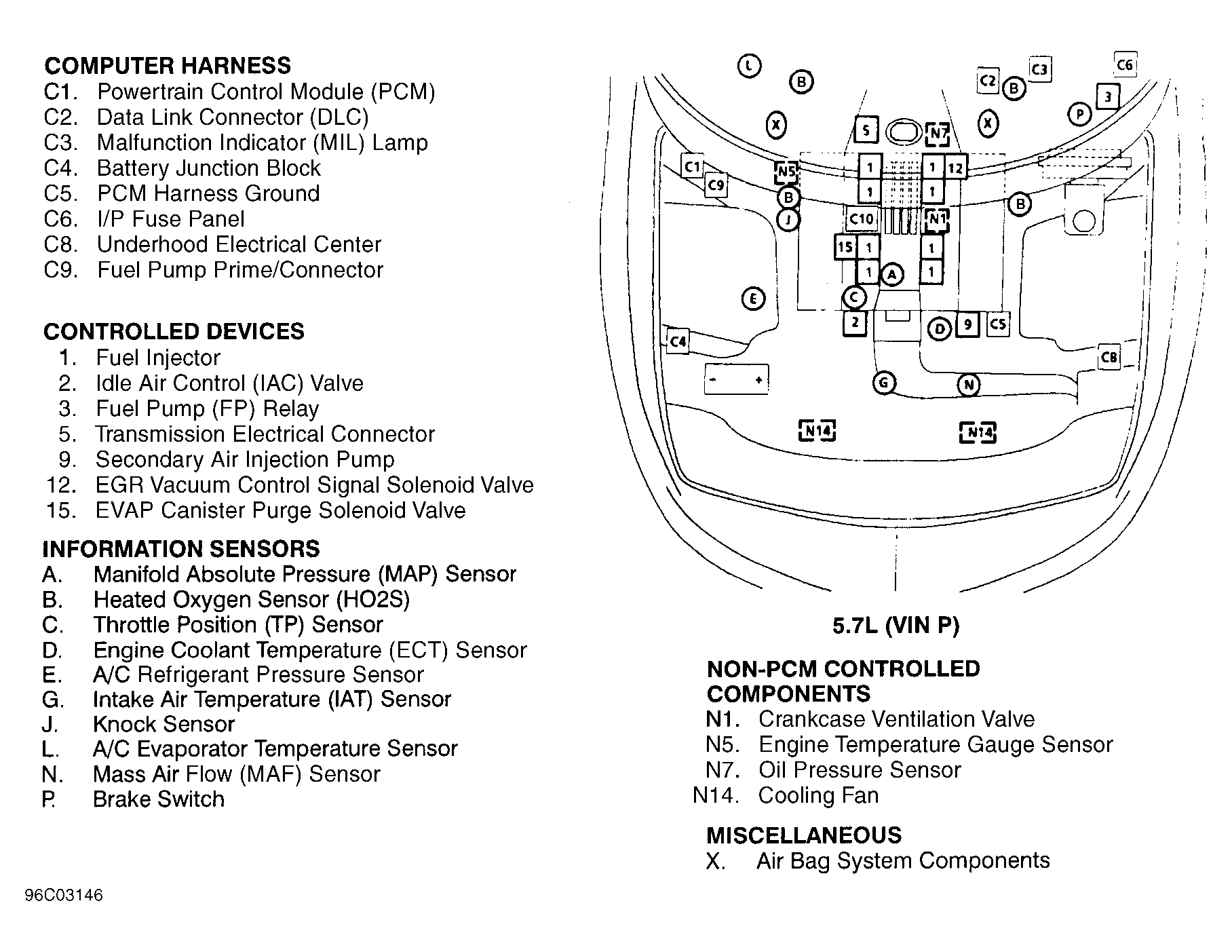

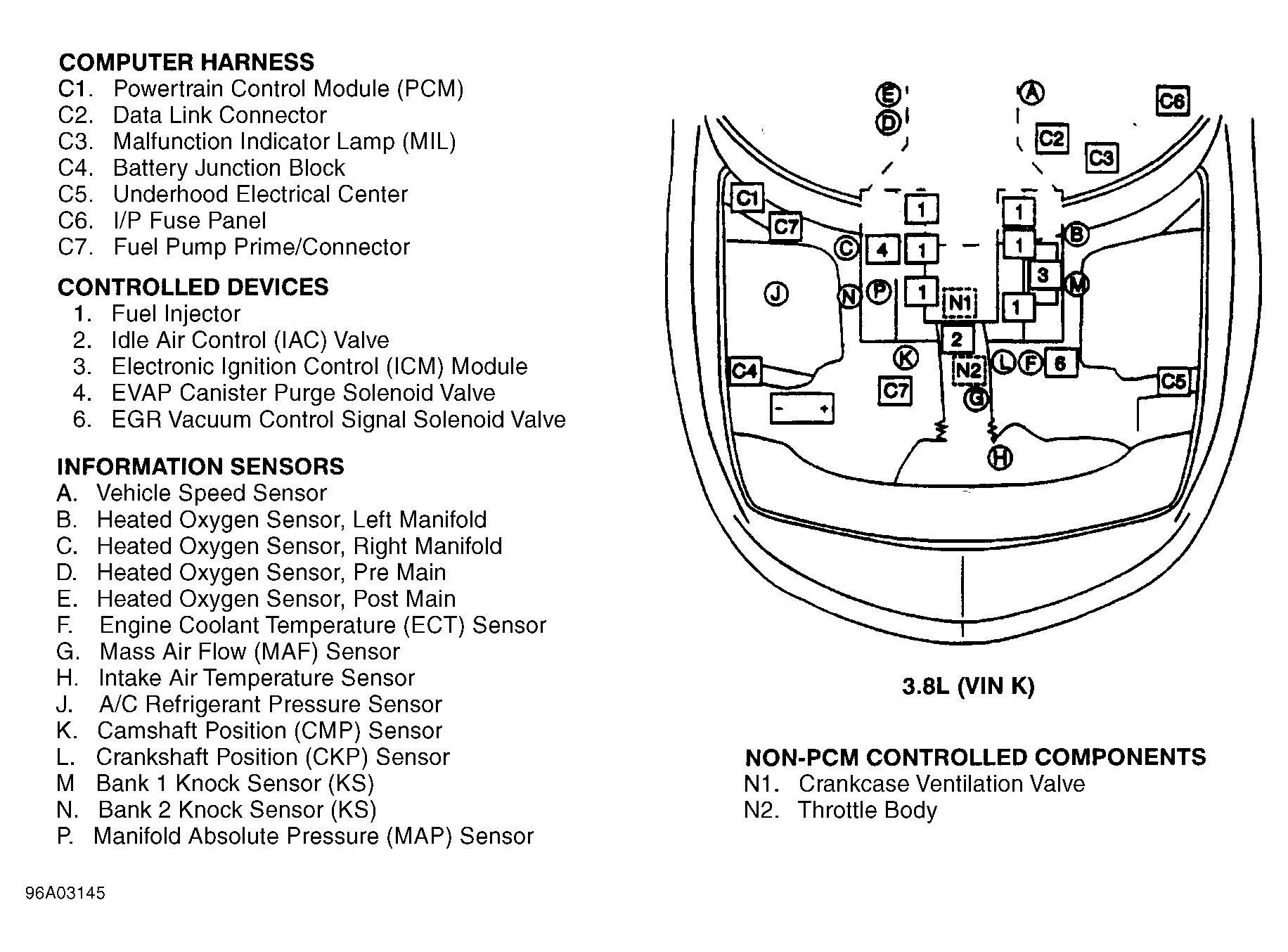

| Electronic Ignition Control (ICM) Module (3.8L VIN K) | At front end of left cylinder head. See Figure . |
| Engine Coolant Level Indicator Module (3.8L VIN K) | Mounted on upper right side of radiator. |
| Headlamp Doors Module | In engine compartment, forward of left wheelwell. |
| Ignition Coil Module (5.7L VIN P) | Front left side of engine. |
| Inflatable Restraint Diagnostic Energy Reserve (w/sensor) Module (SDM) | Top of rear console. |
| Power Seat Control Module | Under driver's seat. |
| Power Window Control Module | On center of dash mat, above floor tunnel. |
| Powertrain Control Module (PCM) (3.8L VIN K) | In engine compartment, behind right strut tower. See Figure . |
| Powertrain Control Module (PCM) (5.7L VIN P) | In engine compartment, behind right strut tower. See Figure . |
| Wiper Motor Assembly | Rear of left shock tower mounted to dash panel below left wiper mount. |
