Home >> Pontiac >> 1996 >> Grand Prix Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests - 3.1L >> Component Locations

Component Locations

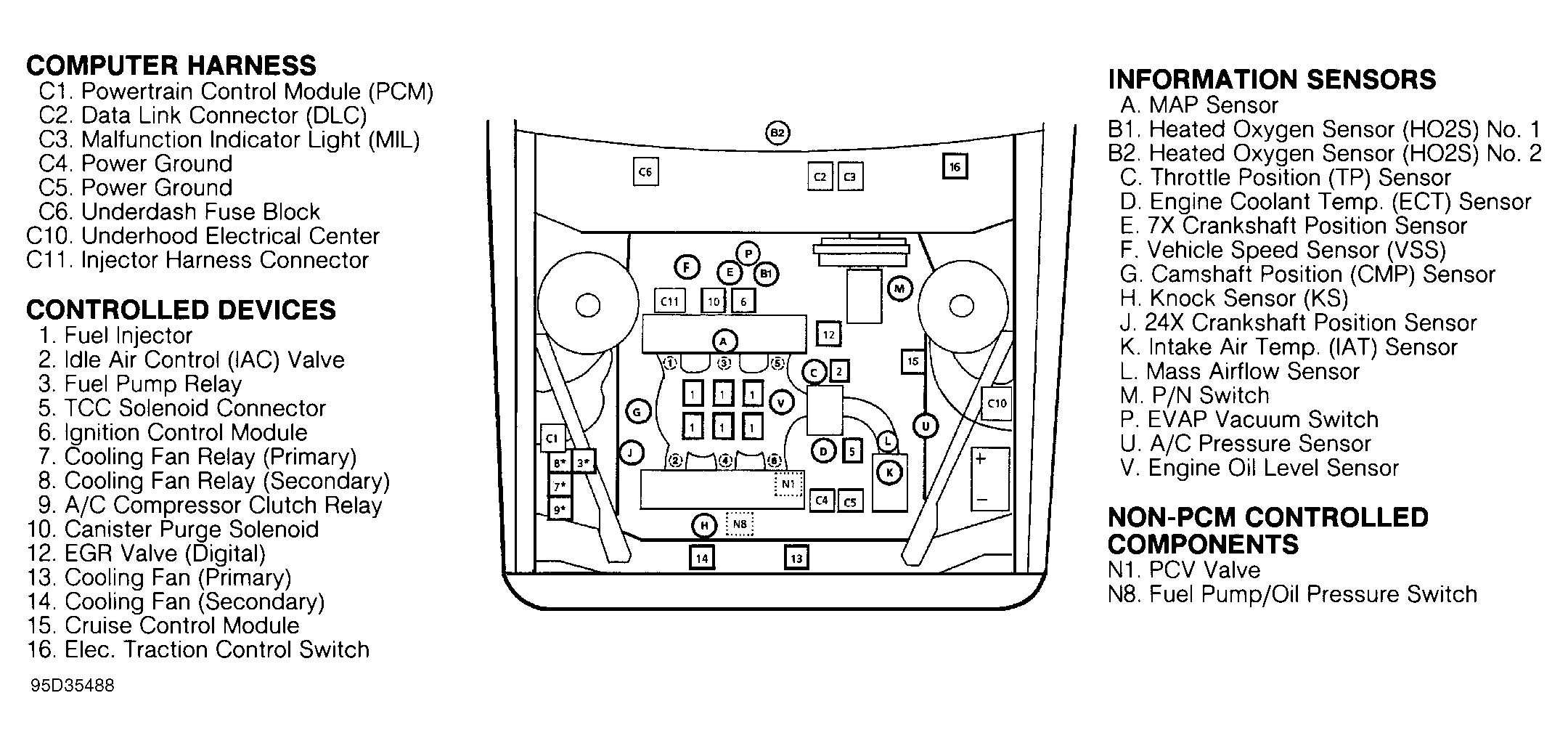

Fig 1: Component Locations
G95D35488Courtesy of GENERAL MOTORS CORP.
