Home >> Pontiac >> 1996 >> Grand Prix GTP >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests - 3.4L >> Component Locations

Component Locations

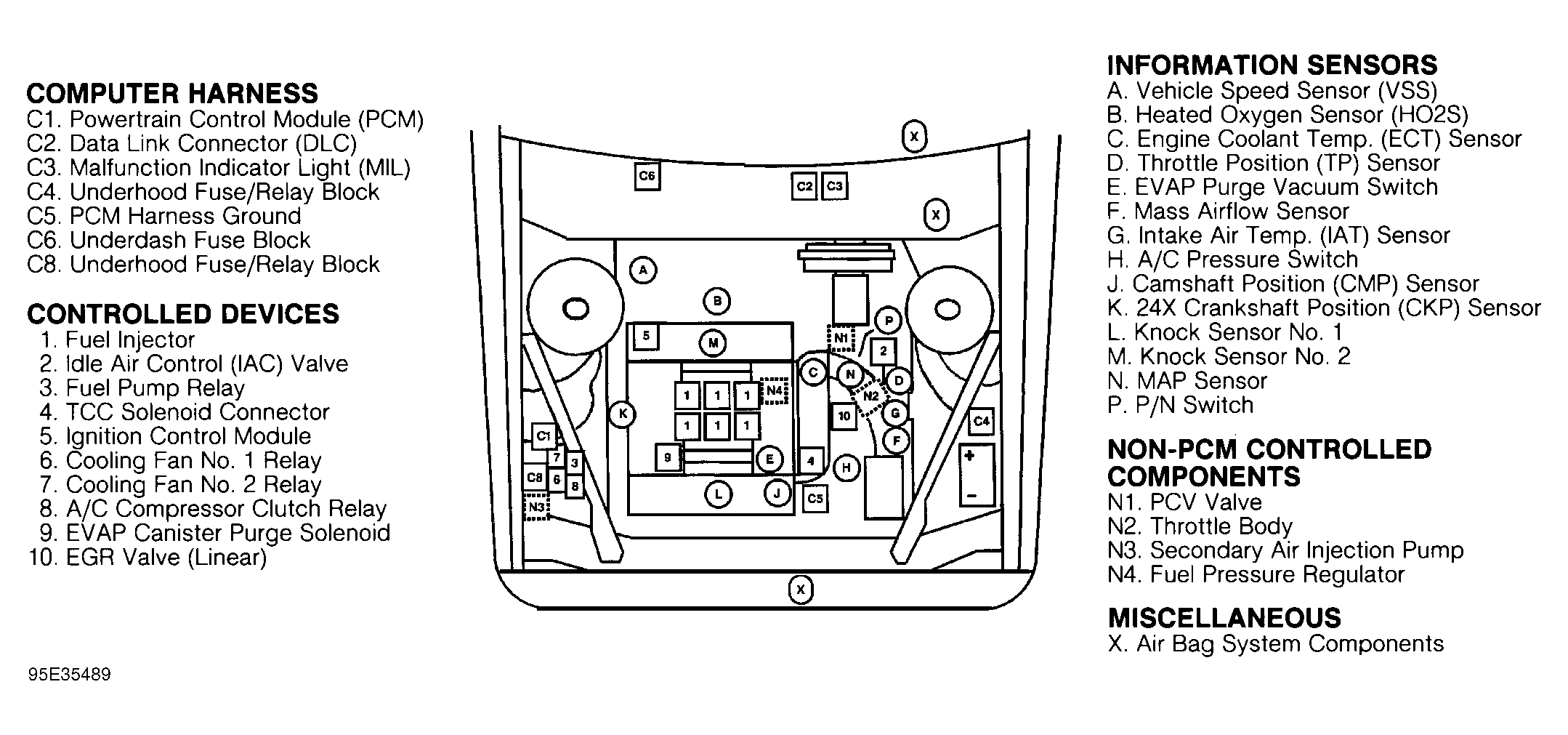

Fig 1: Component Locations
G95E35489Courtesy of GENERAL MOTORS CORP.
