Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (3.8L VIN K)

G97I00037

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Compartment (5.7L VIN P)

G97A00038

Courtesy of GENERAL MOTORS CORP.

Fig 3: Under Left Hand Side Of Instrument Panel

G00236164

Courtesy of GENERAL MOTORS CORP.

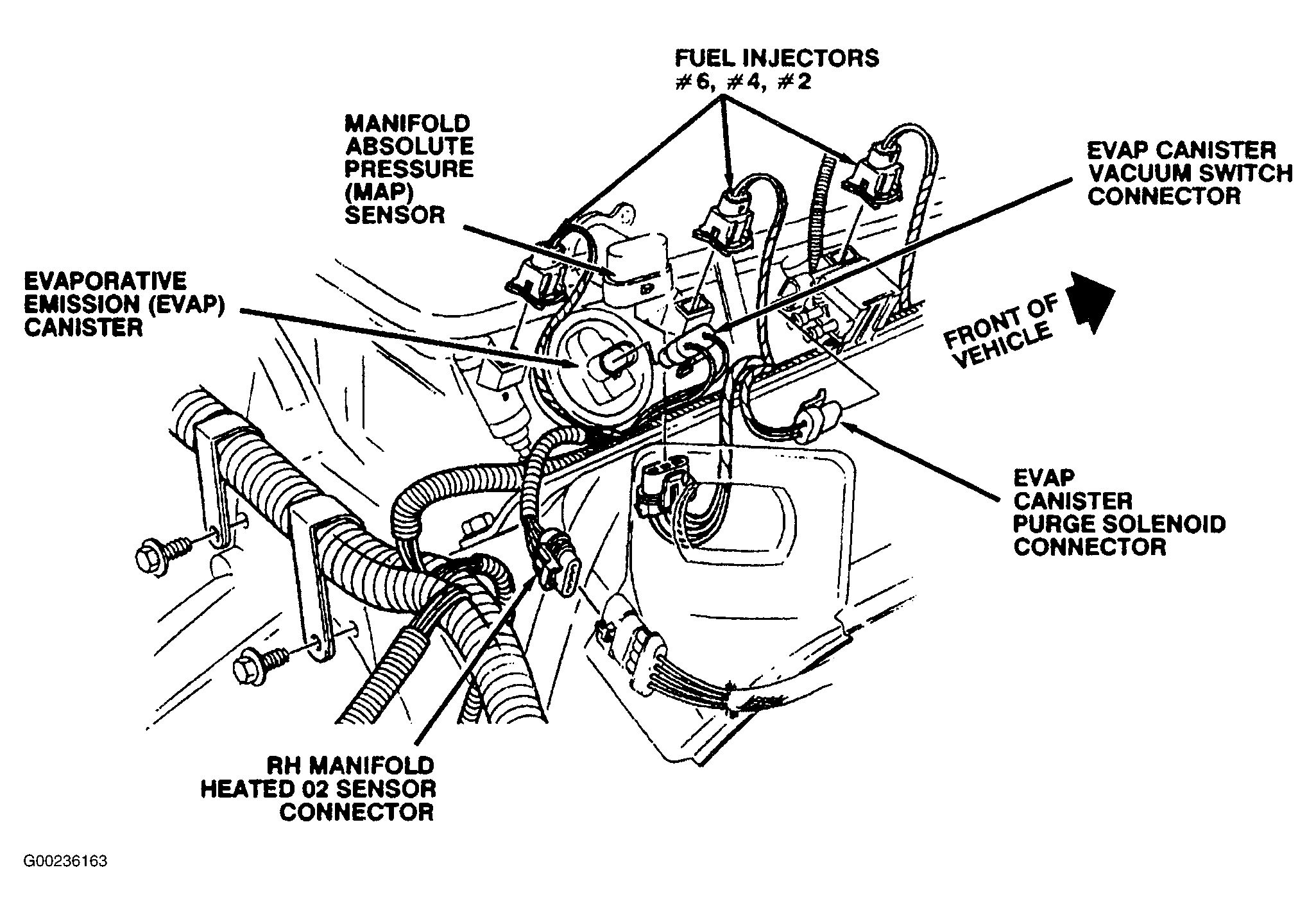

Fig 4: Rear Right Hand Side Of Engine (3.8L VIN K)

G00236163

Courtesy of GENERAL MOTORS CORP.

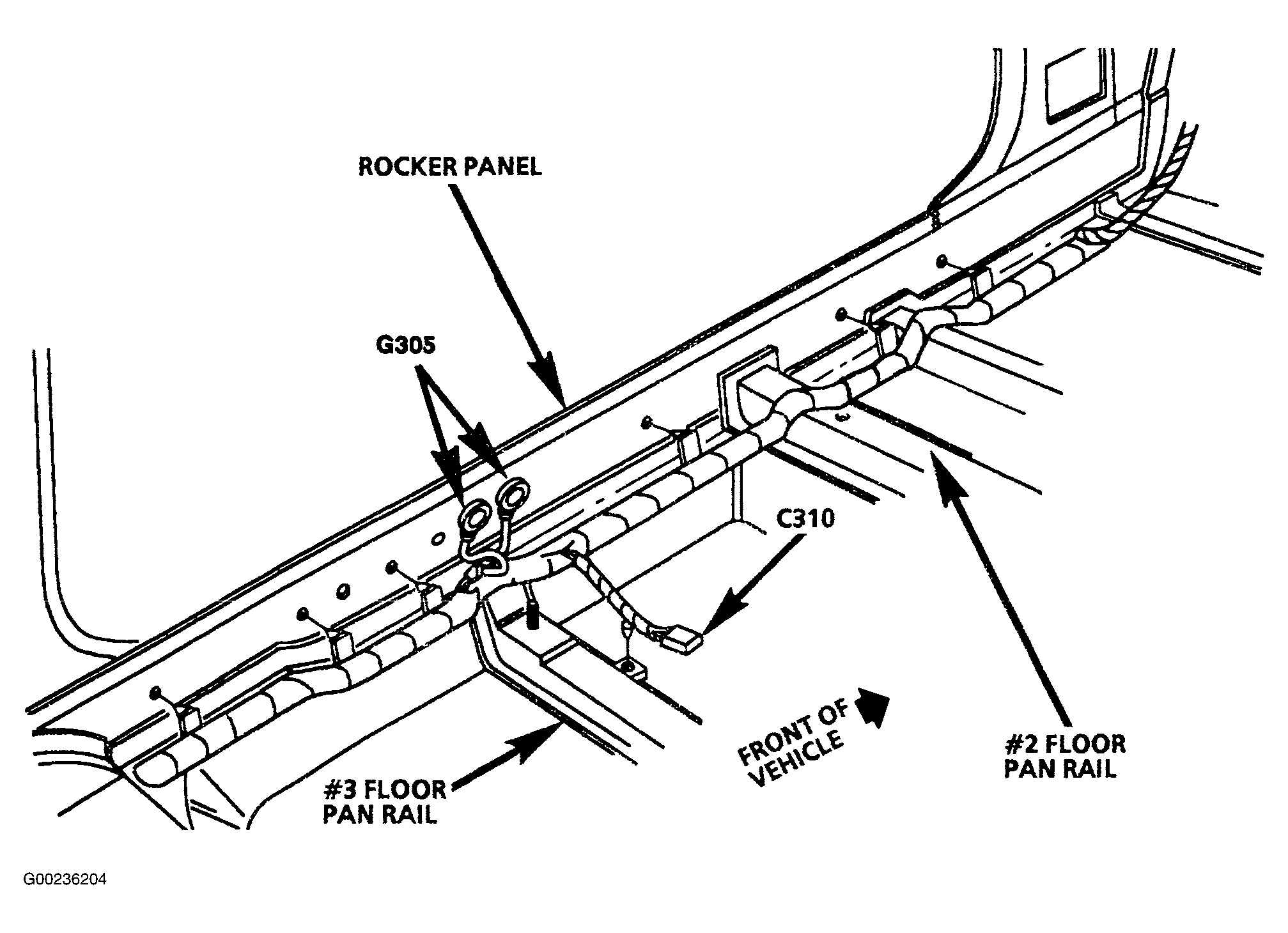

Fig 5: Locating C310 Connector & G305 Ground

G00236204

Courtesy of GENERAL MOTORS CORP.

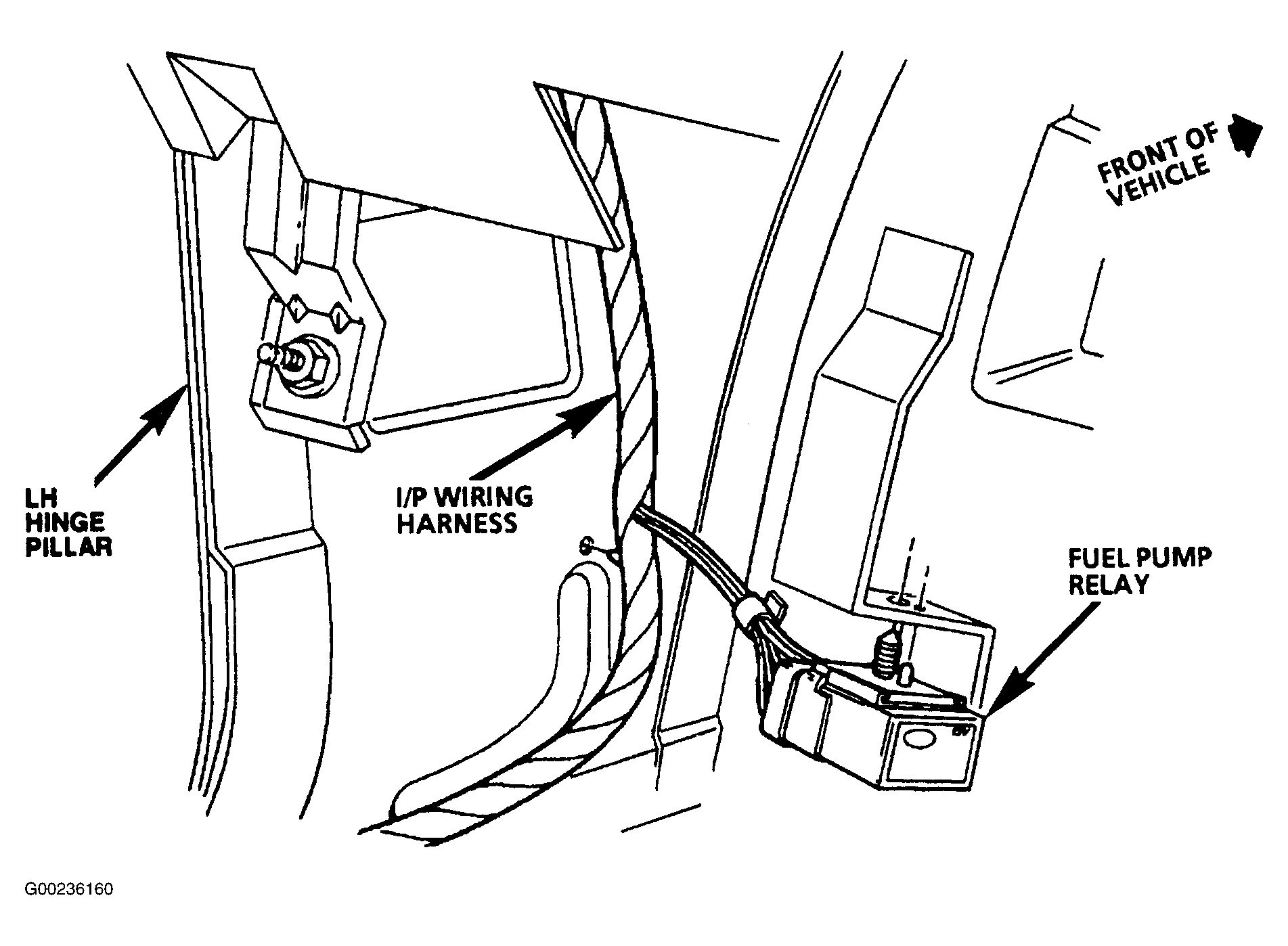

Fig 6: Locating Fuel Pump Relay

G00236160

Courtesy of GENERAL MOTORS CORP.

Fig 7: Locating EBCM/EBCTM

G00236161

Courtesy of GENERAL MOTORS CORP.

NOTE: Manufacturer does not differentiate between the 2 daytime running light illustrations.

Fig 8: Locating Daytime Running Lamps (DRL) Module (1 of 2)

G00236159

Courtesy of GENERAL MOTORS CORP.

Fig 9: Locating Daytime Running Lamps (DRL) Module (2 of 2), IP Fuse Block & Turn Flasher

G00236162

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating Power Window Control Module

G00236157

Courtesy of GENERAL MOTORS CORP.

Fig 11: Locating Battery Junction Block, Fusible Links & G101 Ground

G00236158

Courtesy of GENERAL MOTORS CORP.

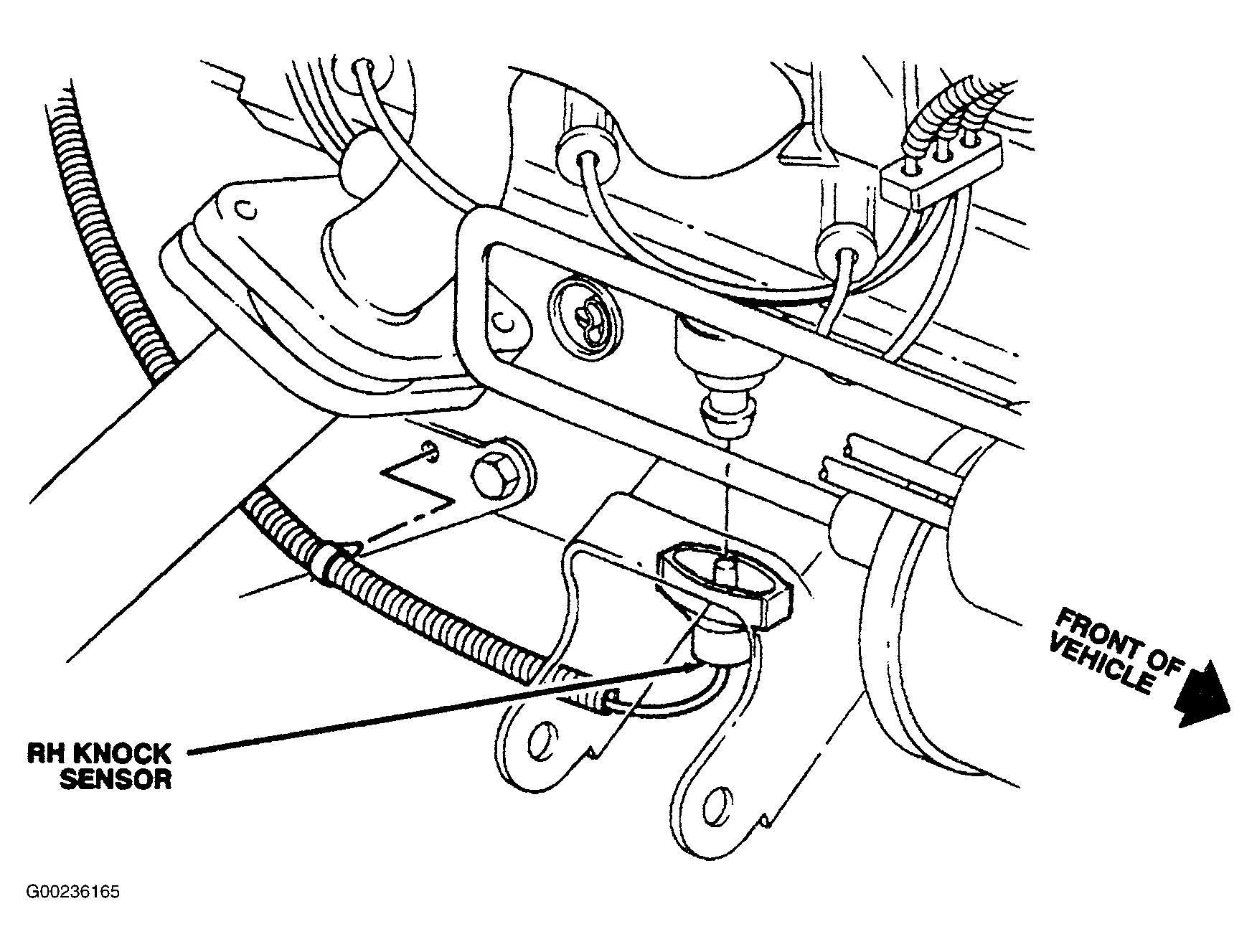

Fig 12: Locating Right Hand Knock Sensor (3.8L VIN K)

G00236165

Courtesy of GENERAL MOTORS CORP.

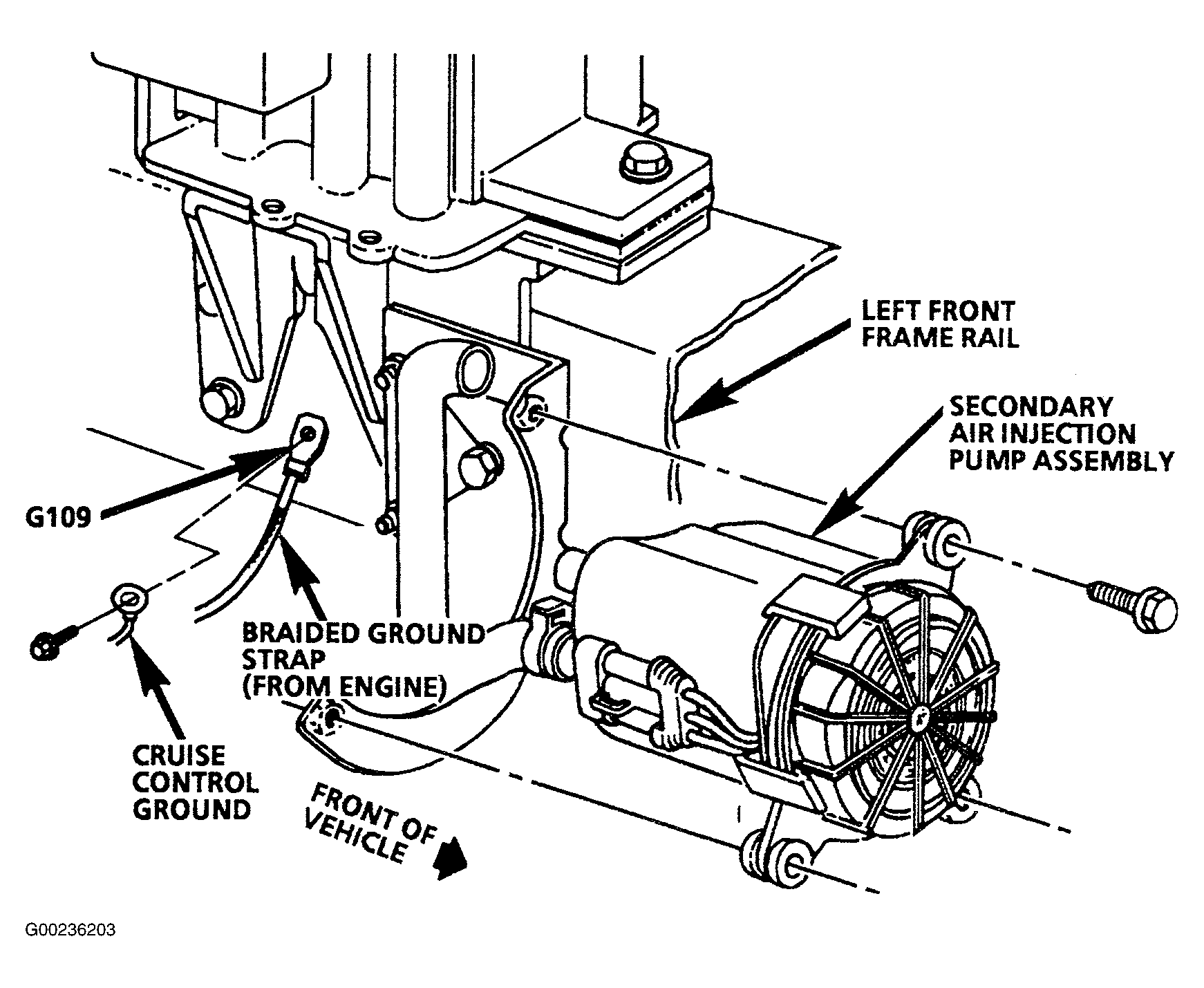

Fig 13: Locating G109 & Cruise Control Ground Connections

G00236203

Courtesy of GENERAL MOTORS CORP.

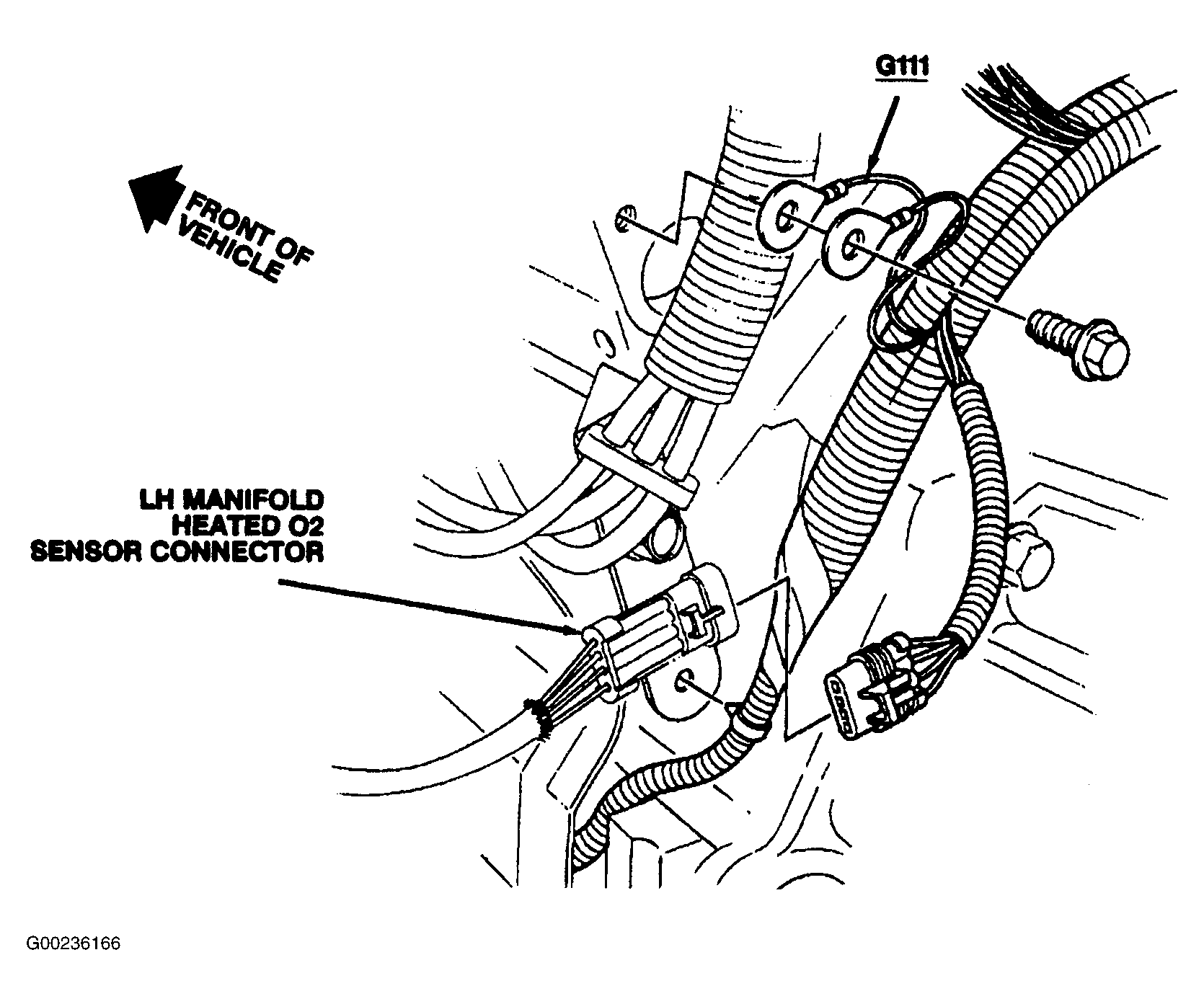

Fig 14: Locating Left Hand Heated O2 Sensor Connector a& G111 Ground Connection

G00236166

Courtesy of GENERAL MOTORS CORP.

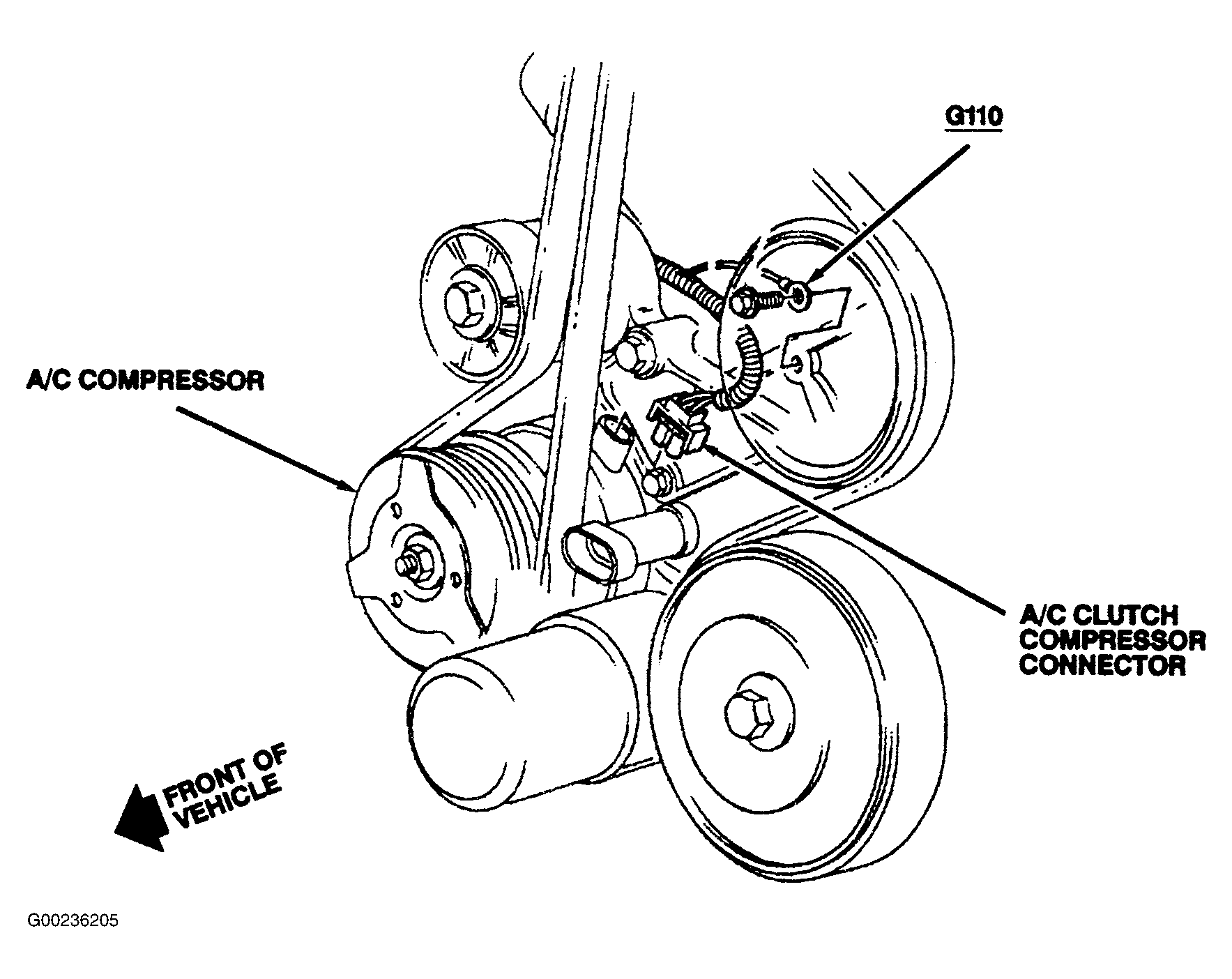

Fig 15: Locating G110 Ground Connection

G00236205

Courtesy of GENERAL MOTORS CORP.

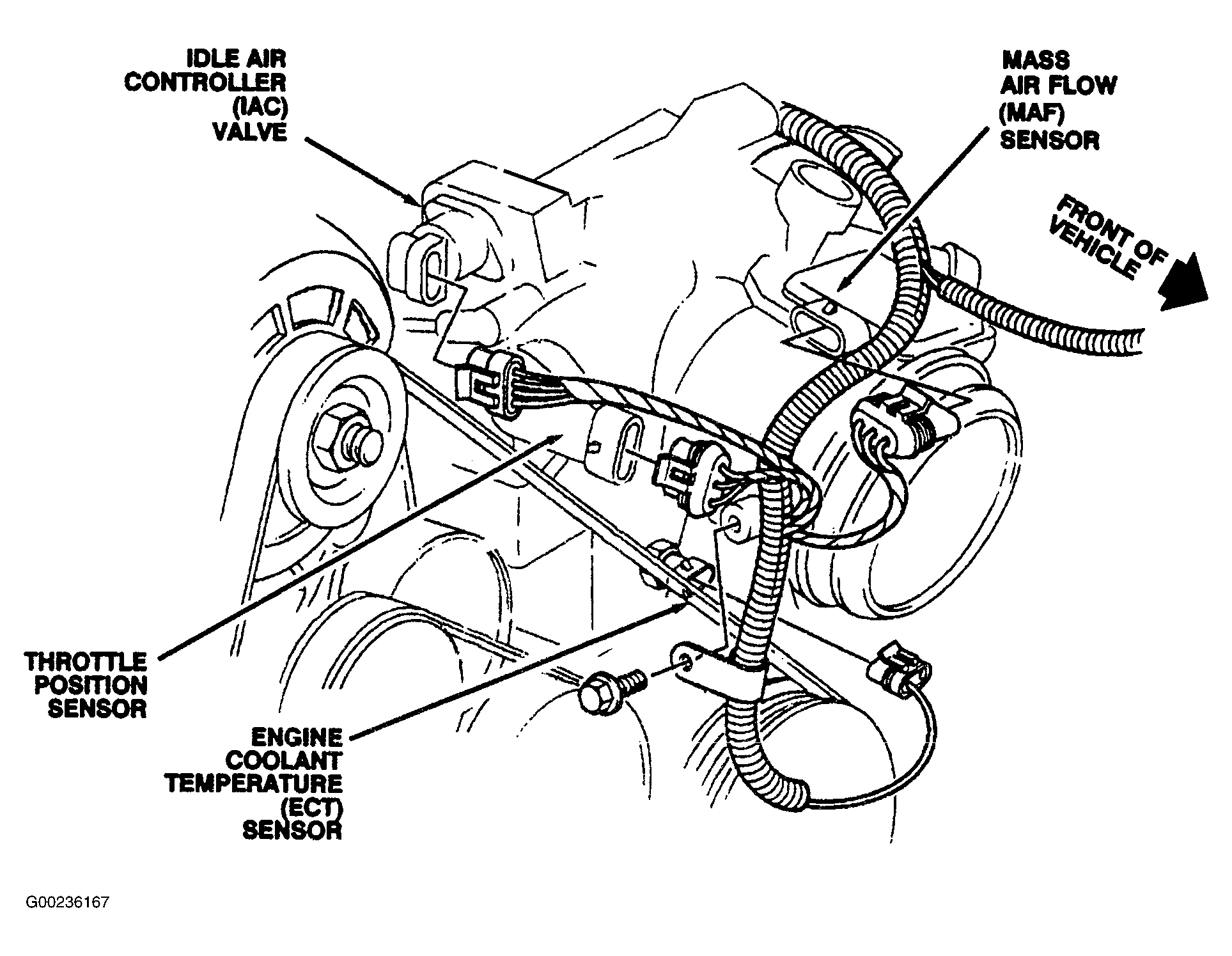

Fig 16: Front Top Of Intake Manifold (3.8L VIN K)

G00236167

Courtesy of GENERAL MOTORS CORP.

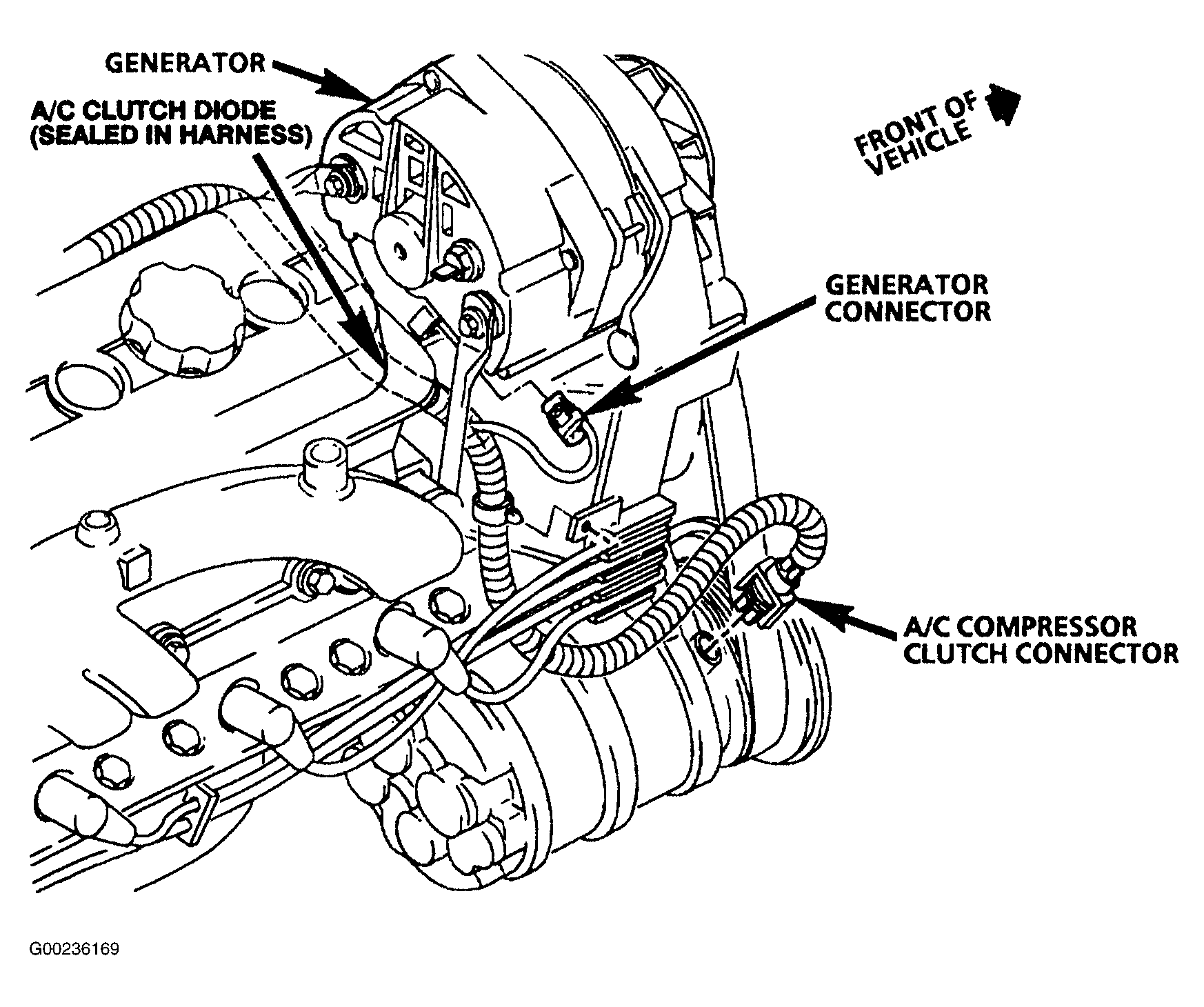

Fig 17: Front Right Hand Side Of Engine (5.7L VIN P)

G00236169

Courtesy of GENERAL MOTORS CORP.

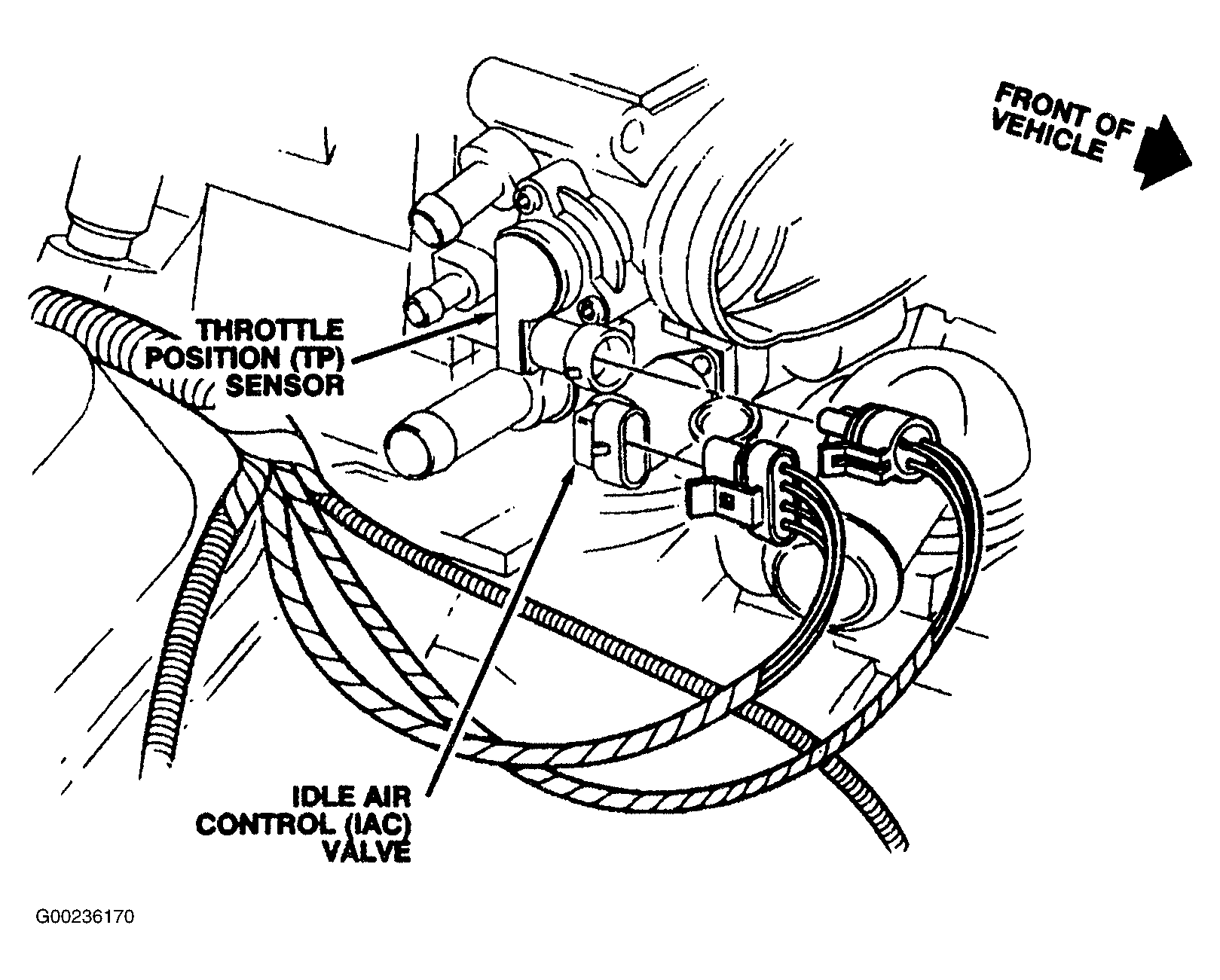

Fig 18: Front Top Right Hand Side Of Engine (5.7L VIN P)

G00236170

Courtesy of GENERAL MOTORS CORP.

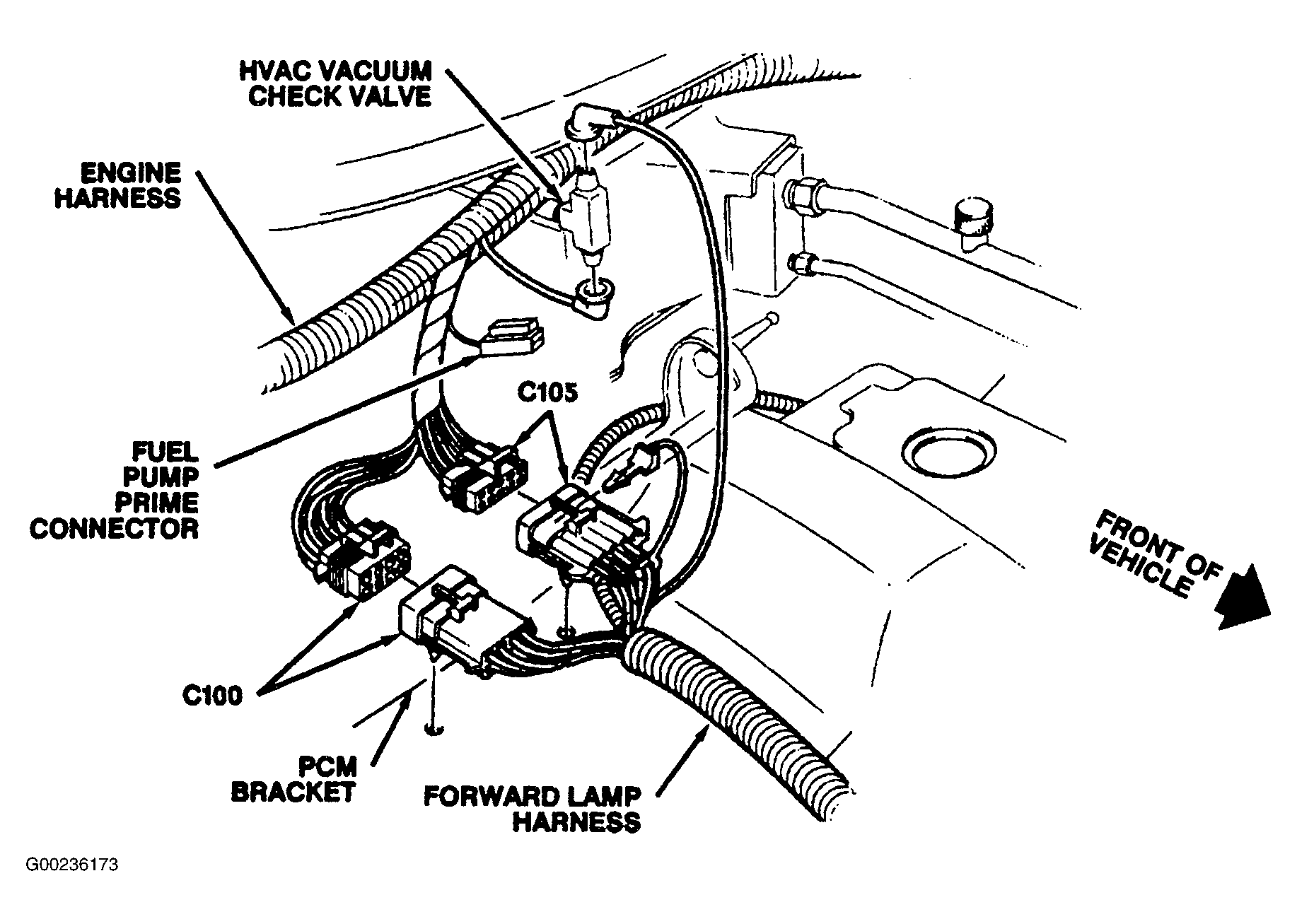

Fig 19: Right Rear Of Engine Compartment

G00236173

Courtesy of GENERAL MOTORS CORP.

Fig 20: Front Left Hand Side Of Engine (5.7L VIN P)

G00236171

Courtesy of GENERAL MOTORS CORP.

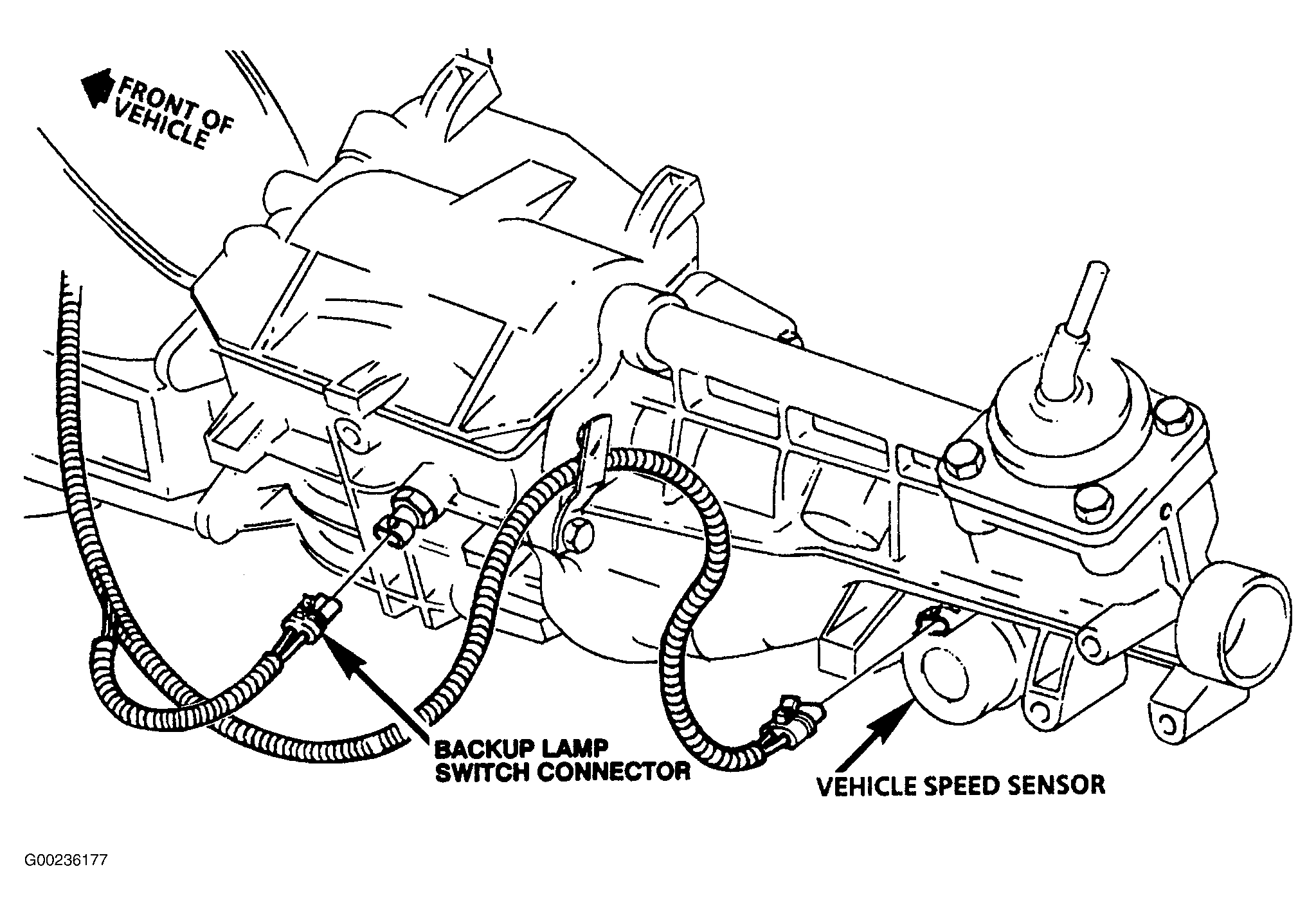

Fig 21: Left Side Of Manual Transmission (3.8L VIN K)

G00236177

Courtesy of GENERAL MOTORS CORP.

Fig 22: Engine Compartment (1 Of 2)

G00236168

Courtesy of GENERAL MOTORS CORP.

Fig 23: Engine Compartment (2 Of 2)

G00236172

Courtesy of GENERAL MOTORS CORP.

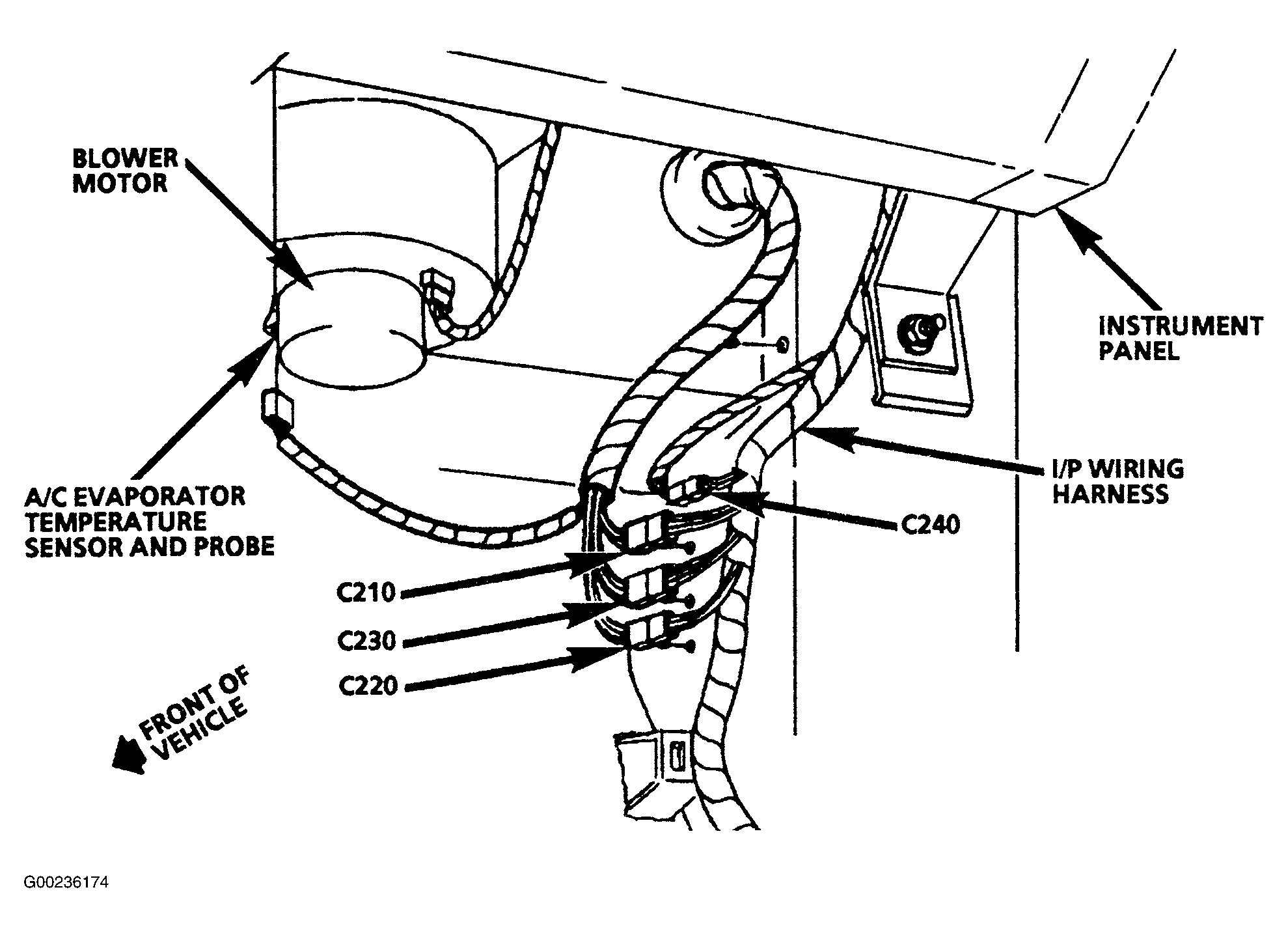

Fig 24: Behind Lower Right Side Of Instrument Panel

G00236174

Courtesy of GENERAL MOTORS CORP.

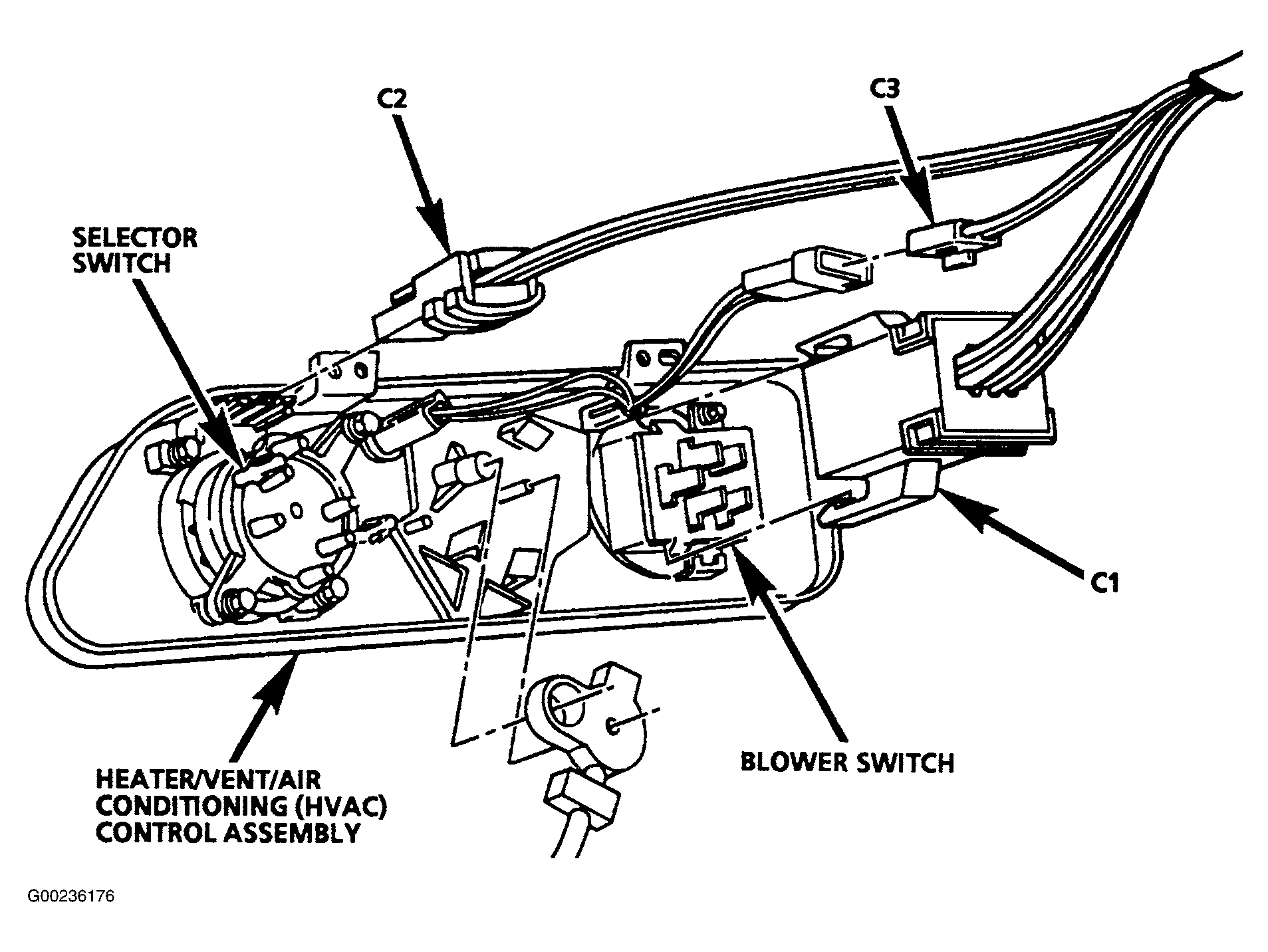

Fig 25: Behind Center Of Instrument Panel (Camaro)

G00236176

Courtesy of GENERAL MOTORS CORP.

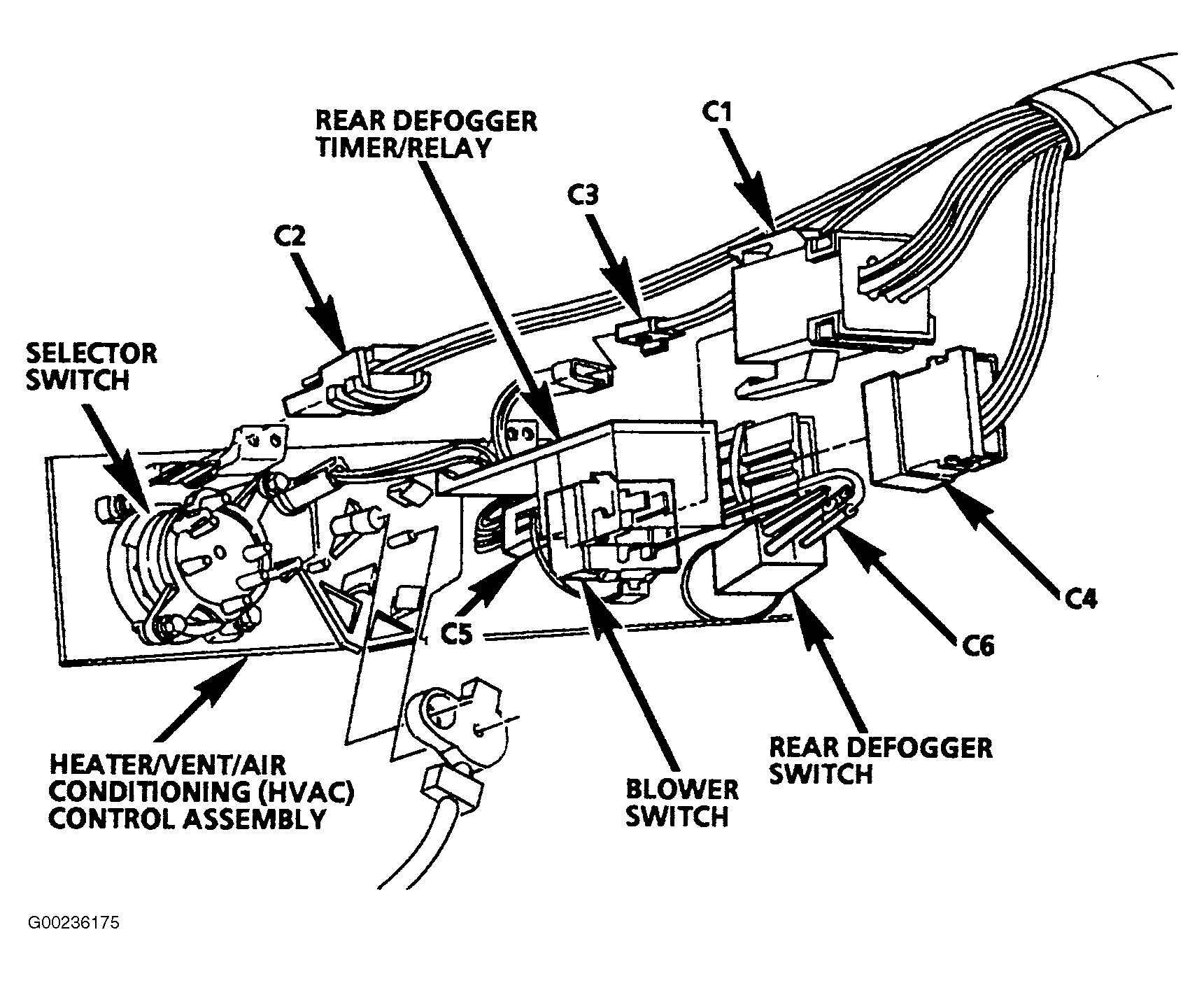

Fig 26: Behind Center Of Instrument Panel (Firebird)

G00236175

Courtesy of GENERAL MOTORS CORP.

Fig 27: Behind Right Side Of Instrument Panel

G00236179

Courtesy of GENERAL MOTORS CORP.

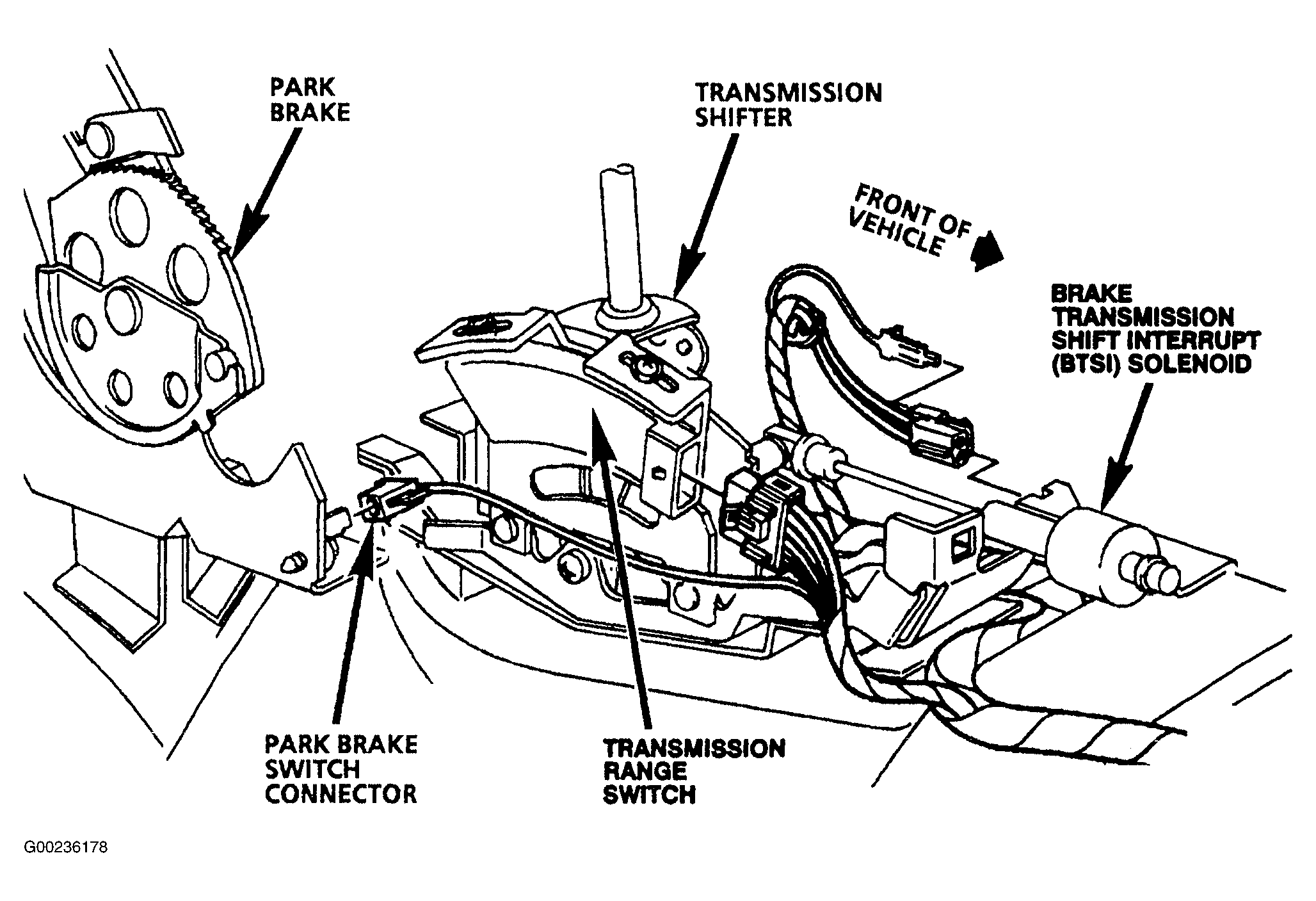

Fig 28: Under Center Console

G00236178

Courtesy of GENERAL MOTORS CORP.

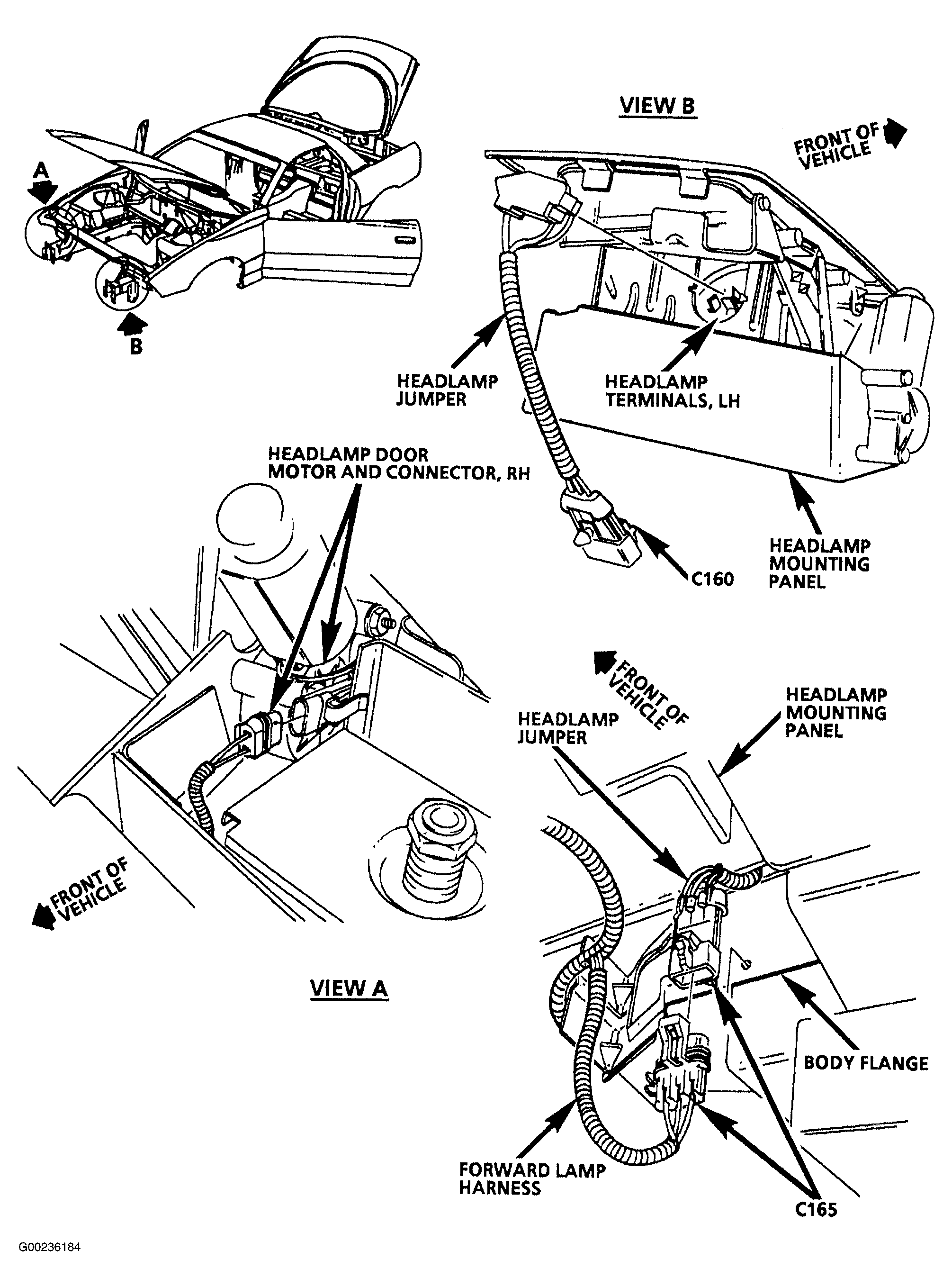

Fig 29: Headlamp Area (Firebird)

G00236184

Courtesy of GENERAL MOTORS CORP.

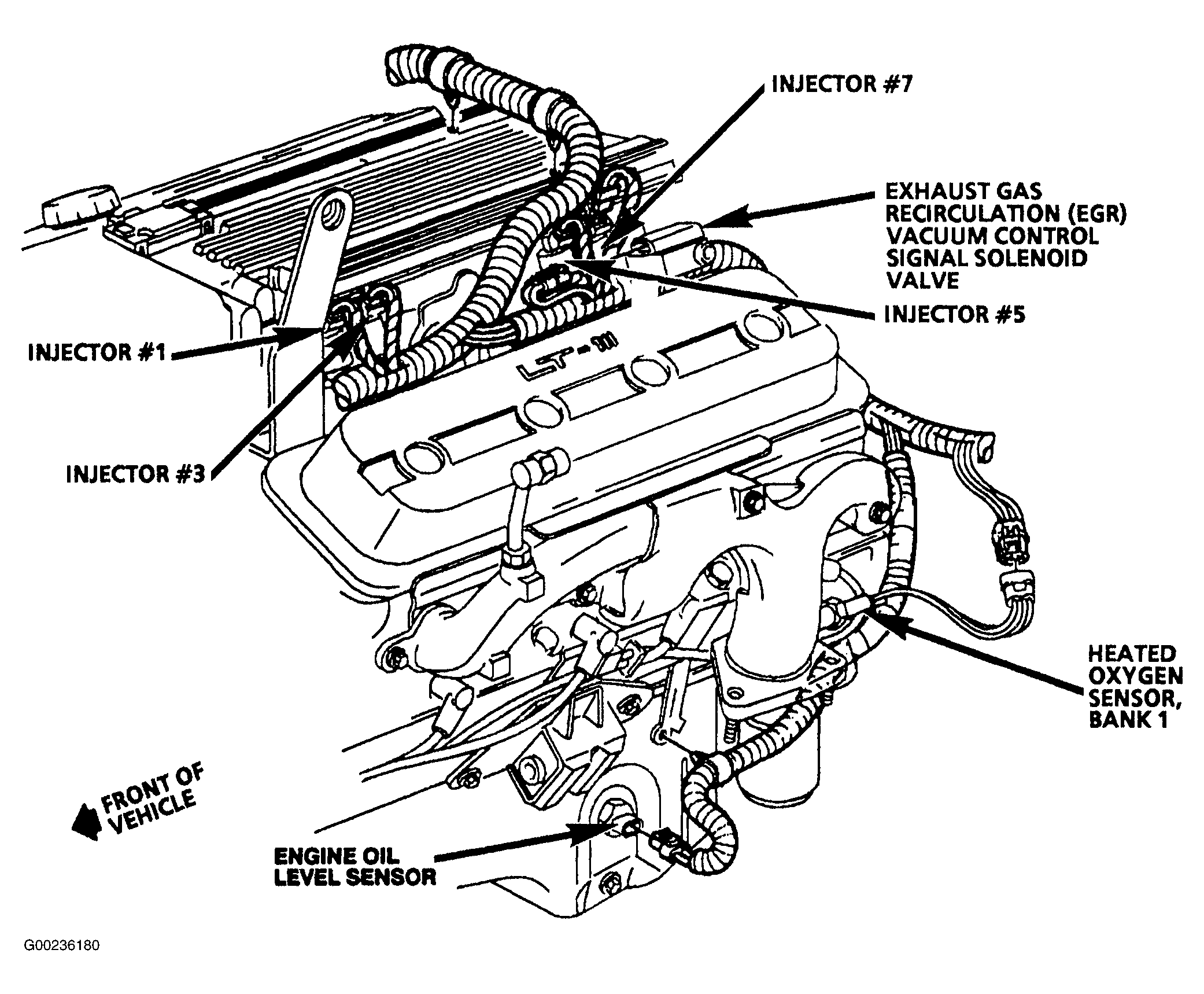

Fig 30: Left Side Of Engine (5.7L VIN P)

G00236180

Courtesy of GENERAL MOTORS CORP.

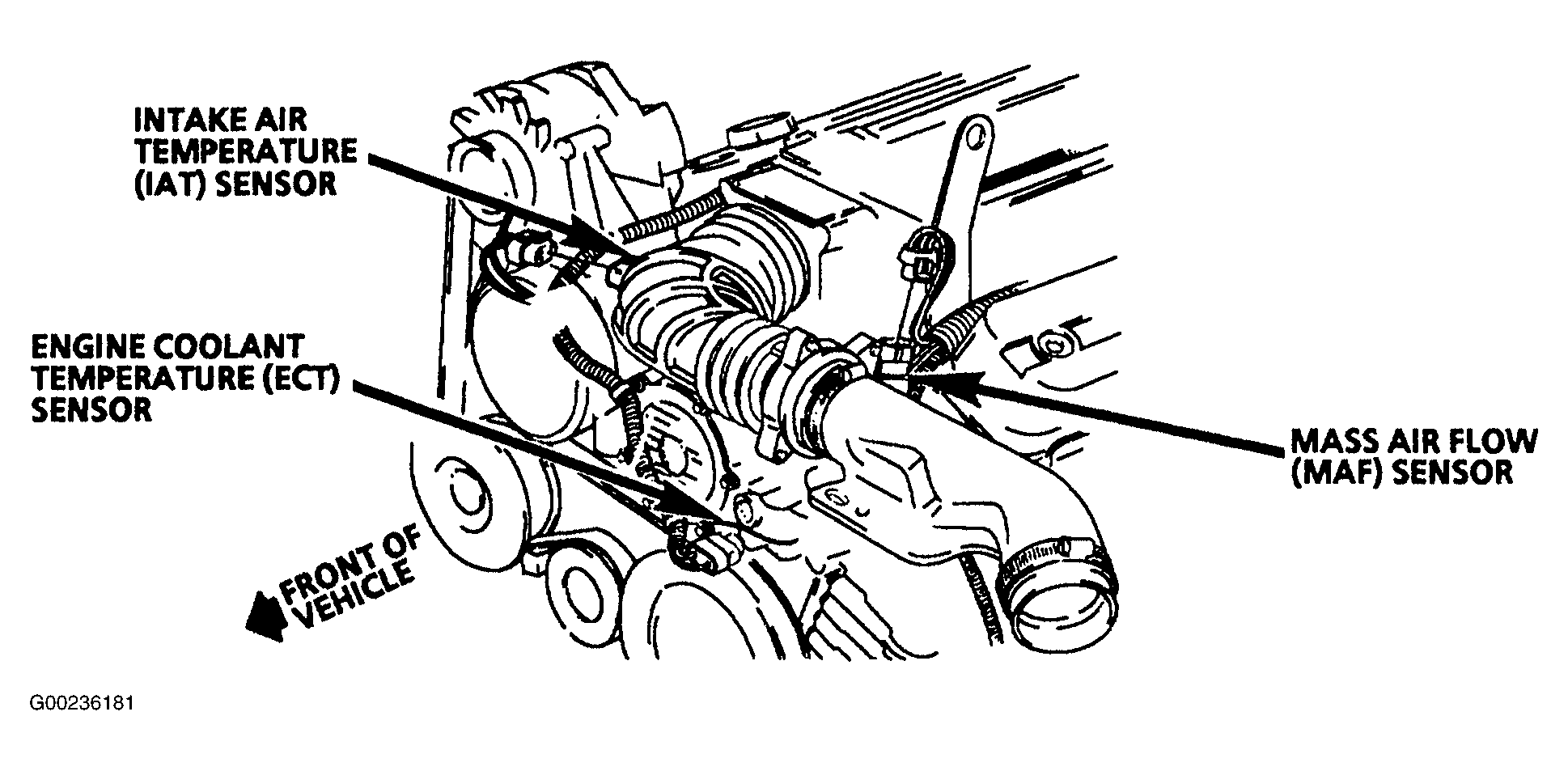

Fig 31: Front Of Engine (5.7L VIN P)

G00236181

Courtesy of GENERAL MOTORS CORP.

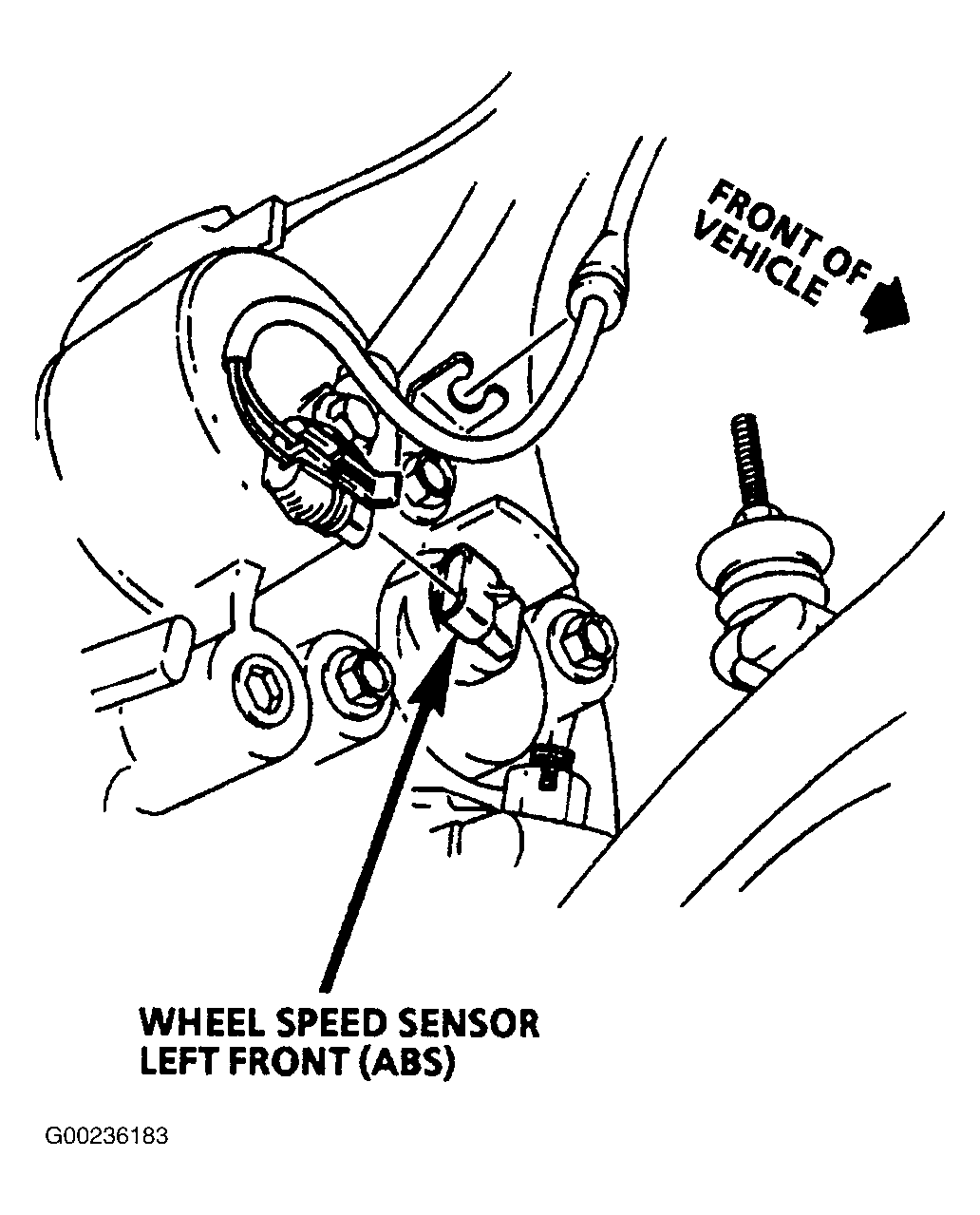

Fig 32: Locating Left Side Wheel Speed Sensor (Right Side Is Similar)

G00236183

Courtesy of GENERAL MOTORS CORP.

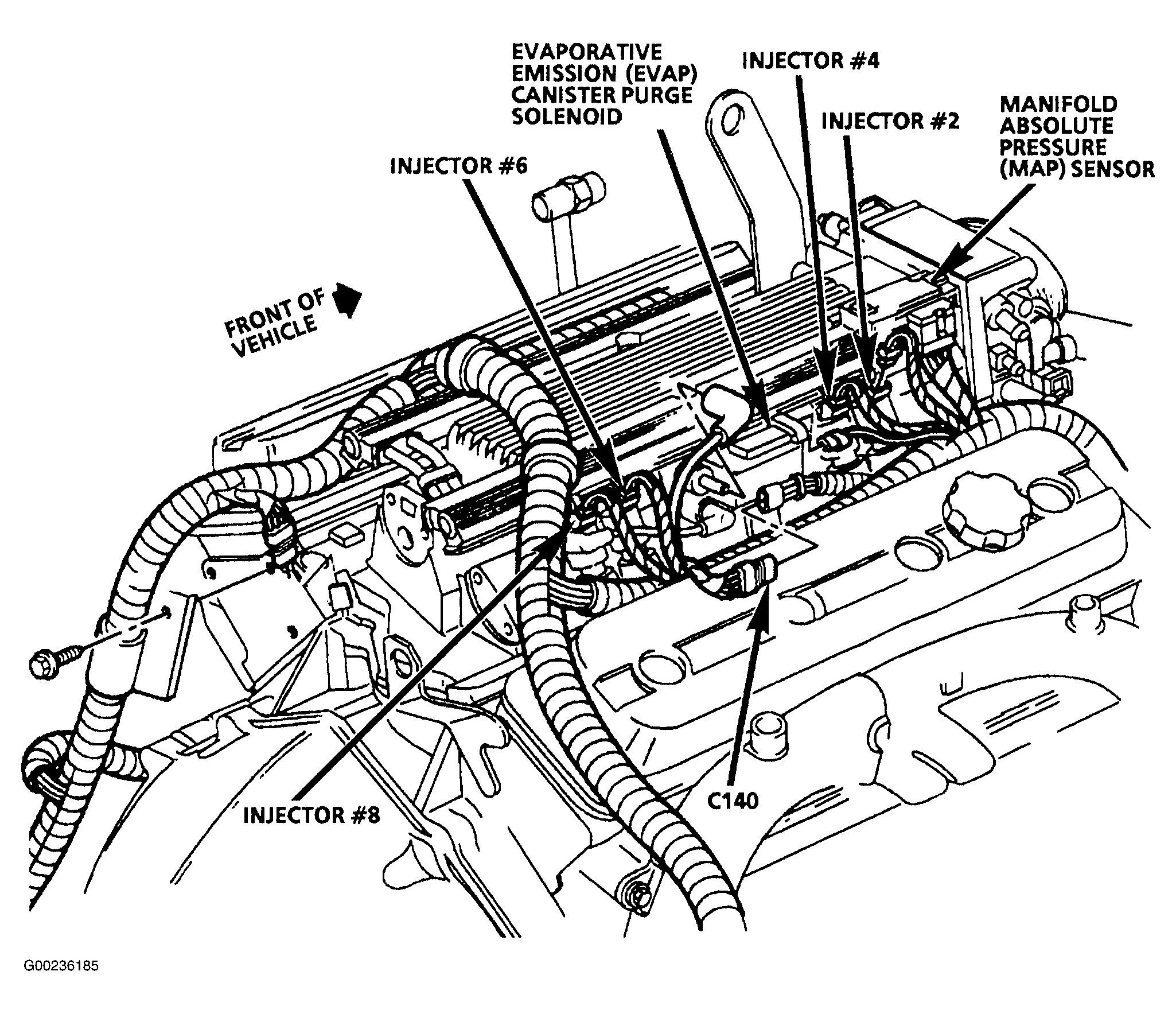

Fig 33: Right Side Of Engine (5.7L VIN P)

G00236185

Courtesy of GENERAL MOTORS CORP.

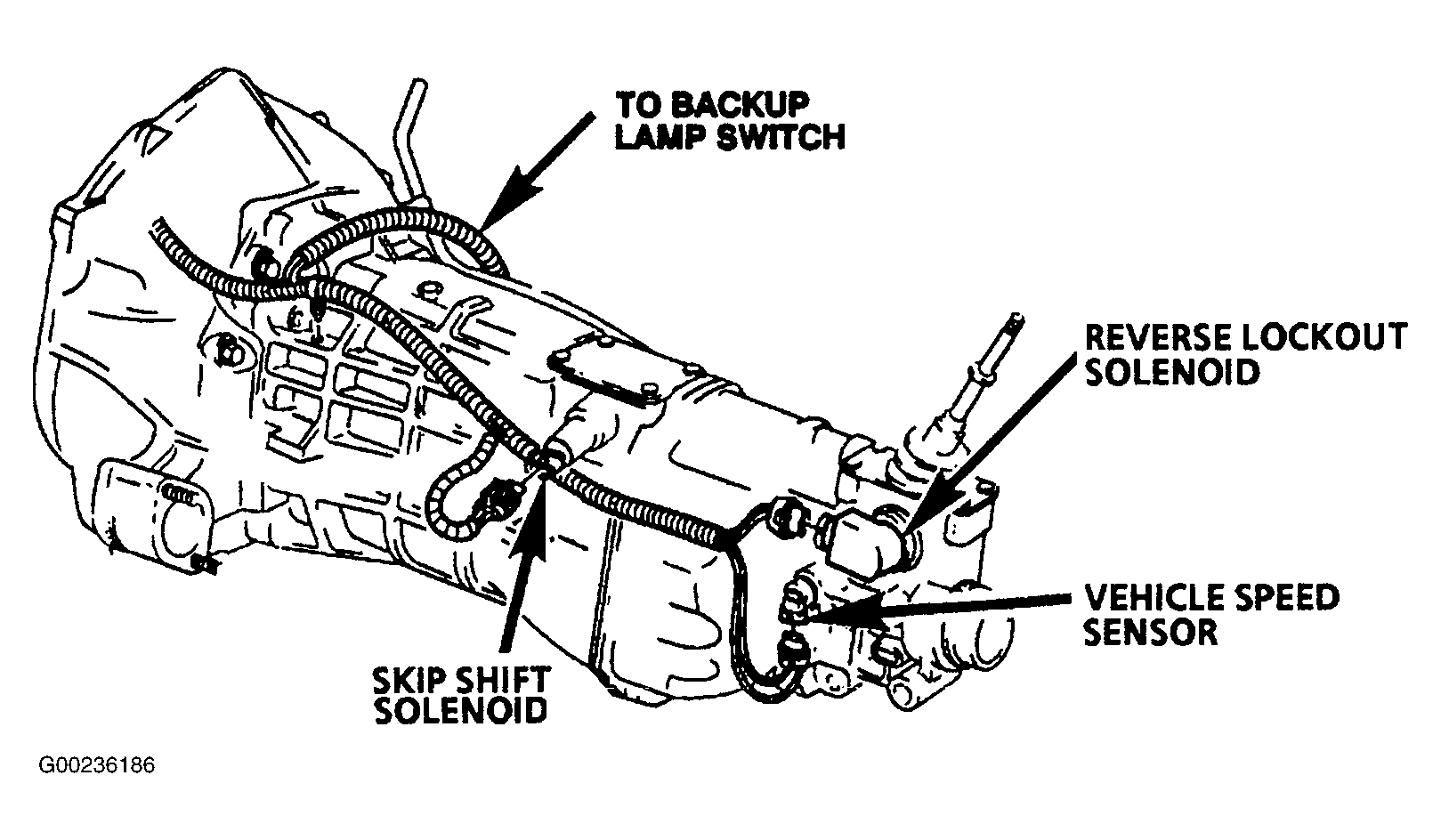

Fig 34: Left Side Of Manual Transmission (5.7L VIN P)

G00236186

Courtesy of GENERAL MOTORS CORP.

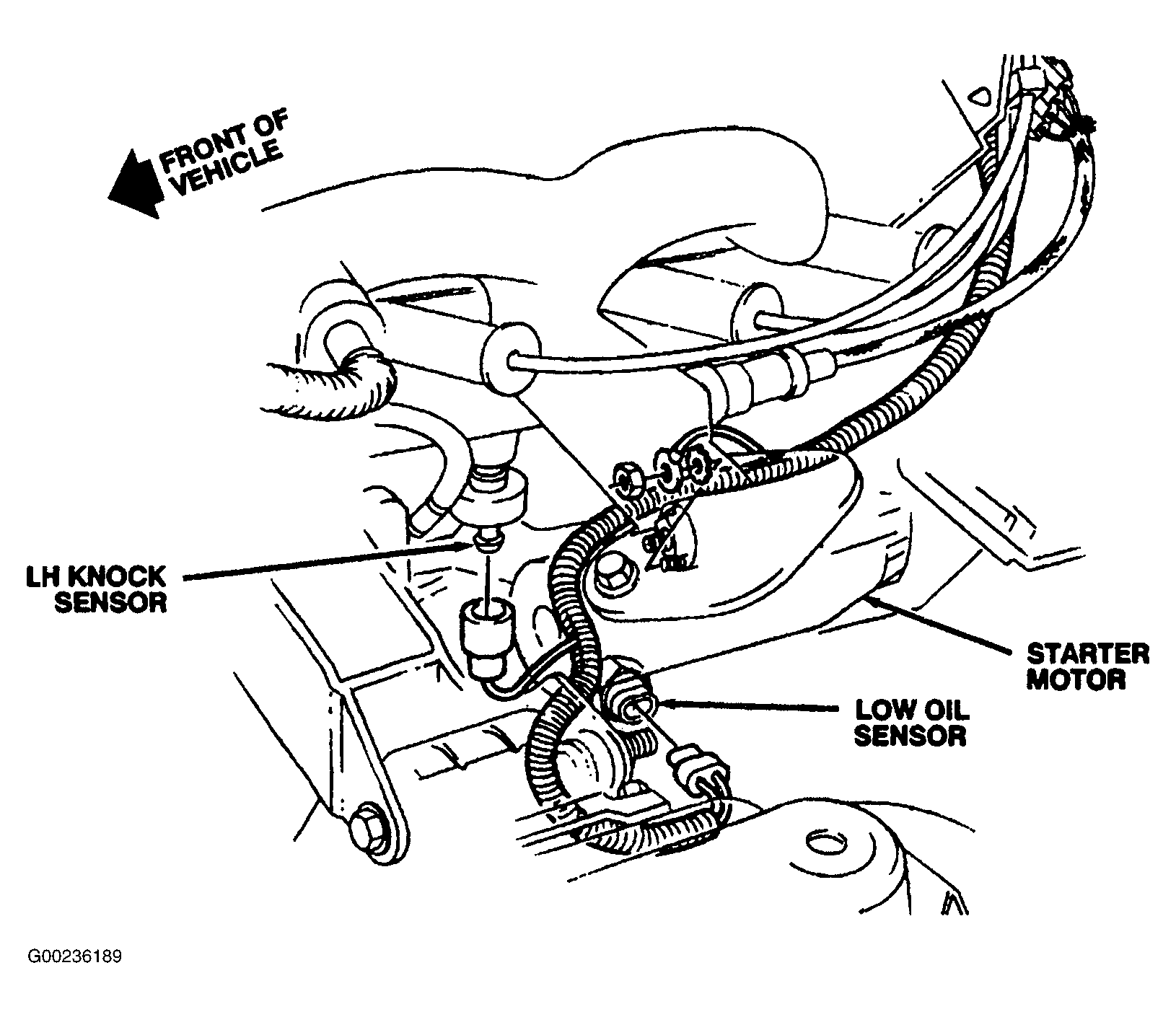

Fig 35: Lower Left Side Of Engine (3.8L VIN K)

G00236189

Courtesy of GENERAL MOTORS CORP.

Fig 36: Upper Left Side Of Engine (3.8L VIN K)

G00236190

Courtesy of GENERAL MOTORS CORP.

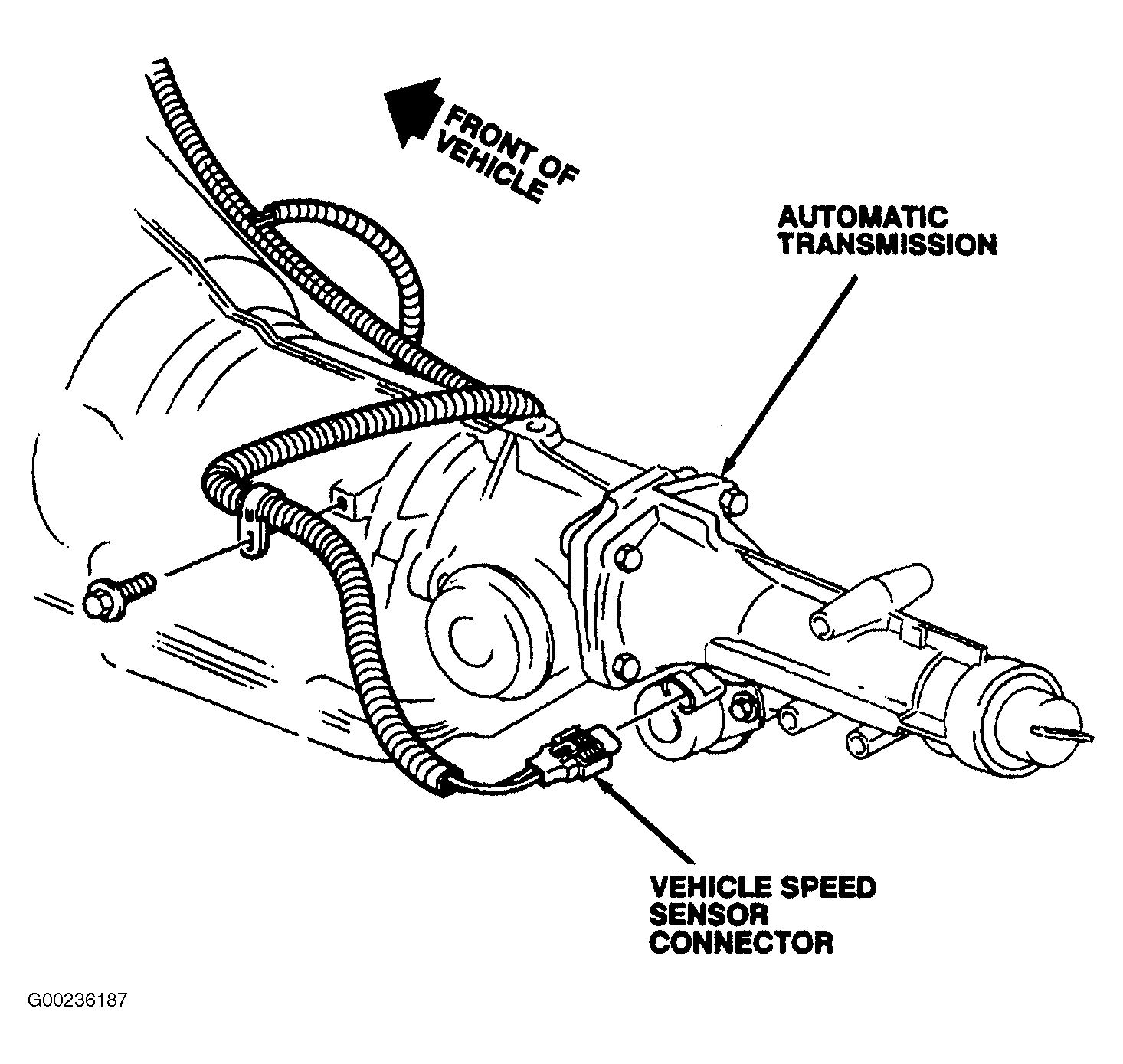

Fig 37: Left Side Of Automatic Transmission (3.8L VIN K)

G00236187

Courtesy of GENERAL MOTORS CORP.

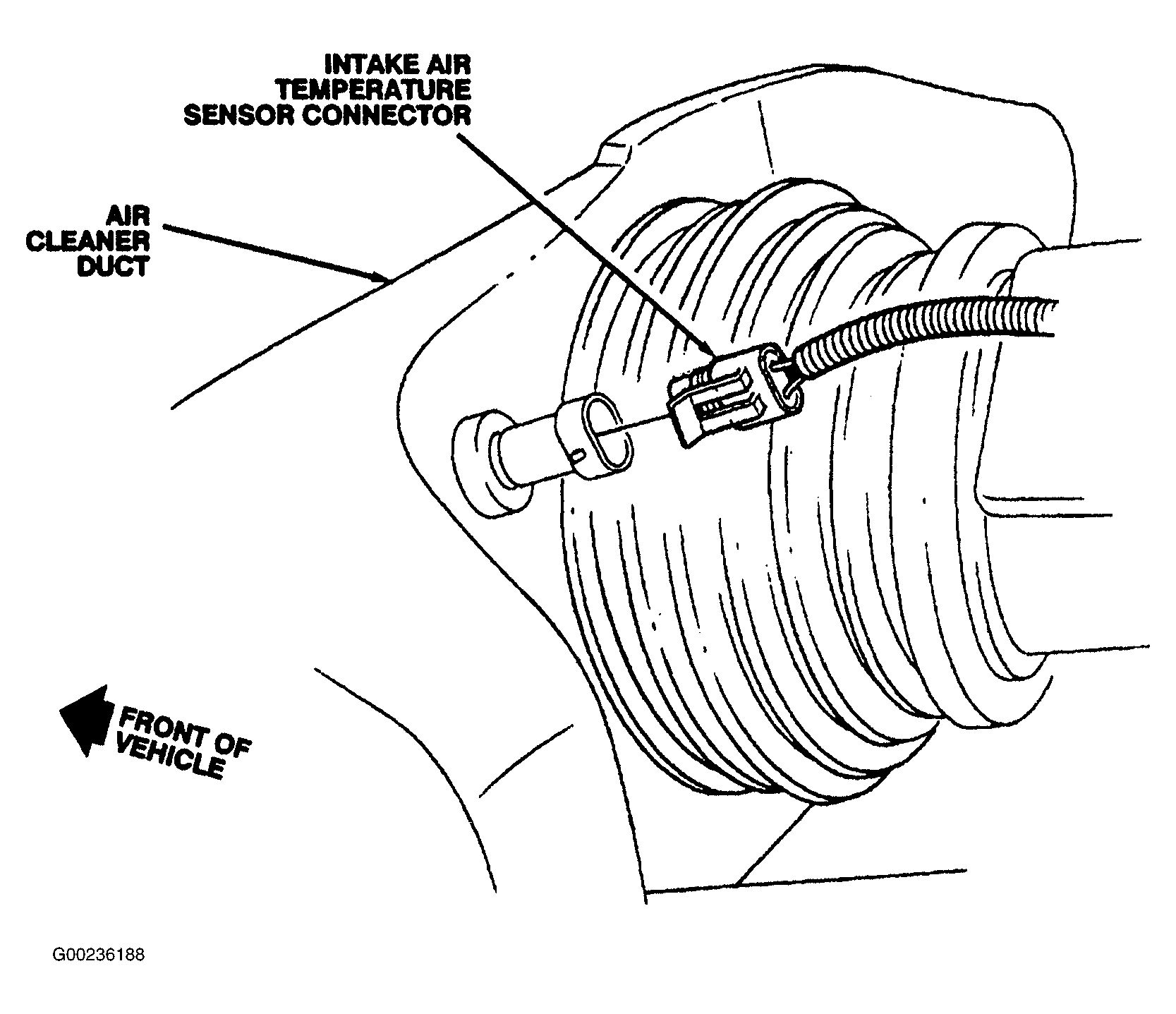

Fig 38: Locating Intake Air Temperature Sensor (3.8L VIN K)

G00236188

Courtesy of GENERAL MOTORS CORP.

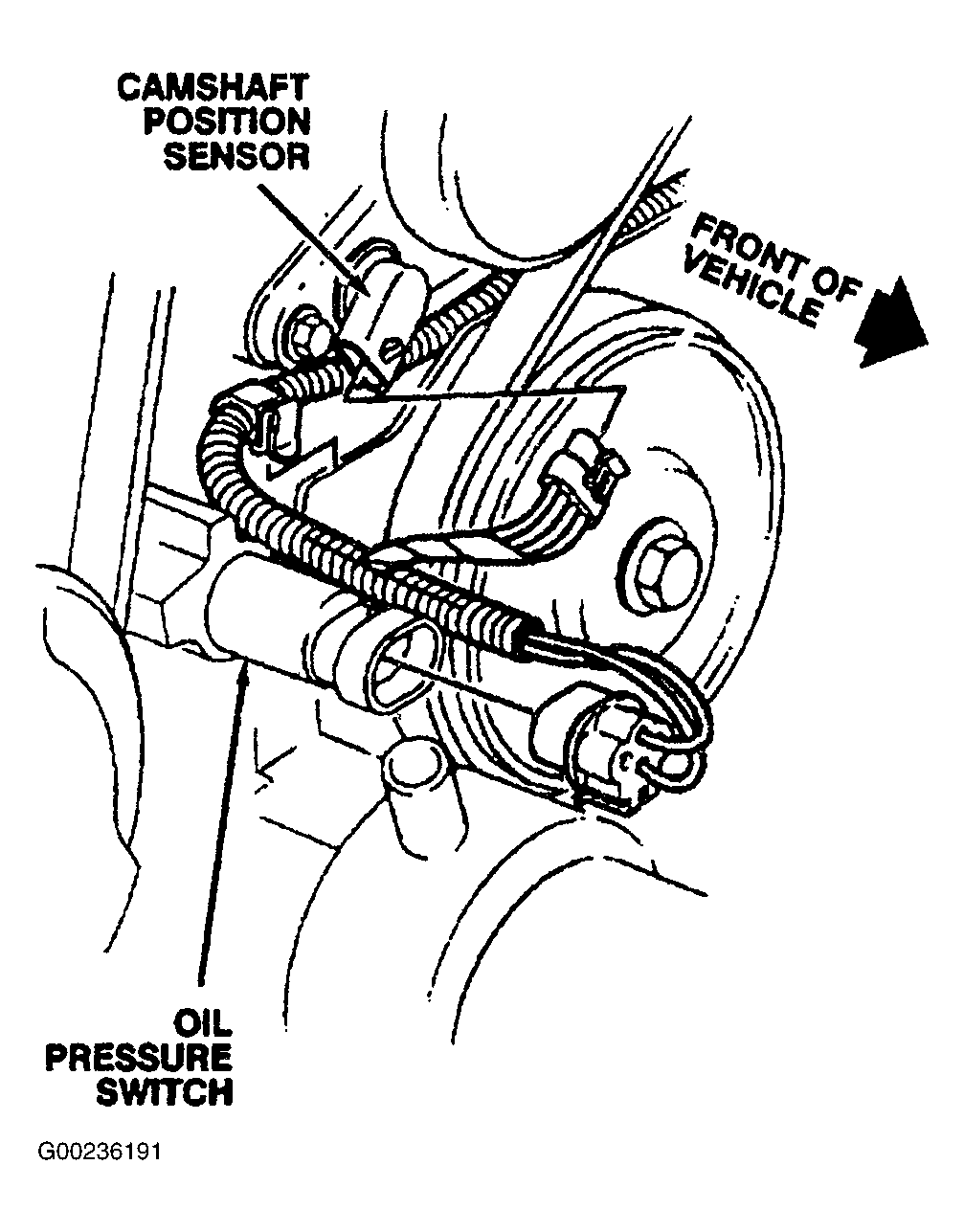

Fig 39: Locating Camshaft Position Sensor & Oil Pressure Switch (3.8L VIN K)

G00236191

Courtesy of GENERAL MOTORS CORP.

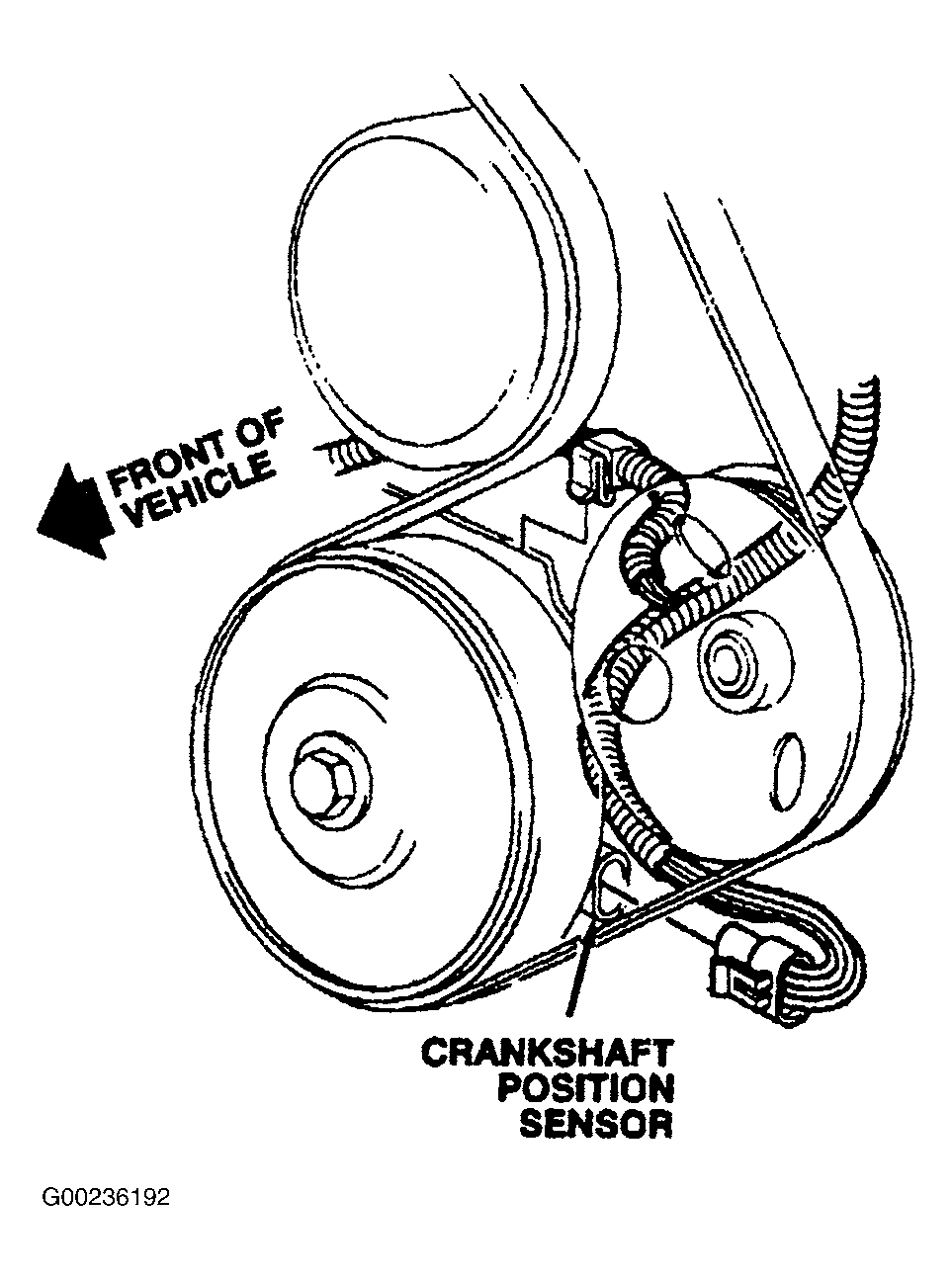

Fig 40: Locating Crankshaft Position Sensor (3.8L VIN K)

G00236192

Courtesy of GENERAL MOTORS CORP.

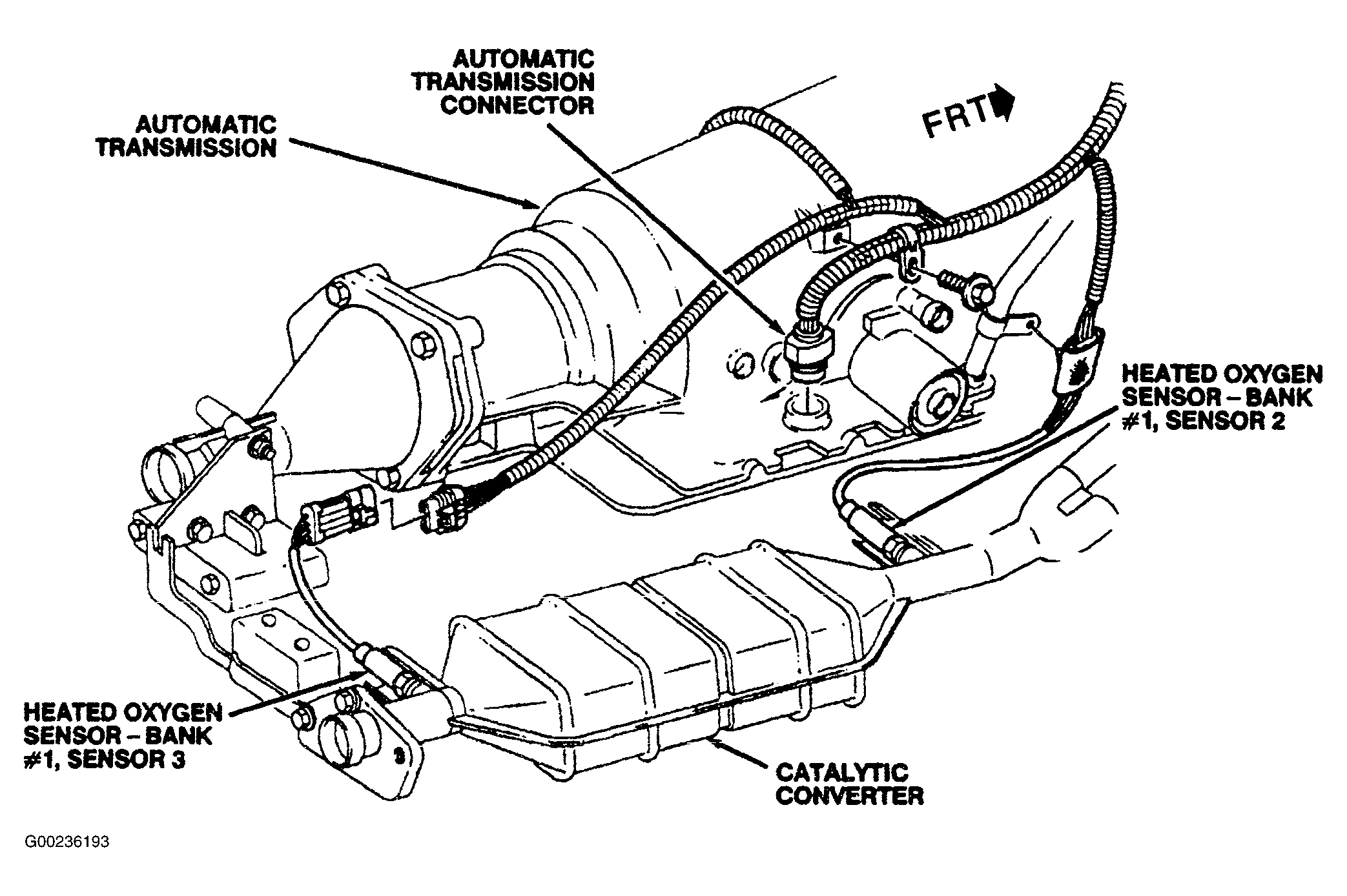

Fig 41: Right Side Of Automatic Transmission (3.8L VIN K)

G00236193

Courtesy of GENERAL MOTORS CORP.

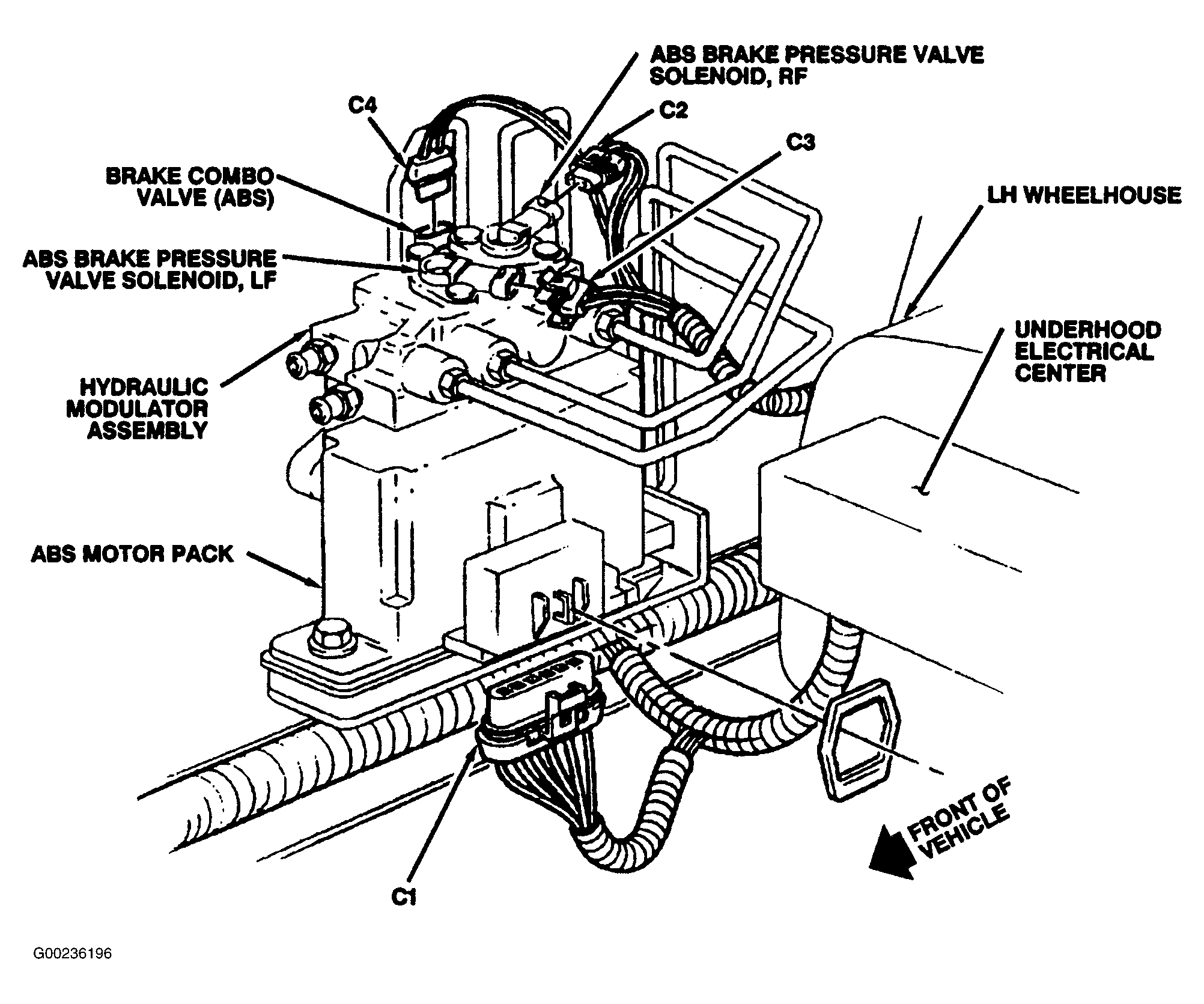

Fig 42: Front Left Side Of Engine Compartment

G00236196

Courtesy of GENERAL MOTORS CORP.

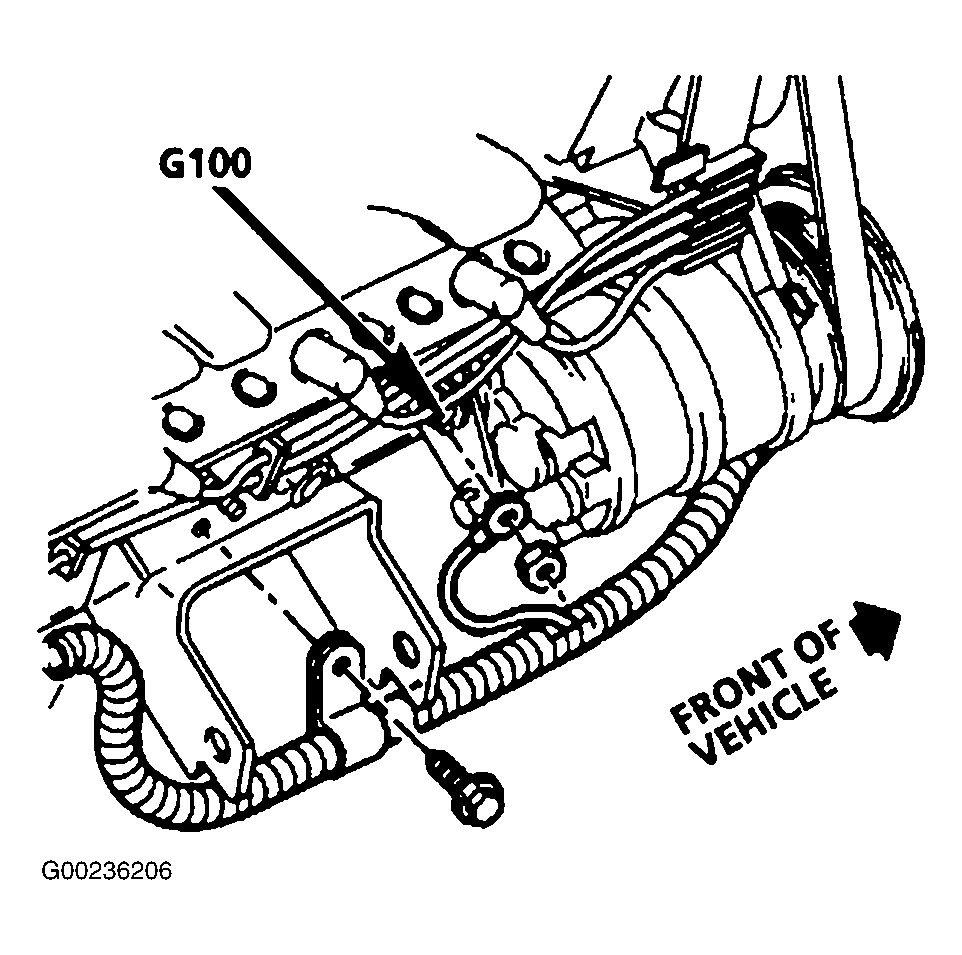

Fig 43: Locating G100 Ground Connection (5.7L VIN P)

G00236206

Courtesy of GENERAL MOTORS CORP.

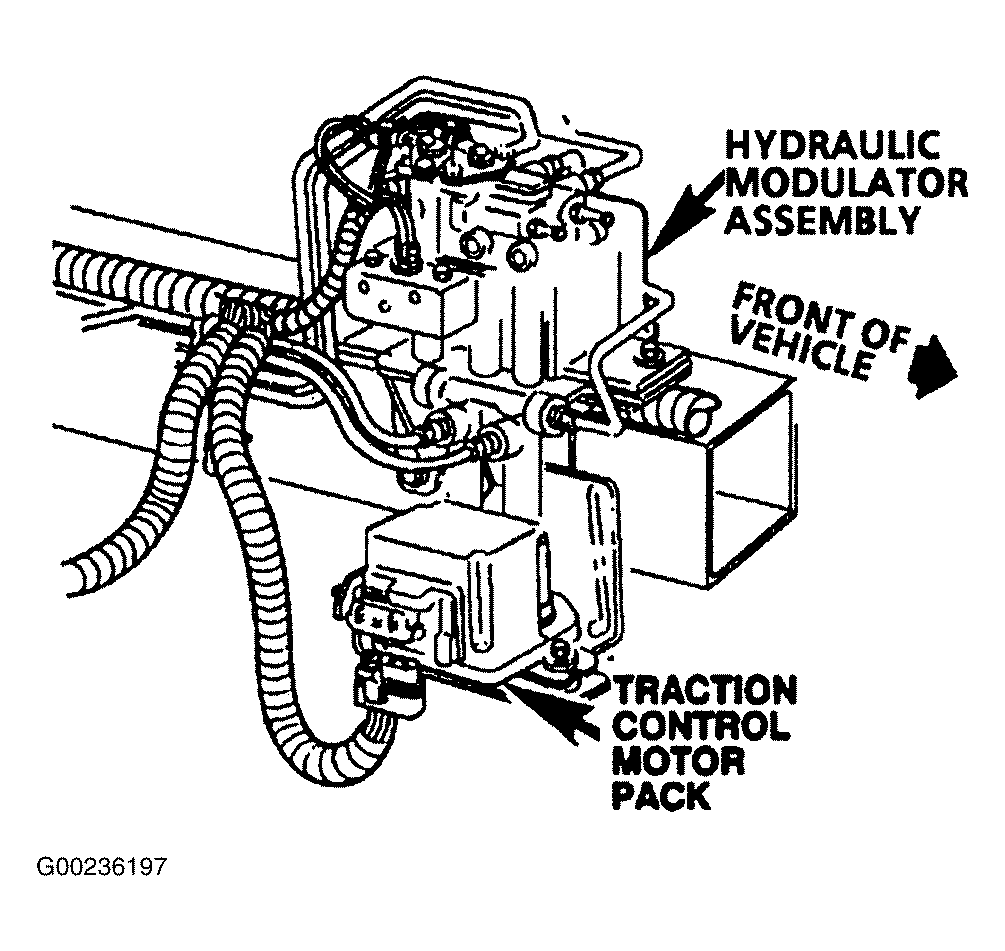

Fig 44: Inside Left Front Frame Rail

G00236197

Courtesy of GENERAL MOTORS CORP.

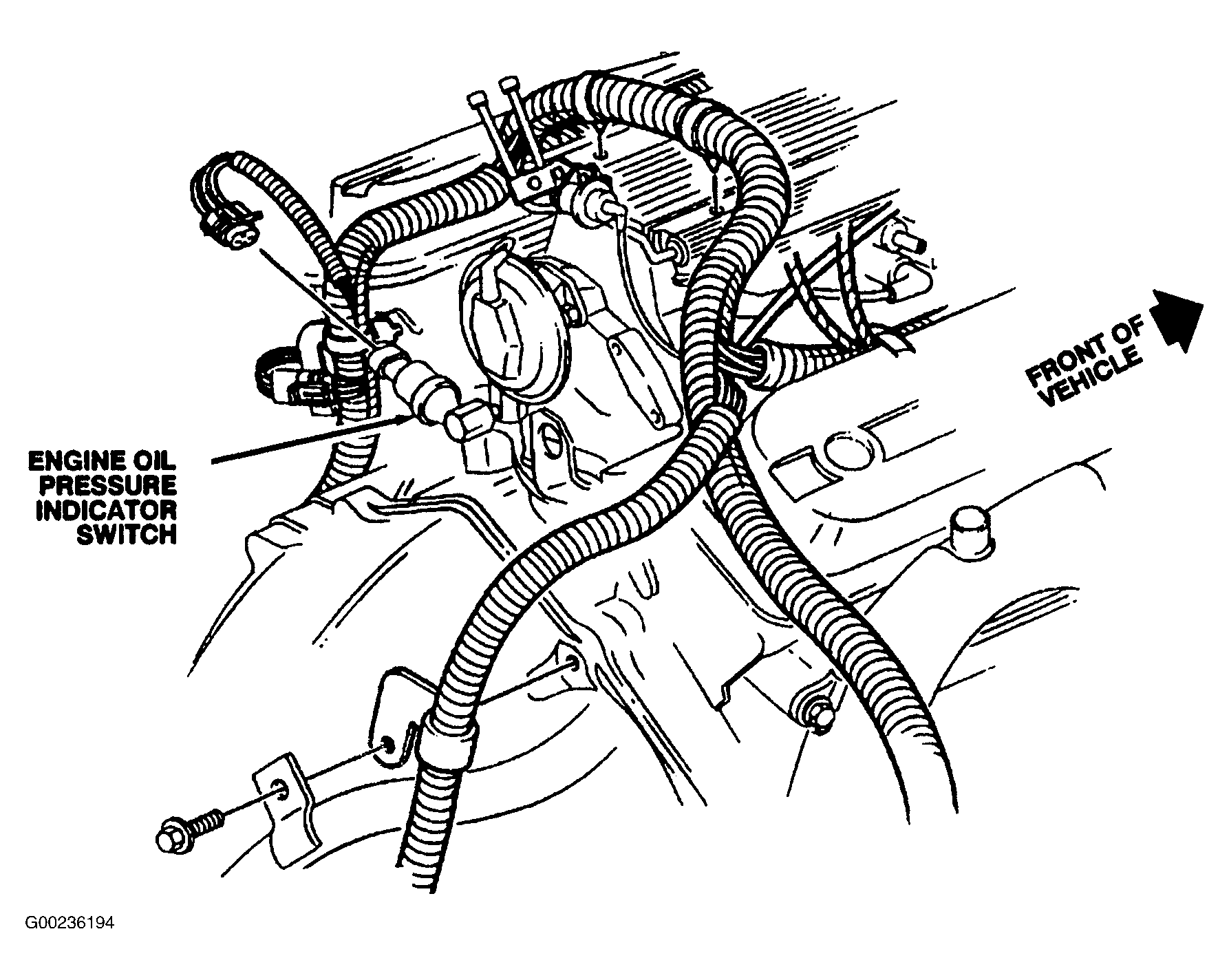

Fig 45: Upper Rear Center Of Engine (5.7L VIN P)

G00236194

Courtesy of GENERAL MOTORS CORP.

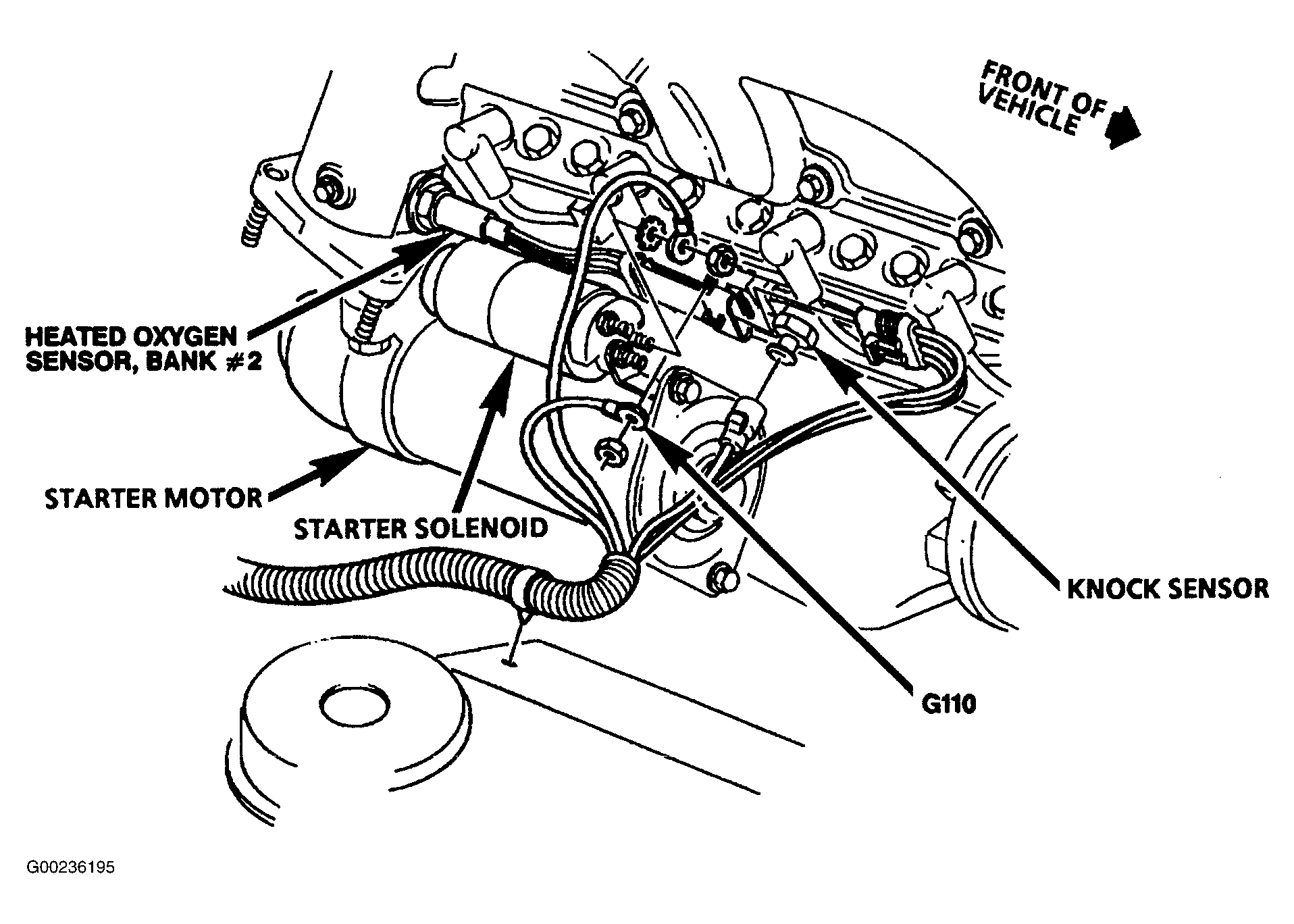

Fig 46: Lower Right Side Of Engine (5.7L VIN P)

G00236195

Courtesy of GENERAL MOTORS CORP.

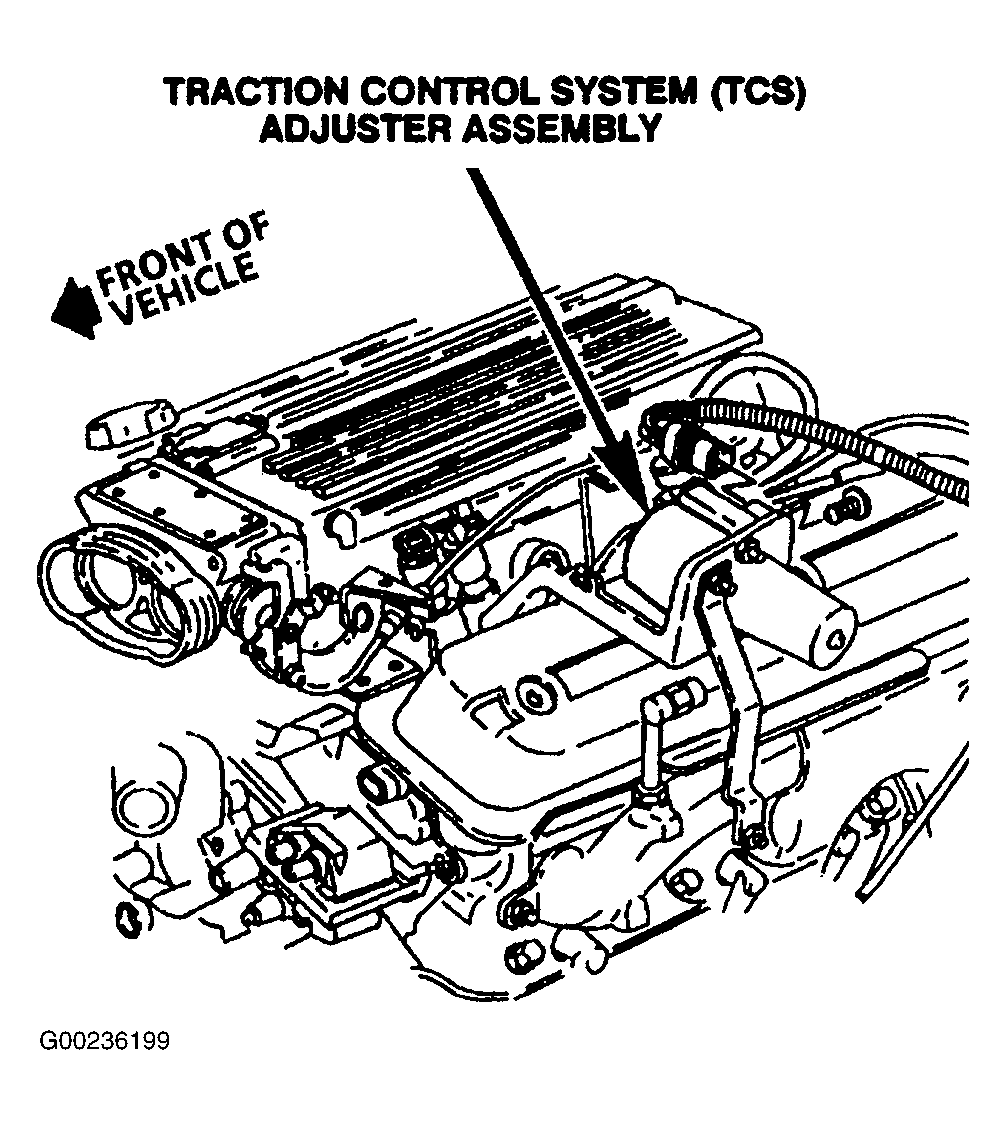

Fig 47: Locating Traction Control System Adjuster (5.7L VIN P)

G00236199

Courtesy of GENERAL MOTORS CORP.

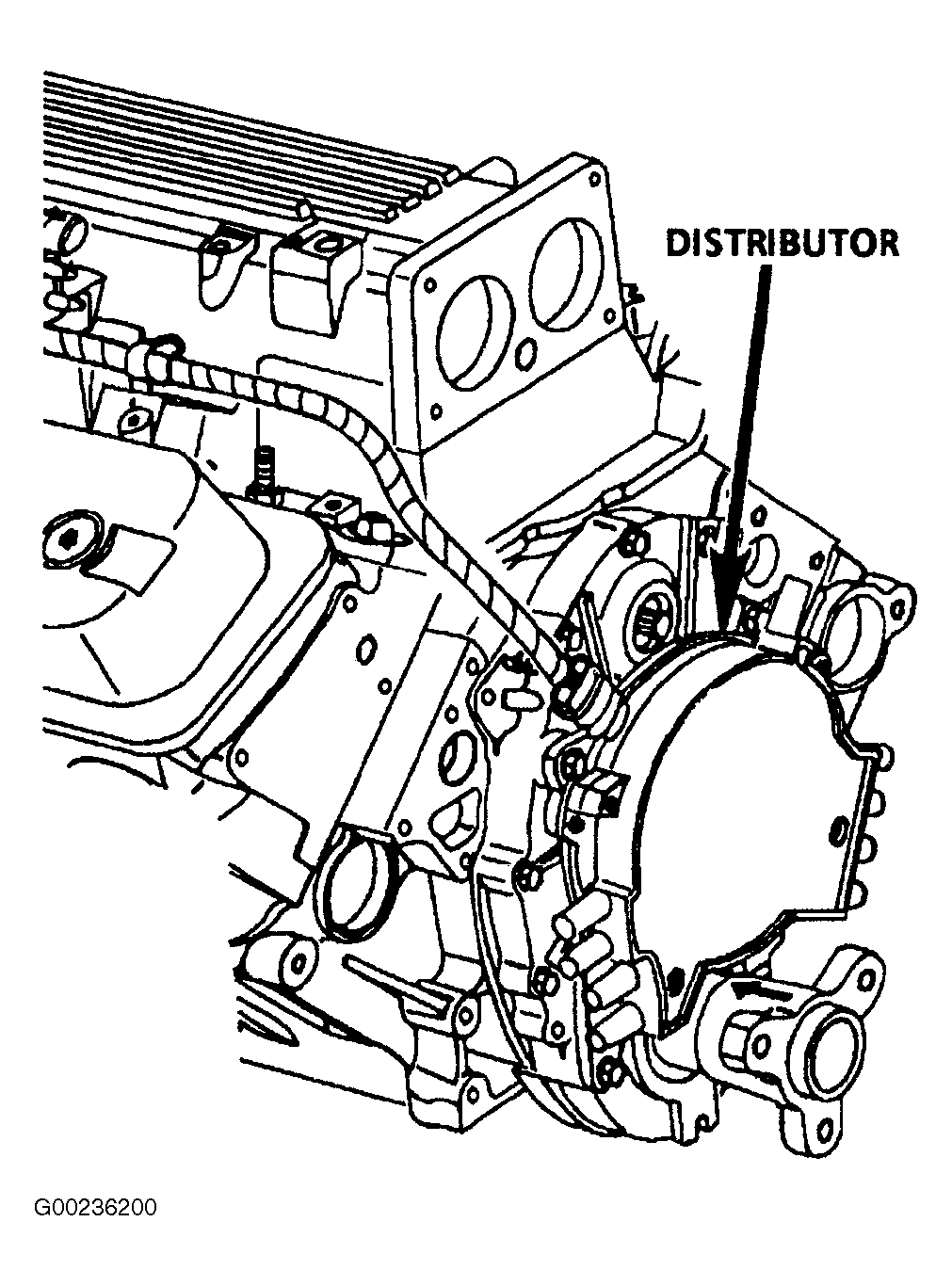

Fig 48: Locating Distributor (5.7L VIN P)

G00236200

Courtesy of GENERAL MOTORS CORP.

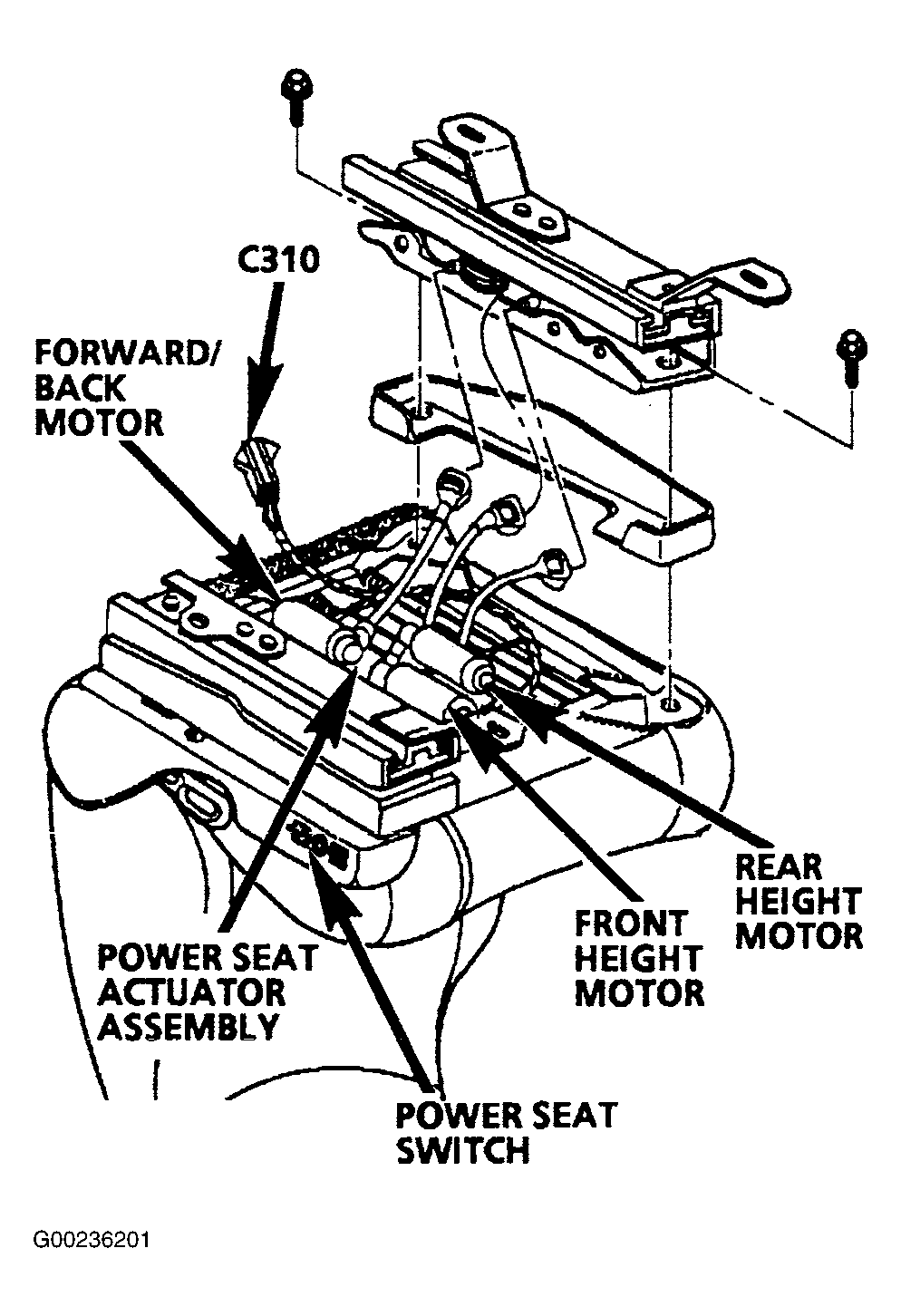

Fig 49: Bottom Of Drive Power Seat

G00236201

Courtesy of GENERAL MOTORS CORP.

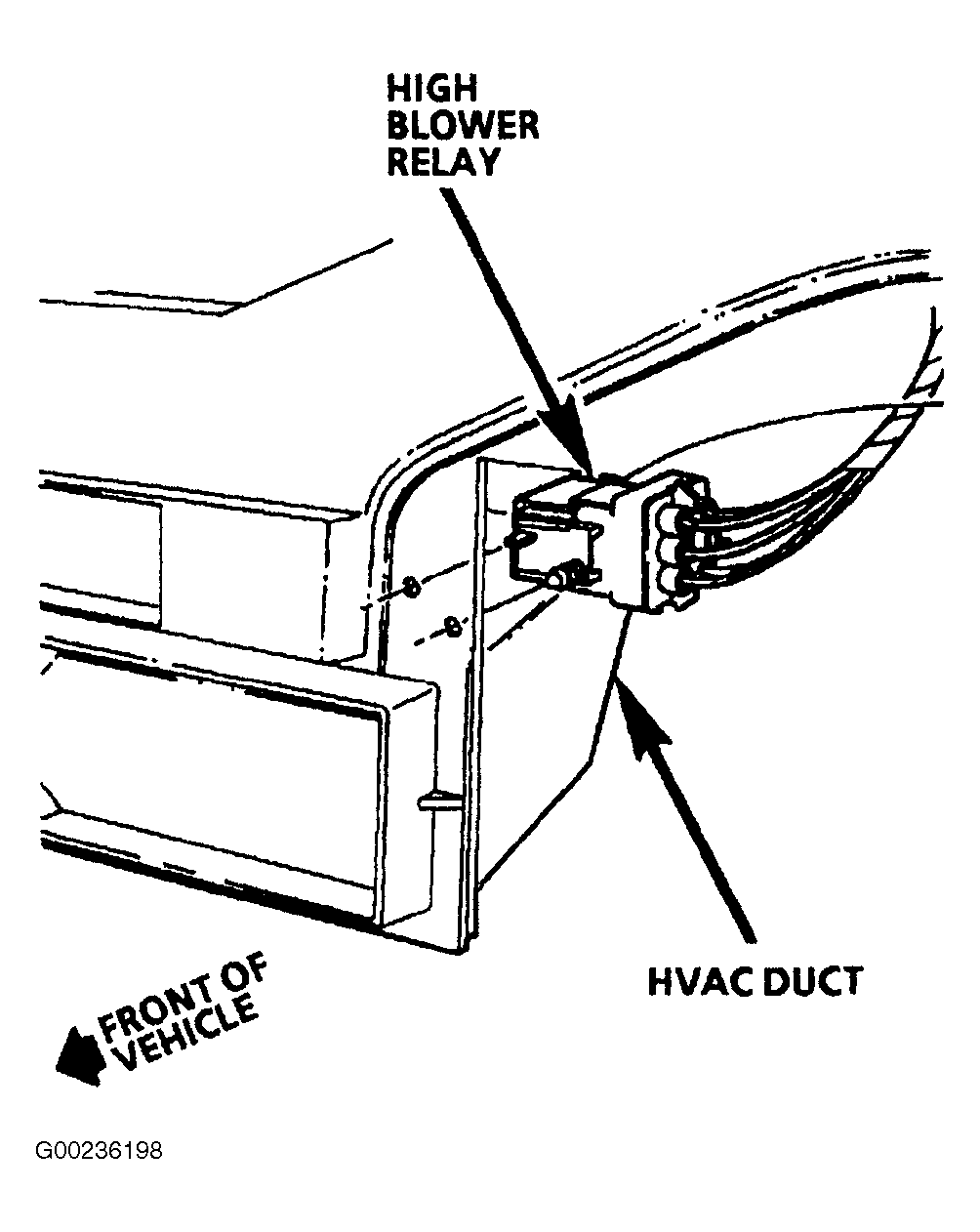

Fig 50: Locating High Blower Relay On HVAC Duct

G00236198

Courtesy of GENERAL MOTORS CORP.

Fig 51: Under Center Console (Automatic M30)

G00236202

Courtesy of GENERAL MOTORS CORP.

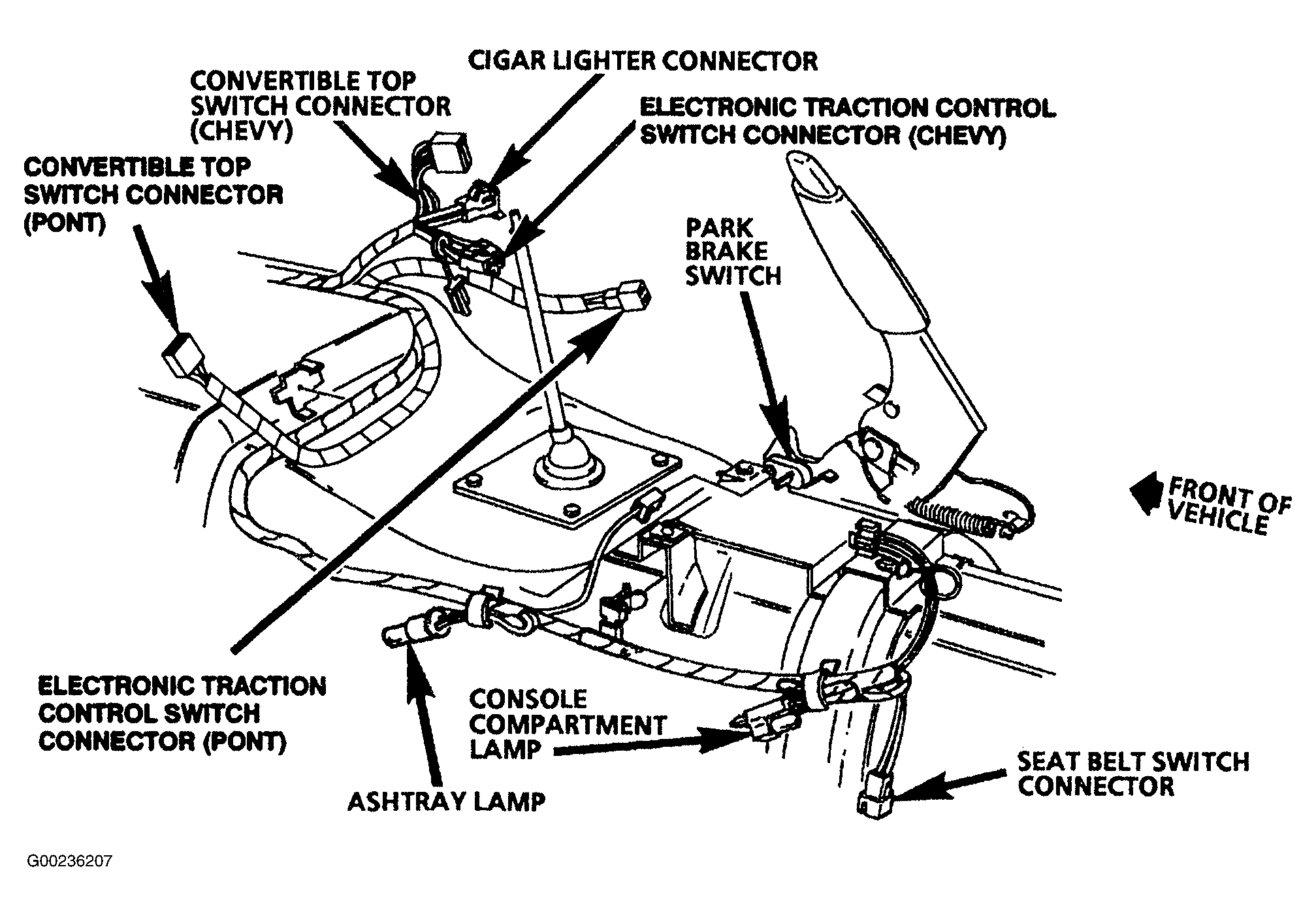

Fig 52: Under Center Console (Manual M49 & MM6)

G00236207

Courtesy of GENERAL MOTORS CORP.

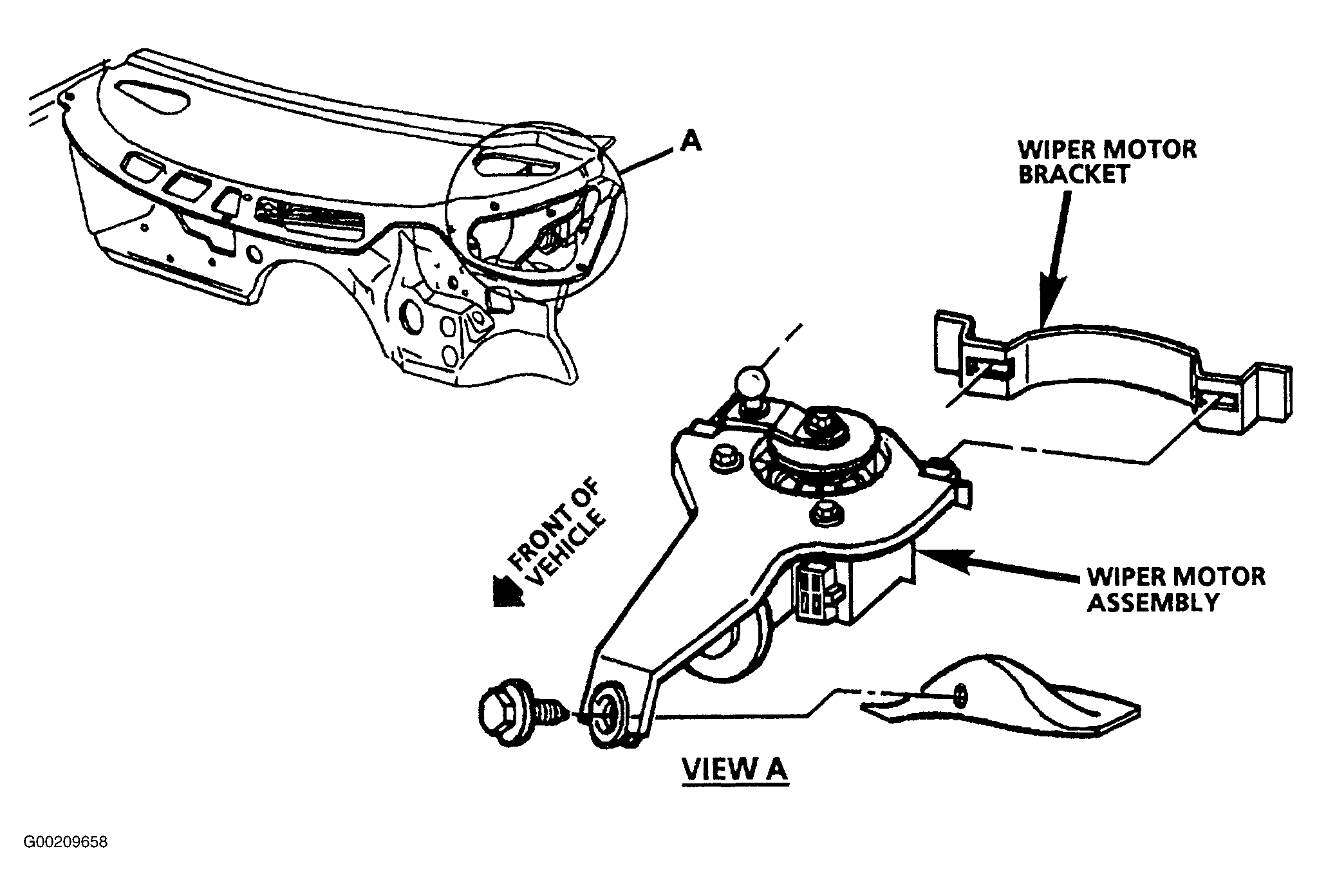

Fig 53: Locating Wiper Motor Assembly

G00209658

Courtesy of GENERAL MOTORS CORP.

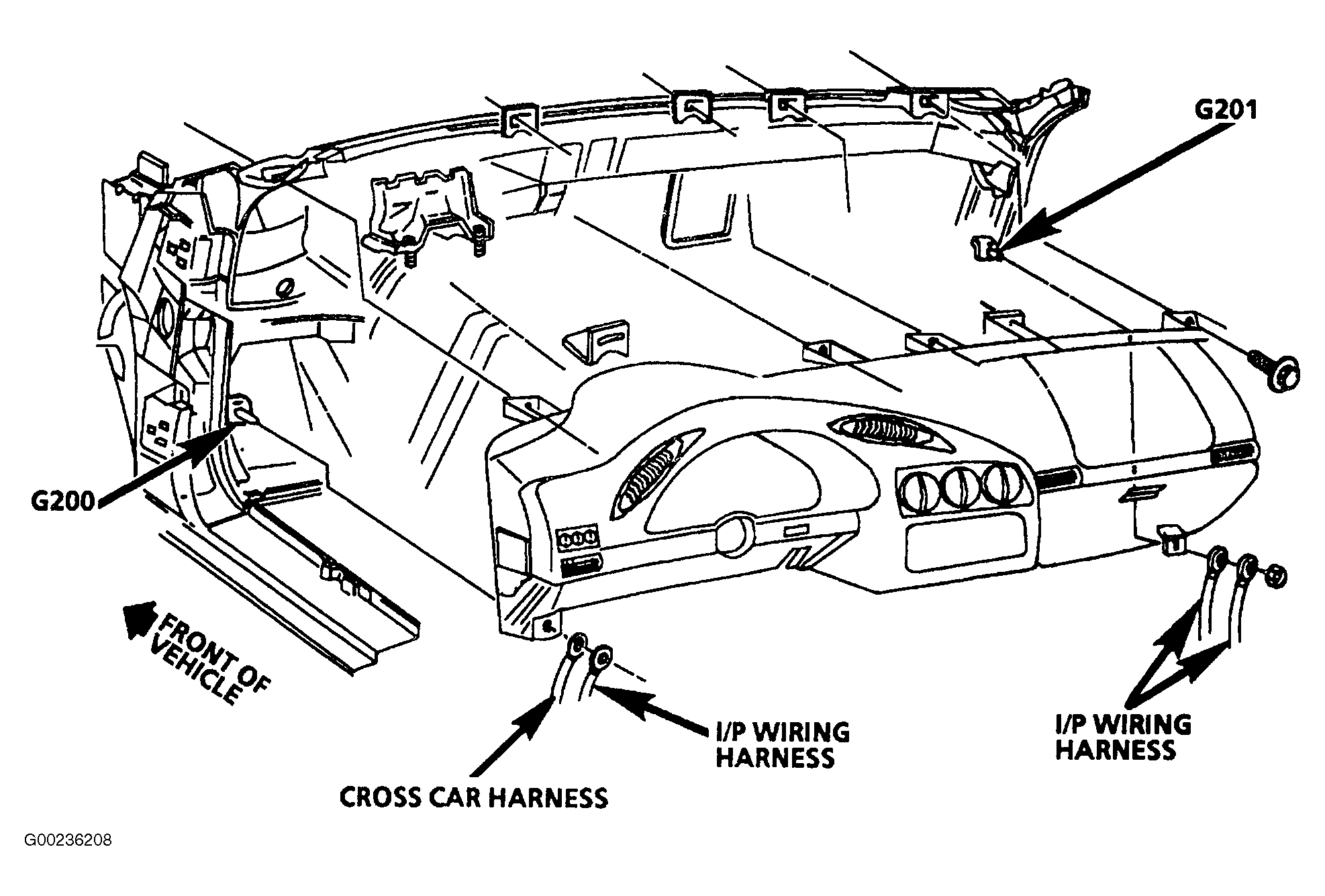

Fig 54: Locating G200 & G201 Connections

G00236208

Courtesy of GENERAL MOTORS CORP.
