Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

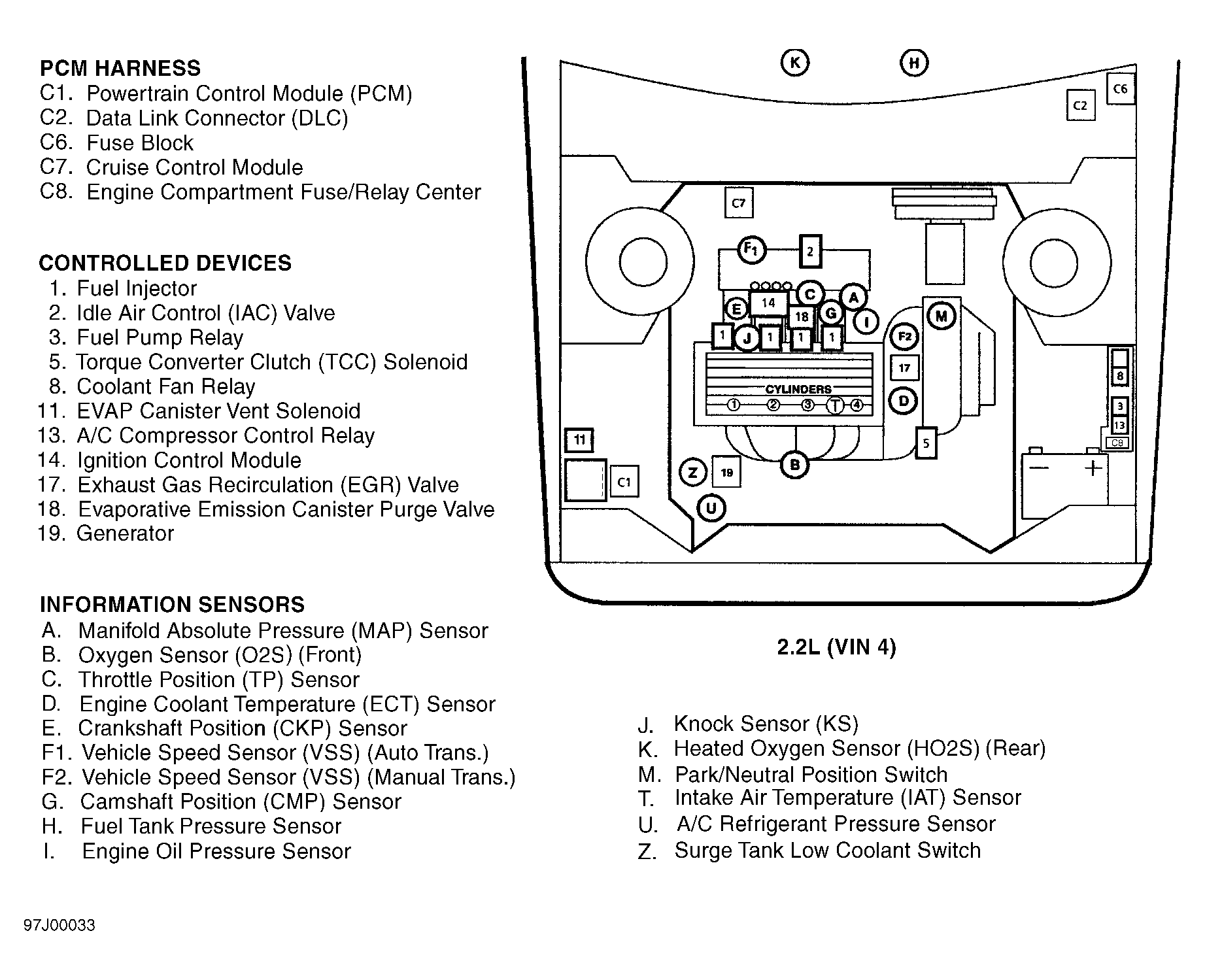

| Cruise Control Module (2.2L VIN 4) | In right rear corner of engine compartment. See Figure . |

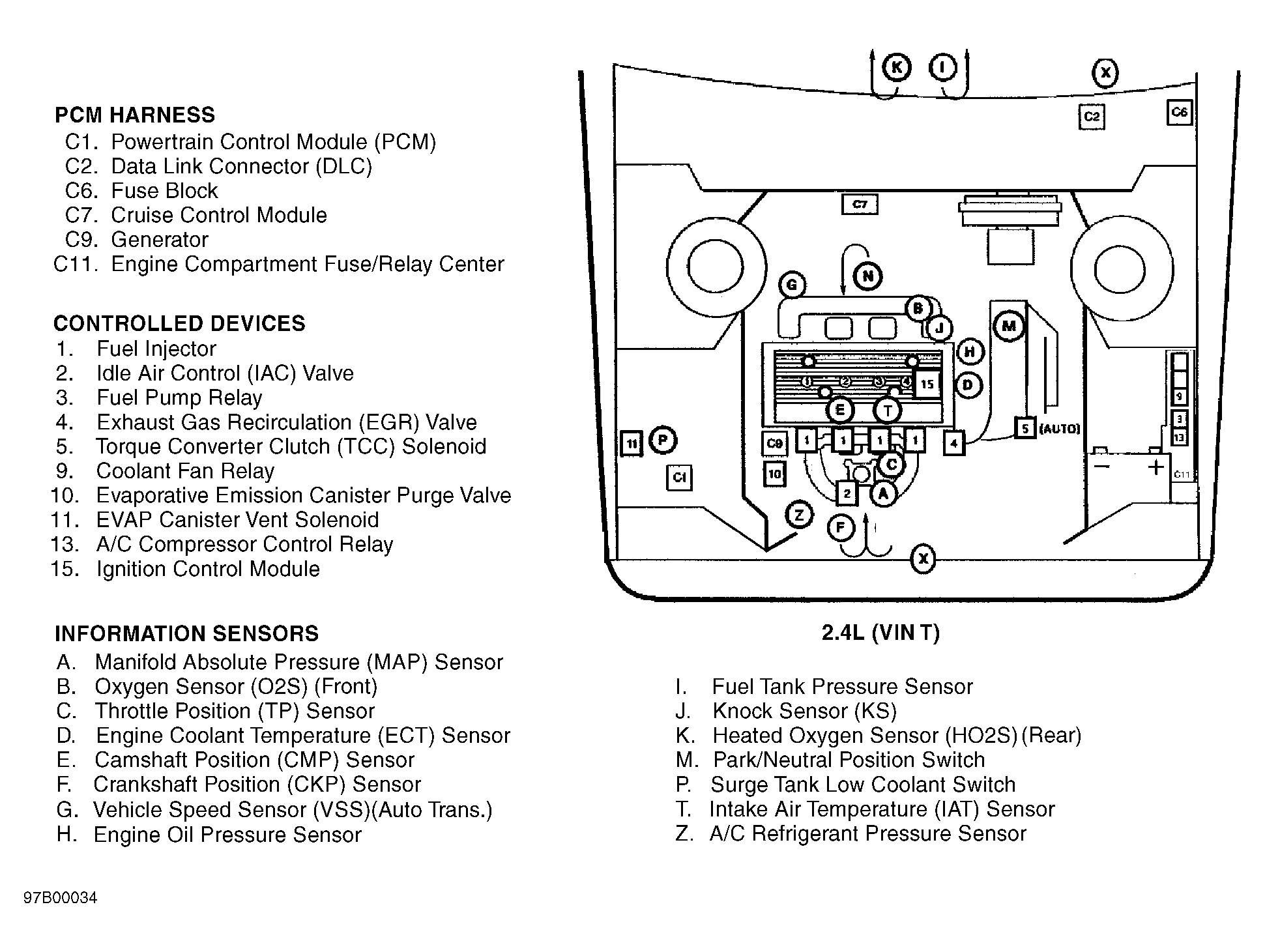

| Cruise Control Module (2.4L VIN T) | In right rear corner of engine compartment. See Figure . |
| Electronic Brake Control Module | Under dash, near brake pedal mount. |
| Fuel Tank Module | Under rear of passenger compartment. |
| Ignition Control Module (2.2L VIN 4) | On rear center of engine, under intake manifold on block. See Figure . |
| Ignition Control Module (2.4L VIN T) | On top of engine, under cover. See Figure . |
| Lamp Dimmer Module | Behind dash, on left side of steering column bracket. |
| Magnetic Rotation Detection (MRD) Module | Behind left side of dash. |
| Multi-Function Alarm Module | On convenience center. |
| Powertrain Control Module (PCM) (2.2L VIN 4) | Behind right side of front fascia, on impact bar. See Figure . |
| Powertrain Control Module (PCM) (2.4L VIN T) | Behind right side of front fascia, on impact bar. See Figure . |
| Remote Keyless Entry Module | On left front of luggage compartment. |
| Sensing & Diagnostic Module (SDM) | Below right front seat. |
