Service Point Locations

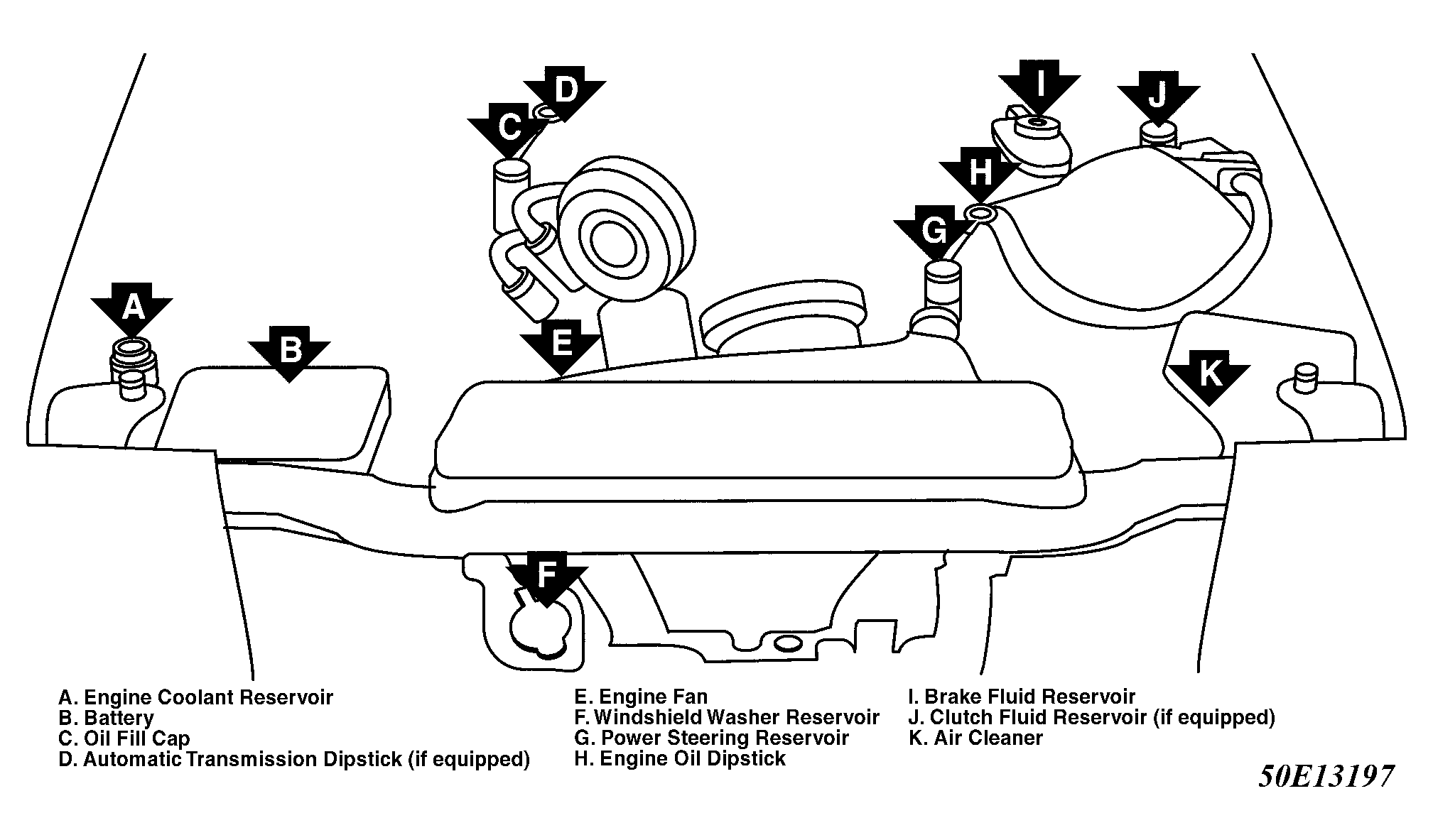

Fig 1: Service Point Locations - 3800 V6 (1997)
G50E13197Courtesy of GENERAL MOTORS CORP.
Fig 2: Service Point Locations - 3800 V6 (1998)
G50F13198Courtesy of GENERAL MOTORS CORP.

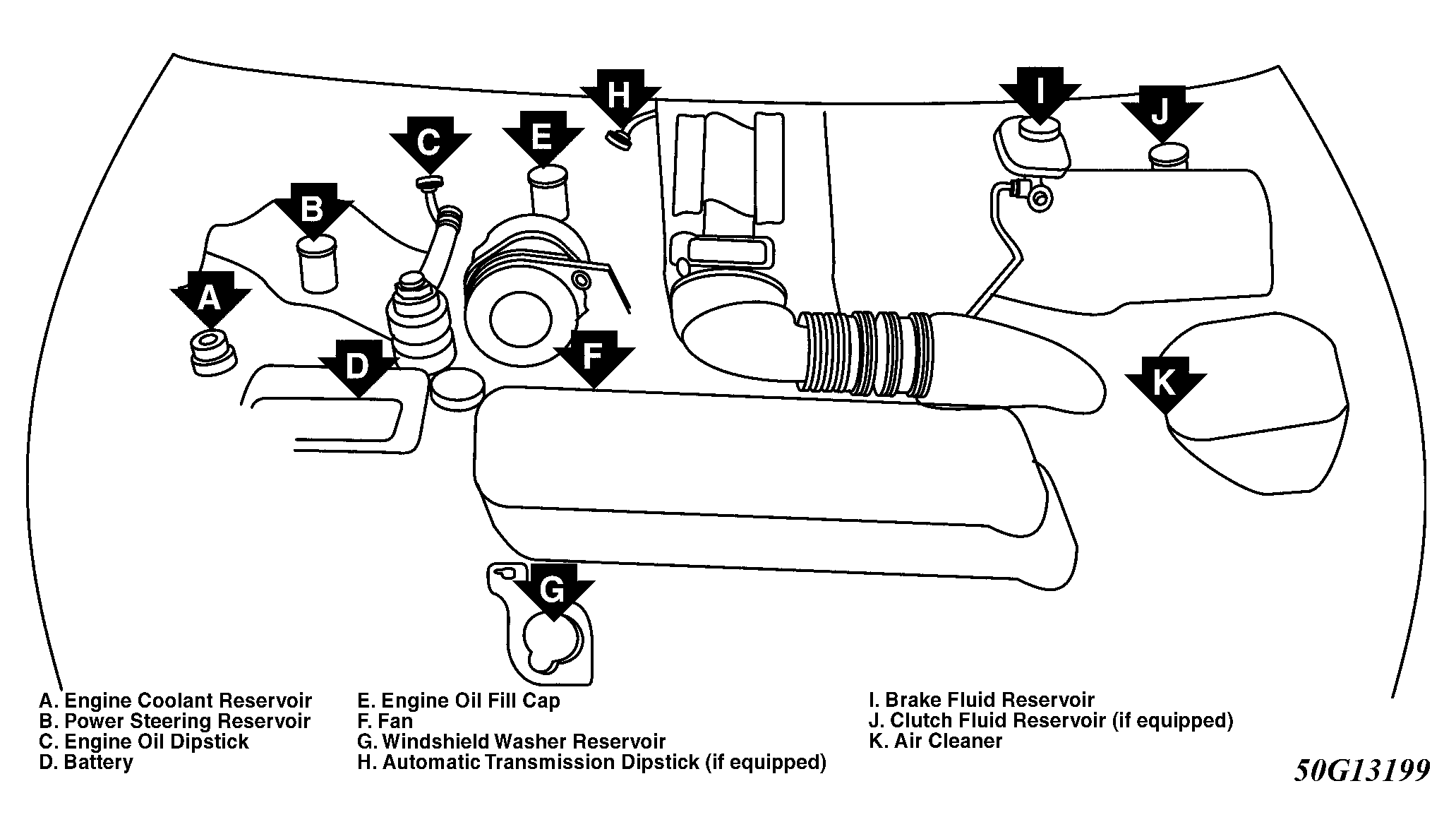

Fig 3: Service Point Locations - 5.7L V8 (1997)
G50G13199Courtesy of GENERAL MOTORS CORP.

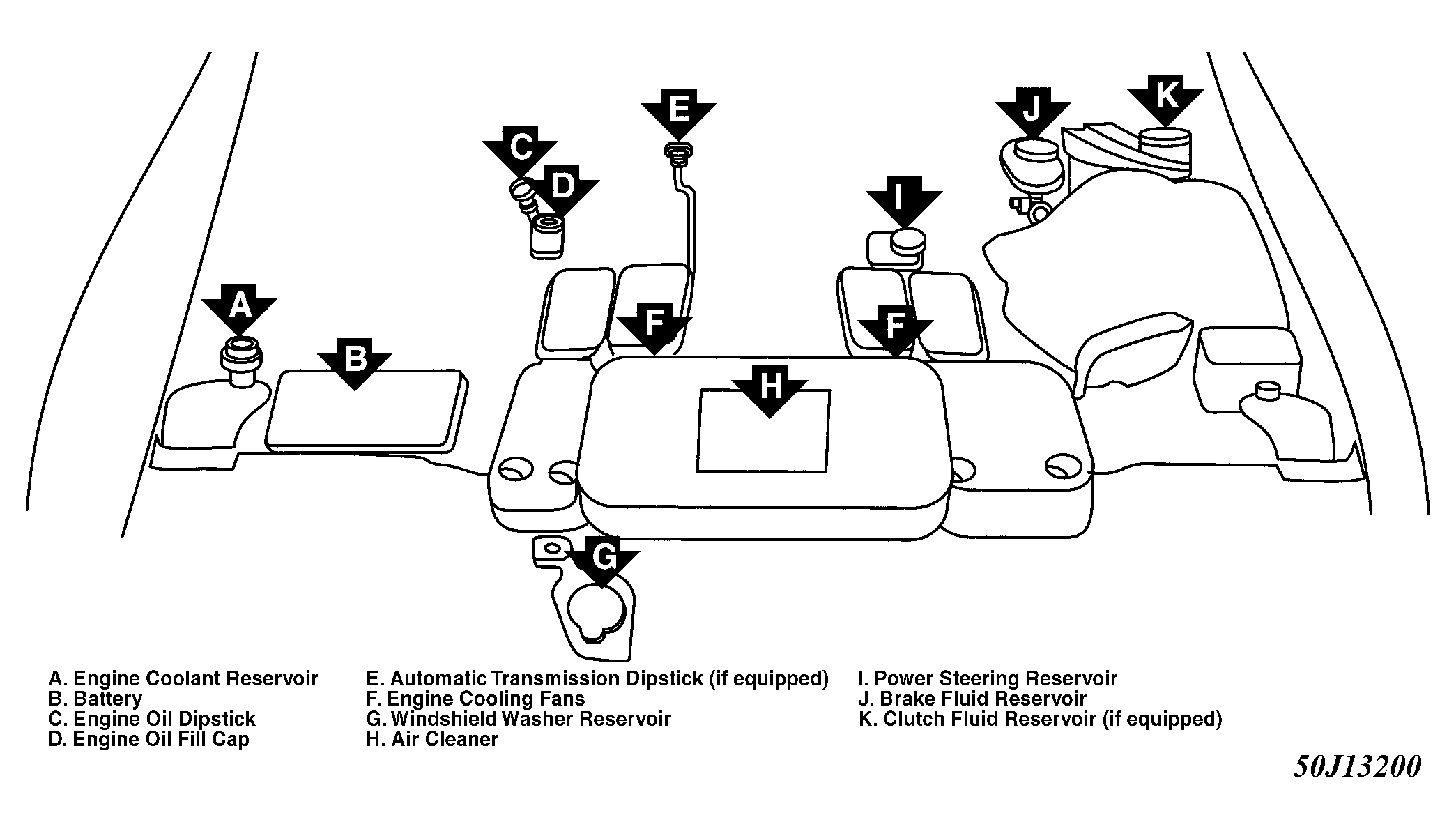

Fig 4: Service Point Locations - 5.7L V8 (1998)
G50J13200Courtesy of GENERAL MOTORS CORP.

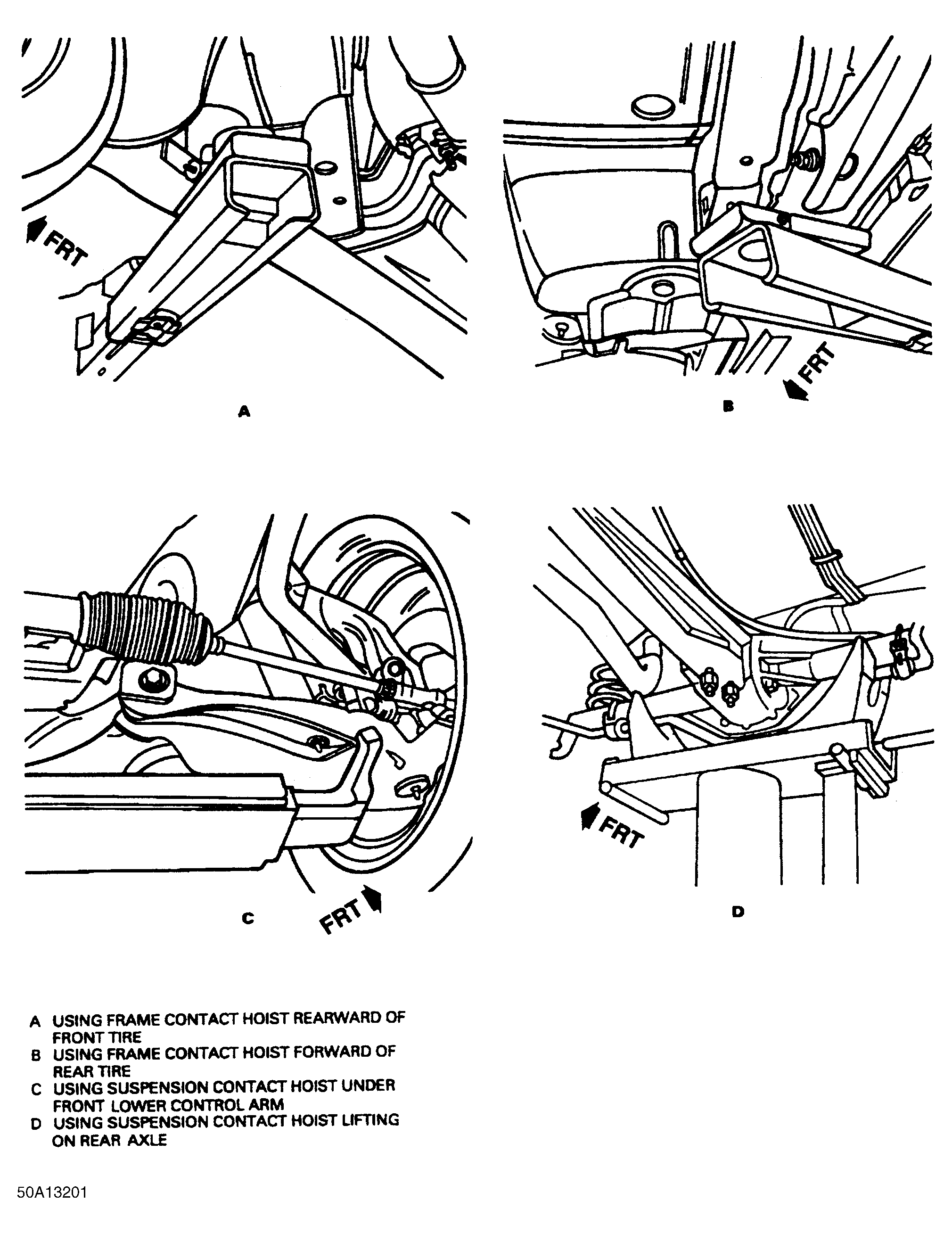

Fig 5: Lift Point Locations
G50A13201Courtesy of GENERAL MOTORS CORP.
