Head Up Display Module: Installation

  1. Install HUD module.
  2. Install bolts that secure Heads Up Display (HUD) module to instrument panel. Tighten bolts to 18 INCH lbs. (2 N.m).
  3. Connect harness connectors.
  4. Install instrument panel upper trim pad, by reversing removal procedure steps  1 -  11 .

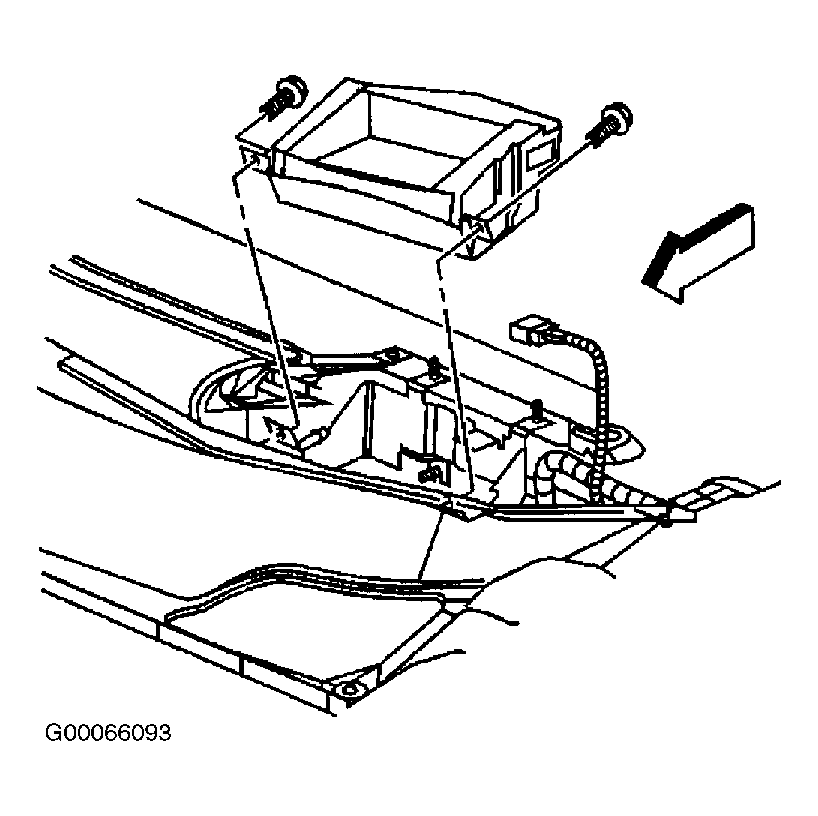

Fig 1: Removing & Installing Head Up Display Module
G00066093Courtesy of GENERAL MOTORS CORP.
