Component Locations
NOTE:

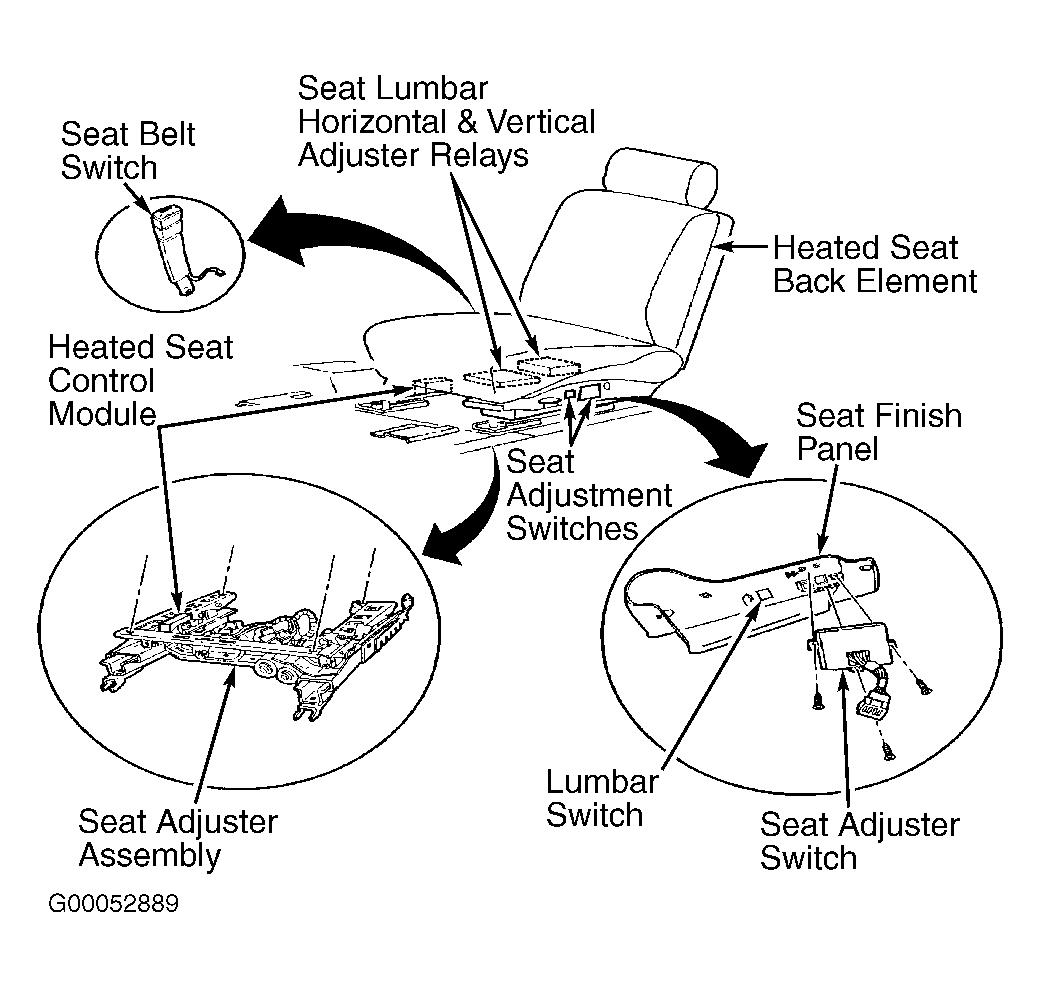

For component locations, refer to illustrations. See Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Forward/Back Motor | Under Respective Front Seat |
| Front & Rear Height Motors | Under Respective Front Seat |
| Heated Seat Switch | In Center Console Switchbank |
| Center Console Fuse Block | Behind Right Console Access Panel, Inside Console |
| PWR STS Circuit Breaker | In Center Console Fuse Block |
| Heated Seat Relay Module | Under Appropriate Seat |
| Power Seat Switch | In Trim Panel On Side Of Appropriate Seat |
