Component Locations

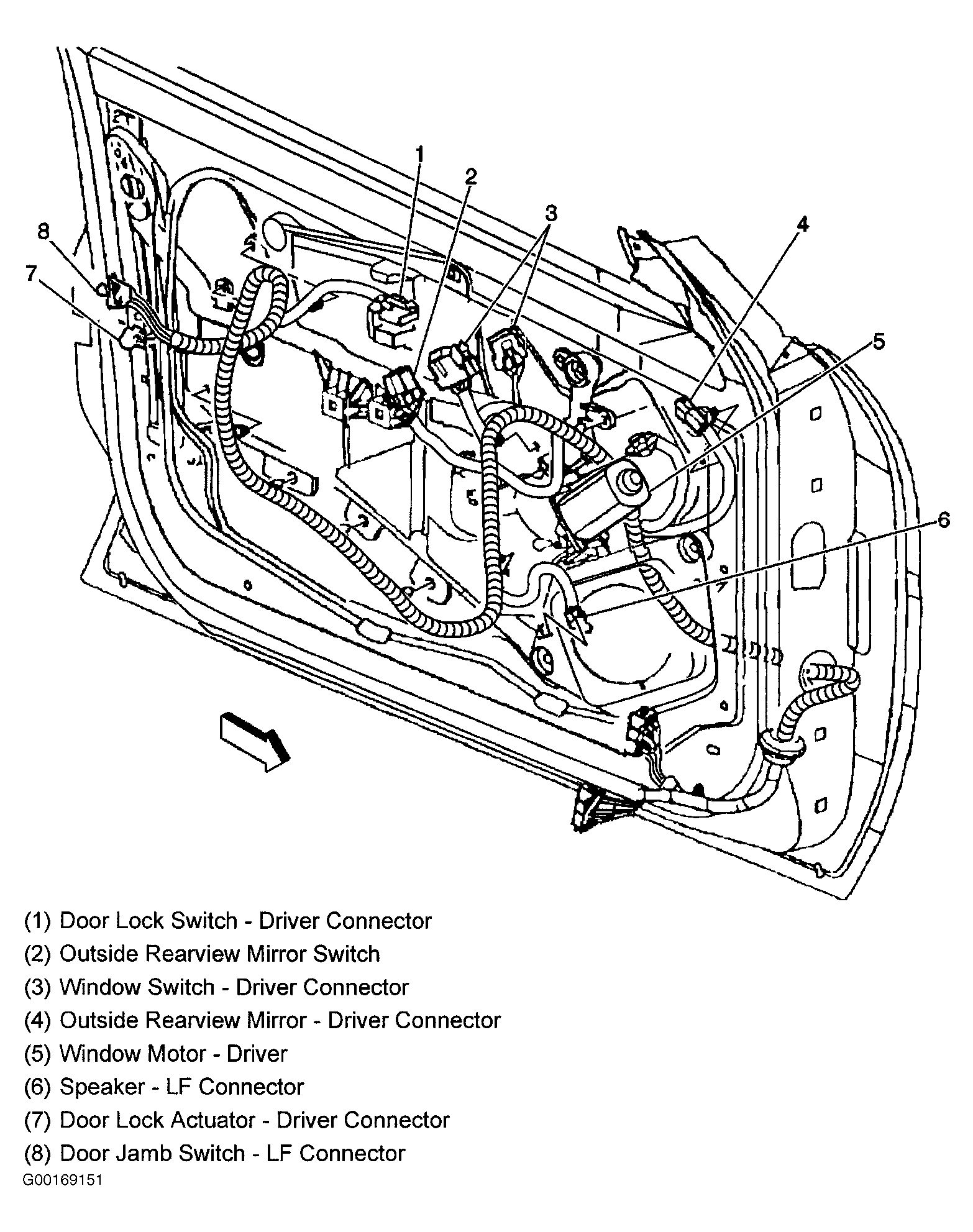

Fig 1: Locating Driver Front Door Harness Connectors & Window Motor

Courtesy of GENERAL MOTORS CORP.

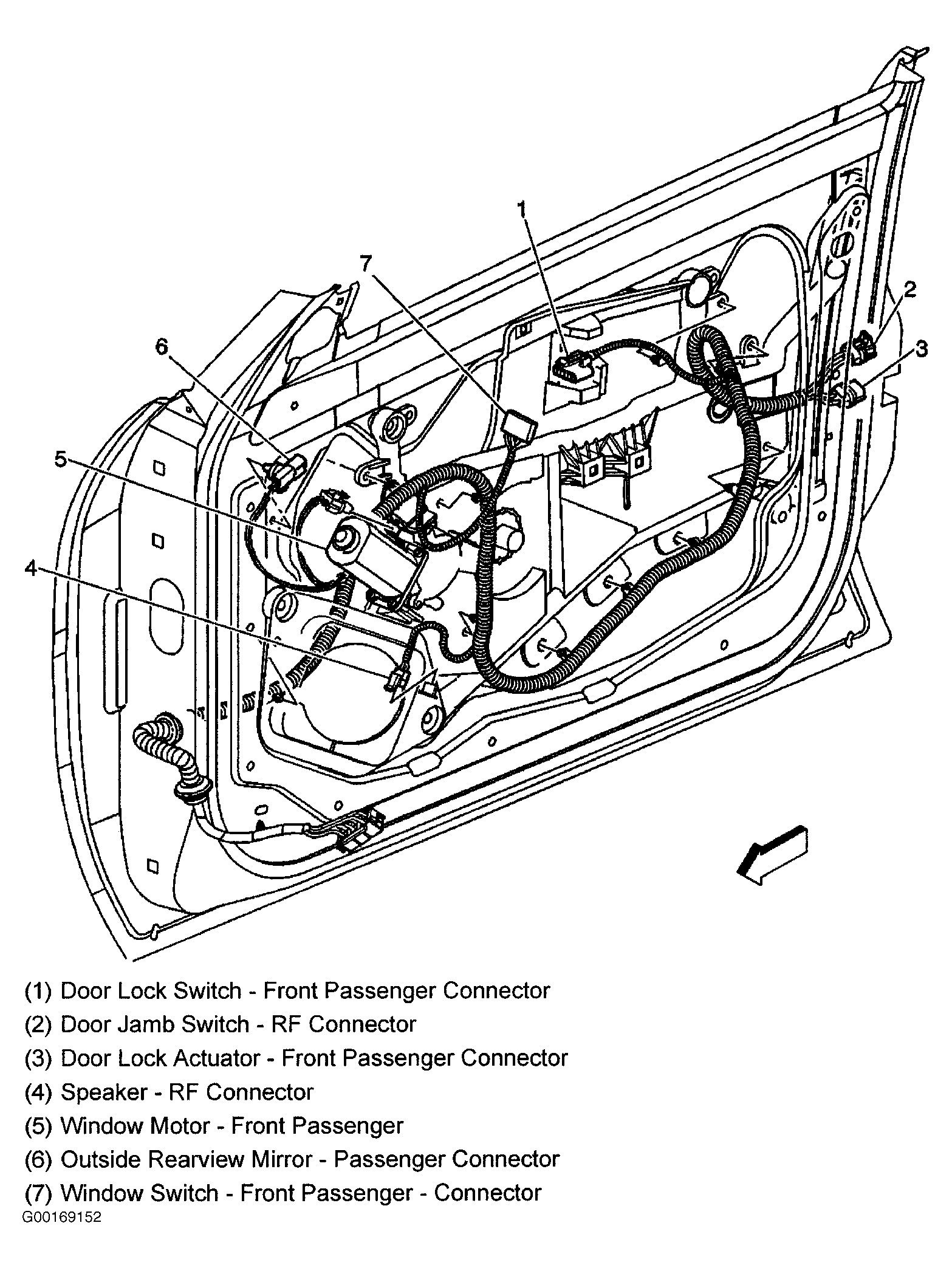

Fig 2: Locating Passenger Front Door Harness Connectors & Window Motor

Courtesy of GENERAL MOTORS CORP.

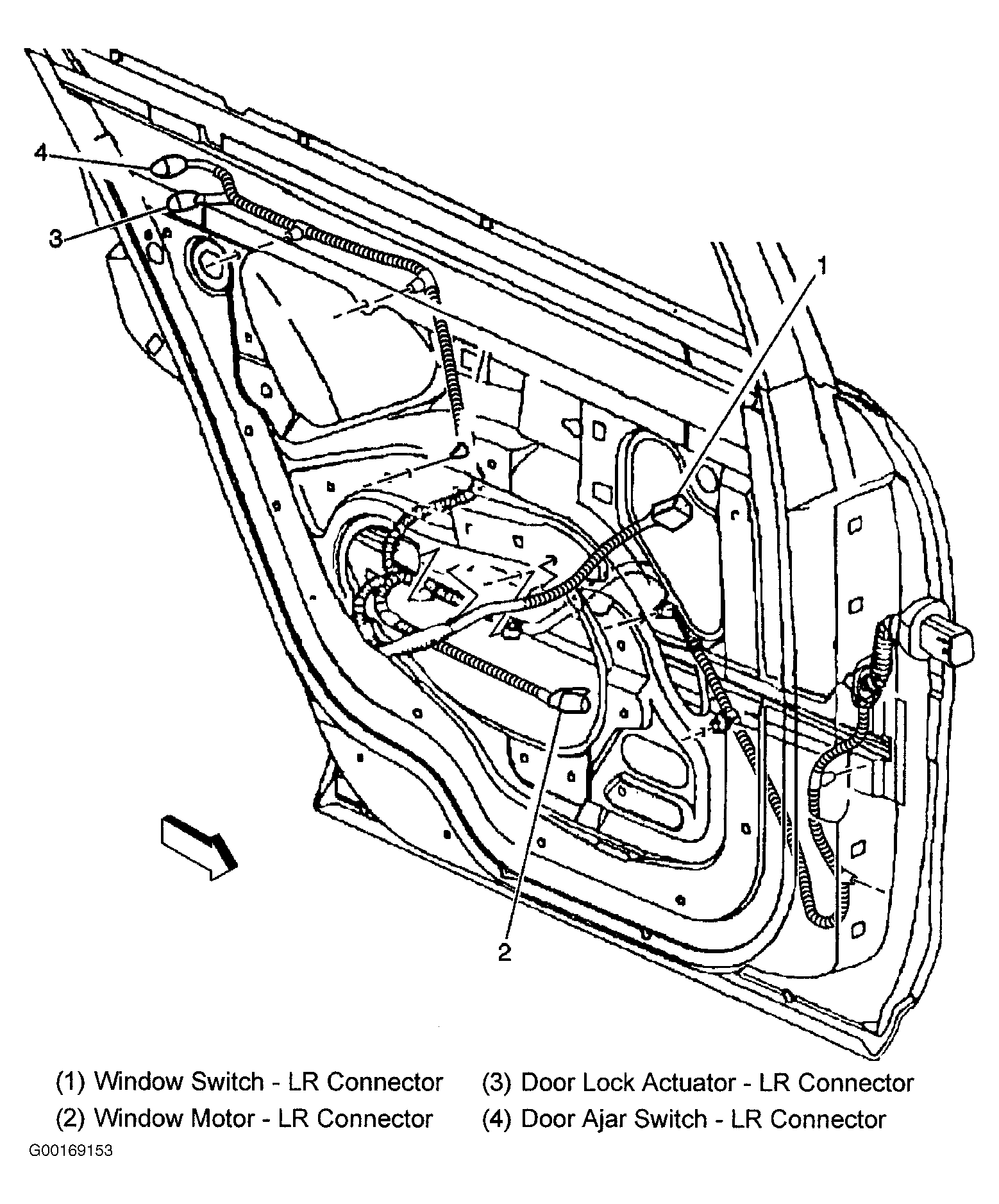

Fig 3: Locating Rear Door Harness Connectors

Courtesy of GENERAL MOTORS CORP.

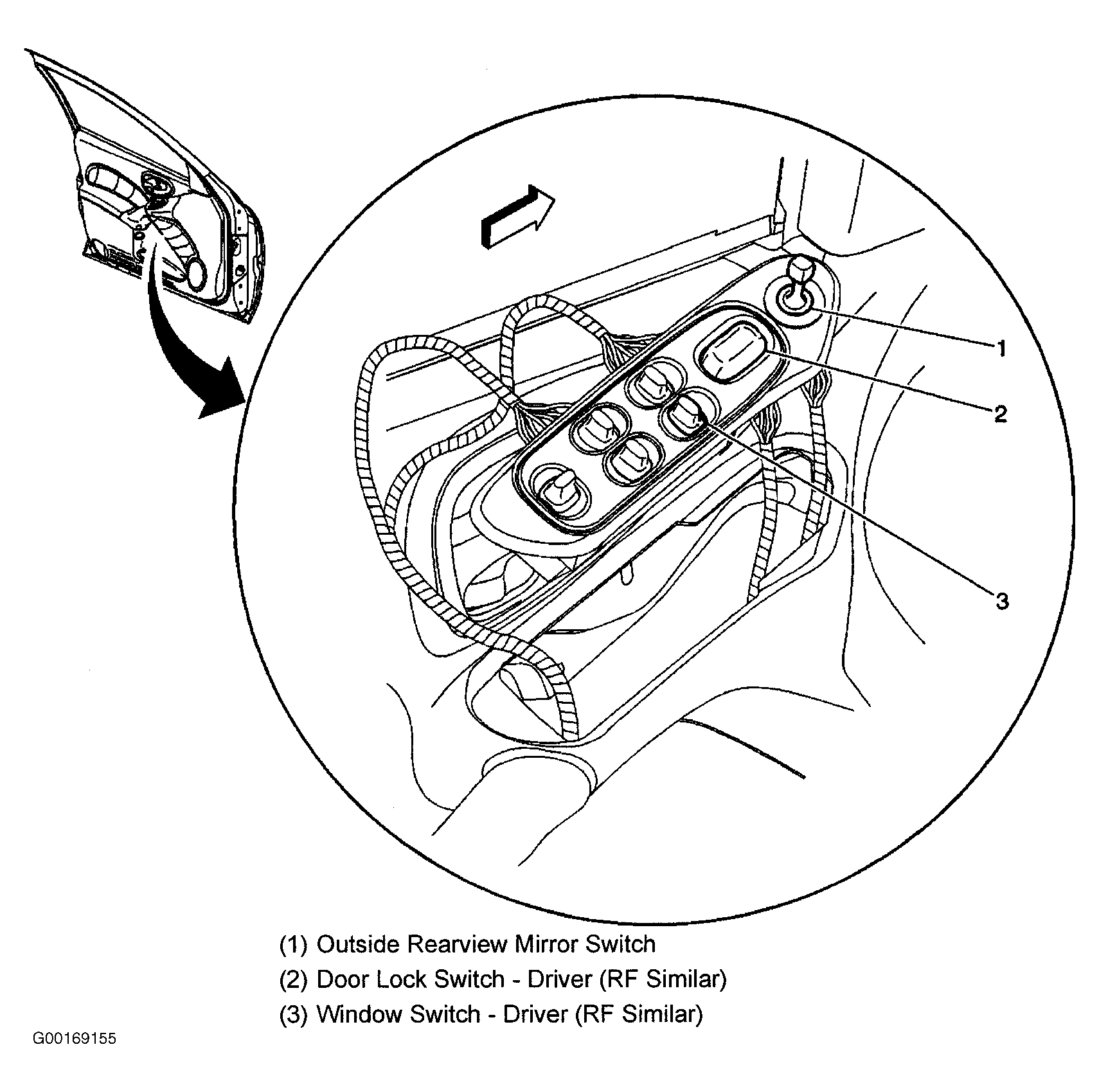

Fig 4: Locating Door Lock/Power Window Switch Panel

Courtesy of GENERAL MOTORS CORP.

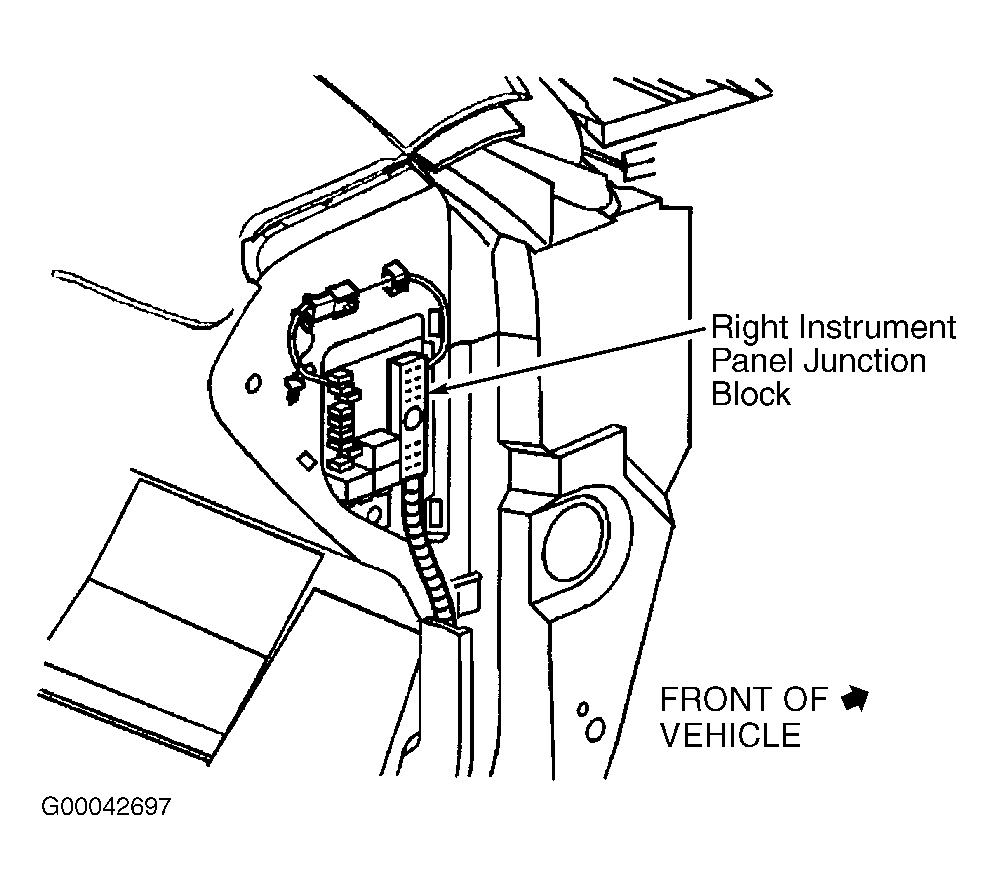

Fig 5: Locating Passenger Side Instrument Panel Junction Block

Courtesy of GENERAL MOTORS CORP.

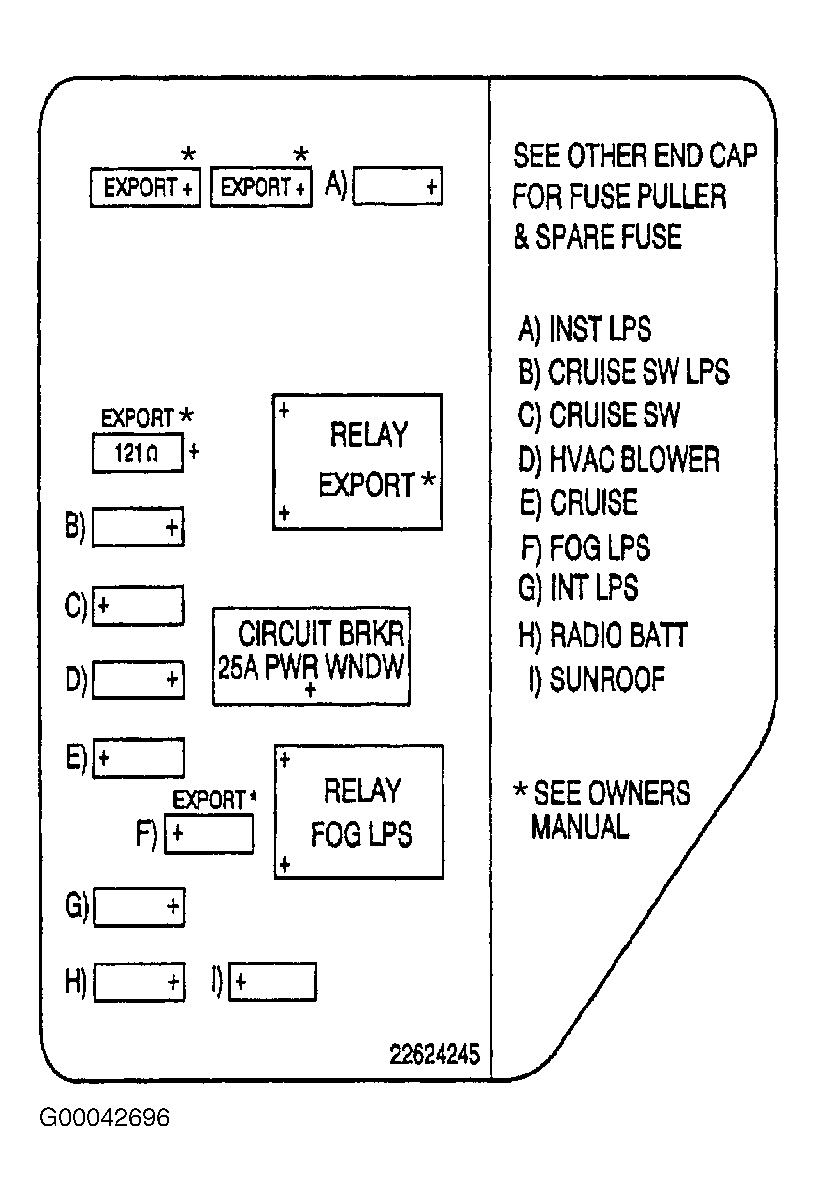

Fig 6: Locating PWR WDO Circuit Breaker

Courtesy of GENERAL MOTORS CORP.

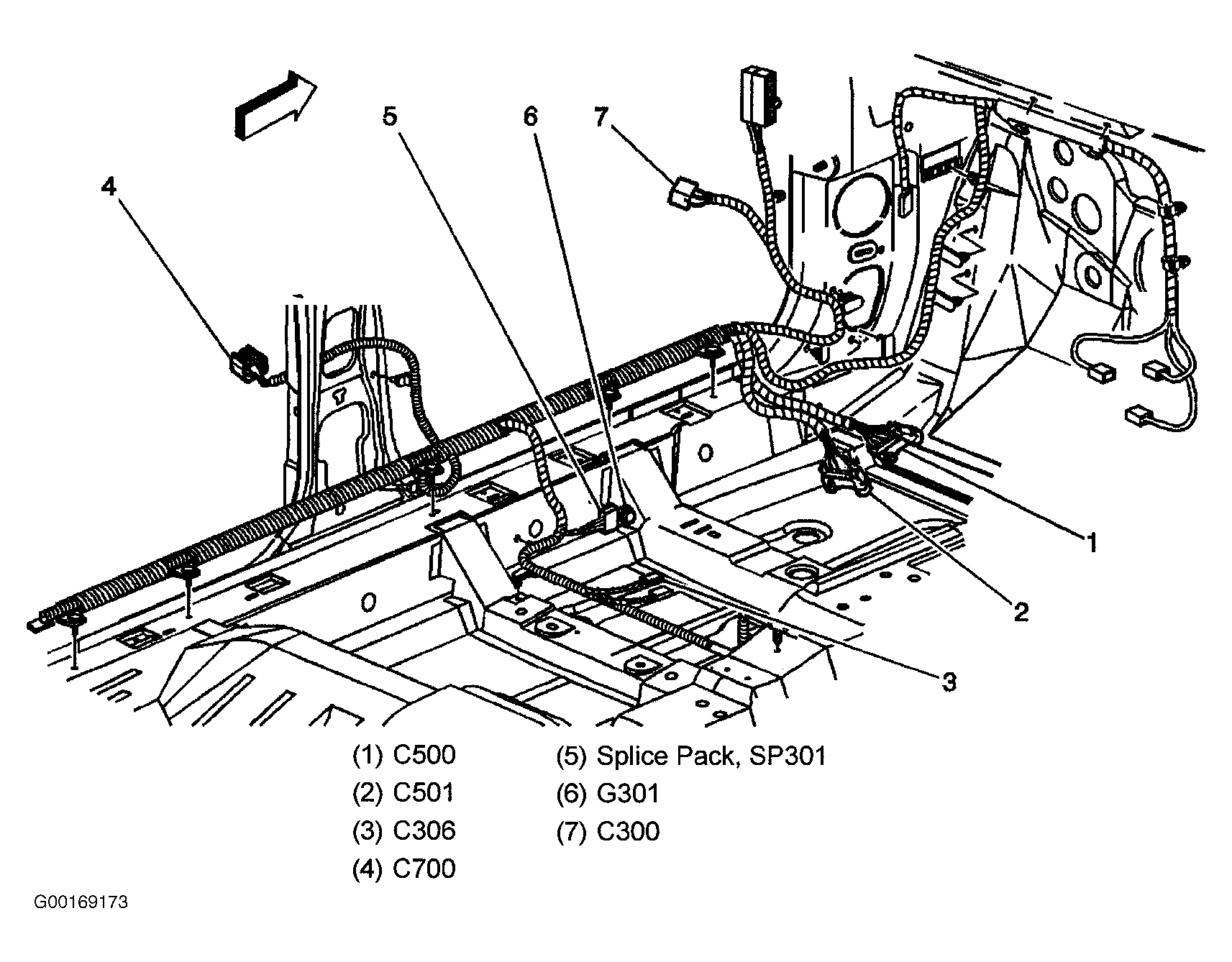

Fig 7: Locating C500, C700, SP301 & G301

Courtesy of GENERAL MOTORS CORP.

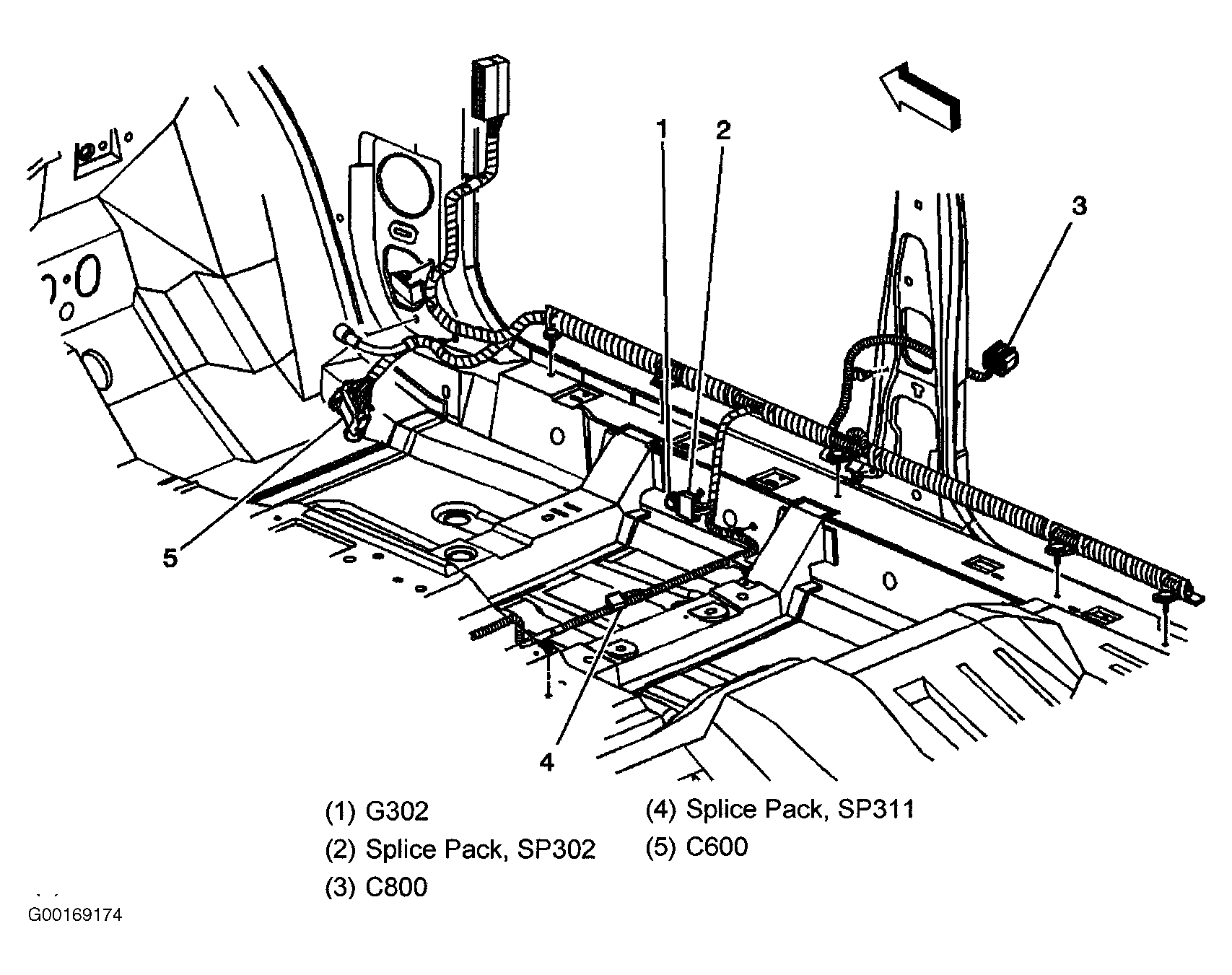

Fig 8: Locating C600, C800 & SP311

Courtesy of GENERAL MOTORS CORP.
