Connector Identification

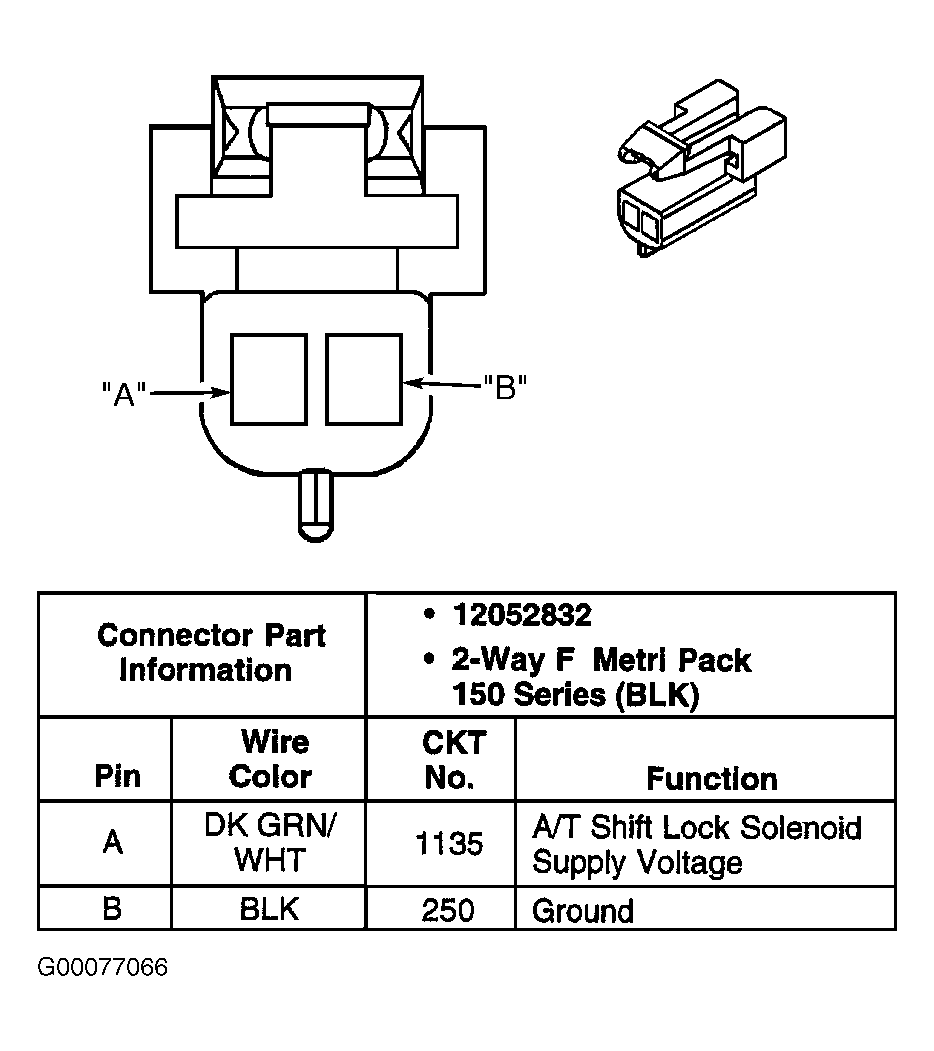

Fig 1: Identifying A/T Shift Lock Control Harness Connector Terminals
G00077066Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying PNP Switch (C1) Harness Connector Terminals
G00077067Courtesy of GENERAL MOTORS CORP.

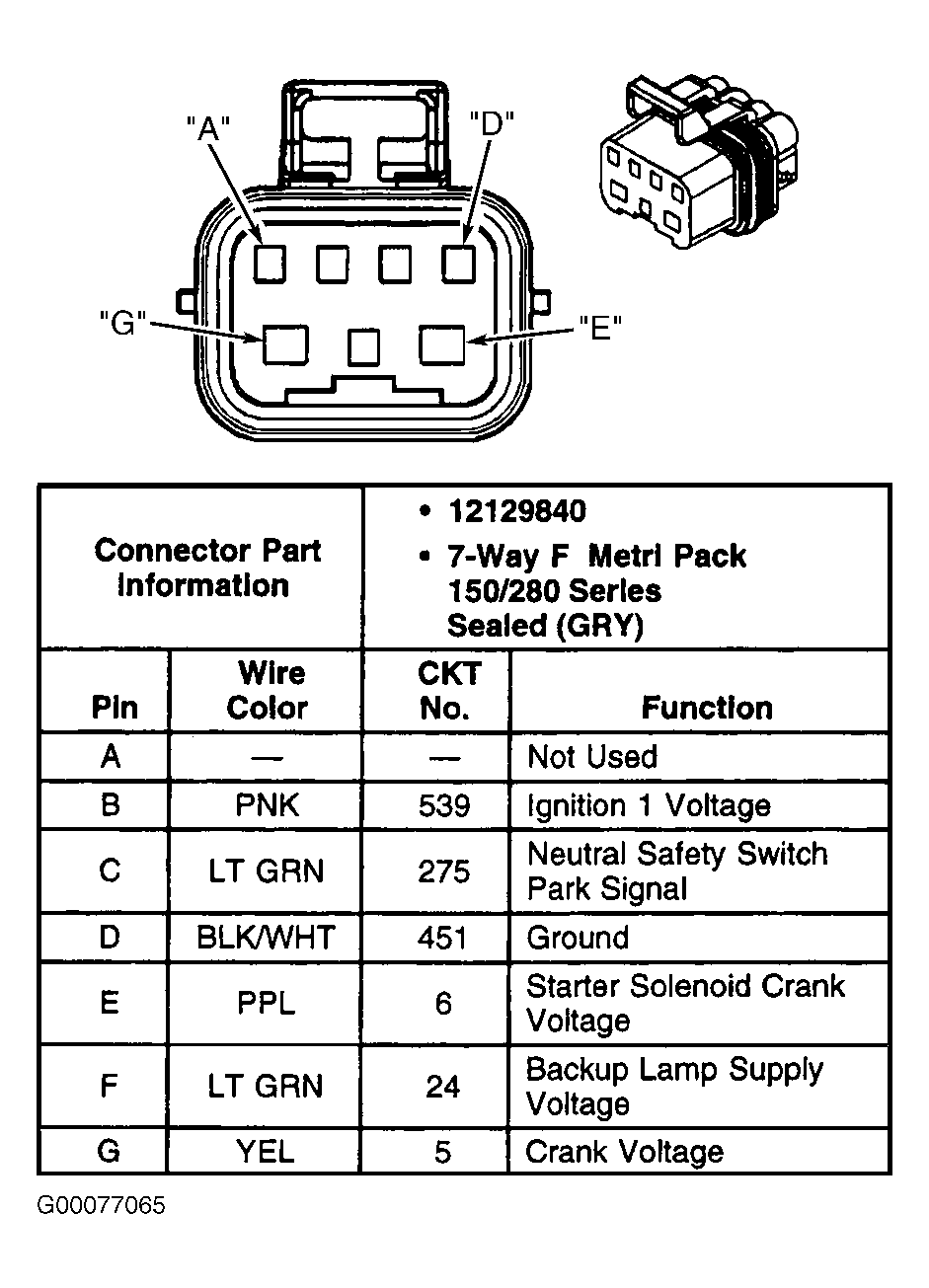

Fig 3: Identifying PNP Switch (C2) Harness Connector Terminals
G00077065Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Stoplamp Switch (C1) Harness Connector Terminals
G00077068Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Stoplamp Switch (C2) Harness Connector Terminals
G00077069Courtesy of GENERAL MOTORS CORP.
