Keyless Entry Connector End Views

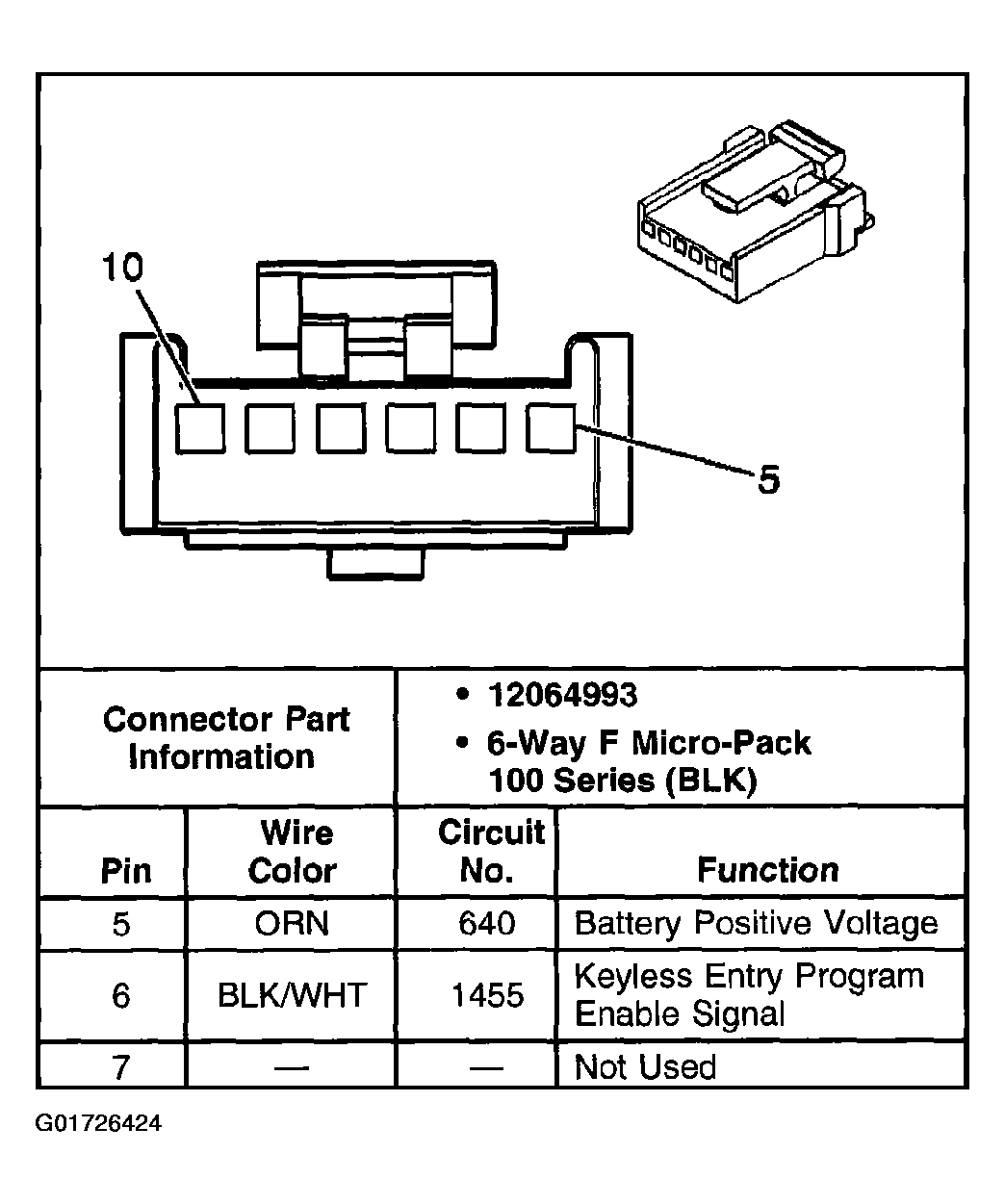

Fig 1: Remote Control Door Lock Receiver (RCDLR) Connector End Views (1 Of 2)
G01726424Courtesy of GENERAL MOTORS CORP.

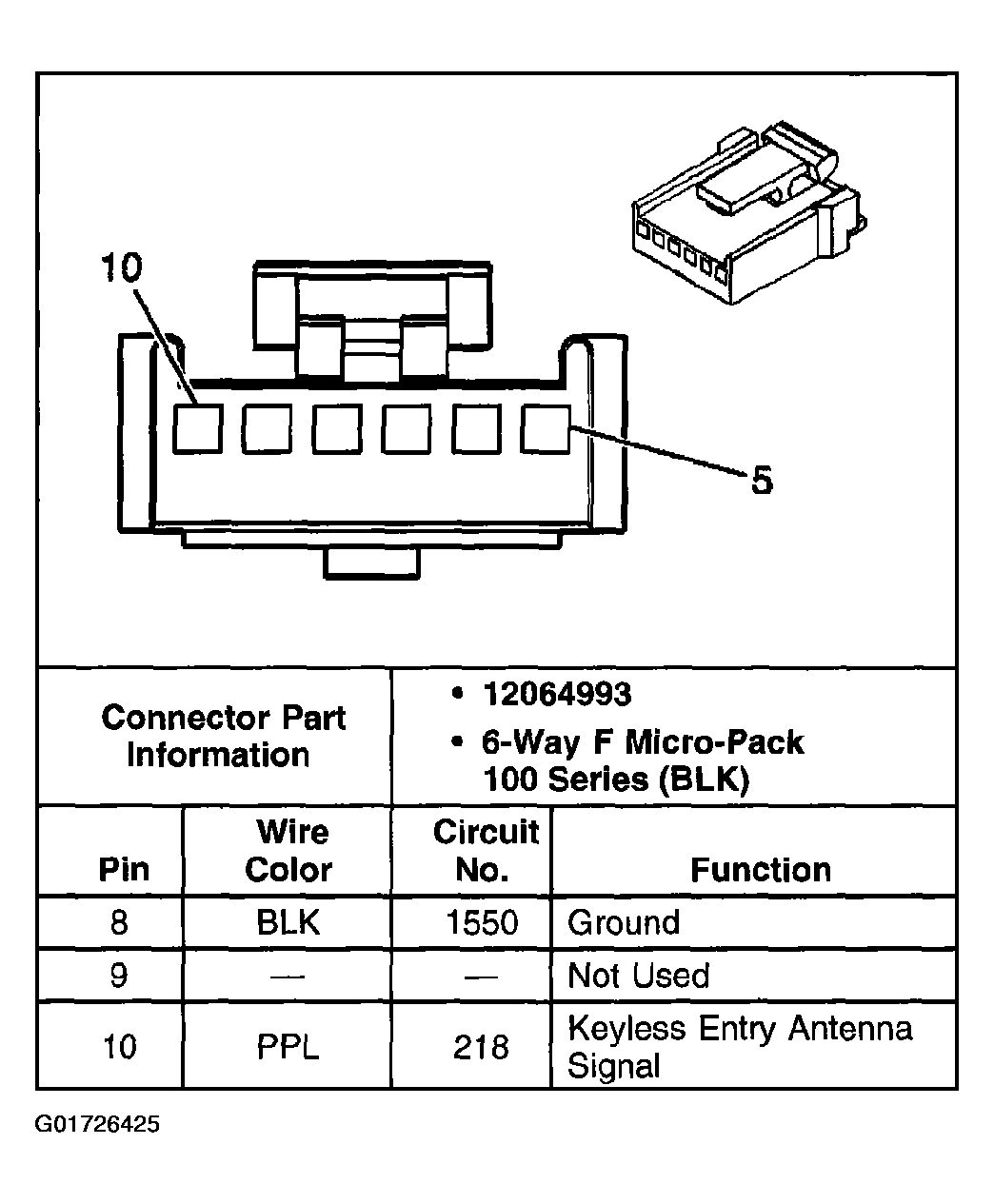

Fig 2: Remote Control Door Lock Receiver (RCDLR) Connector End Views (2 Of 2)
G01726425Courtesy of GENERAL MOTORS CORP.
