Home >> Pontiac >> 2002 >> Aztek FWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular Communication System >> Repair Instructions >> OnStar Button Assembly Replacement >> Installation Procedure

Installation Procedure

  1. Install the OnStar® button assembly to the bezel.
  2. Connect the electrical connector to the button assembly.

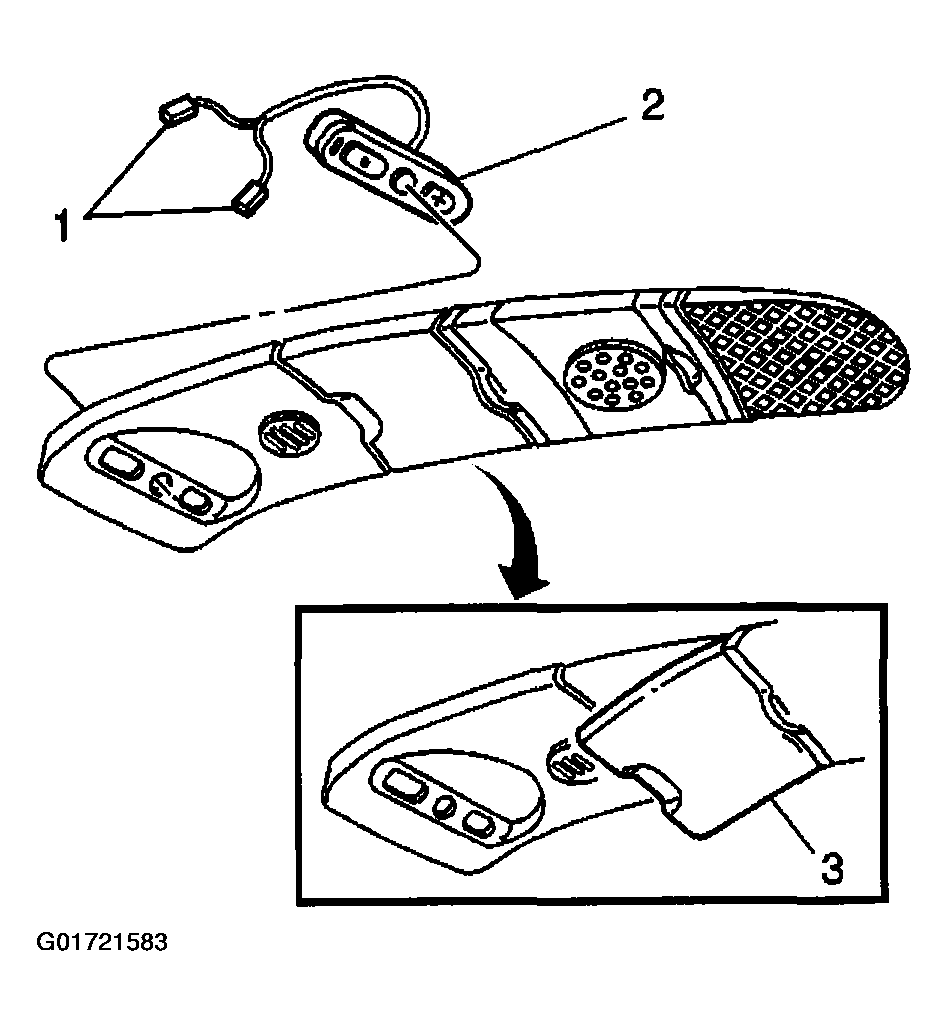

    Fig 1: View Of OnStar Button Assembly
    G01721583Courtesy of GENERAL MOTORS CORP.
  3. Install the OnStar® bezel to the headliner. Press on the bezel until seated.

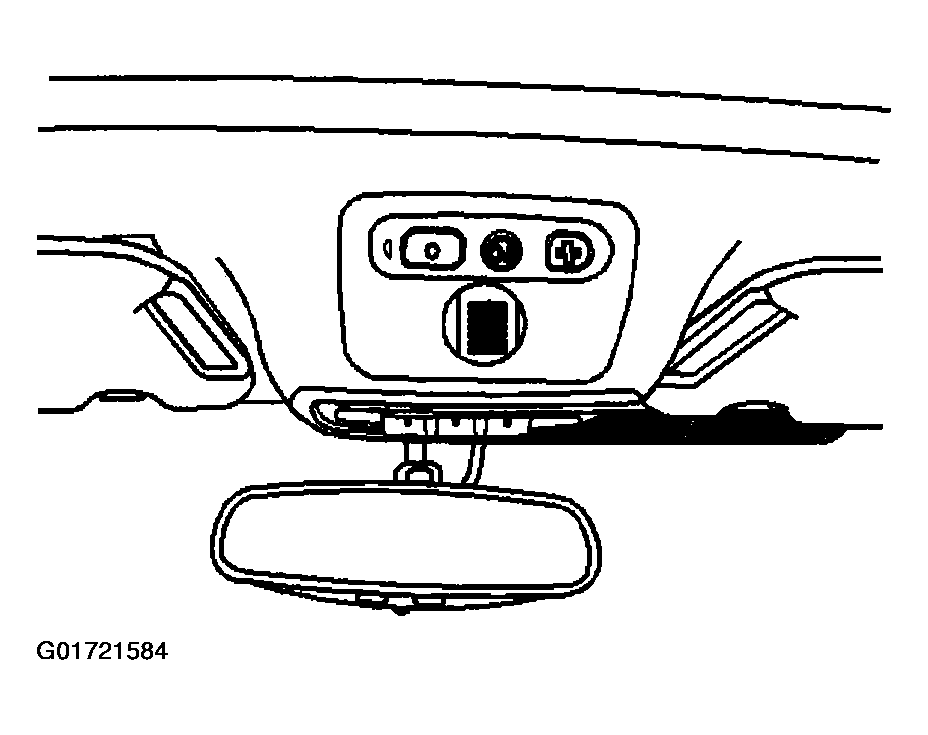

    Fig 2: Installing OnStar Bezel
    G01721584Courtesy of GENERAL MOTORS CORP.
