Installation Procedure

  1. Install the battery into the transmitter.
  2. Reassemble the transmitter.
  3. Ensure that the halves snap together tightly in order to prevent water intrusion.
  4. Test for proper transmitter operation. Refer to Keyless Entry System Description and Operation .

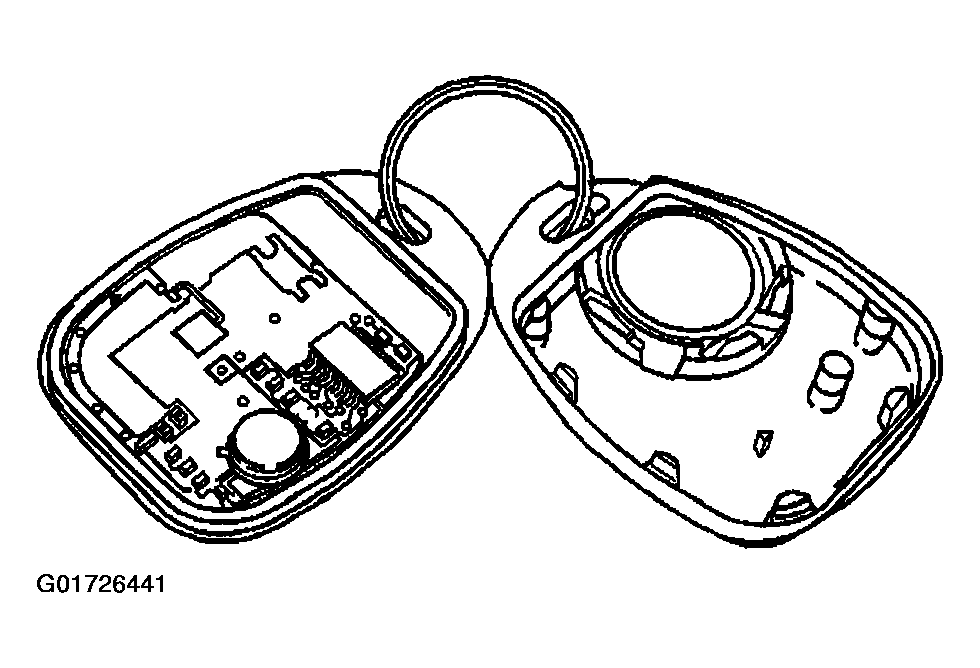

    Fig 1: Installing Transmitter Battery
    G01726441Courtesy of GENERAL MOTORS CORP.
