Removal Procedure

  1. Disable the SIR. Refer to DISABLING SYSTEM for Aztek or DISABLING SYSTEM for Rendezvous.
  2. Remove the trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON in Steering Wheel And Column.
  3. Remove the theft deterrent module wiring harness from the steering column harness.
  4. Disconnect the electrical connector.
  5. Pull the theft deterrent module (2) away from the lock cylinder housing (1).

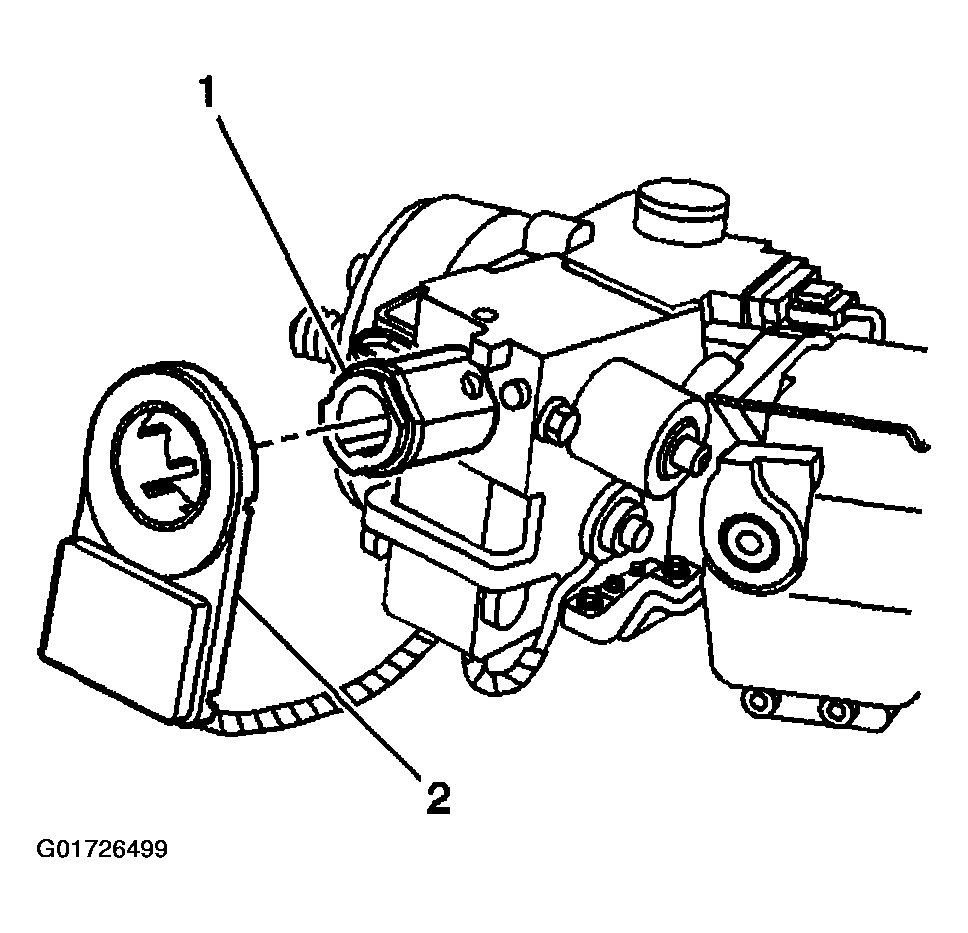

    Fig 1: View Of Theft Deterrent And Lock Cylinder Housing
    G01726499Courtesy of GENERAL MOTORS CORP.
