Stationary Windows Connector End Views

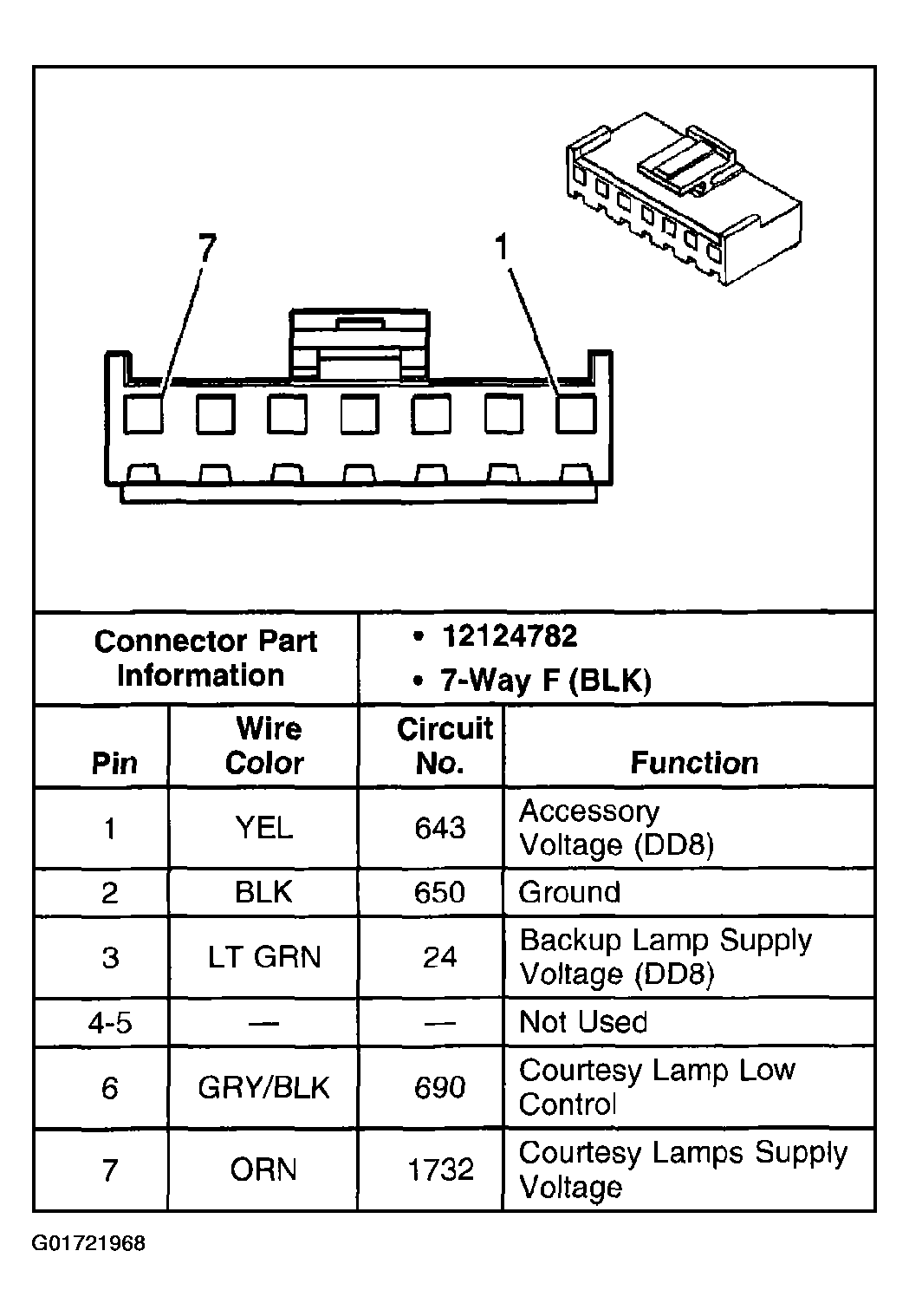

Fig 1: Inside Rearview Mirror Connector End Views

Courtesy of GENERAL MOTORS CORP.

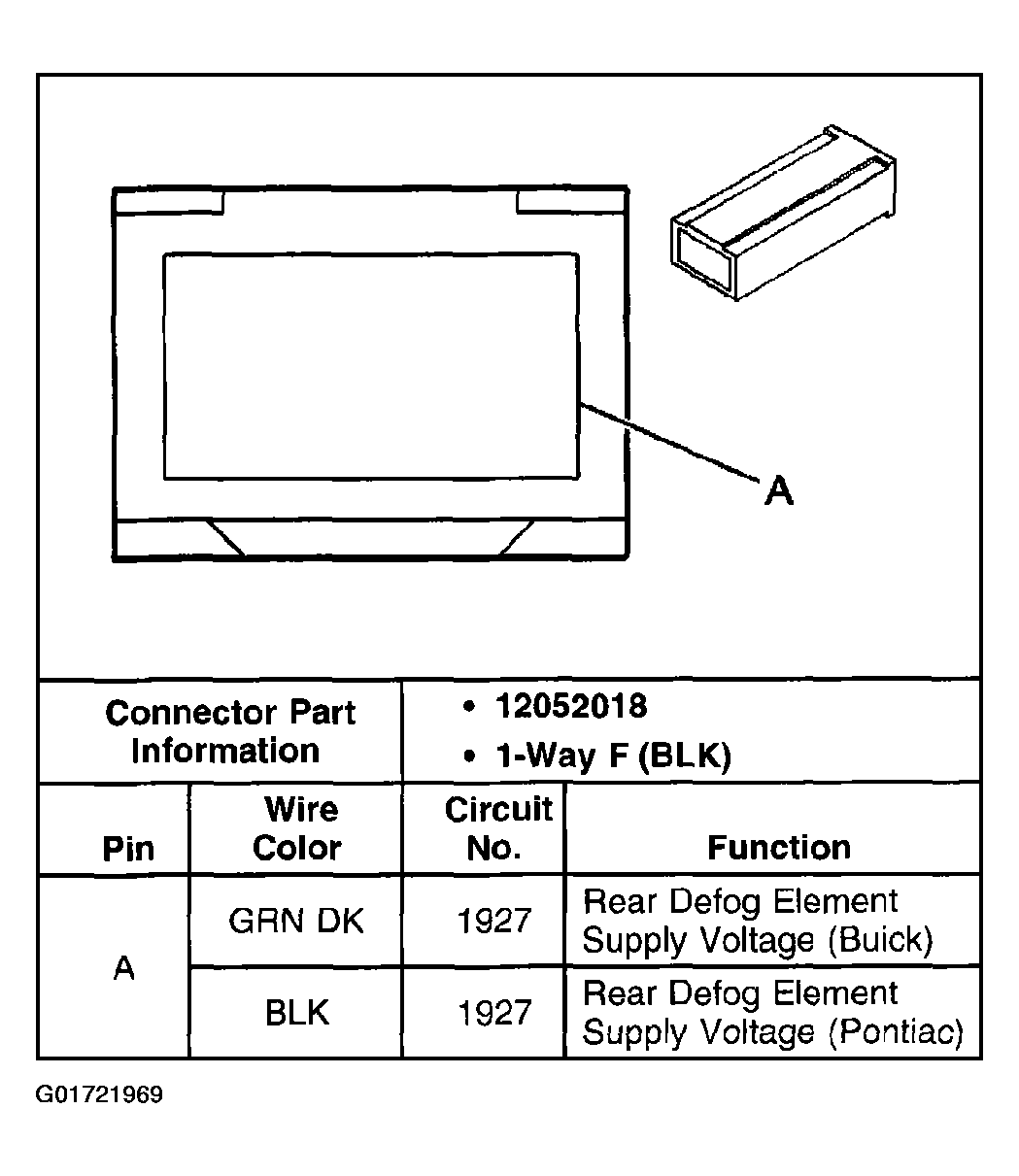

Fig 2: Rear Window Defogger Connector End Views - C1

Courtesy of GENERAL MOTORS CORP.

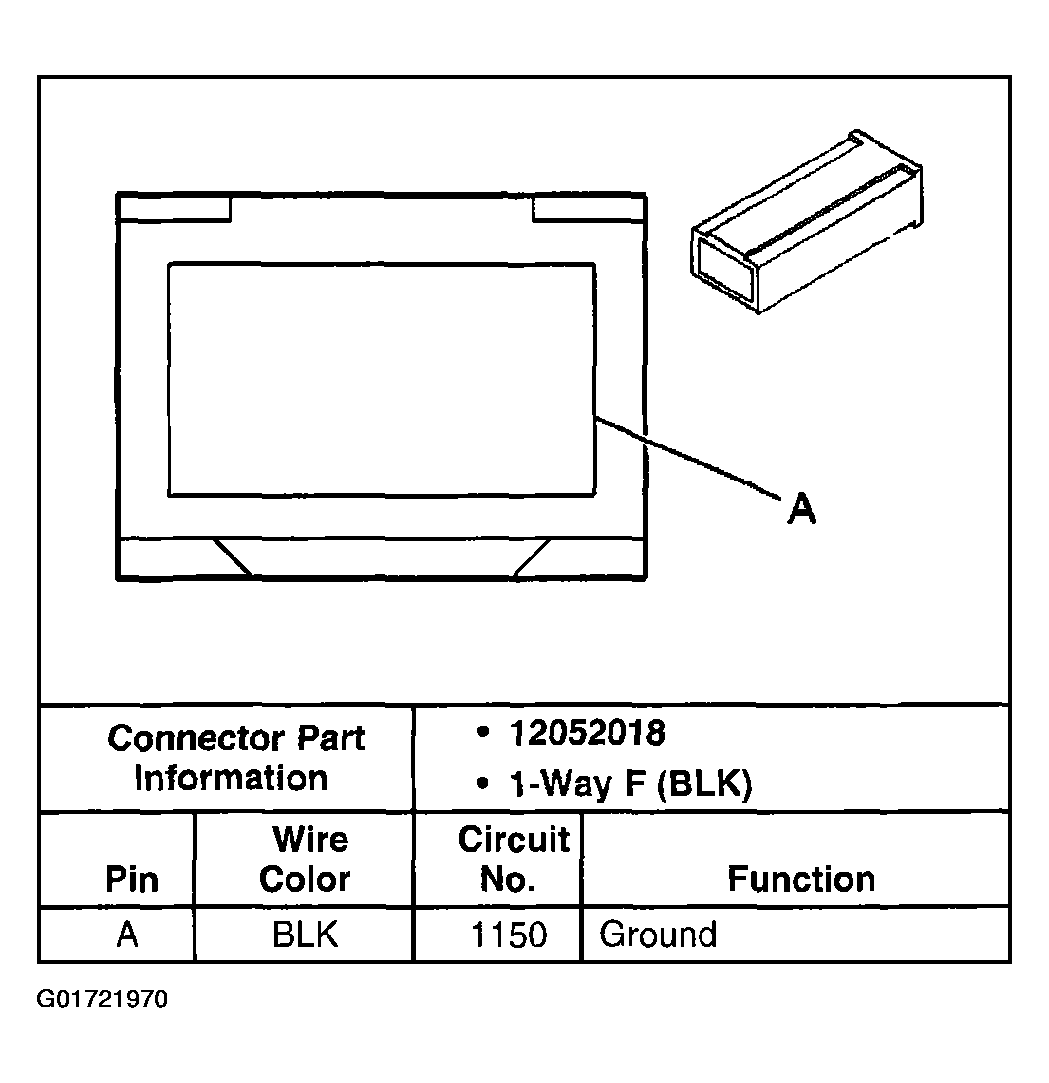

Fig 3: Rear Window Defogger Connector End Views - C2

Courtesy of GENERAL MOTORS CORP.
