ABS Connector End Views

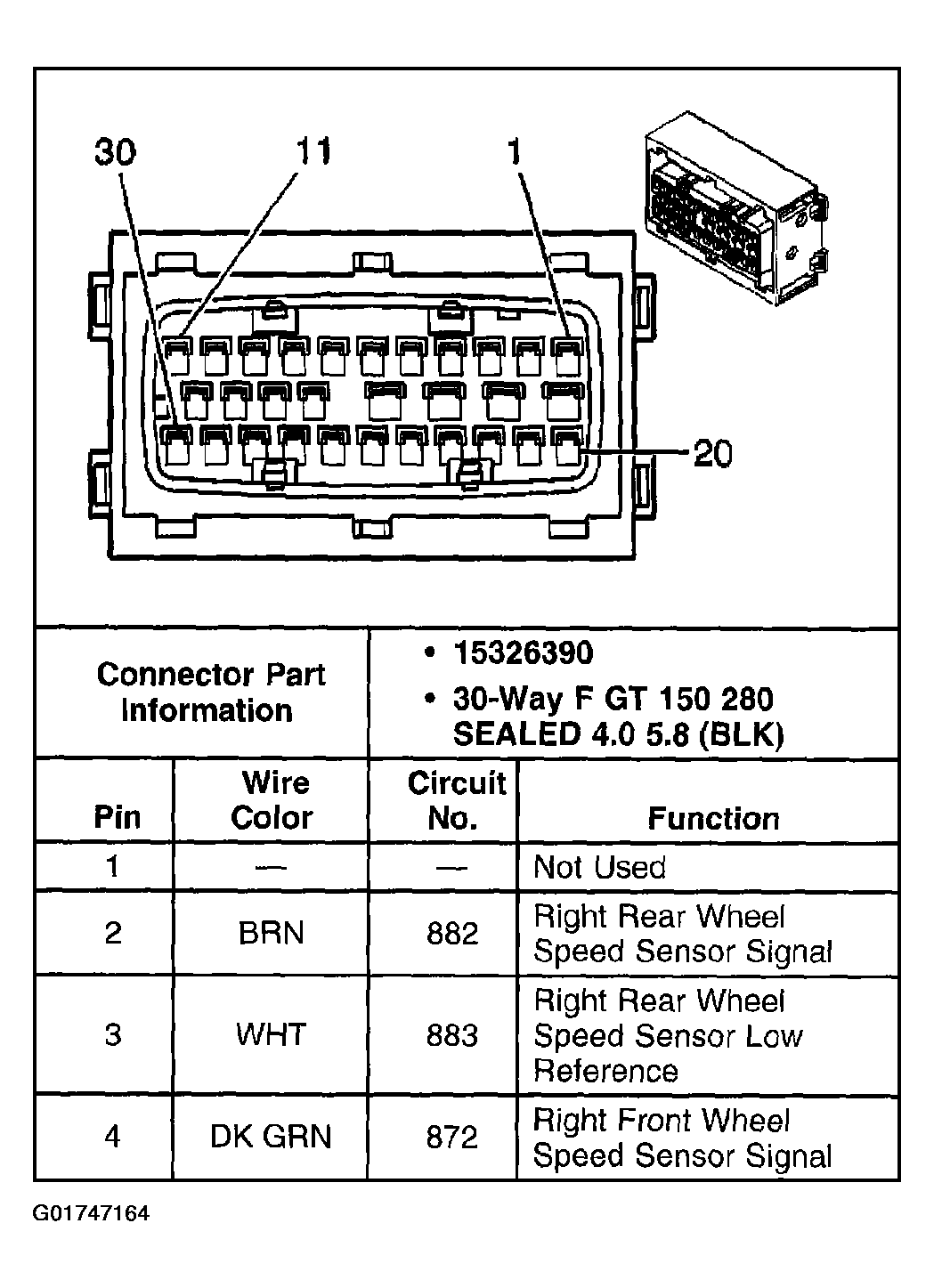

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)
G01747164Courtesy of GENERAL MOTORS CORP.

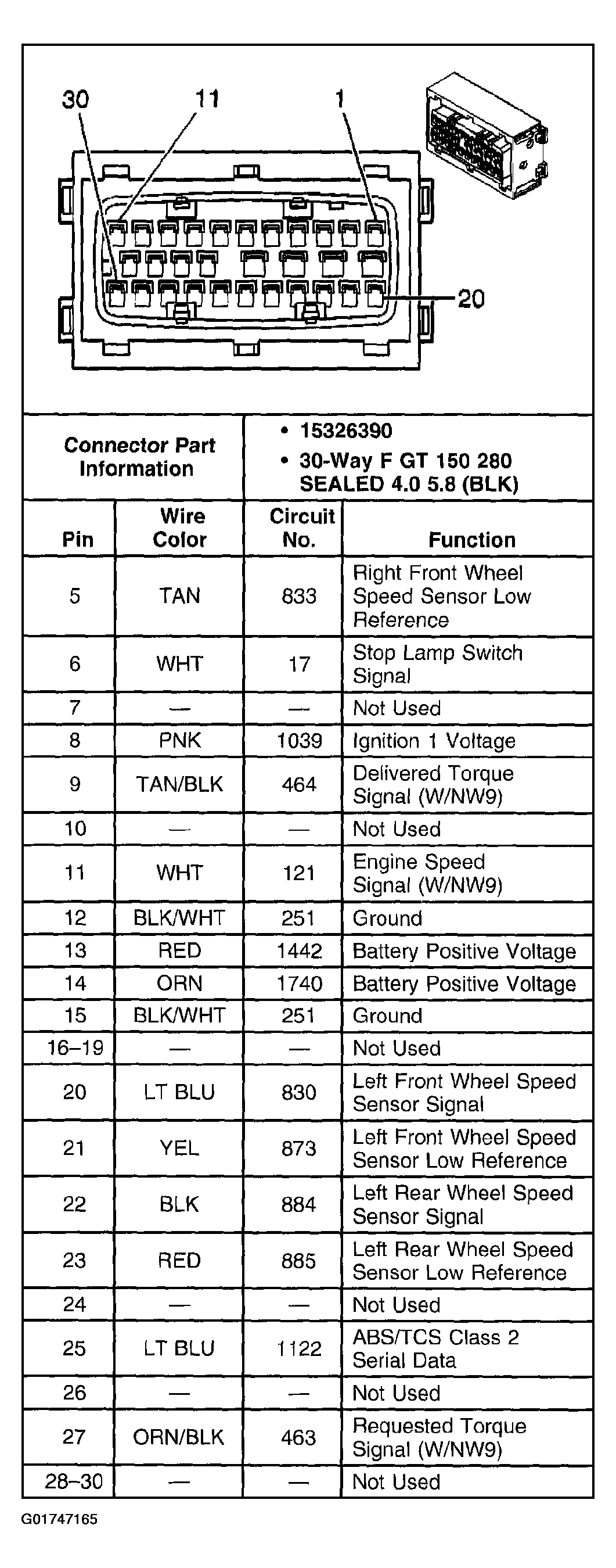

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)
G01747165Courtesy of GENERAL MOTORS CORP.

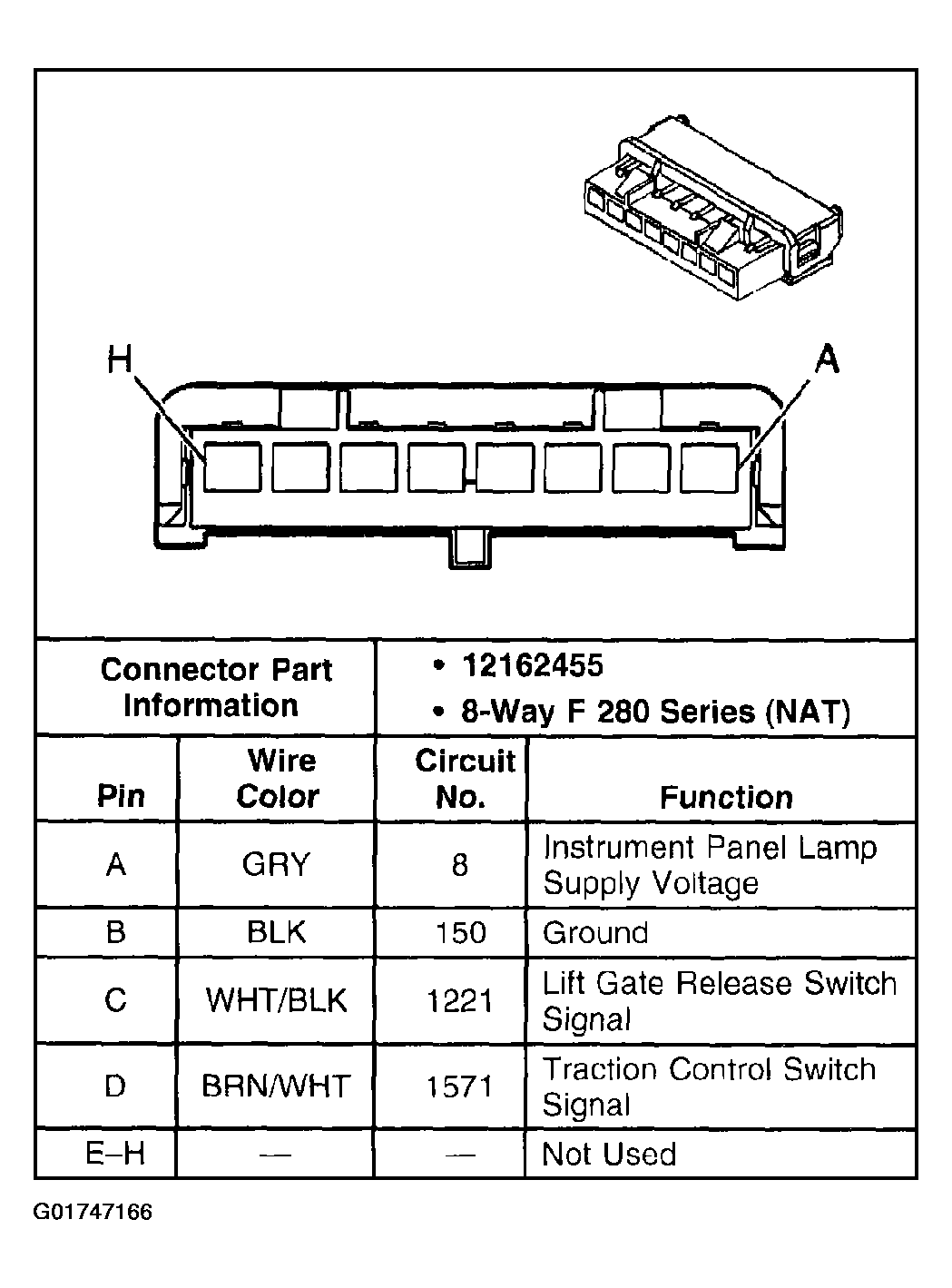

Fig 3: I/P Switch Assembly-C1 (Pontiac)
G01747166Courtesy of GENERAL MOTORS CORP.

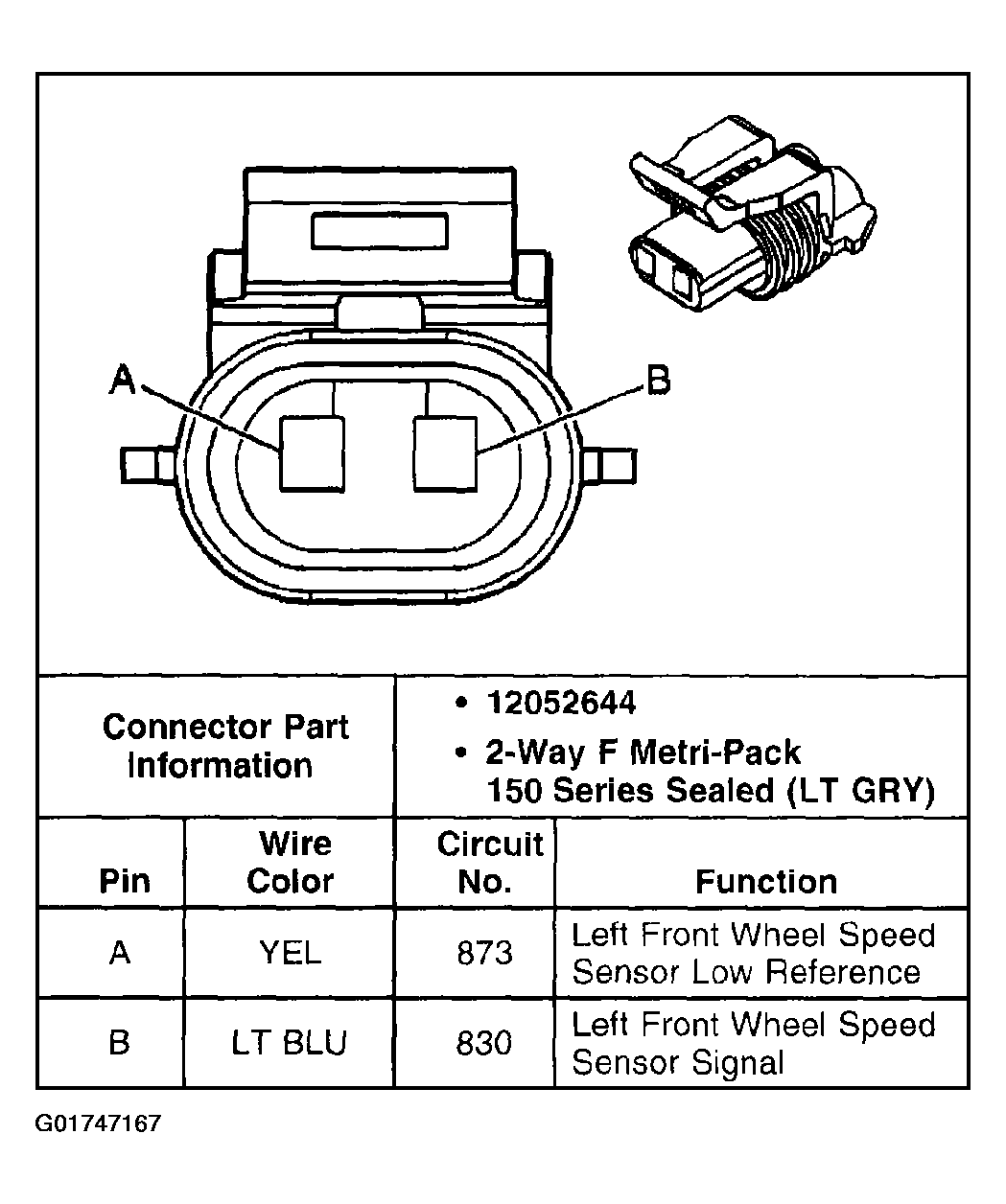

Fig 4: Wheel Speed Sensor - LF
G01747167Courtesy of GENERAL MOTORS CORP.
Fig 5: Wheel Speed Sensor - LR
G01747168Courtesy of GENERAL MOTORS CORP.

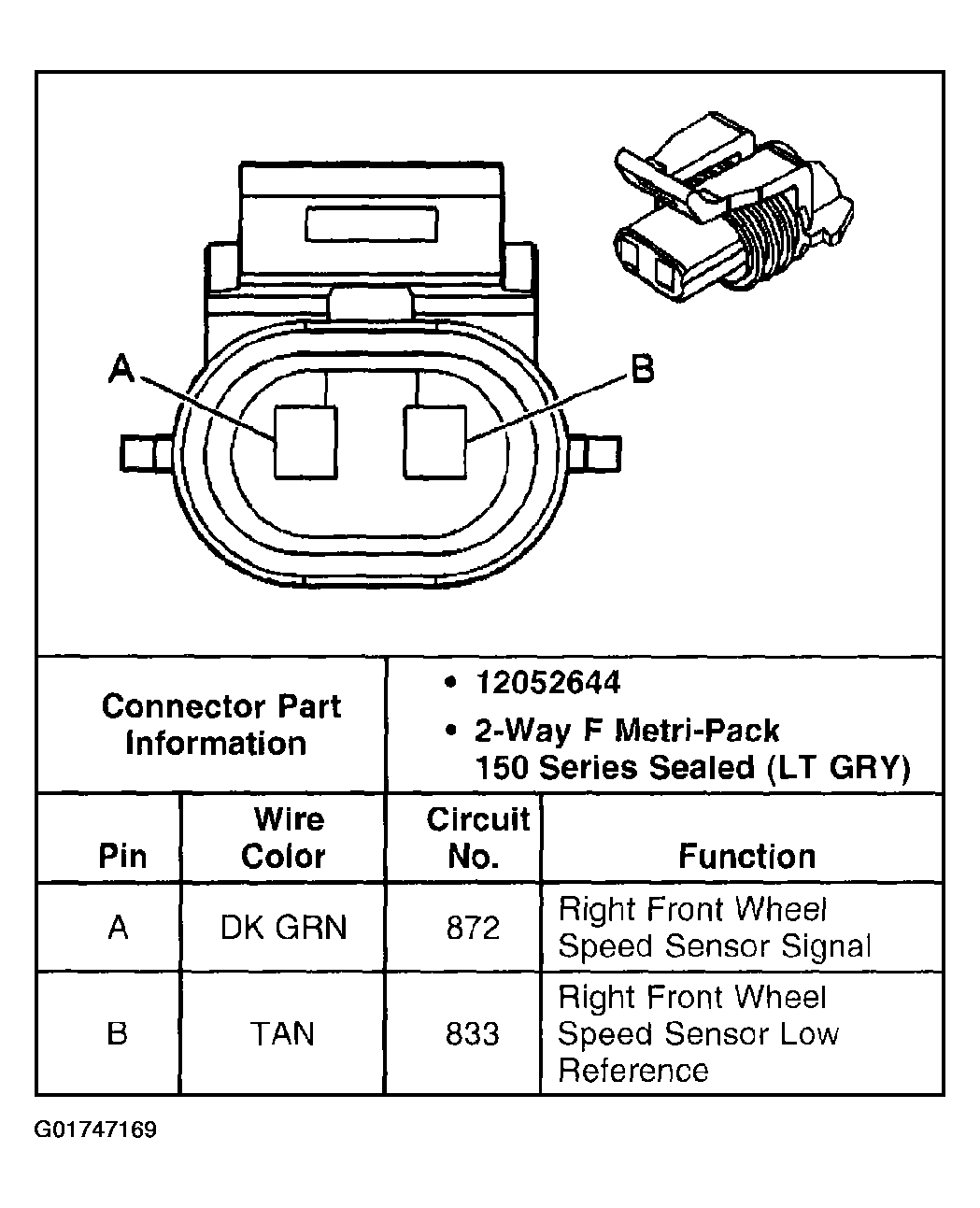

Fig 6: Wheel Speed Sensor - RF
G01747169Courtesy of GENERAL MOTORS CORP.

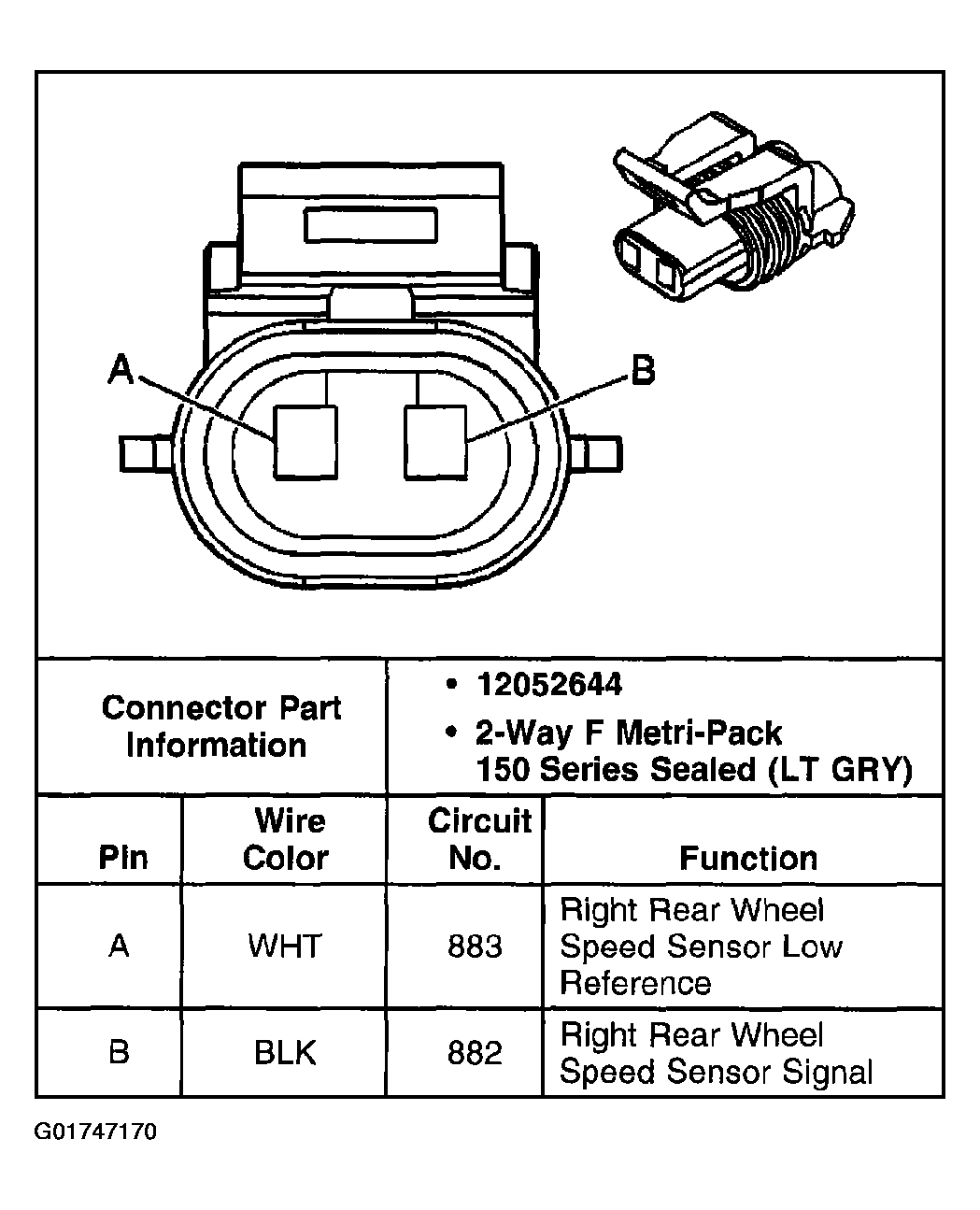

Fig 7: Wheel Speed Sensor - RR
G01747170Courtesy of GENERAL MOTORS CORP.
