Removal Procedure

Important:  The front wheel speed sensors and rings are integral with the hub and bearing assemblies. If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Do not service the harness pigtail individually because the harness pigtail is part of the sensor. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

1. Raise and support the vehicle on a suitable hoist. Refer to LIFTING AND JACKING THE VEHICLE .
2. Remove the front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
3. Remove the front wheel speed sensor jumper harness electrical connector (1) from the front wheel speed sensor connector (3).

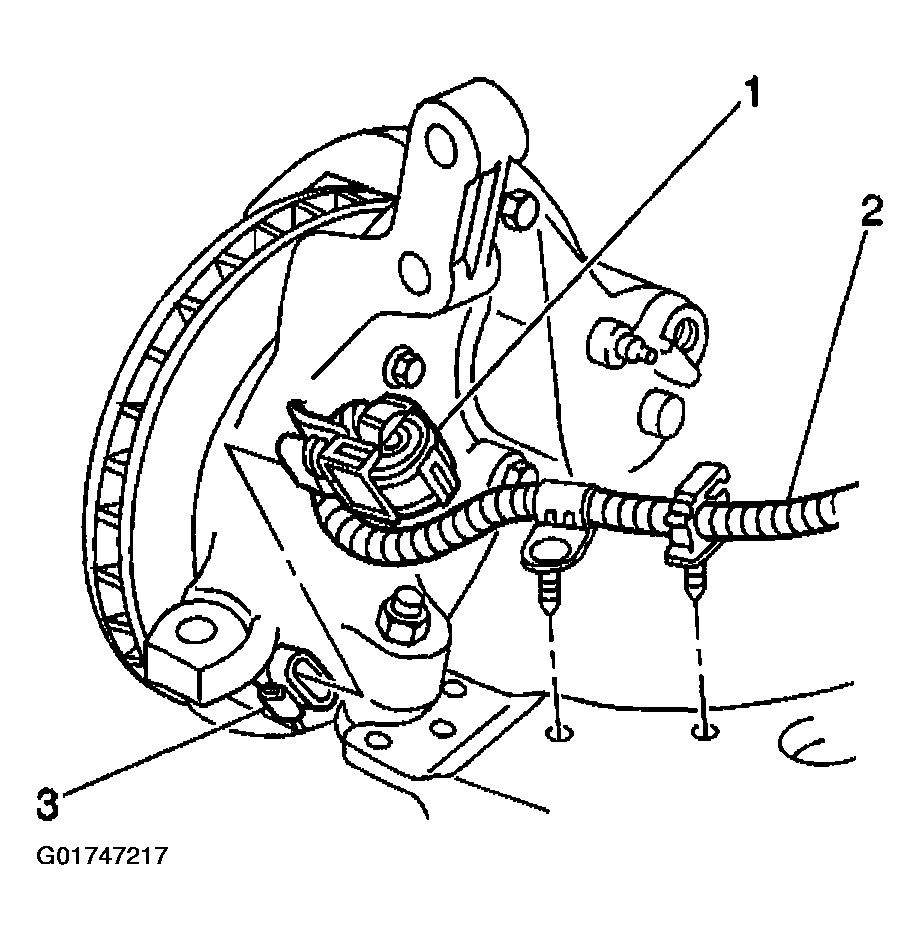

Fig 1: Removing Front Wheel Speed Sensor Jumper Harness Electrical Connector From Speed Sensor Connector
Courtesy of GENERAL MOTORS CORP.
4. Remove the hub and bearing assembly (2). Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

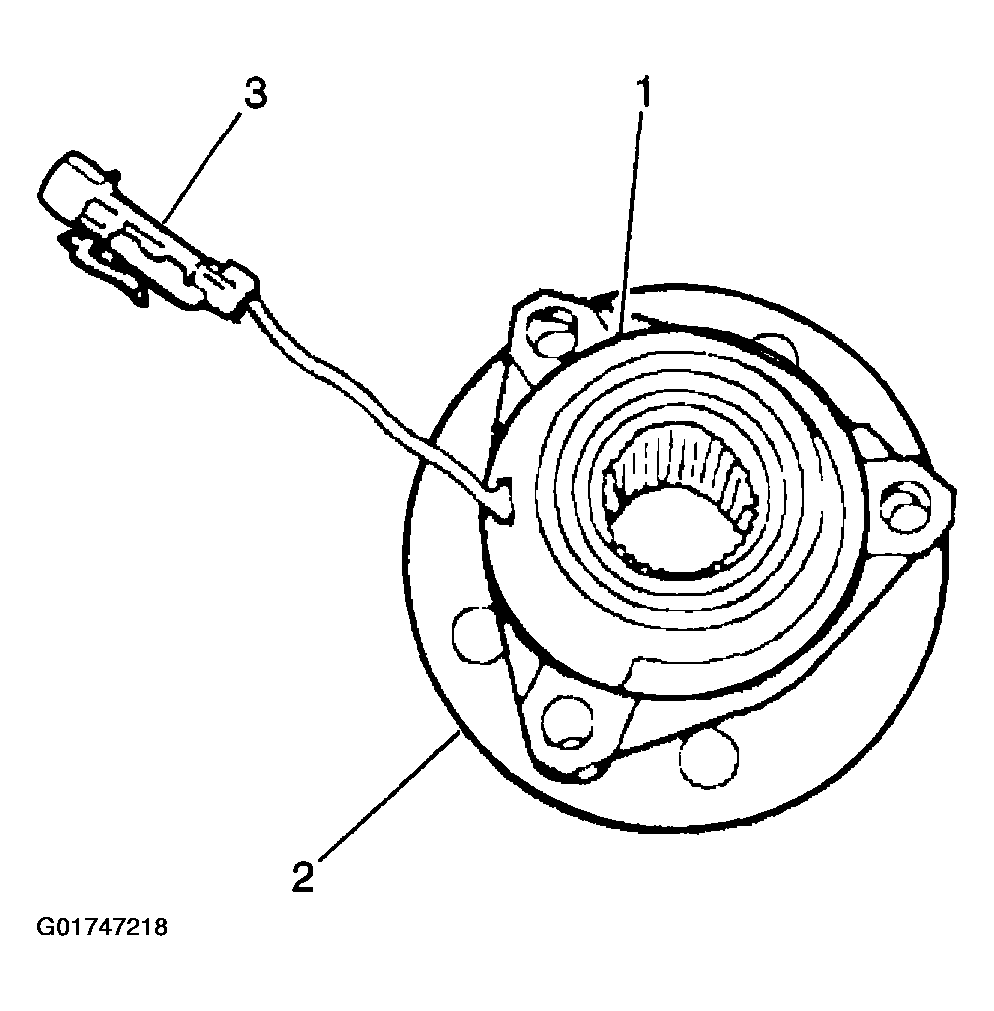

   Fig 2: Removing Hub & Bearing Assembly

   Courtesy of GENERAL MOTORS CORP.
