Home >> Pontiac >> 2002 >> Aztek FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> HVAC Control Module Connector End View

HVAC Control Module Connector End View

Fig 1: HVAC Control Module Connector End View

G00213893

Courtesy of GENERAL MOTORS CORP.

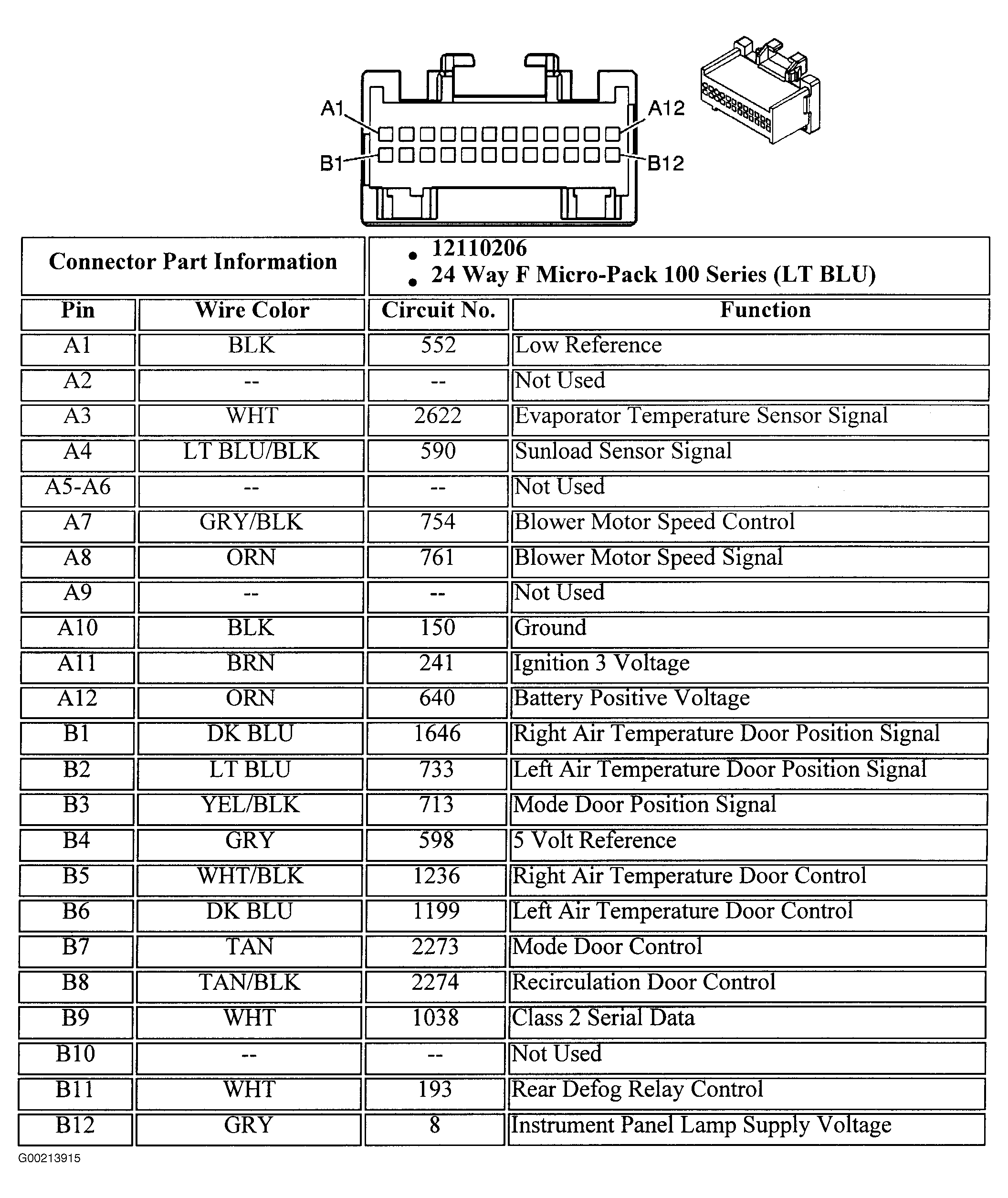

Fig 1: HVAC Control Module Connector End View

G00213915

Courtesy of GENERAL MOTORS CORP.
