Instrument Panel Fuse Block

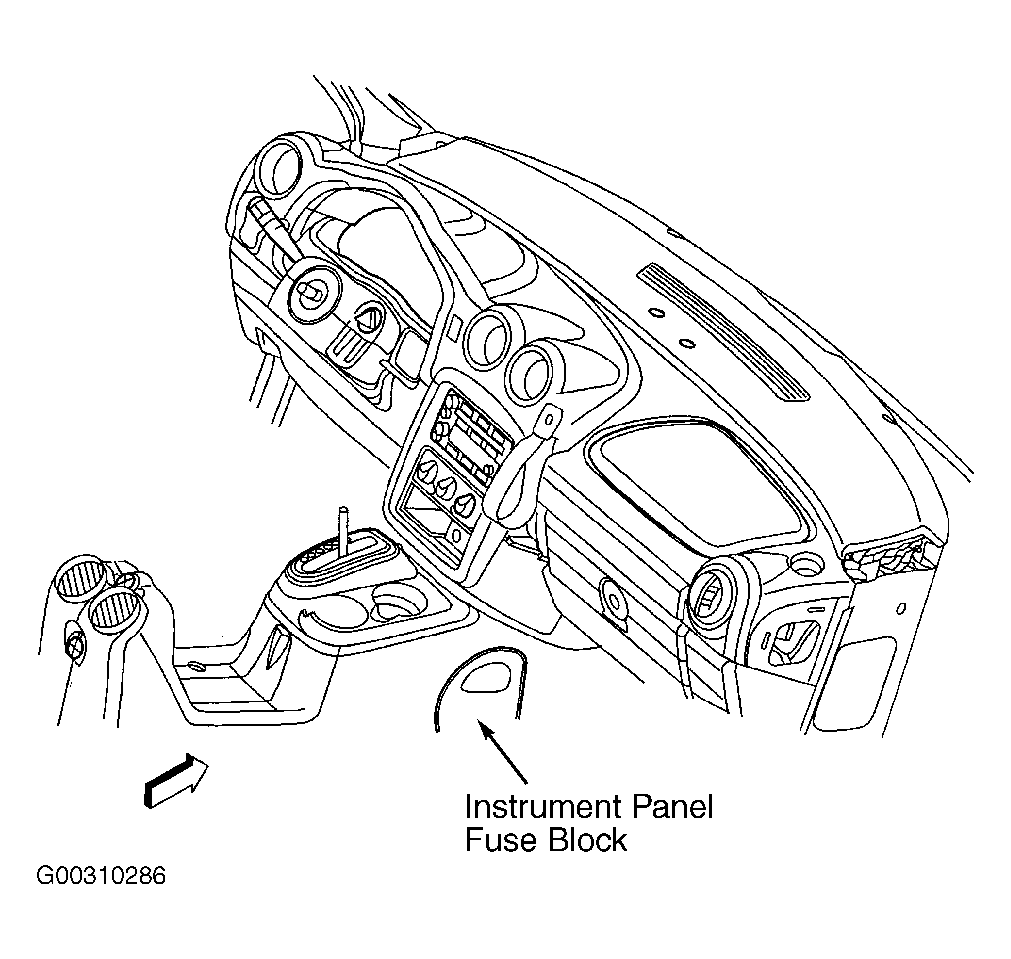

Instrument panel fuse block is located under center of instrument panel, on right side. See Fig 1.

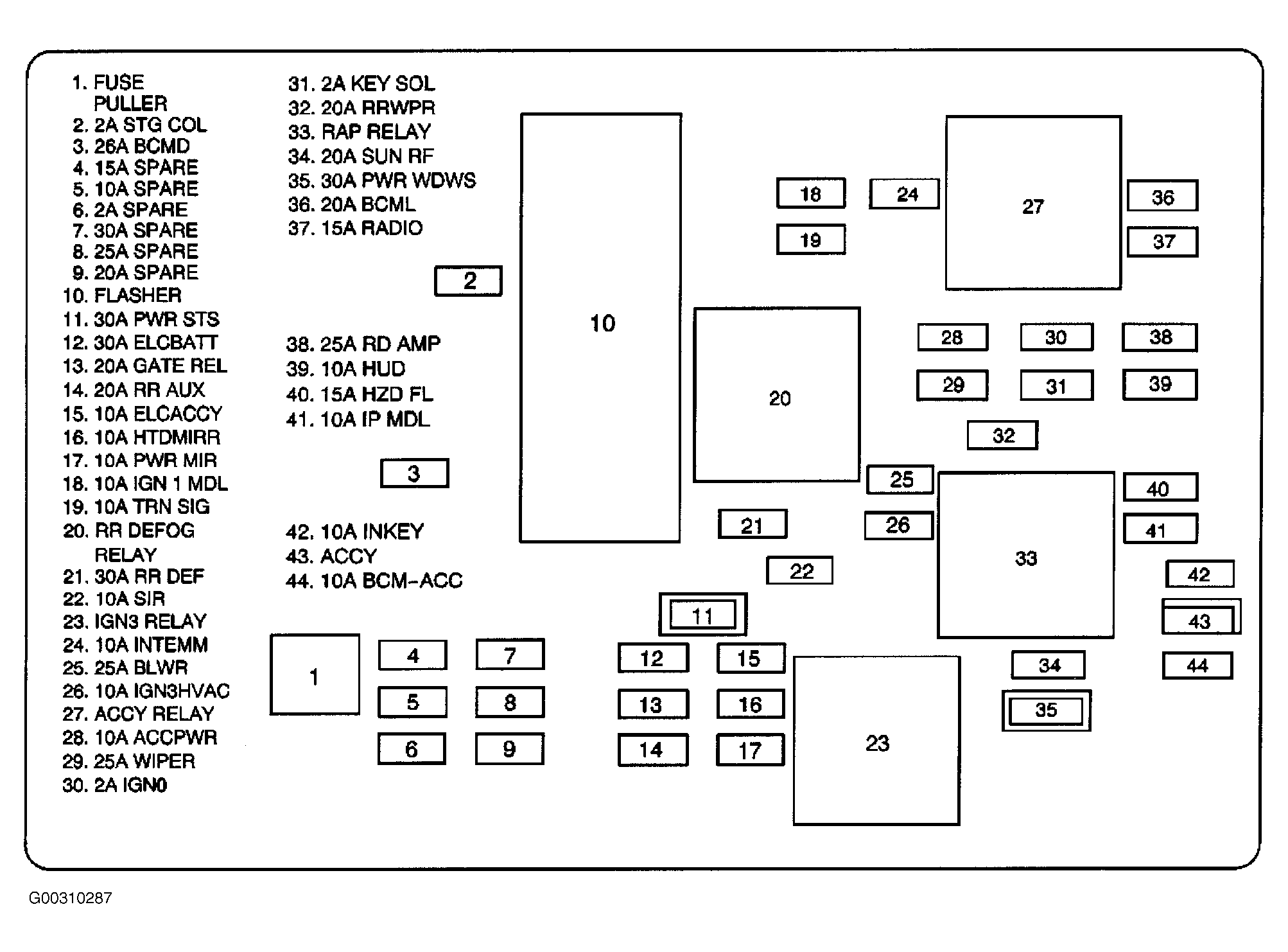

INSTRUMENT PANEL FUSE BLOCK LEGEND
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | FUSE PULLER | - | Not Used |
| 2 | STG COL | 2A | Inflatable restraint steering wheel module coil |
| 3 | BCMD | 25A | Body control module (BCM) |
| 4 | SPARE | 15A | Not Used |
| 5 | SPARE | 10A | Not Used |
| 6 | SPARE | 2A | Not Used |
| 7 | SPARE | 30A | Not Used |
| 8 | SPARE | 25A | Not Used |
| 9 | SPARE | 20 | Not Used |
| 10 | FLASHER | - | Turn Signal and Hazard Lamps |
| 11 | PWR STS | 30A | Seat Adjuster Switch-Driver (AG1), Memory Seat and Mirror Module (A43), Positive Temperature Coefficient (PTC) Circuit Breaker-Driver, Seat Adjuster Switch-Front Passenger (AG2), and Positive Temperature Coefficient (PTC) Circuit Breaker-Front Passenger |
| 12 | ELC BATT | 30A | Automatic Level Control (ALC) Compressor Relay (G67) |
| 13 | GATE REL | 30A | Body control module (BCM) |
| 14 | RR AUX | 20A | Automatic Level Control (ALC) Compressor (G67), Automatic Level Control (ALC) Inflator Time Relay (G67), Trailer Wiring Harness (G67), Rear Auxiliary Power Outlet |
| 15 | ELC ACCY | 10A | Automatic Level Control (ALC) Compressor Relay (G67) and Automatic Level Control (ALC) Hight Sensor (G67) |
| 16 | HTD MIRR | 10A | Outside Rearview Mirror-Driver (DE5), Outside Rearview Mirror-Passenger (DE5) |
| 17 | PWR MIR | 10A | Outside Rearview Mirror Switch (w/o A43) |
| 18 | IGN 1 MDL | 10A | Body control module (BCM) |
| 19 | TRN SIG | 10A | Transaxle Range Switch and Turn Signal/Multifunction Switch |
| 20 | RR DEFOG Relay | - | HTD MIRR and RR DEF Fuses |
| 21 | RR DEF | 30A | Rear window defogger |
| 22 | SIR | 10A | Inflatable restraint sensing and diagnostic module (SDM) |
| 23 | IGN3 Relay | - | BLWR and IGN3HVAC Fuses |
| 24 | INTEMM | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid and Stoplamp switch |
| 25 | BLWR | 25A | HVAC control module |
| 26 | IGN3HVAC | 10A | Head Up Display (HUD) (UV6), HVAC Control Module, Mode Actuator, Air Temperature Actuator-Left, Air Temperature Actuator-Right (CJ2/CJ3), Recirculation Actuator, and Rear Parking Assist (RPA) Switch (UD7) |
| 27 | ACCY Relay | - | ACC PWR, ELC ACCY, RR WPR, and WIPER Fuses |
| 28 | ACCPWR | 10A | Auxiliary Drop Connector |
| 29 | WIPER | 25A | Windshield Wiper Motor and Turn Signal/Multifunction Switch |
| 30 | IGNO | 2A | Body Control Module (BCM), Instrument Panel Cluster (IPC), and Theft Deterrent Control Module |
| 31 | KEY SOL | 2A | A/T Shift Lock Control Solenoid (Pontiac) |
| 32 | RRWPR | 20A | Rear Window Wiper Motor (Buick) and I/P Switch Assembly (Buick) |
| 33 | RAP Relay | - | PWR WDWS Circuit Breaker and SUN RF Fuse |
| 34 | SUNRF | 20A | Sunroof Module (CF5) and Inside Rearview Mirror (DD8) |
| 35 | PWR WDWS | 30A | Window Master Switch and Window Switch-Front Passenger |
| 36 | BCML | 20A | Body Control Module (BCM) |
| 37 | RADIO | 15A | Radio |
| 38 | RD AMP | 25A | Audio Amplifier (UQ3) |
| 39 | HUD | 10A | Head Up Display (HUD) (UV6) |
| 40 | HZD FL | 15A | FLASHER (Turn Signal/Hazard Flasher Module) and Stoplamp Switch |
| 41 | IP MDL | 10A | HVAC Control Module, Instrument Panel Cluster (IPC), Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp (UA5), and Garage Door Opener (UG1) |
| 42 | INKEY | 10A | Ignition Switch and Theft Deterrent Control Module |
| 43 | ACCY | Diode | ACCY Relay |
| 44 | BCM-ACC | 10A | Body Control Module (BCM) |
