Removal Procedure

  1. Remove the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper (Aztek)  or Trim Pad Replacement - Instrument Panel (I/P) Upper (Rendezvous) .
  2. Disconnect the electrical connectors.
  3. Remove the bolts that secure the heads up display module to the IP.
  4. Remove the heads up display module.

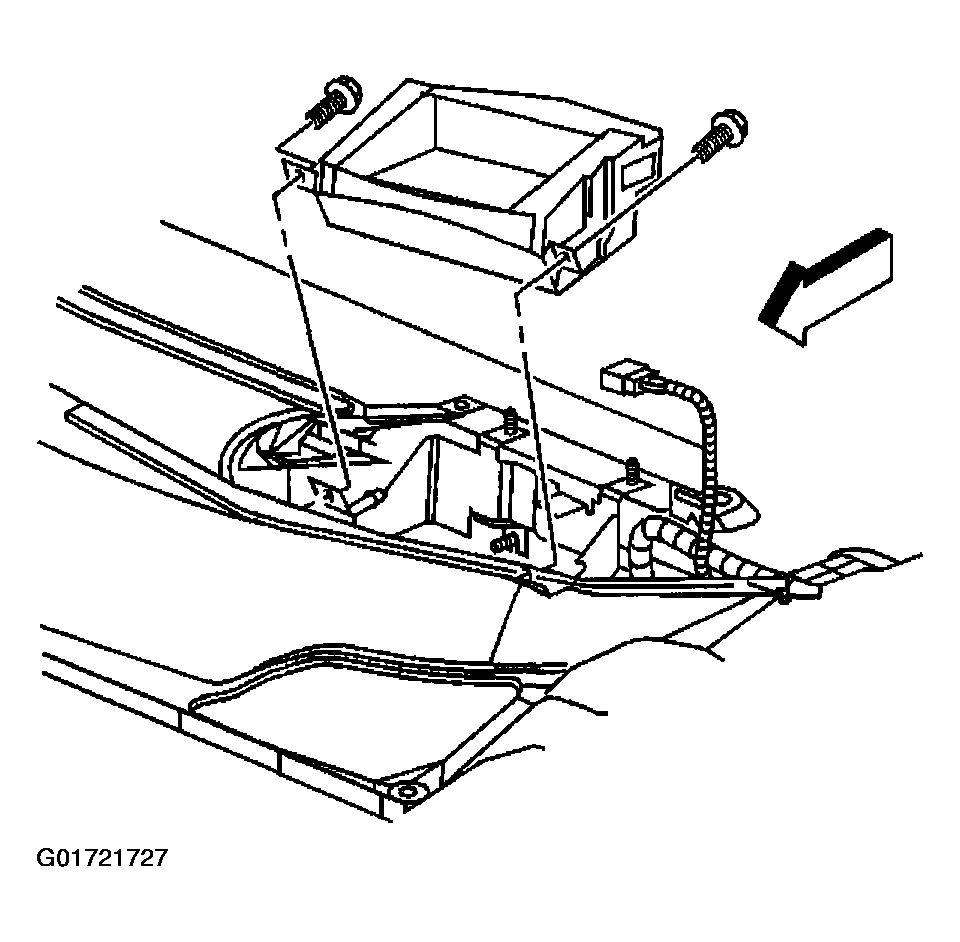

    Fig 1: Removing Heads Up Display Module, Electrical Connectors, And Bolts
    G01721727Courtesy of GENERAL MOTORS CORP.
