Installation Procedure

  1. Install the cooling fan.
    NOTE: Refer to FASTENER NOTICE .

    Important:  Turn the cooling fan nut counterclockwise to tighten.

  2. Install the cooling fan nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  3. Install the cooling fans with the cooling fan shroud. Refer to Cooling Fan Replacement - Electric .

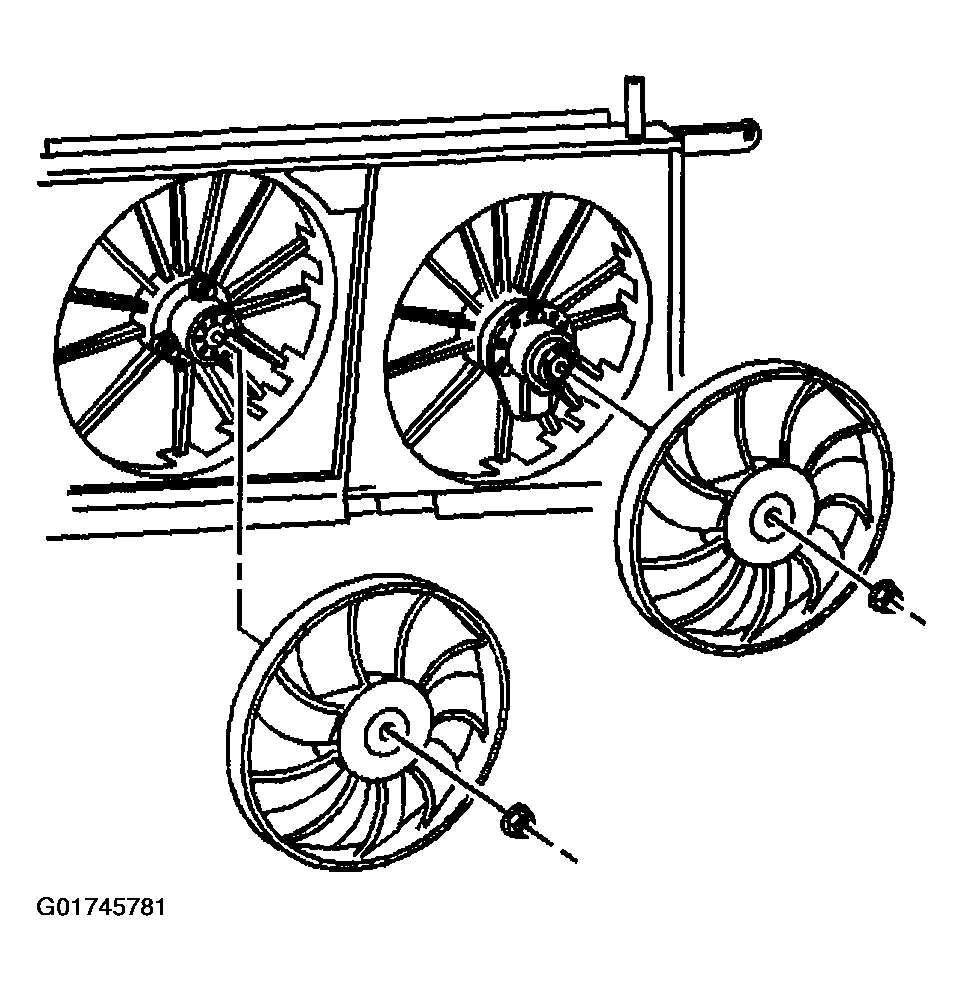

    Fig 1: Installing Cooling Fan & Nut
    G01745781Courtesy of GENERAL MOTORS CORP.
