Disassembled Views

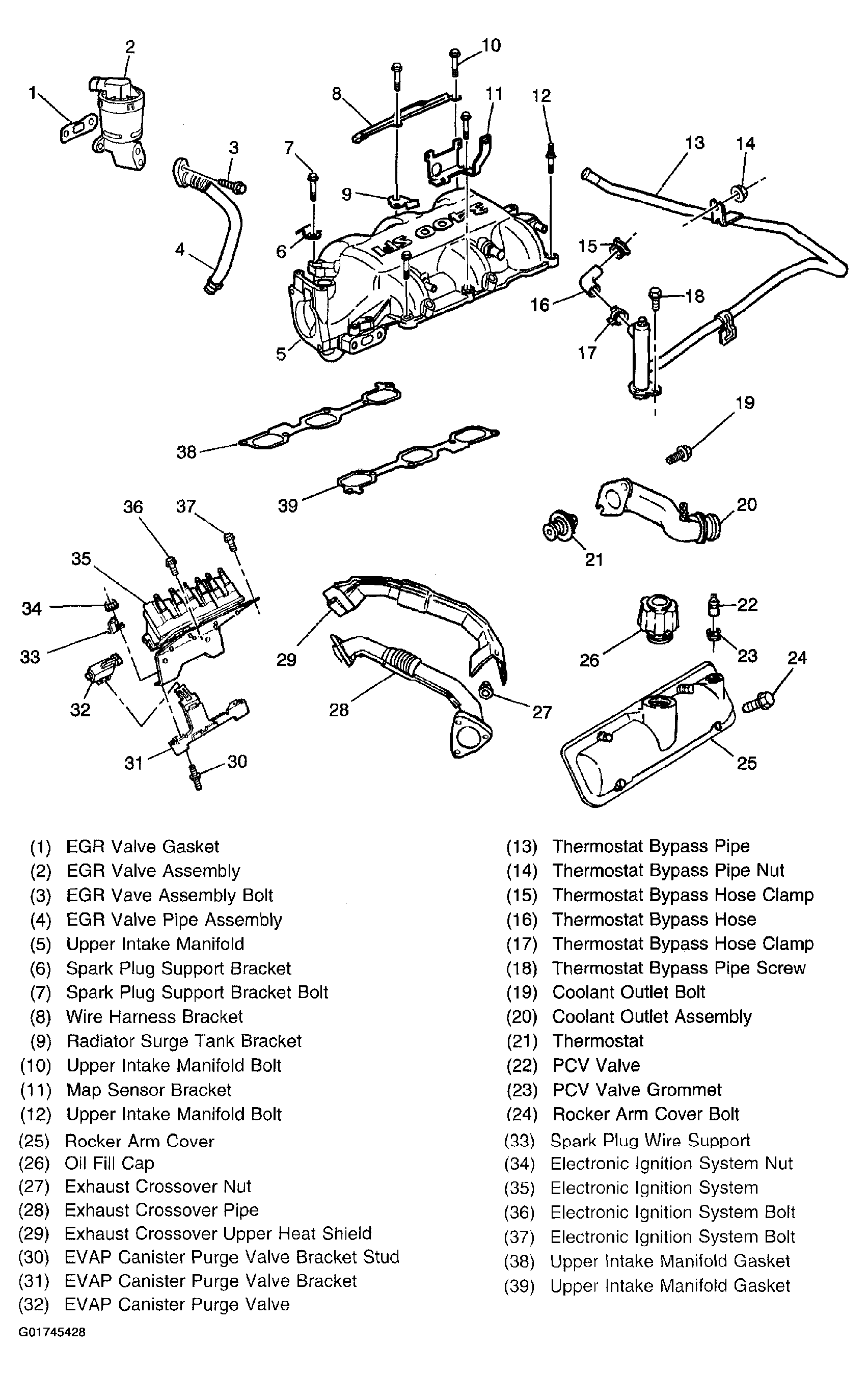

Fig 1: Upper Intake Manifold and Components
G01745428Courtesy of GENERAL MOTORS CORP.

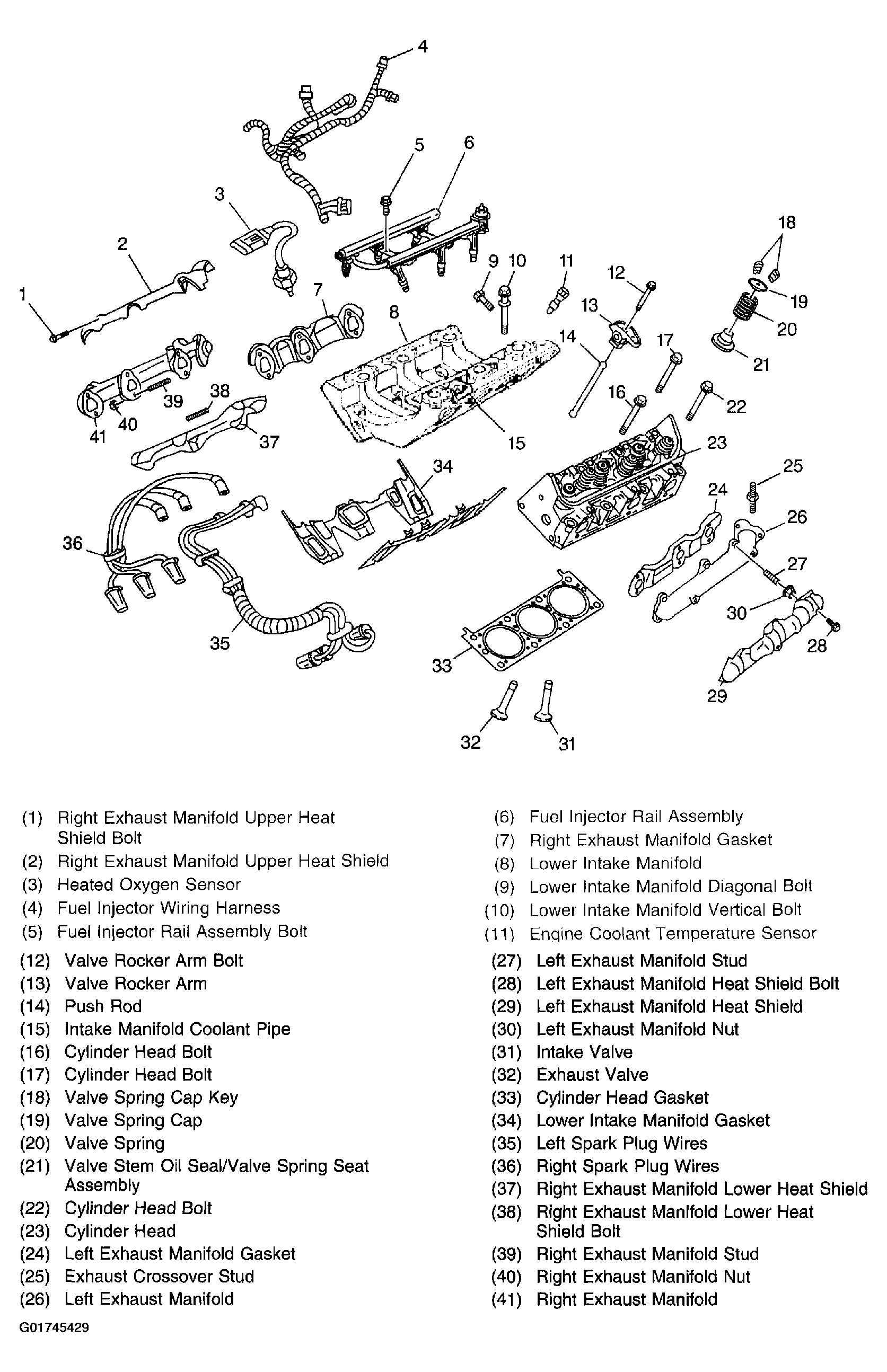

Fig 2: Lower Intake Manifold, Cylinder Head, and Components
G01745429Courtesy of GENERAL MOTORS CORP.

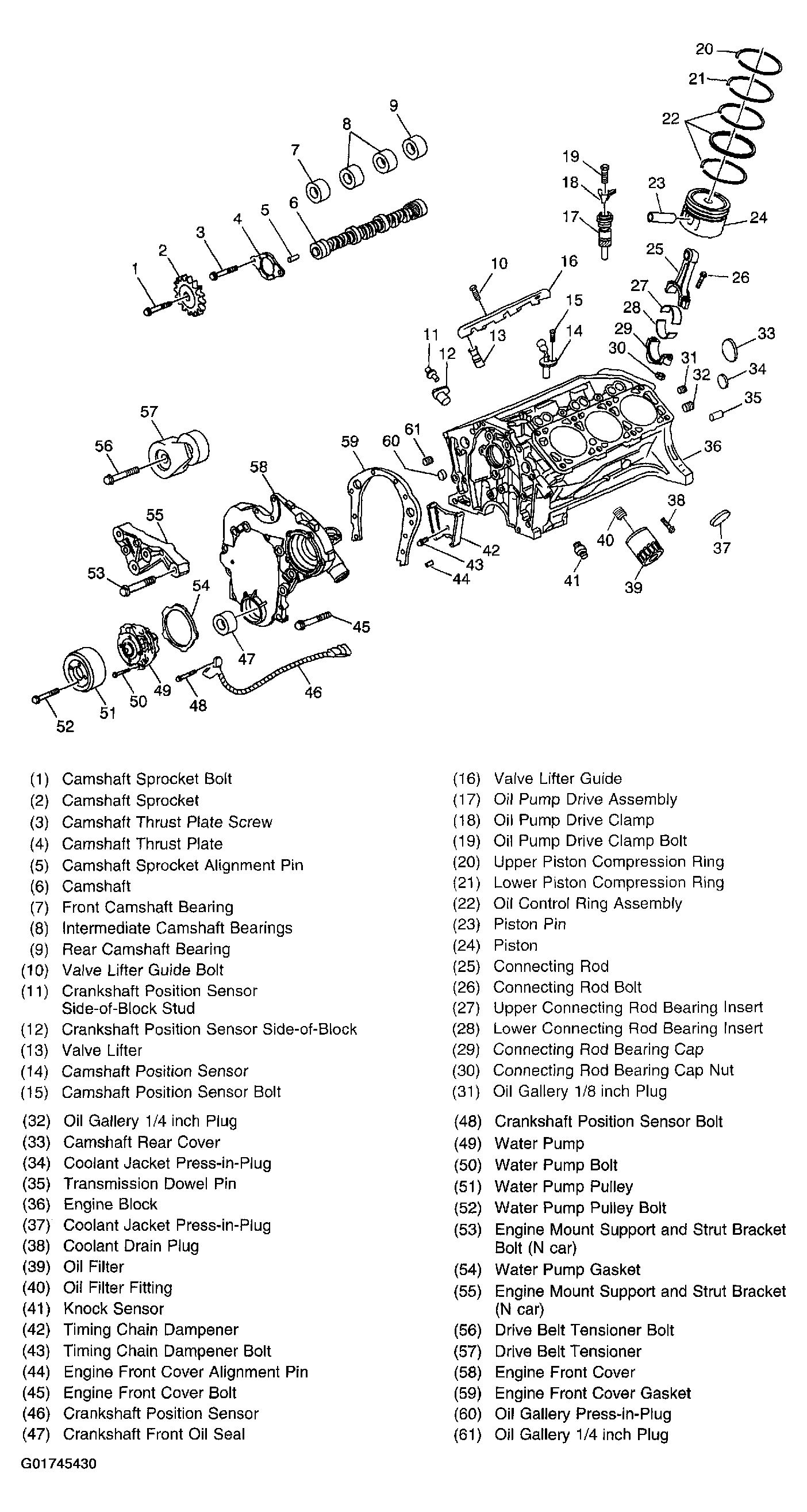

Fig 3: Engine Block and Components
G01745430Courtesy of GENERAL MOTORS CORP.

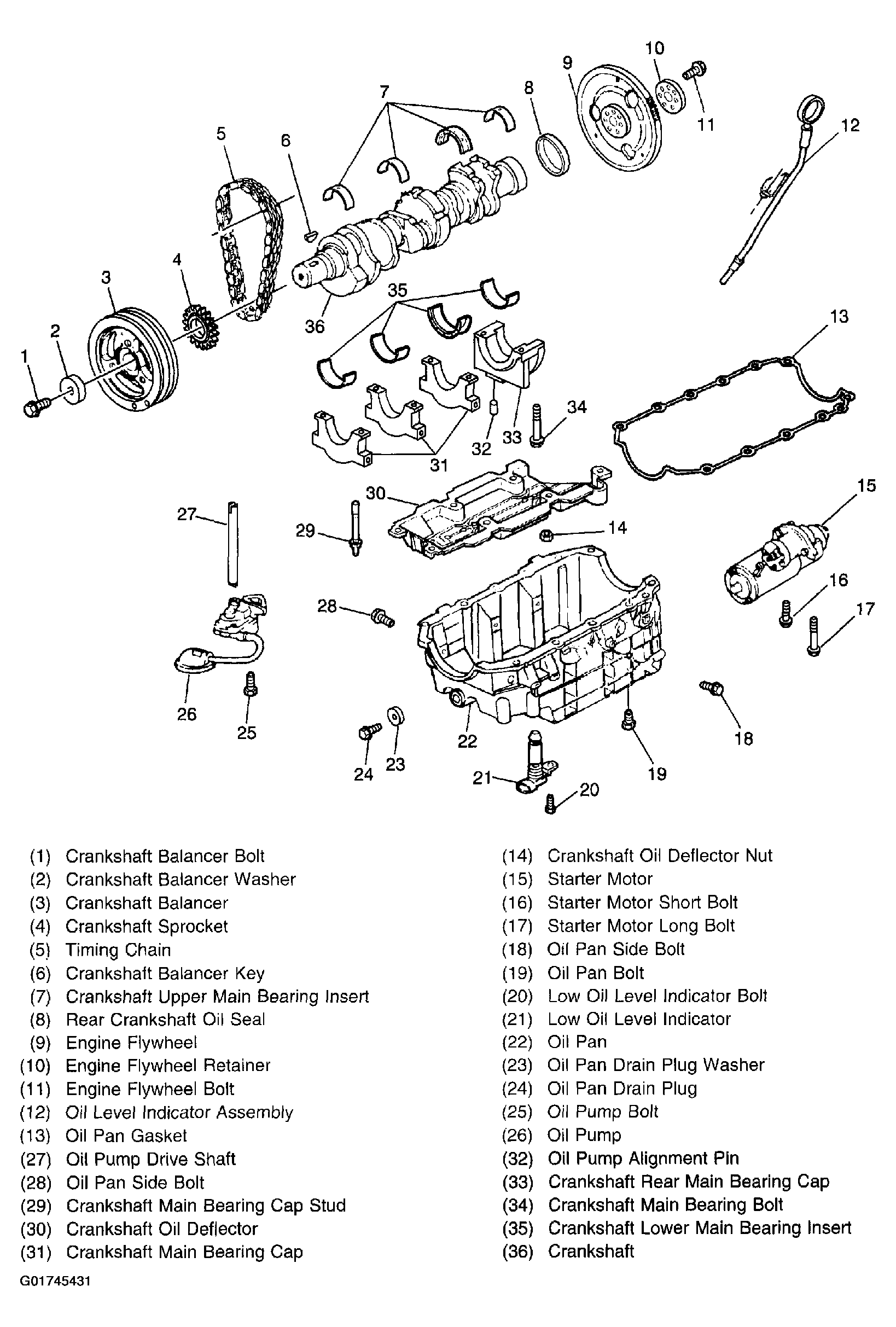

Fig 4: Crankshaft and Components
G01745431Courtesy of GENERAL MOTORS CORP.
