Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof to the fully closed position.
  2. Remove the headliner. Refer to Headliner Replacement (Rendezvous) or Headliner Replacement (Aztek) in Interior Trim.

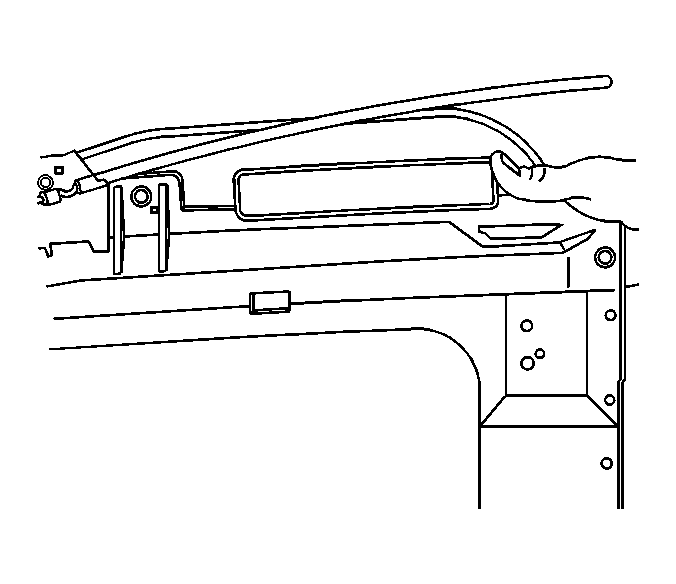

    3. Fig 1: Identifying Sunroof Control Module
    GM548330Courtesy of GENERAL MOTORS CORP.
  3. Remove the sunroof control module from the sunroof module by sliding the control module towards the center of the vehicle.

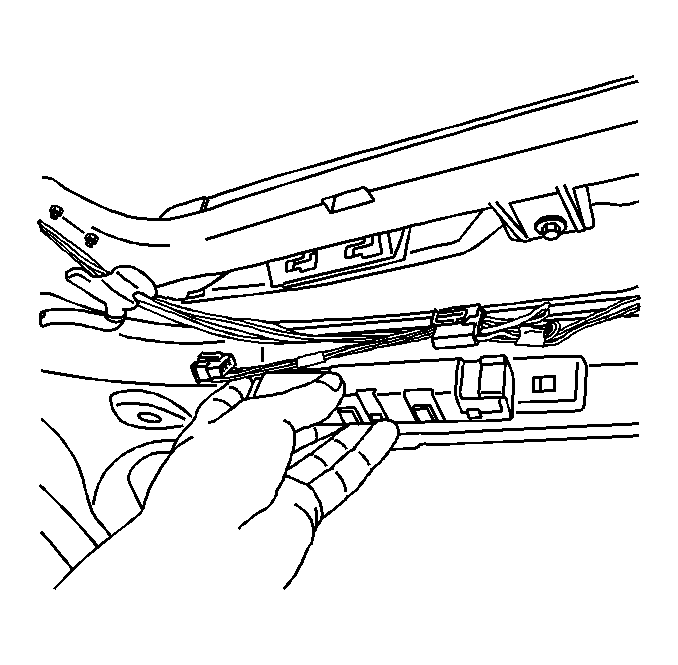

    4. Fig 2: View Of Sunroof Control Module Electrical Connectors
    GM791680Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors from the sunroof control module.
  5. Remove the control module from the vehicle.
