Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal with coolant.
  2. Place the snap clip leg in place.
  3. Install the coolant level module.
  4. Connect the electrical connector to the coolant level module.
  5. Install the battery. Refer to BATTERY REPLACEMENT .
    IMPORTANT: To properly fill the system requires the use of the air bleed vents. Refer to Draining and Filling Cooling System .
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .

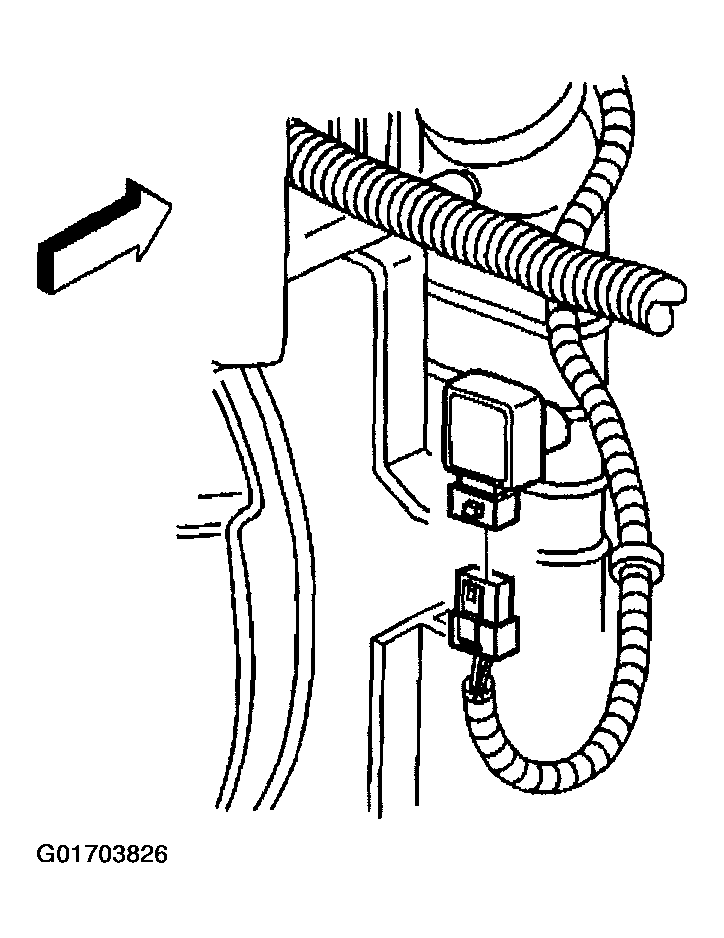

    Fig 1: Coolant Level Module
    G01703826Courtesy of GENERAL MOTORS CORP.
