Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Install the strut.NOTE: Refer to FASTENER NOTICE .

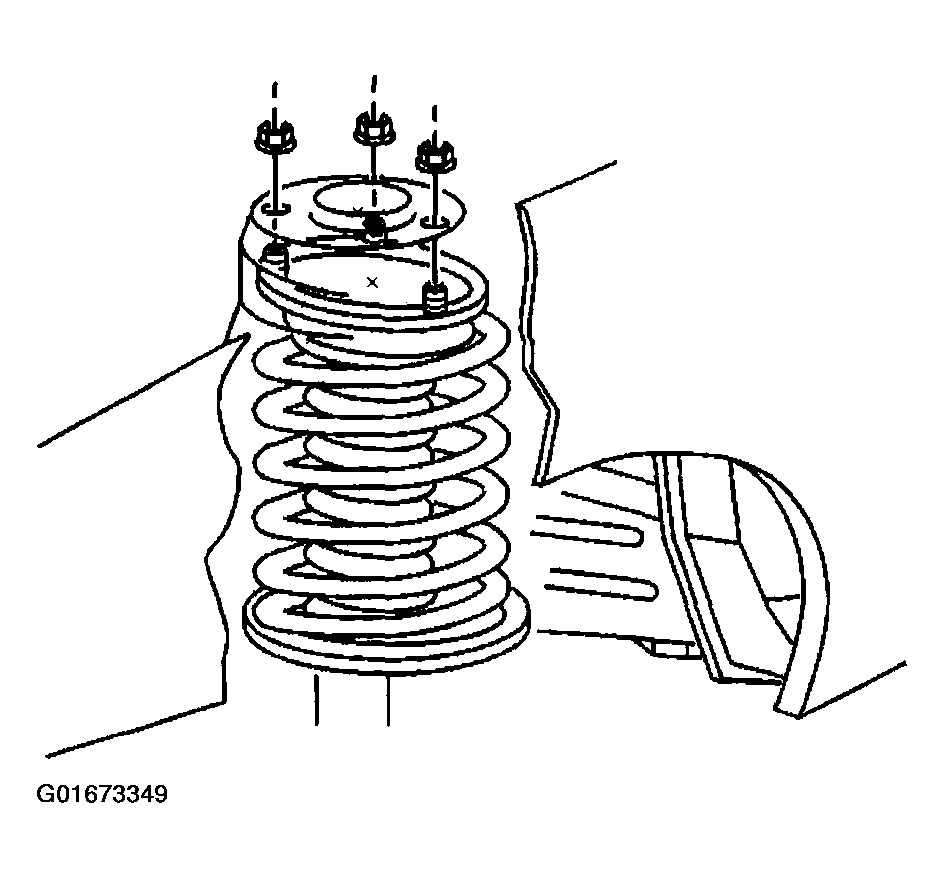

- Install the strut upper nuts.
Tighten
Tighten the strut upper nuts to 33 N.m (24 lb ft).

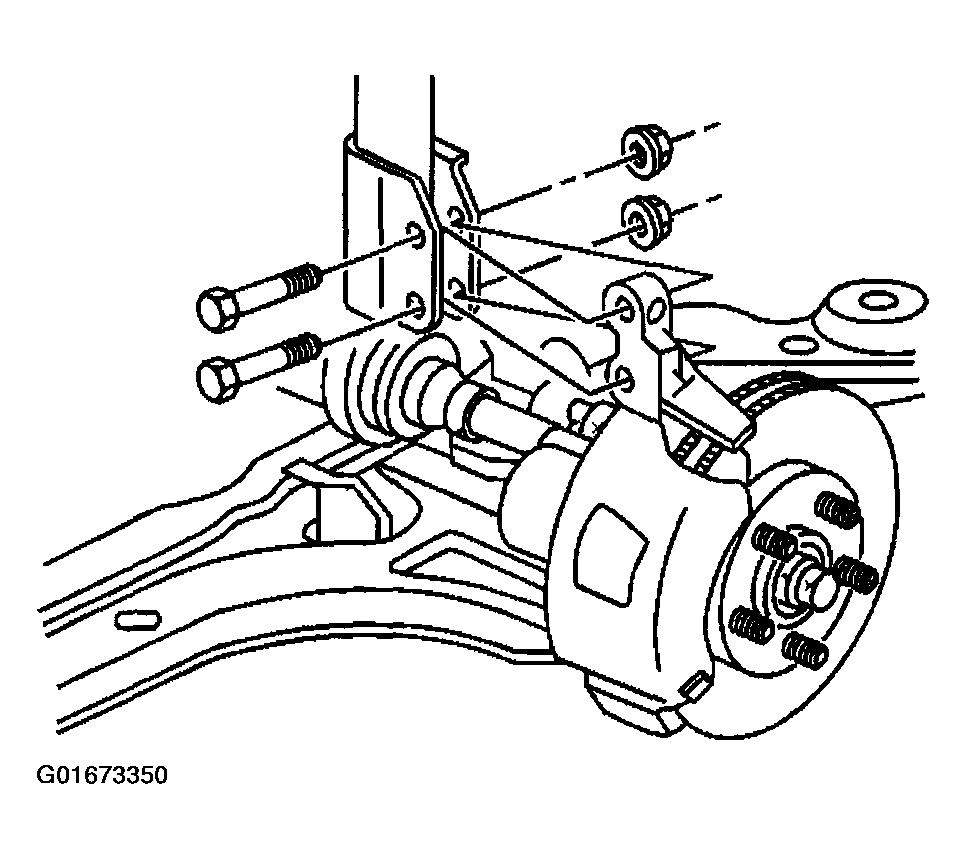

- Install the strut lower bolts and nuts.IMPORTANT: This is a prevailing torque type fastener.
This fastener may be reused ONLY if:
- The fastener and its counterpart are clean and free from rust.
- The fastener develops 3 N.m (27 lb in) of torque/drag against its counterpart prior to the fastener seating.
If the fastener does not meet these criteria, REPLACE the fastener.
- Align the strut to the mark on the knuckle.
Tighten
Tighten the strut lower nuts to 122 N.m (90 lb ft).
- Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
- Align the front wheels. Refer to MEASURING WHEEL ALIGNMENT .
