Strut, Strut Component and/or Spring Replacement: Notes
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

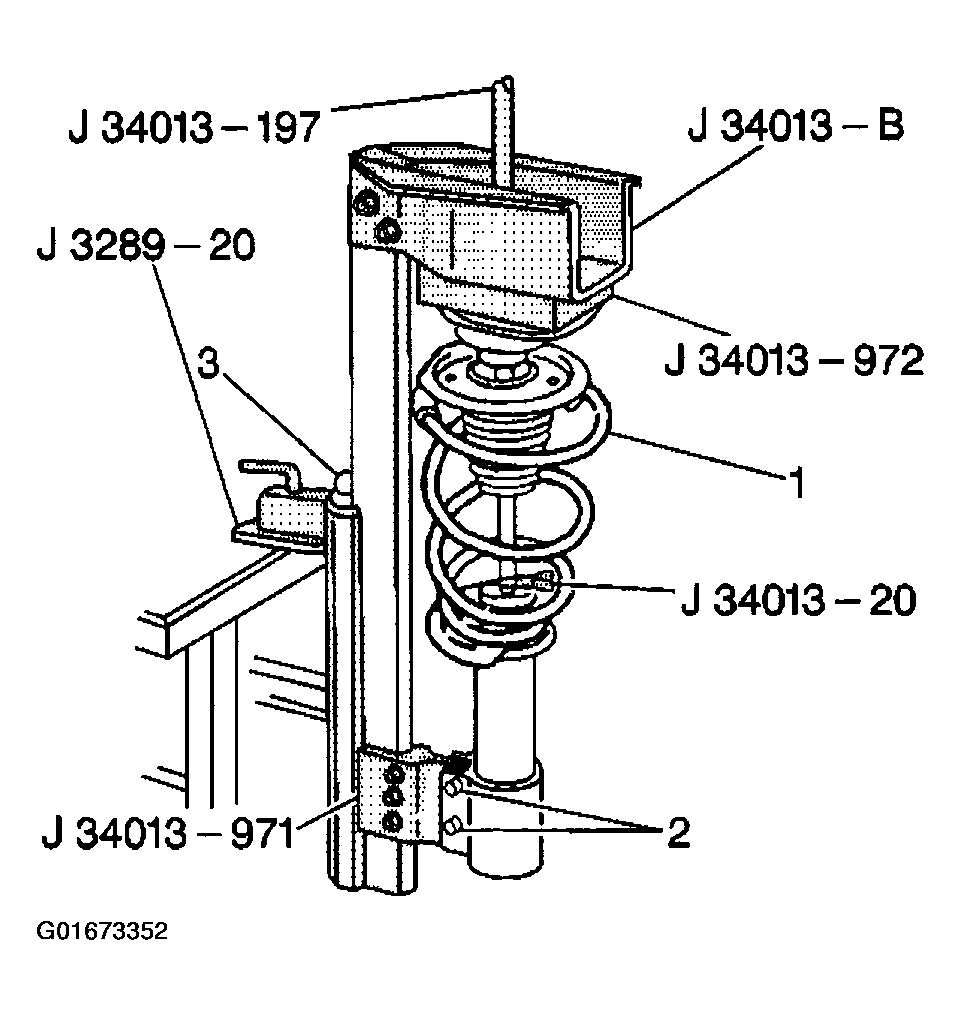

Tools Required
- J 3289-20
Holding Fixture
- J 34013-B
Strut Compressor
- J 34013-20
Damper Rod Clamp
- J 34013-197
Alignment Rod
- J 42991
Strut Rod Nut Socket
- J 34013-971
Strut Compressor Lower Adapter
- J-34013-972
Strut Compressor Upper Adapter
Courtesy of GENERAL MOTORS CORP.
