Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  3. Disconnect the BCM electrical connectors.
  4. Push the BCM up and move the bottom of the BCM away from and out of the mounting bracket slot in order to remove the BCM.

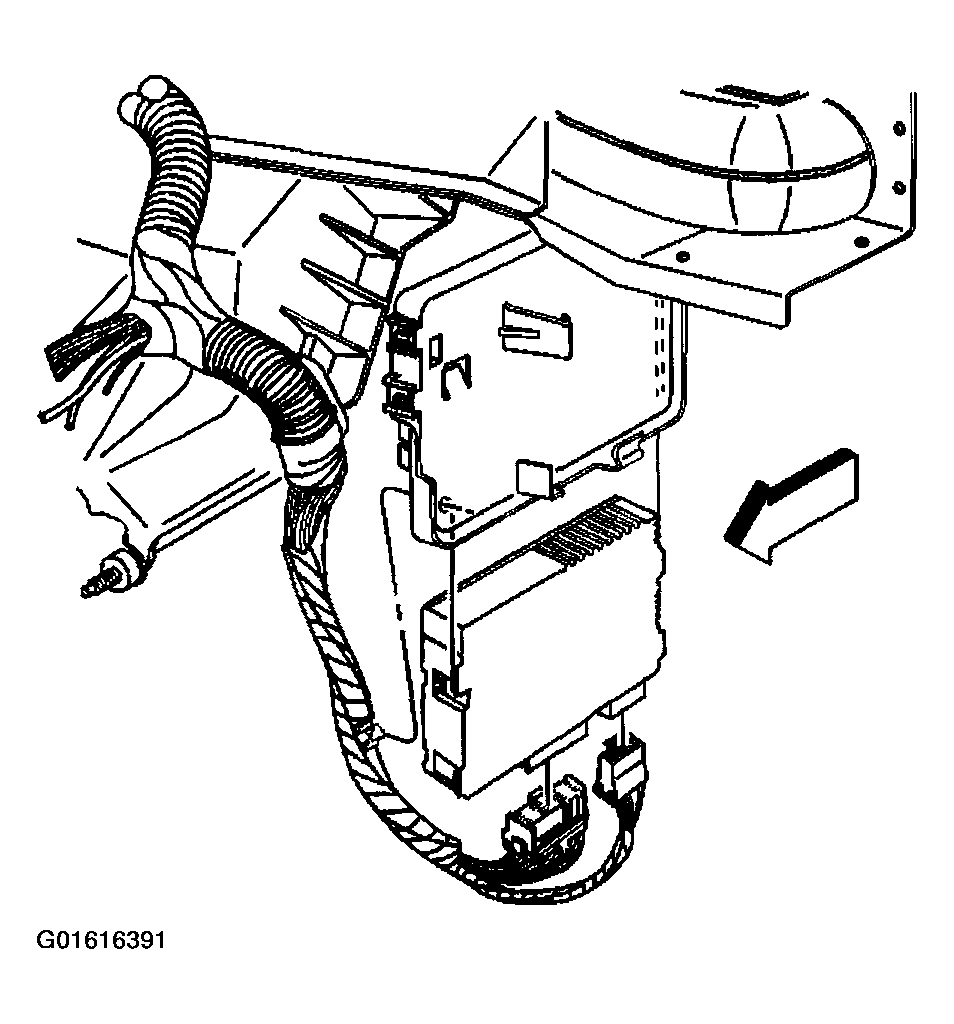

    Fig 1: BCM
    G01616391Courtesy of GENERAL MOTORS CORP.
