Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

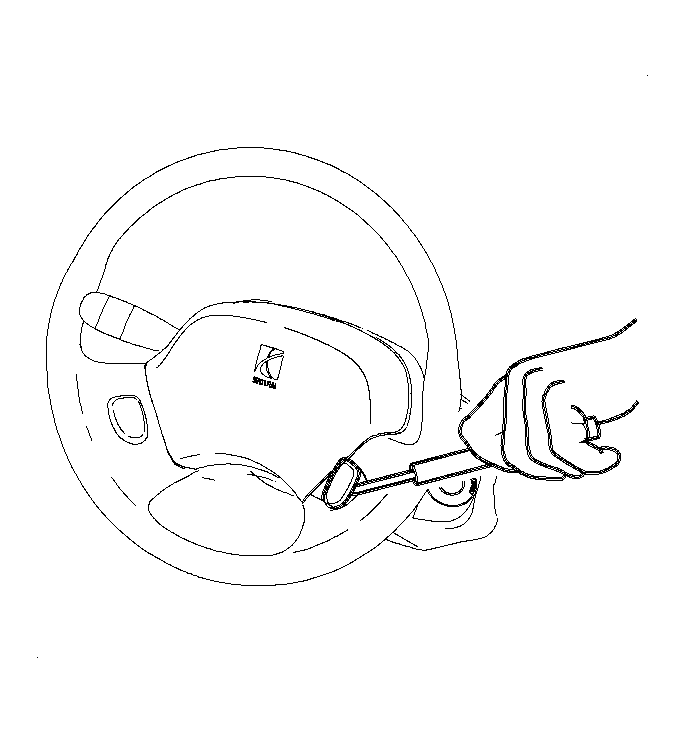

    Fig 1: Connecting Cruise Switch Harness Connector
    GM870904Courtesy of GENERAL MOTORS CORP.
  1. Connect the switch harness connector. Push in the connector until a click is heard and pull back to confirm a positive engagement.
  2. Insert the cruise switch assembly in the steering wheel and gently apply pressure to fasten the switch in the opening.
