Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the top of the BCM up into the mounting bracket in order to install the BCM. Then, while holding the BCM up, engage the bottom of the BCM into the mounting bracket slot.
  2. Connect the BCM electrical connectors.
  3. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  4. Connect the negative battery cable.
  5. Set up the new BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .

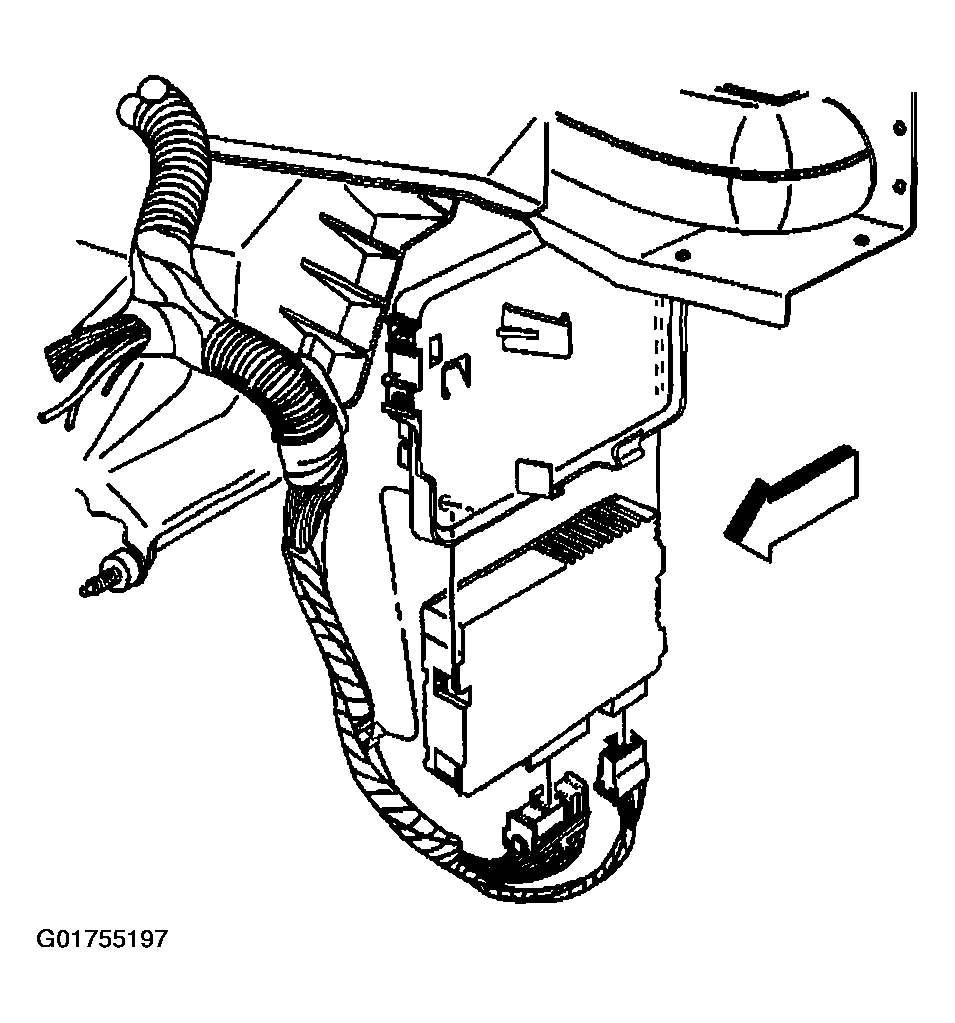

    Fig 1: Identifying Body Control Module
    G01755197Courtesy of GENERAL MOTORS CORP.
