Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal with coolant.
  2. Place the snap clip leg in place.
  3. Install the coolant level sensor.
  4. Connect the coolant level sensor electrical connector to the coolant level sensor.
  5. Fill the cooling system. Refer to Draining and Filling Cooling System
  6. Install the battery.

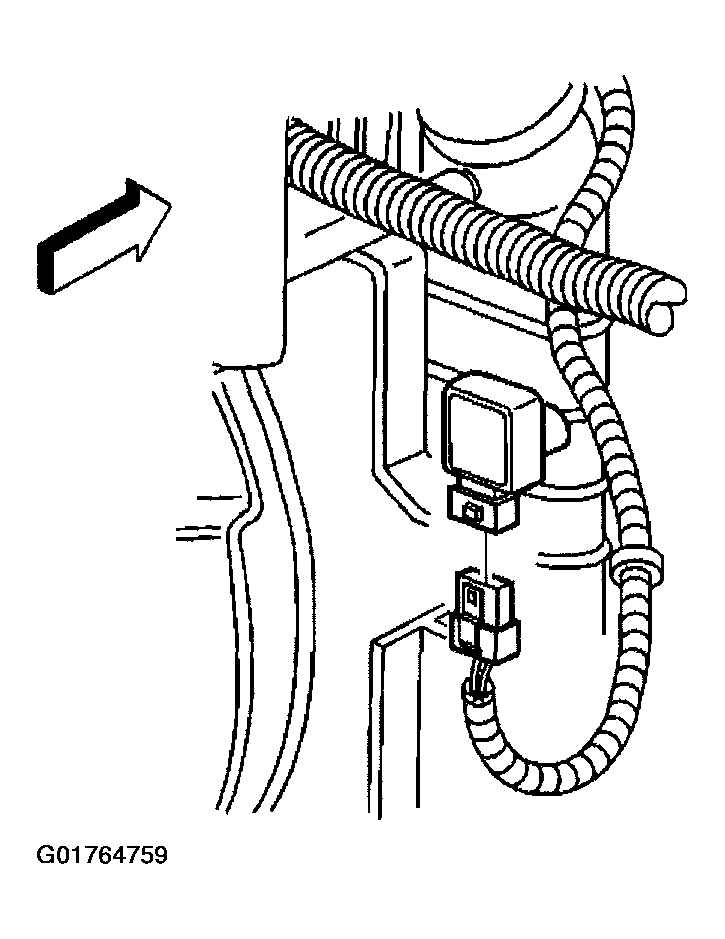

    Fig 1: Coolant Level Sensor
    G01764759Courtesy of GENERAL MOTORS CORP.
