Entertainment Component Views

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

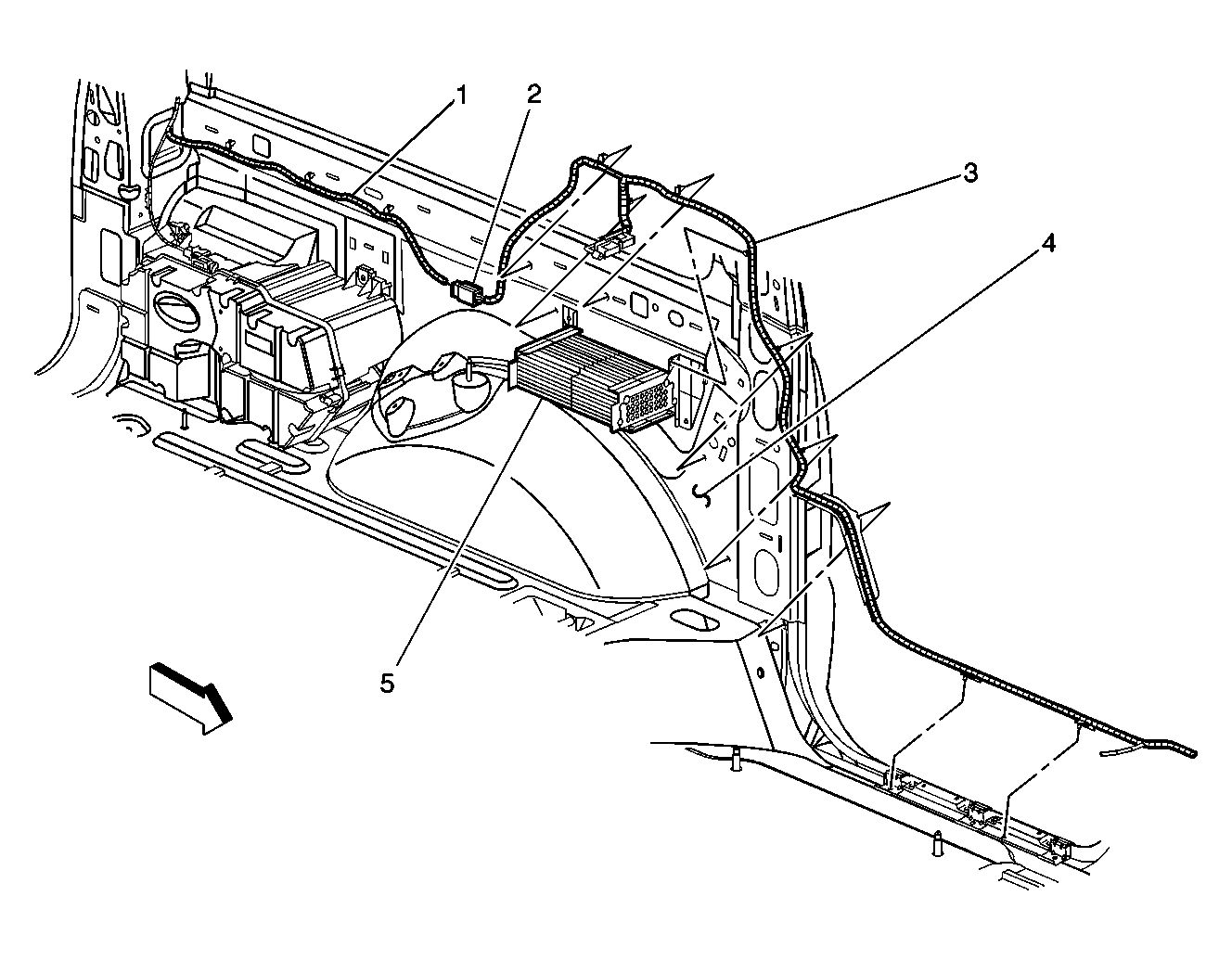

Fig 1: Audio Amplifier (Suburban/Yukon XL W/Y91) Component View
GM741076Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Hand Body Harness
2 Inline Connector C498
3 Left Hand Body Harness
4 Body Side Inner Panel
5 Audio Amplifier

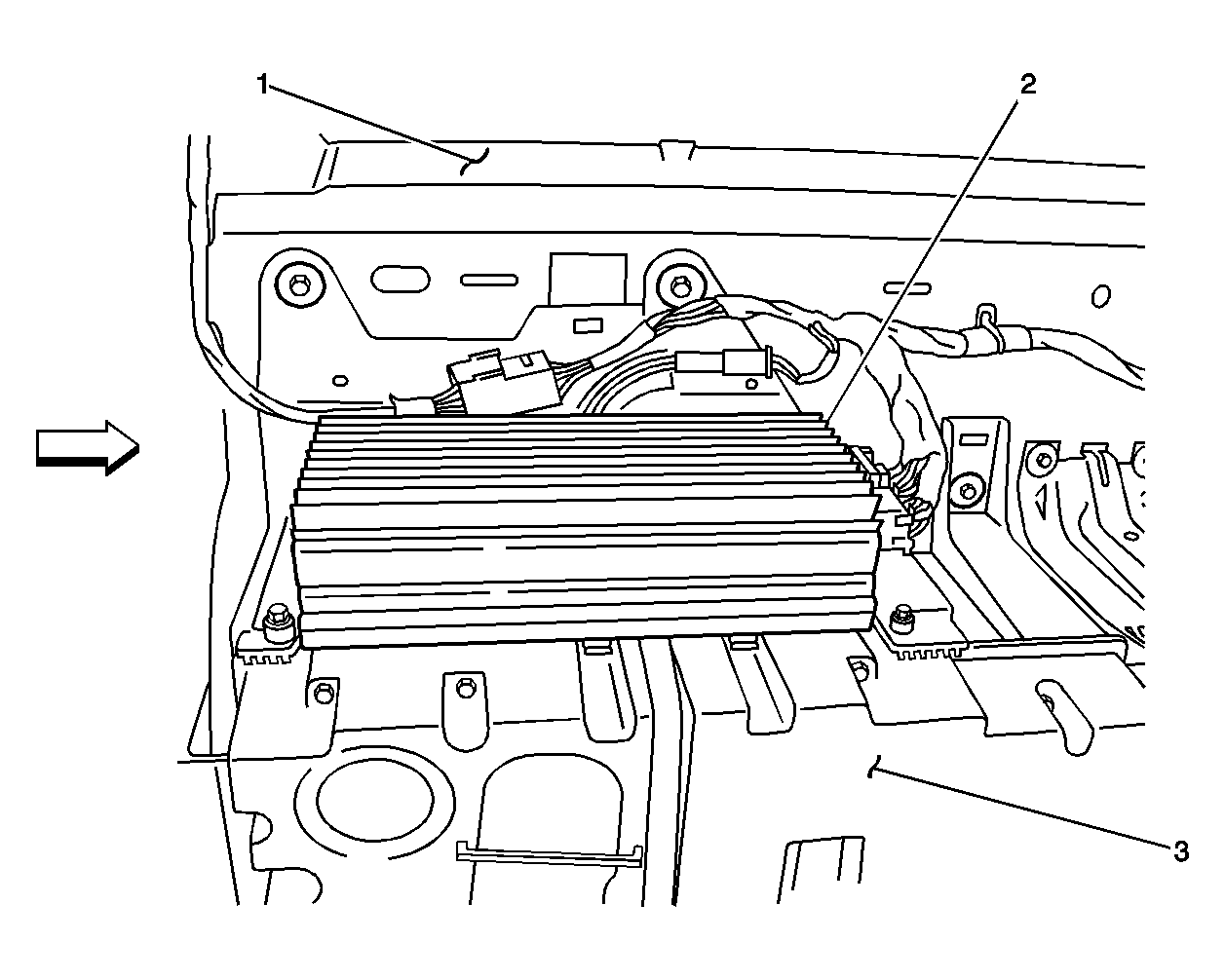

Fig 2: Audio Amplifier (w/Y91 Except Suburban/Yukon XL) Component View
GM776960Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Cargo Trim Panel
2 Audio Amplifier
3 Subwoofer

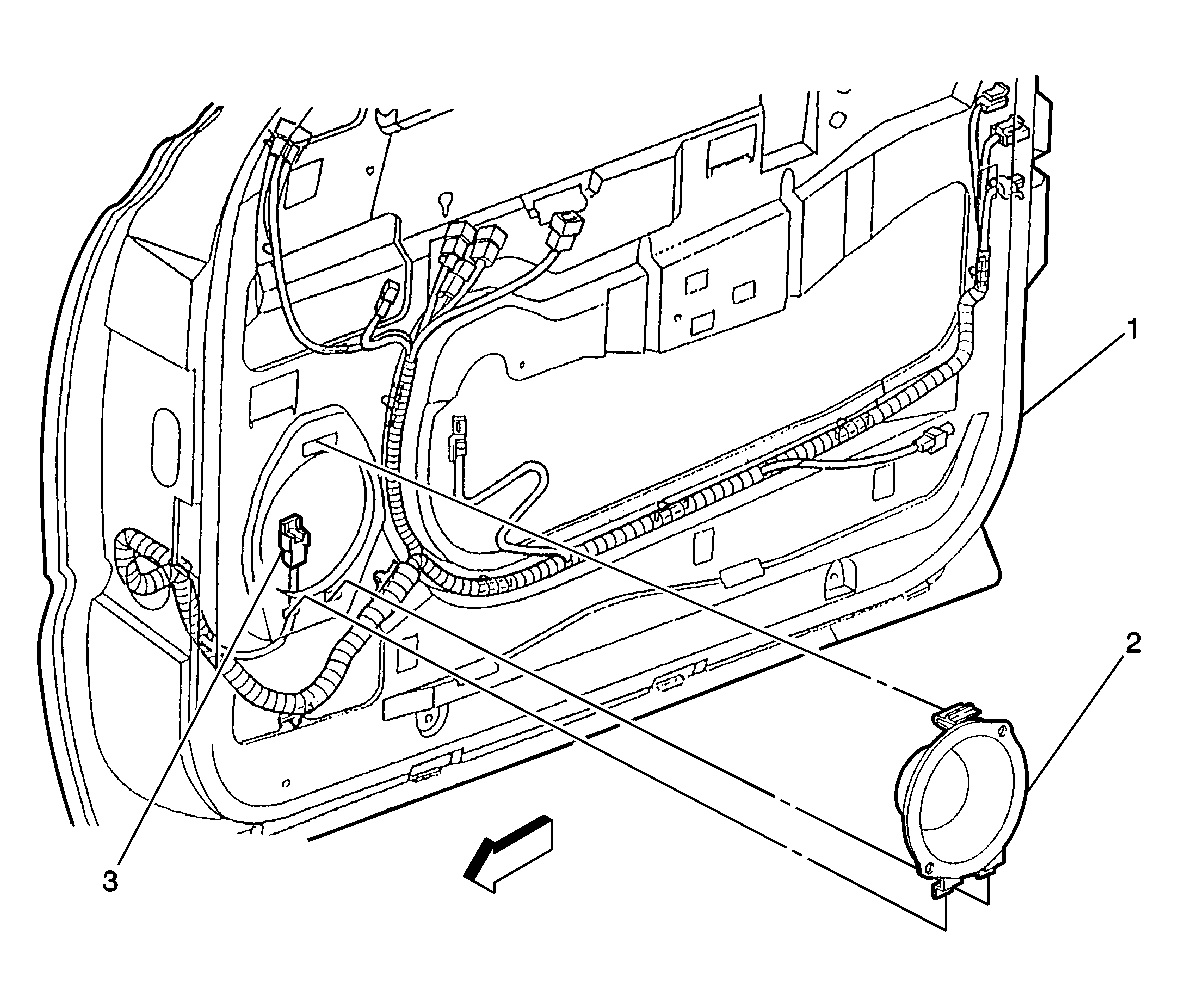

Fig 3: Speaker - RF Door Component View
GM327885Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door-RF
2 Speaker - RF Door
3 Speaker Connector (Harness)

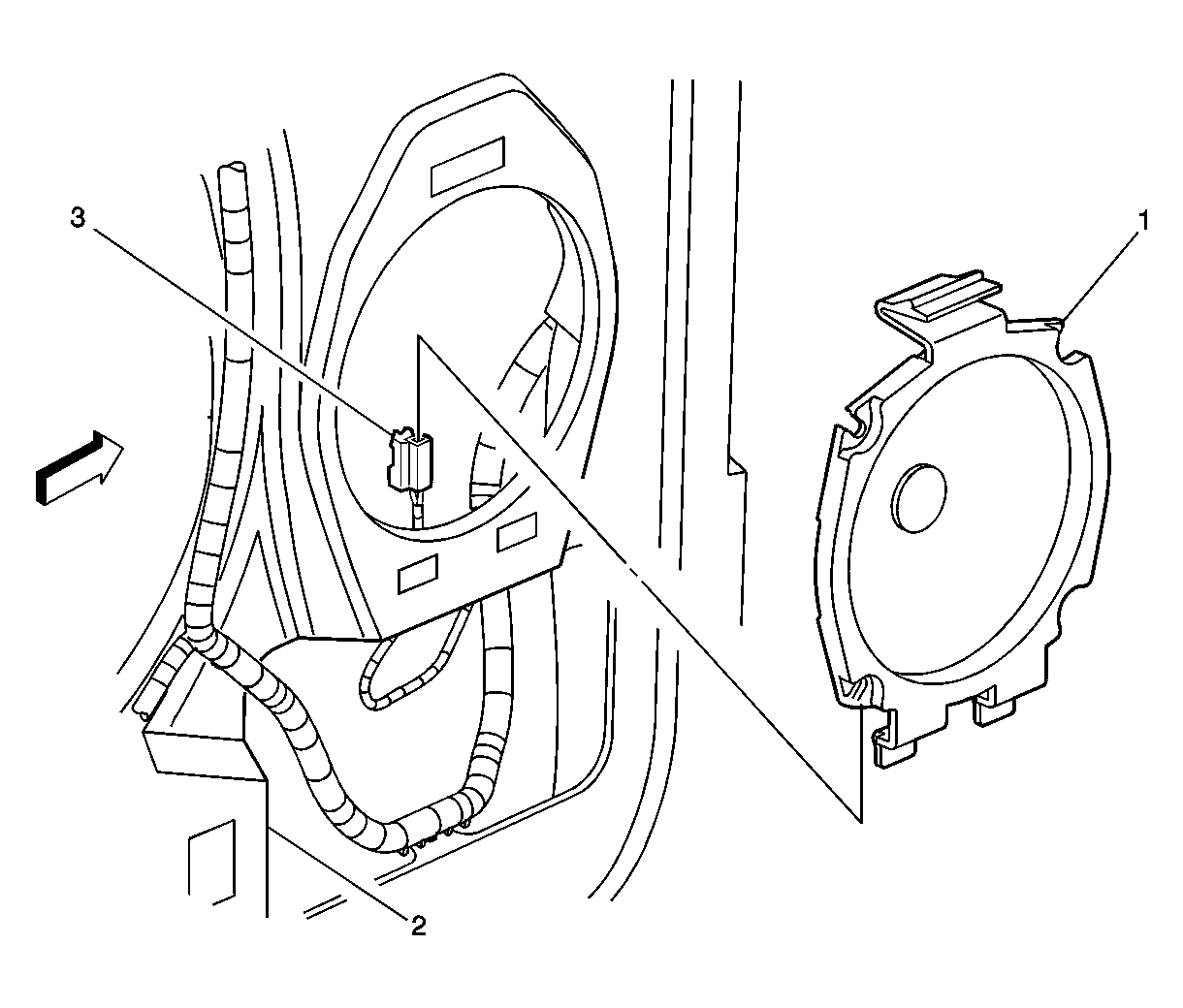

Fig 4: Speaker - LF Door Component View
GM350028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - LF Door
2 Door-LH (Inner)
3 Speaker Connector (Harness)

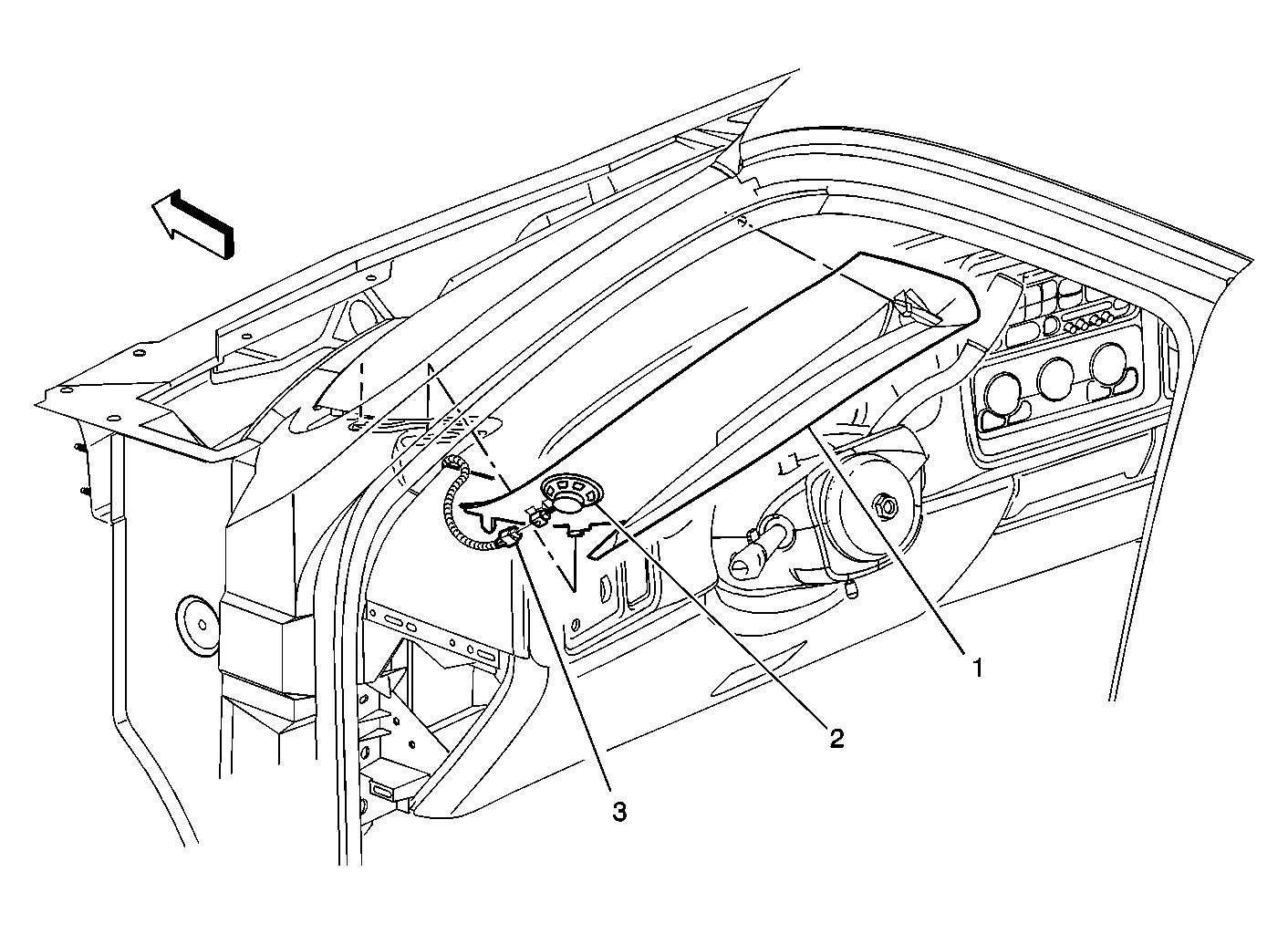

Fig 5: Tweeter Speaker-LF (RF Similar) Component View
GM573977Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Side Garnish Molding
2 Speaker-Tweeter
3 Instrument Panel Harness Speaker Connector

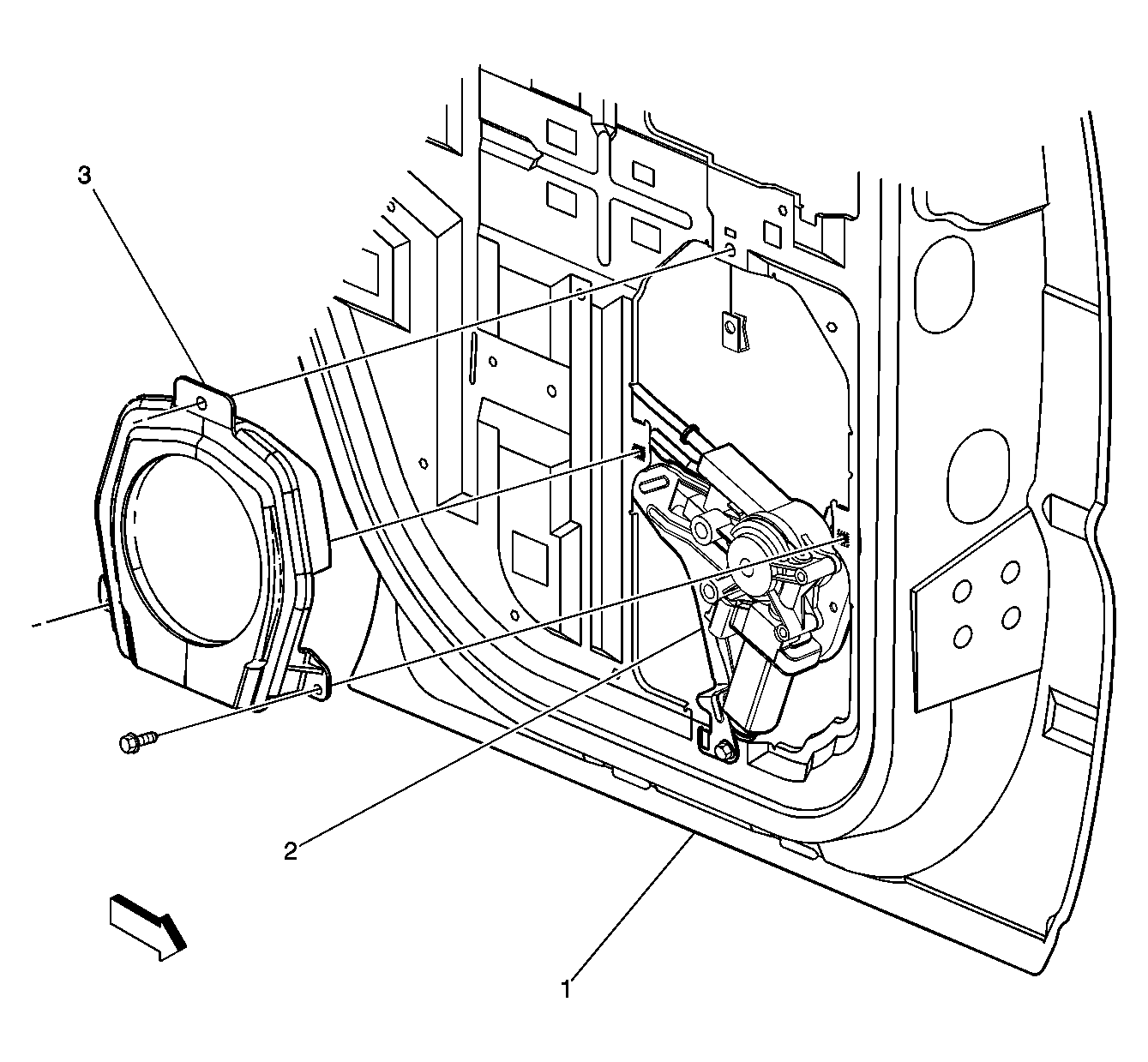

Fig 6: Door Speaker - LR (RR Similar) Component View
GM573978Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Side Inner Panel
2 Regulator
3 Speaker

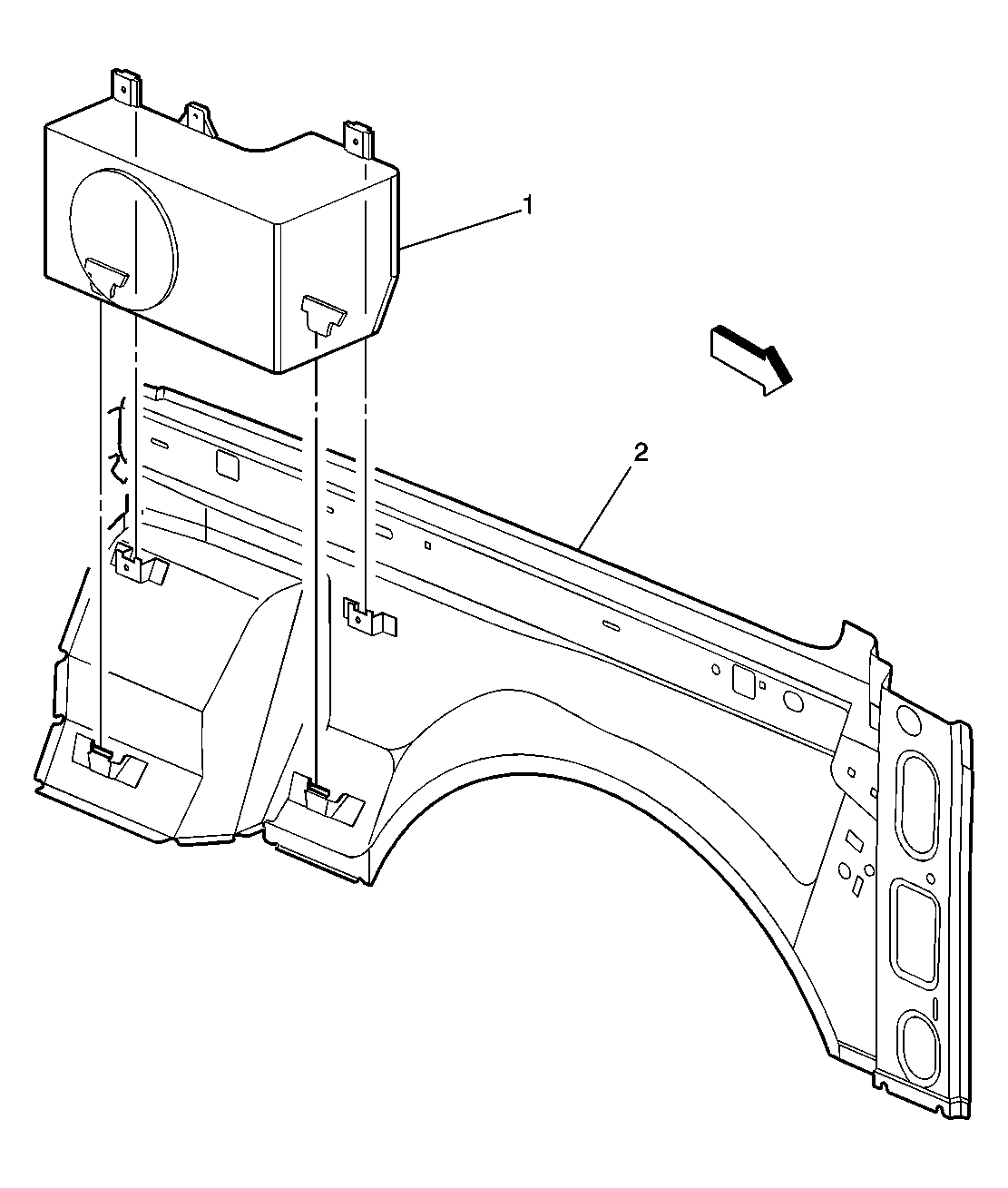

Fig 7: Speaker - Subwoofer Component View
GM573984Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - Subwoofer
2 Body Side Inner Panel

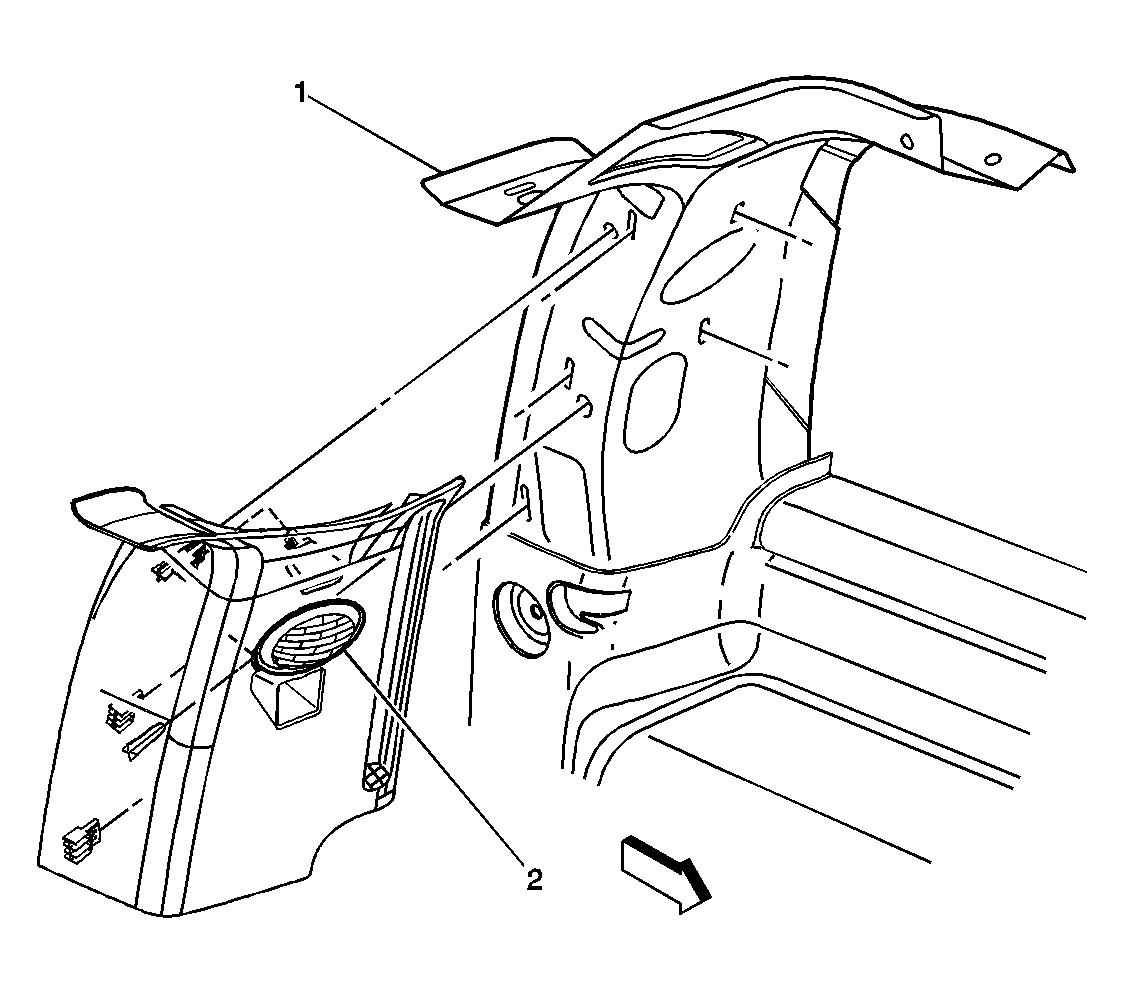

Fig 8: Speaker - Left D Pillar Twiddler (Right Similar) Component View
GM776963Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 D Pillar Trim Panel
2 Speaker - D Pillar Twiddler

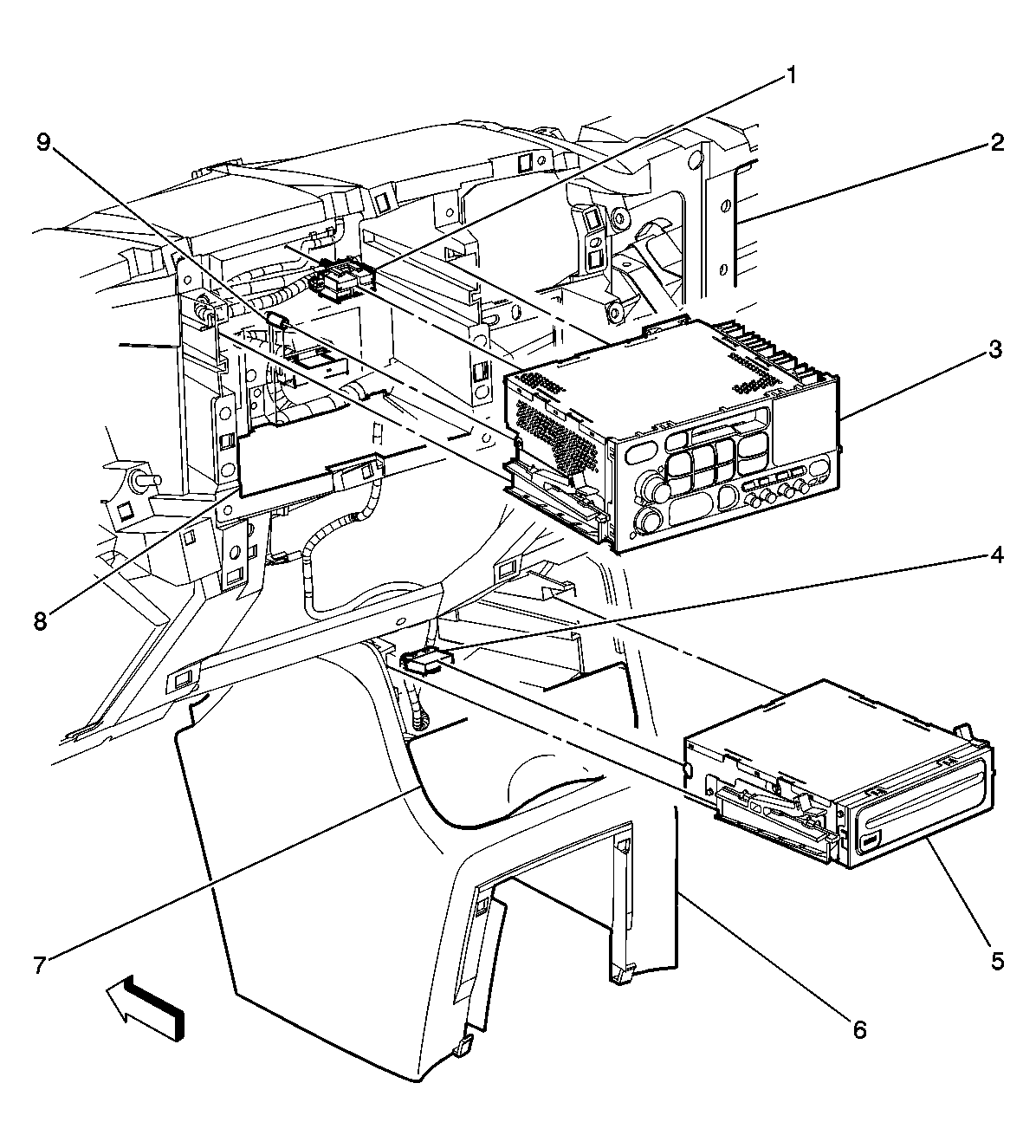

Fig 9: Radio with Remote CD Component View
GM327886Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electrical Connectors (Radio)
2 Instrument Panel
3 Radio
4 Electrical Connector (CD)
5 Remote Playback Device - CD Player
6 Lower Console
7 Lower Console Compartment
8 HVAC and Blower Switch Compartment
9 Radio Antenna Connector

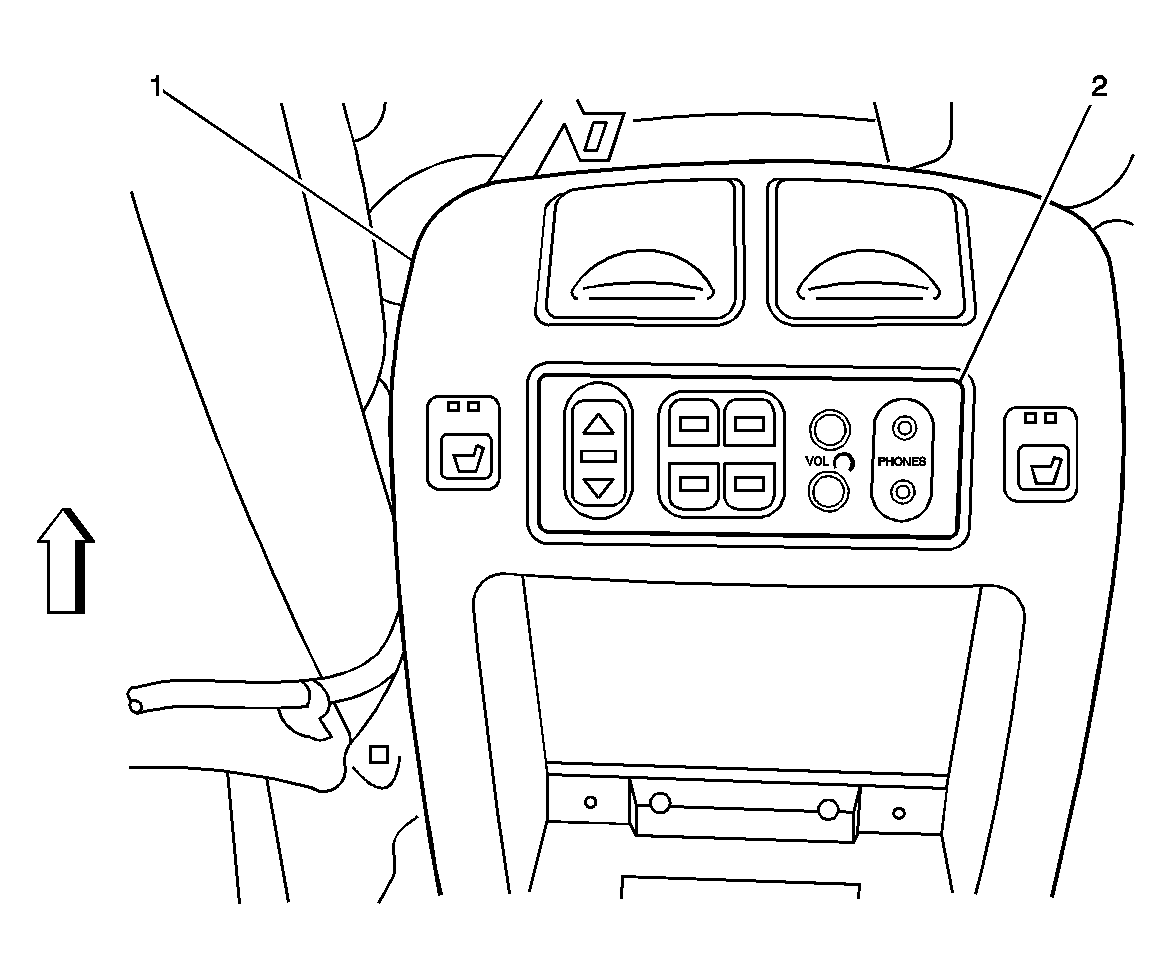

Fig 10: Rear Seat Audio (RSA) Controller Component View
GM776959Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Floor Console
2 Rear Seat Audio (RSA) Controller

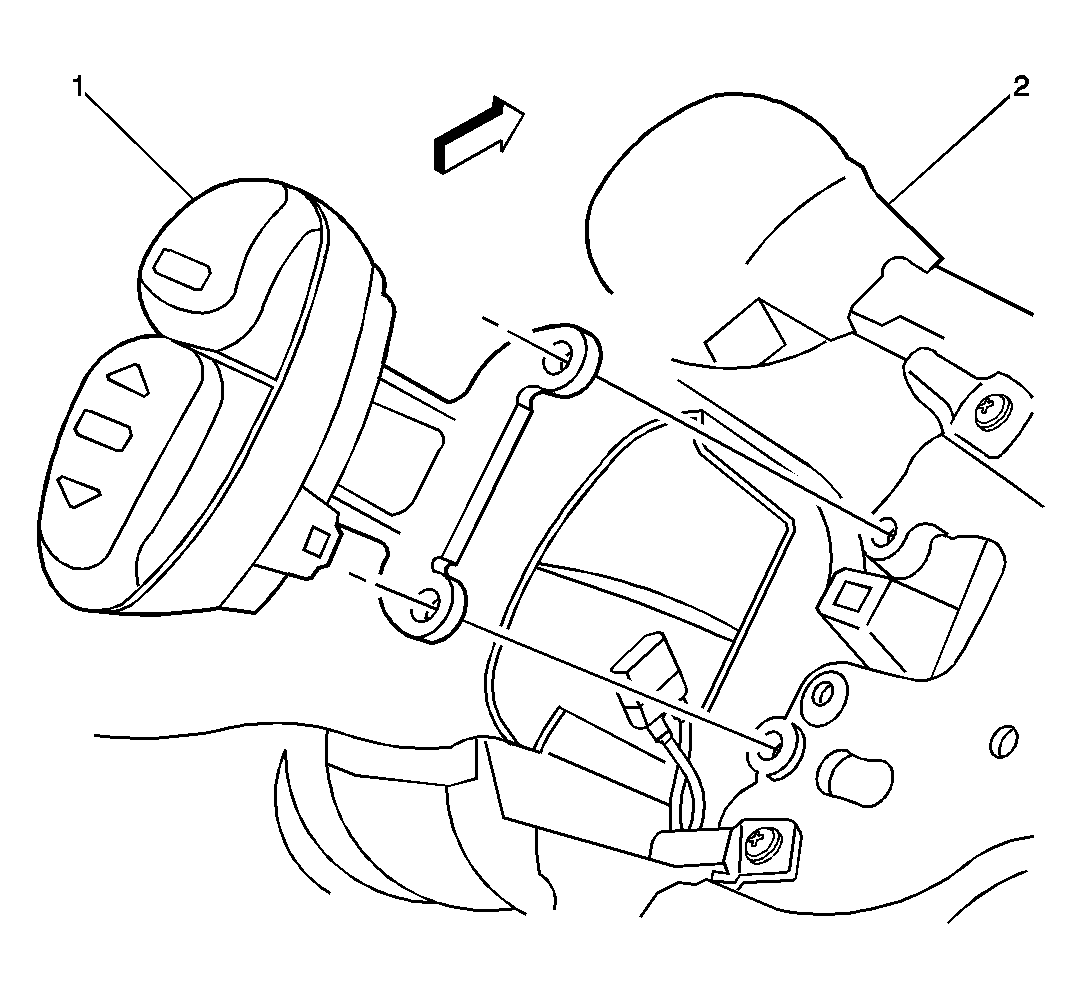

Fig 11: Steering Wheel Controls - Left (Right Similar) Component View
GM776961Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Controls - Left
2 Steering Wheel Assembly
