Engine Electrical Component Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

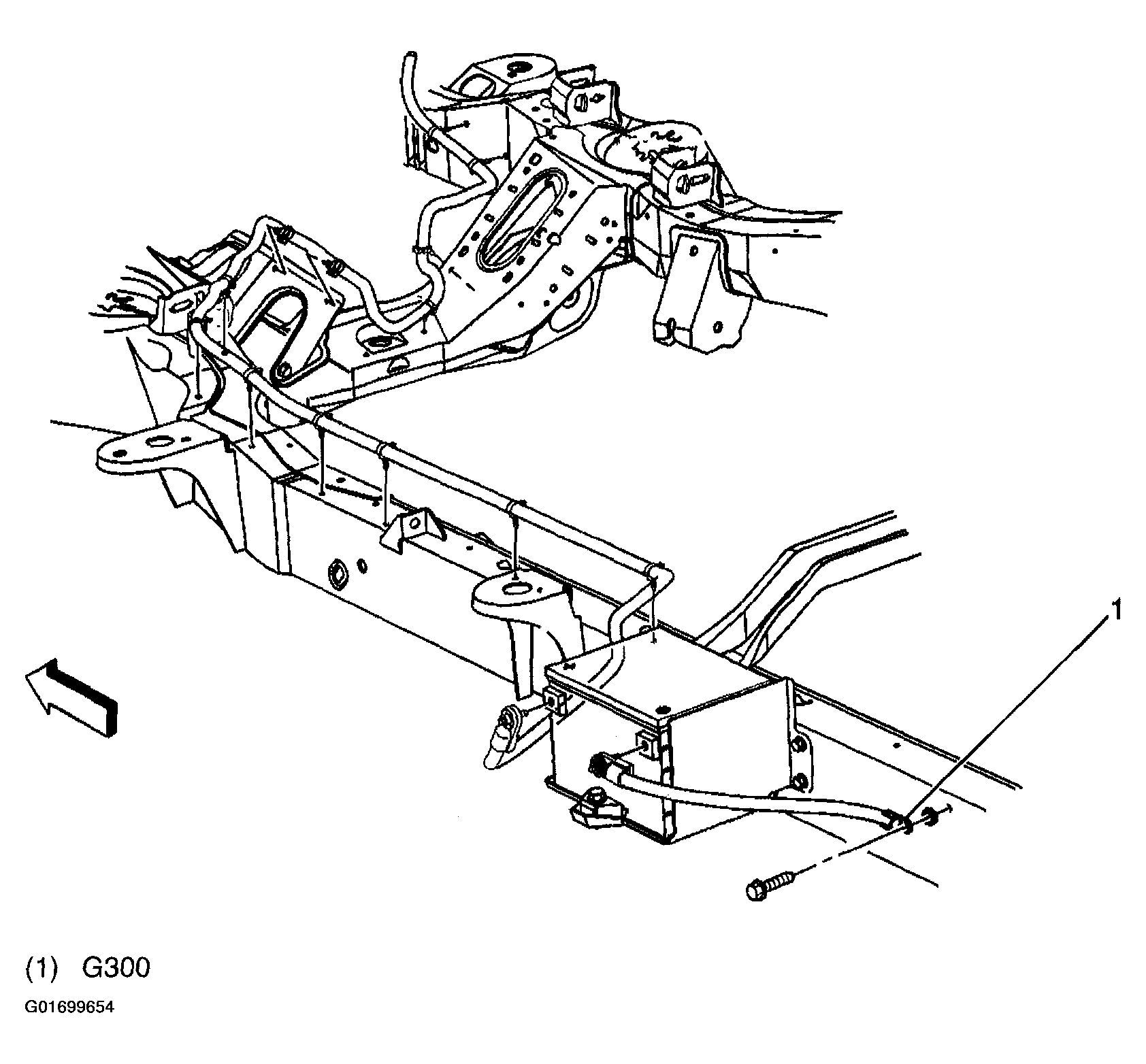

Fig 1: G300

Courtesy of GENERAL MOTORS CORP.

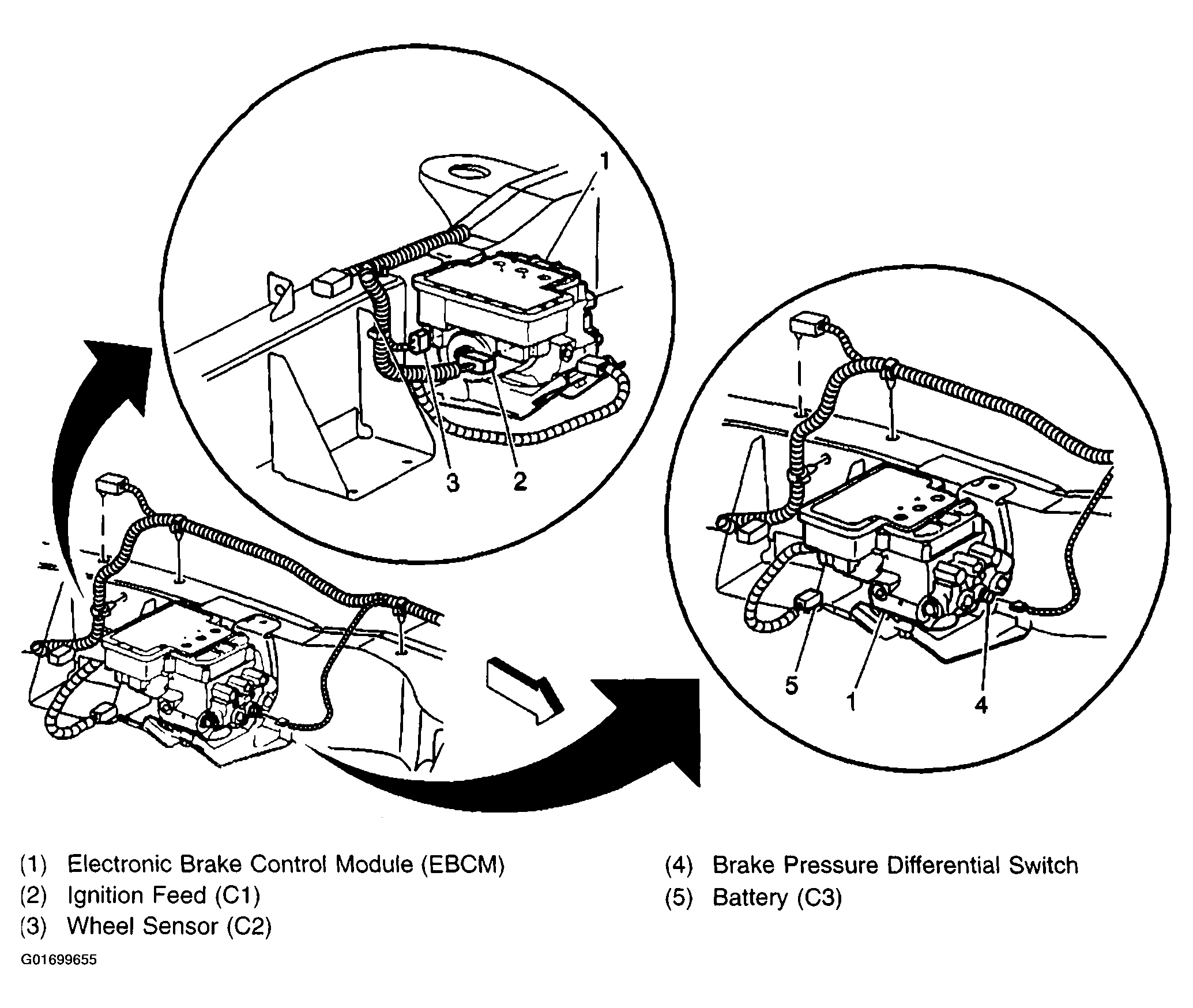

Fig 2: Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

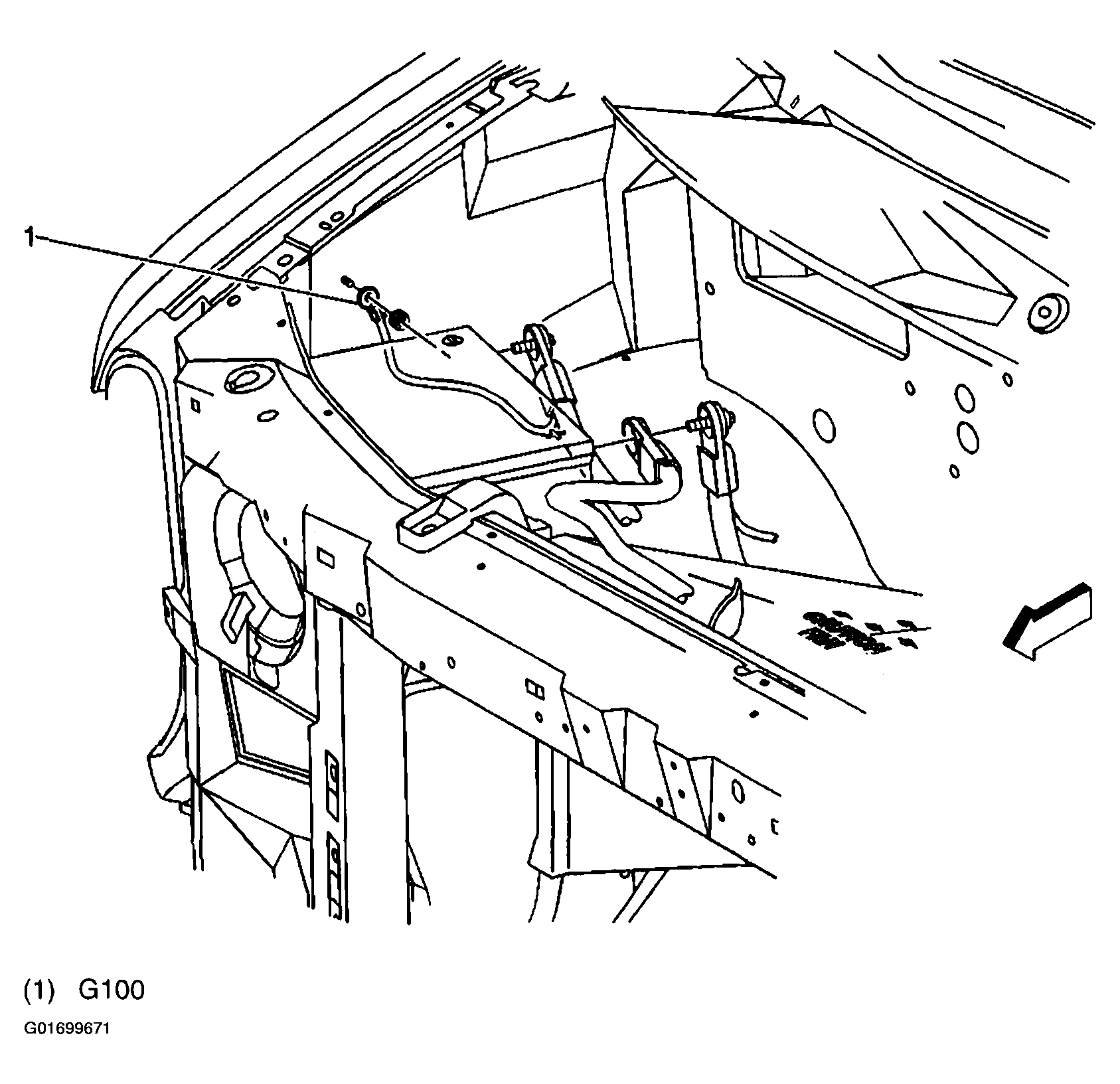

Fig 3: Battery Wiring (Diesel)

Courtesy of GENERAL MOTORS CORP.

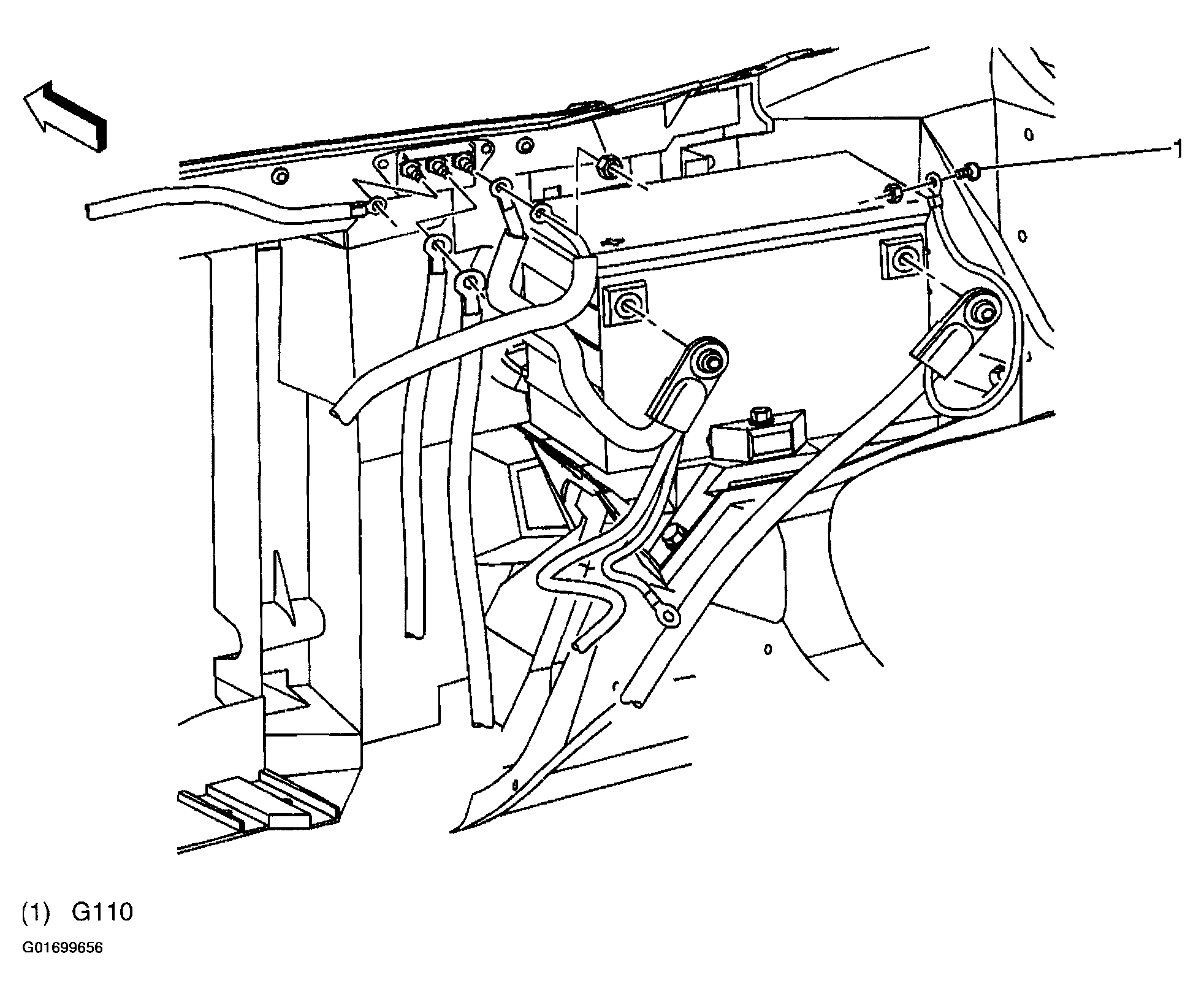

Fig 4: Battery Wiring (Gasoline)

Courtesy of GENERAL MOTORS CORP.
