Component Location Graphics

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

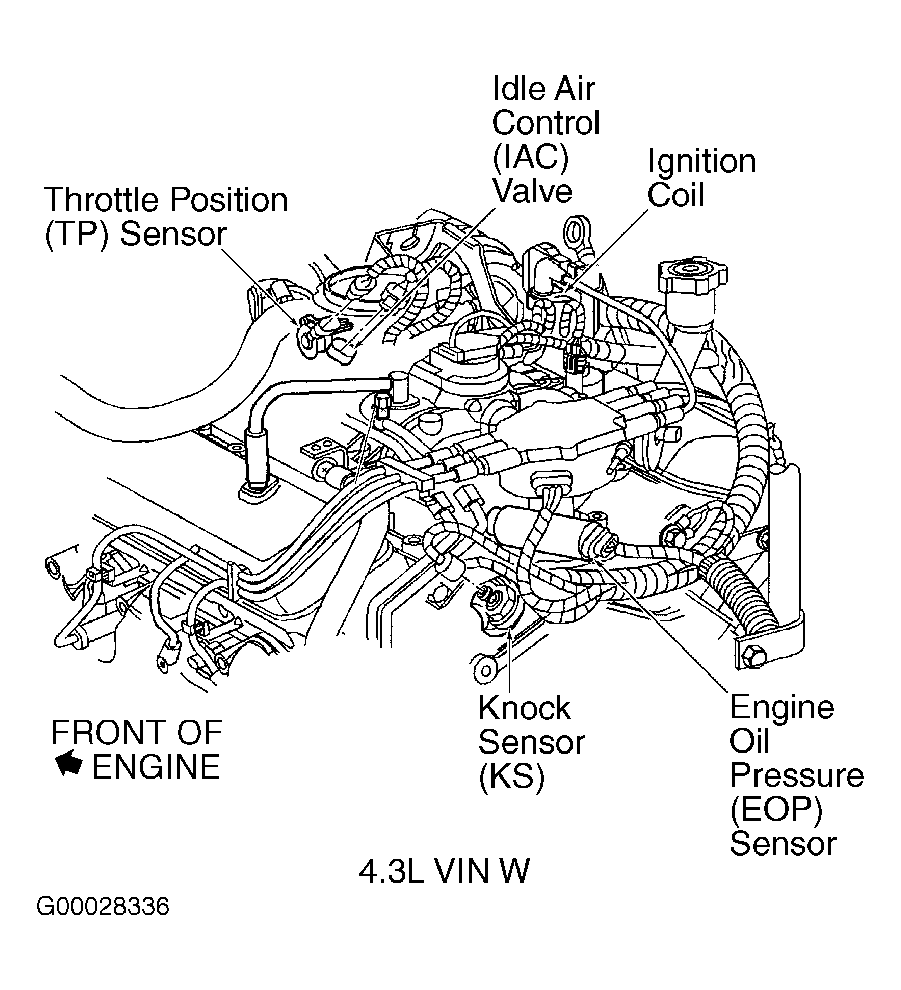

Fig 1: Rear Of Engine (4.3L VIN W)

G00028336

Courtesy of GENERAL MOTORS CORP.

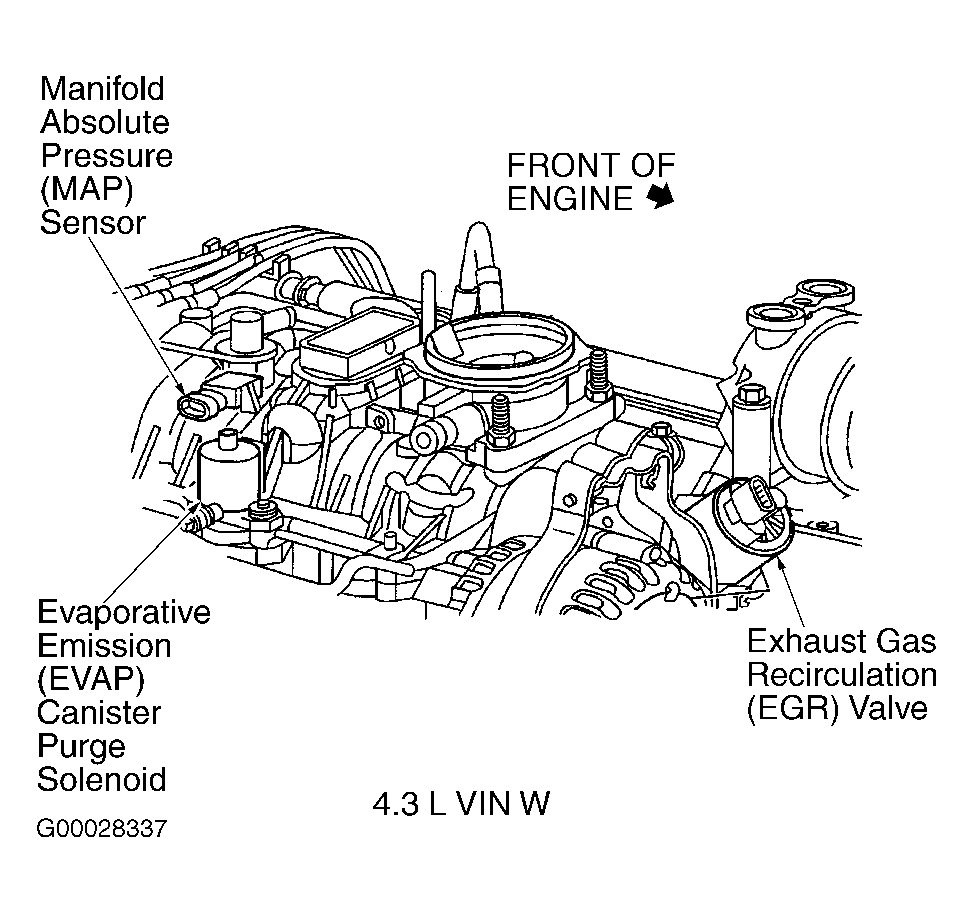

Fig 2: Top Of Engine (4.3L VIN W)

G00028337

Courtesy of GENERAL MOTORS CORP.

Fig 3: Lower Front Of Engine (4.3L VIN W)

G98H63401

Courtesy of GENERAL MOTORS CORP.

Fig 4: Top Right Of Engine (5.0L VIN M & 5.7L VIN R)

G00028338

Courtesy of GENERAL MOTORS CORP.

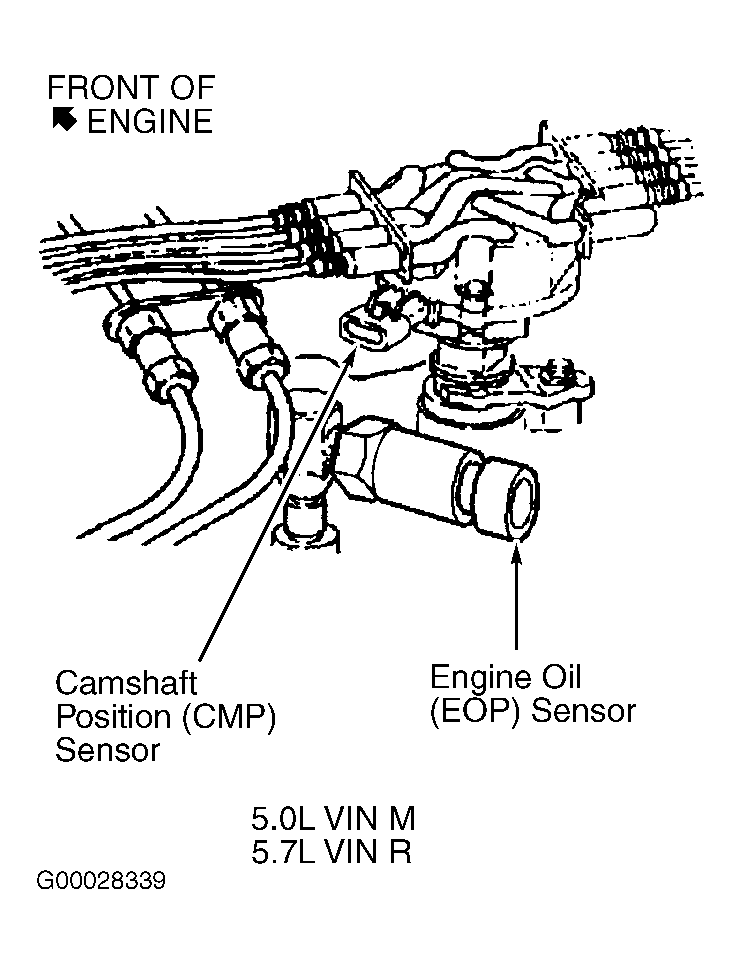

Fig 5: Top Rear Of Engine (5.0L VIN M & 5.7L VIN R)

G00028339

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuel Injection Pump (6.5L VIN F)

G00028340

Courtesy of GENERAL MOTORS CORP.

Fig 7: Top Of Engine (6.5L VIN F)

G98B63405

Courtesy of GENERAL MOTORS CORP.

Fig 8: Front Of Engine (6.5L VIN F)

G98F63409

Courtesy of GENERAL MOTORS CORP.

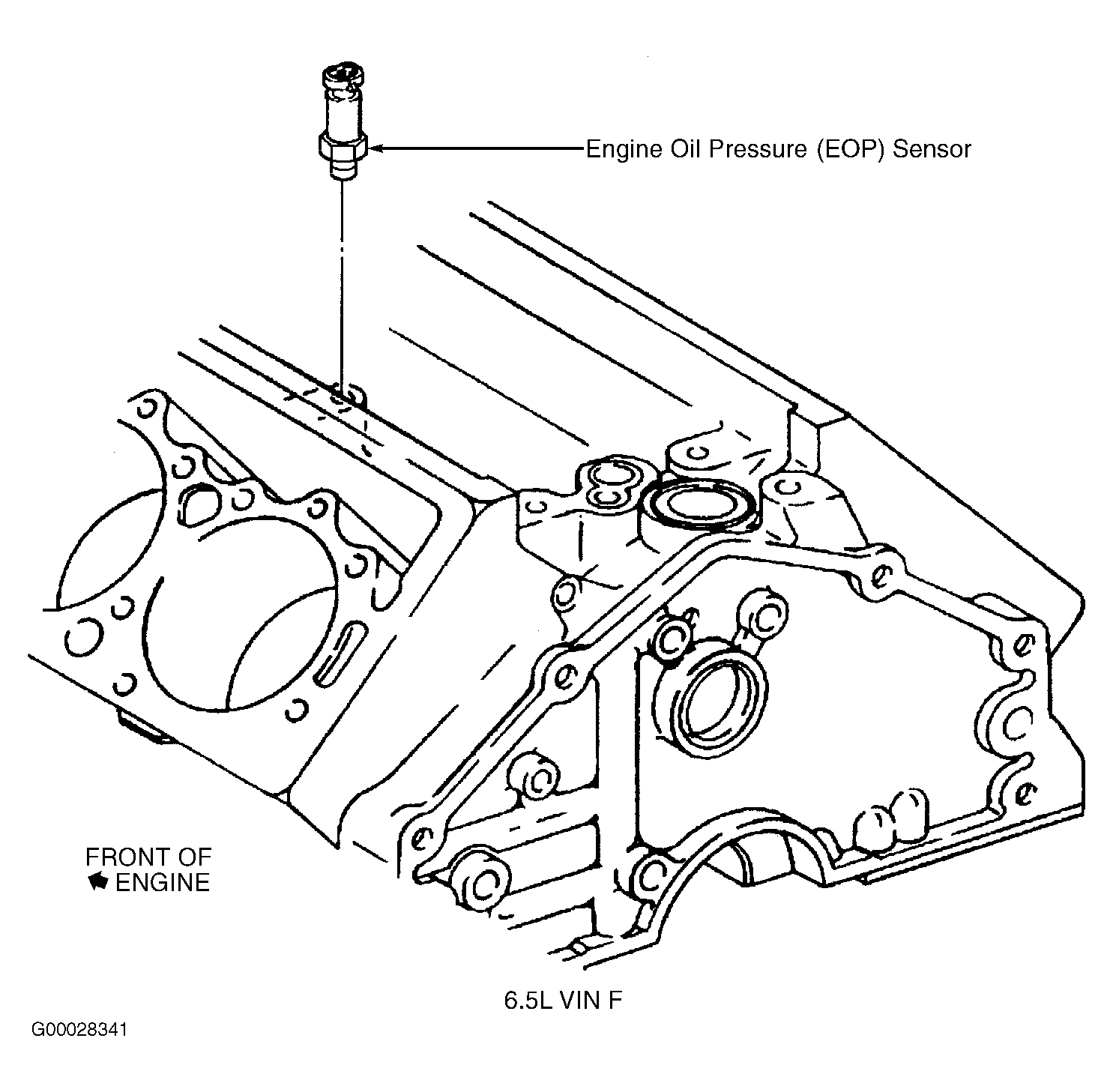

Fig 9: Left Rear Of Engine (6.5L VIN F)

G00028341

Courtesy of GENERAL MOTORS CORP.

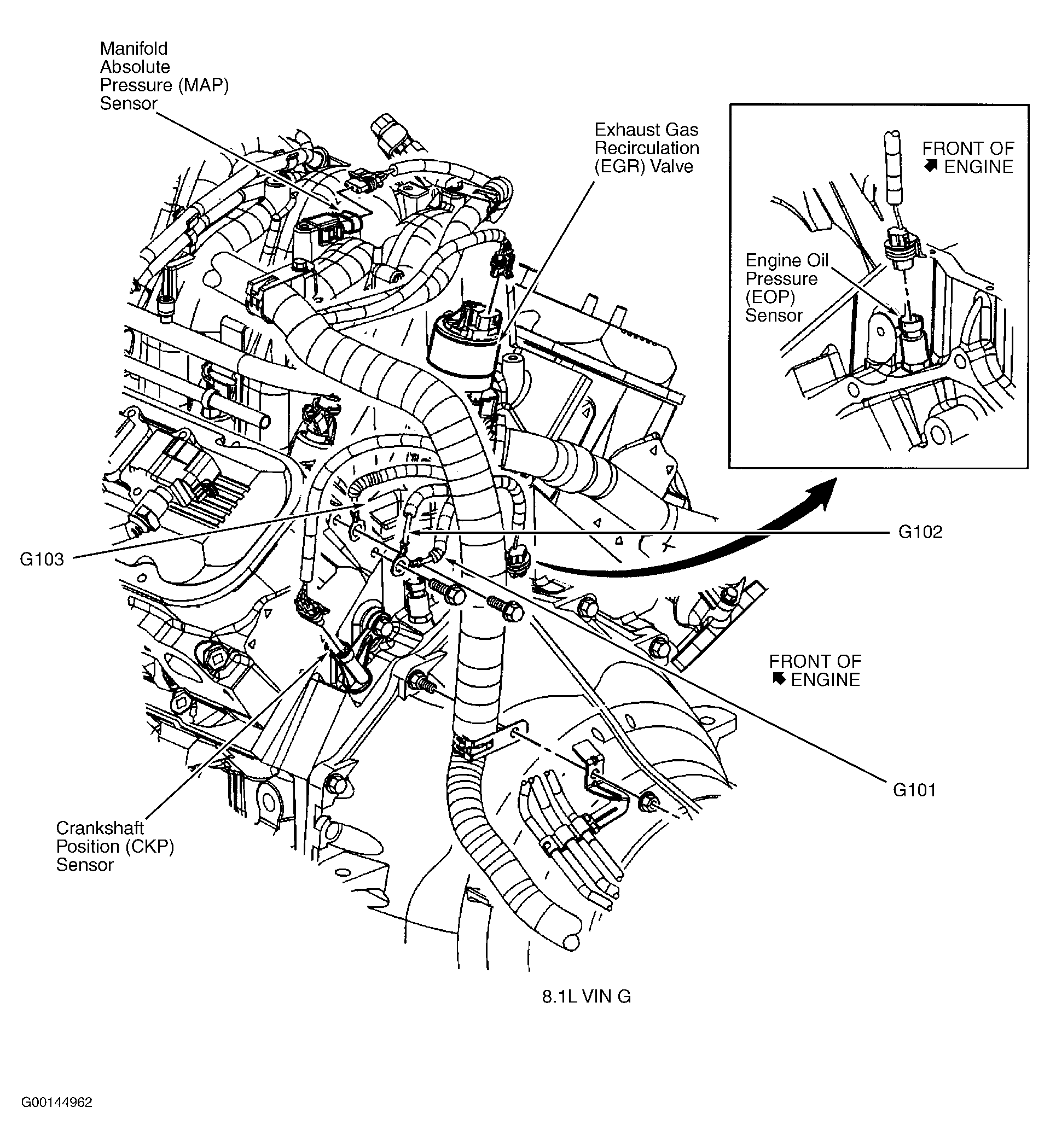

Fig 10: Left Rear Of Engine (8.1L VIN G)

G00144962

Courtesy of GENERAL MOTORS CORP.

Fig 11: Left Side Of Engine (8.1L VIN G)

G00028343

Courtesy of GENERAL MOTORS CORP.

Fig 12: Left Side Of Engine Compartment (4.3L VIN W, 5.0L VIN M, 5.7L VIN R & 8.1L VIN G)

G00028344

Courtesy of GENERAL MOTORS CORP.

Fig 13: Left Side Of Dash

G98E63416

Courtesy of GENERAL MOTORS CORP.

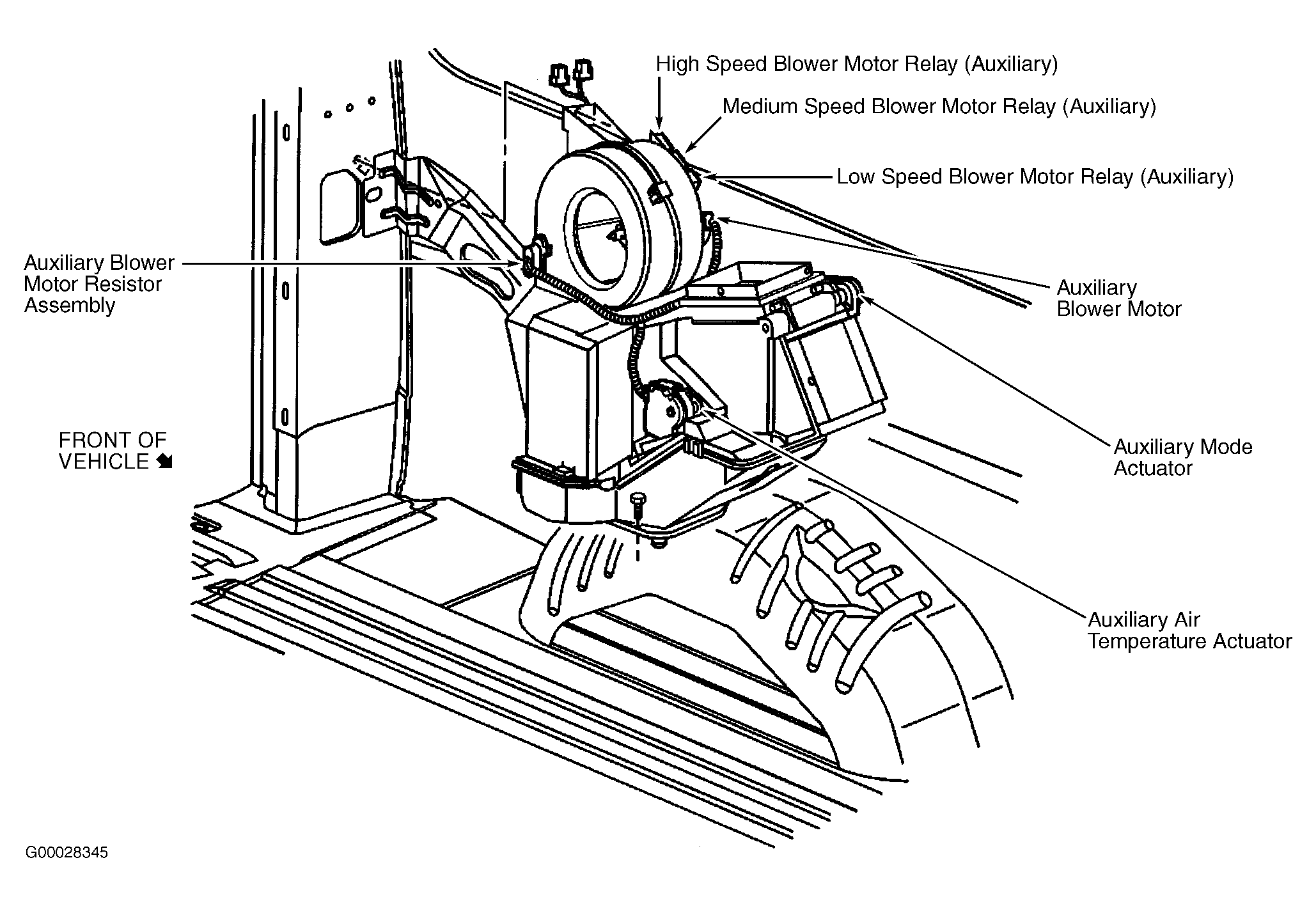

Fig 14: Left Rear Of Interior Cabin

G00028345

Courtesy of GENERAL MOTORS CORP.

Fig 15: Center Of Dash (6.5L VIN F)

G98C63414

Courtesy of GENERAL MOTORS CORP.

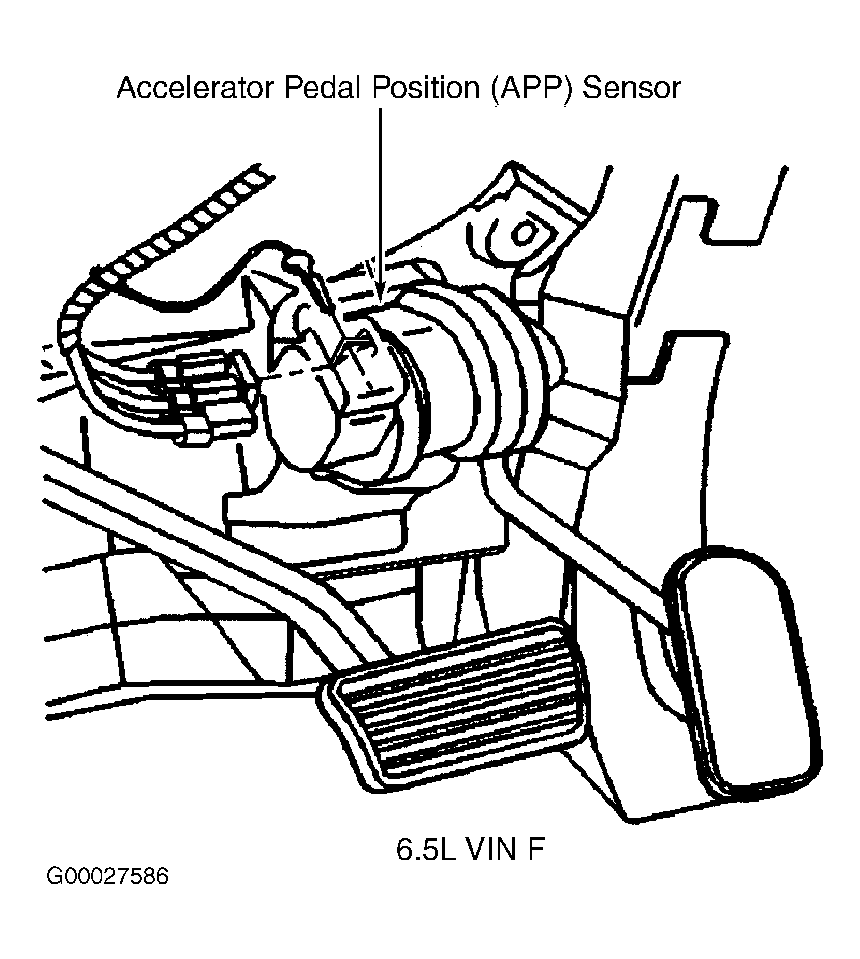

Fig 16: Left Side Of Dash (6.5L VIN F)

G00027586

Courtesy of GENERAL MOTORS CORP.

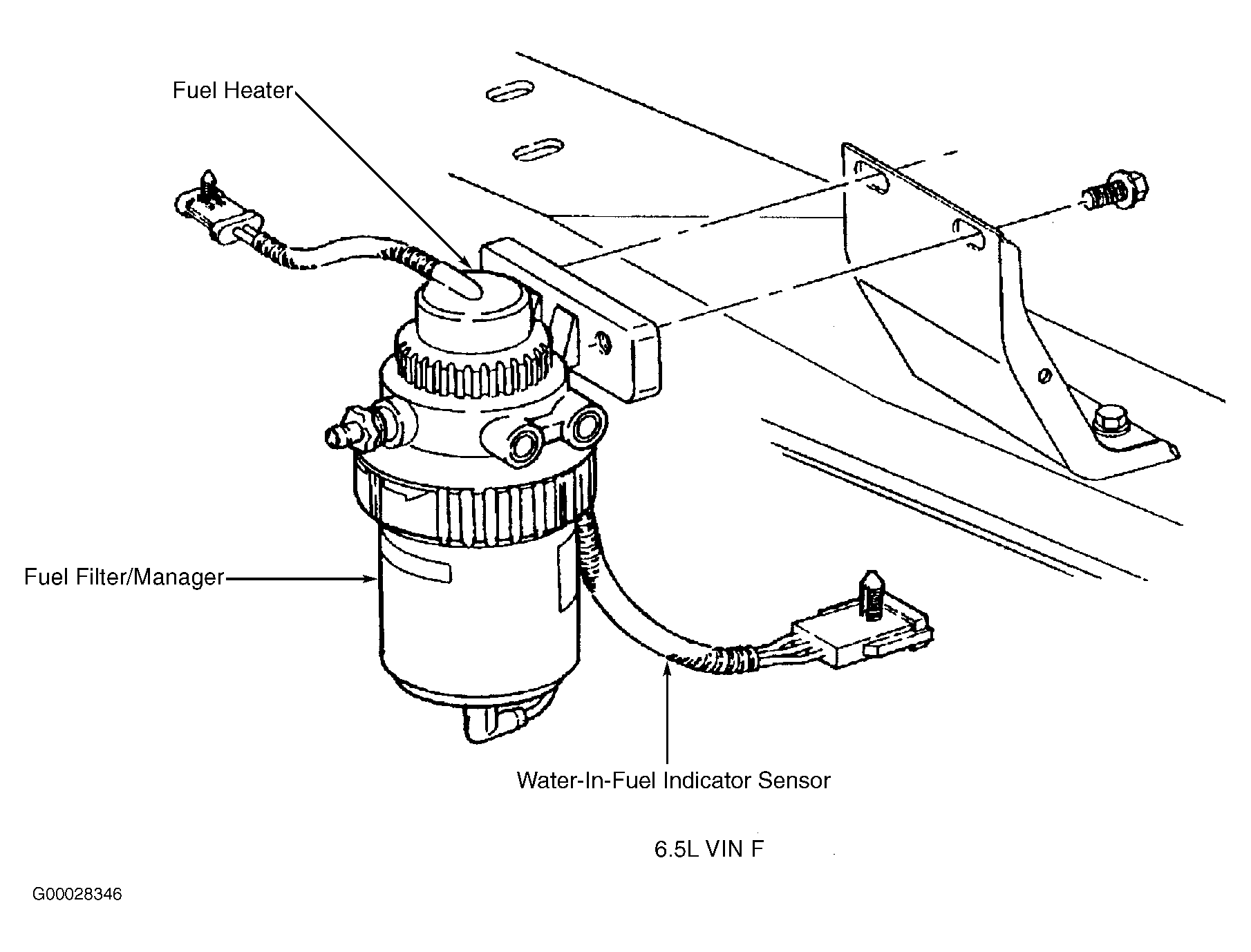

Fig 17: Under Left Side Of Vehicle (6.5L VIN F)

G00028346

Courtesy of GENERAL MOTORS CORP.
