Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof to the fully closed position.
  2. Remove the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .
  3. Remove the sunroof control module from the sunroof module by sliding the control module towards the center of the vehicle.

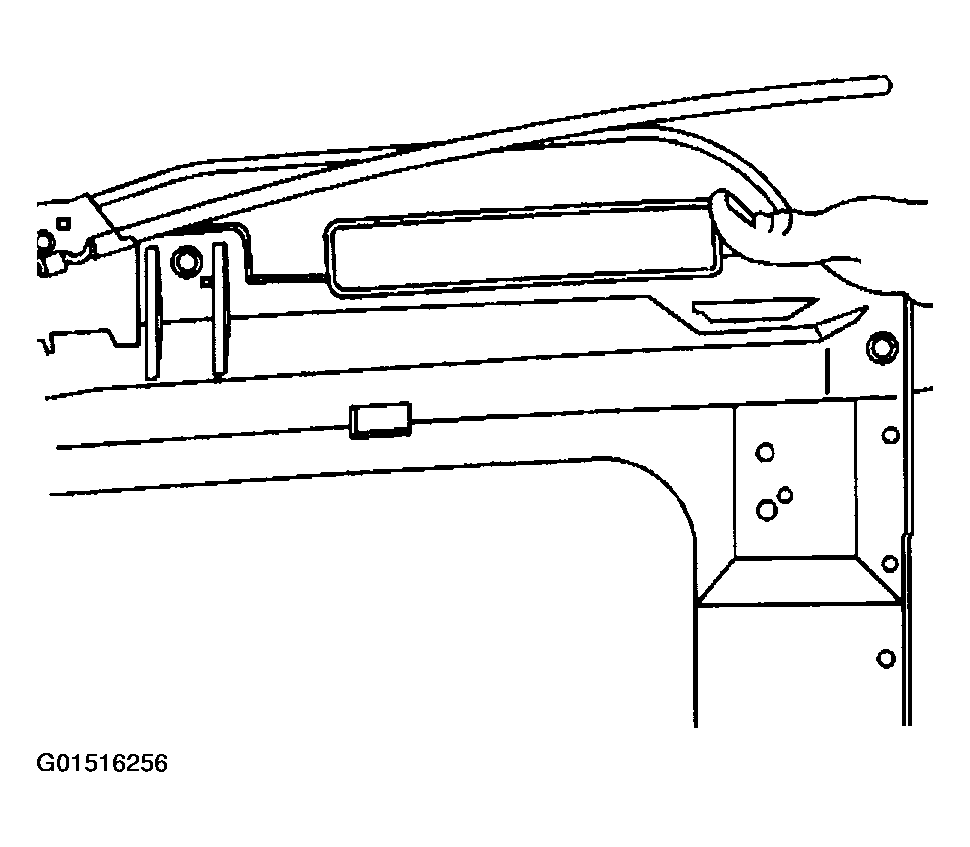

    Fig 1: Sliding Control Module Towards Center Of Vehicle
    G01516256Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors from the sunroof control module.
  5. Remove the control module from the vehicle.

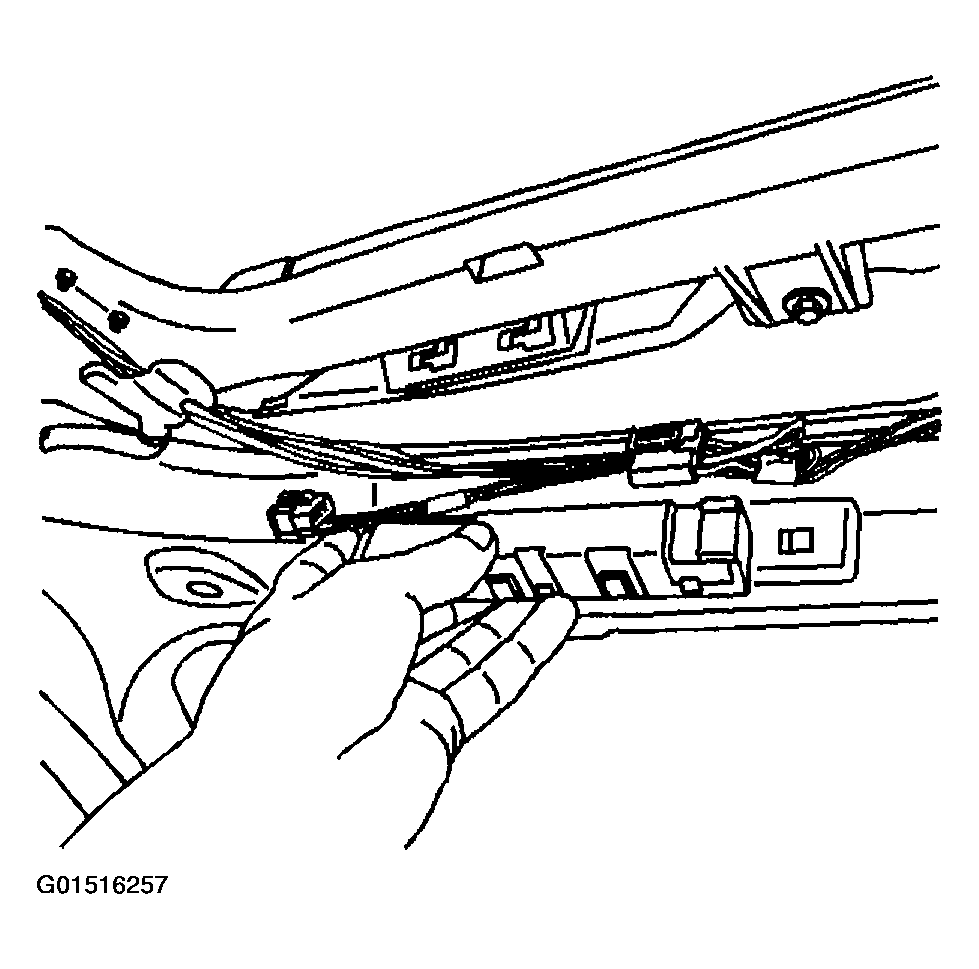

    Fig 2: Disconnecting Electrical Connectors From Sunroof Control Module
    G01516257Courtesy of GENERAL MOTORS CORP.
