Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Important: A new sunroof module assembly will not have the sunroof window or the sunshade as components of the new service part.
- The old sunroof window and sunshade will need to be installed to the new sunroof module assembly.
Remove the sunroof sunshade. Refer to SUNROOF SUNSHADE PANEL REPLACEMENT .
- Remove the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .
- Disconnect the electrical connector from the sunroof module assembly.
- Disconnect the front and rear drain hoses from the sunroof module.
- Have an assistant support the sunroof module before removing the bolts.

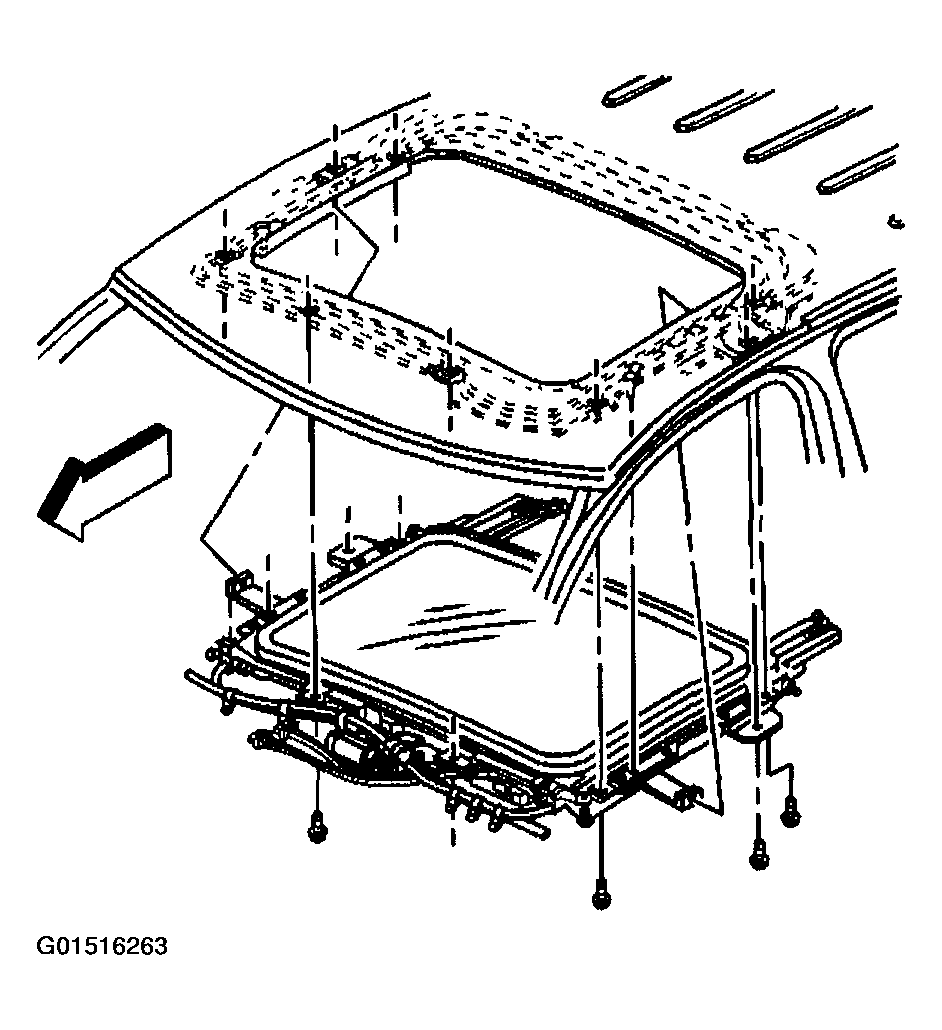

- Remove the bolts from the sunroof module.
- Remove the sunroof module from the vehicle roof with an assistant.
