Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery with the positive (+) side up. Use one 3 V CR2032 battery (or the equivalent).
  2. Ensure that the seal is in position. Align the 2 halves of the case and snap the two halves together.
  3. Resynchronize the transmitter. Refer to TRANSMITTER SYNCHRONIZATION .

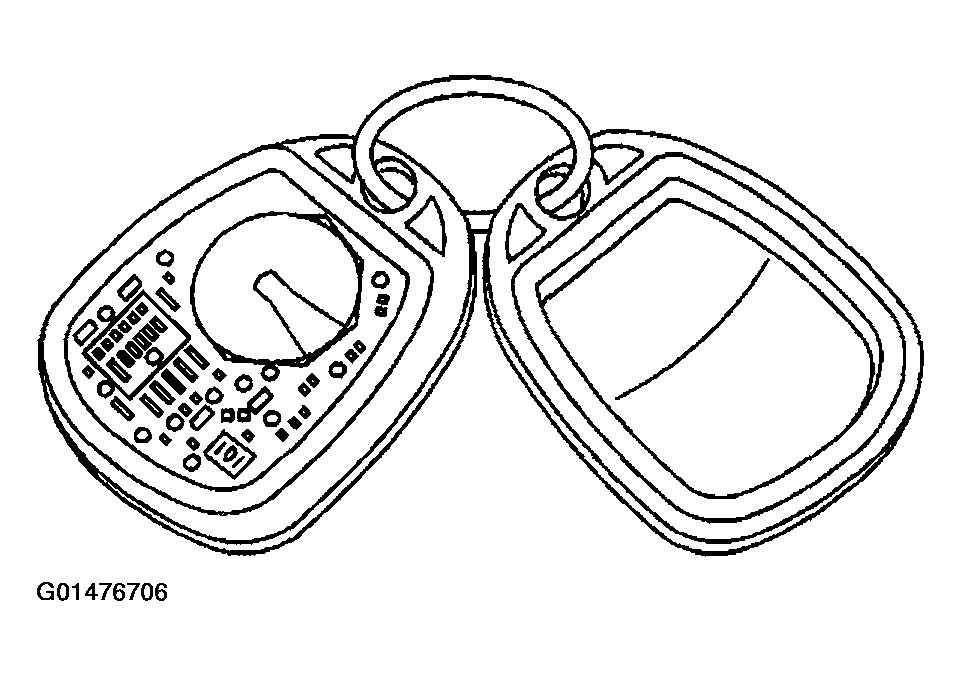

    Fig 1: Installing Battery With Positive (+) Side Up
    G01476706Courtesy of GENERAL MOTORS CORP.
